Smart Home Energy Monitoring: How to Cut Your Electric Bill Without Changing Your Habits

Introduction

High electric bills in hot climates are a common frustration, especially when solar panels are already on the roof. The challenge is figuring out where all that power is going and whether anything can be done about it without giving up comfort or changing daily routines. This guide walks through a real-world approach using energy monitoring hardware and smart home automations to identify the biggest power users and reduce consumption.

Why Circuit-Level Monitoring Matters

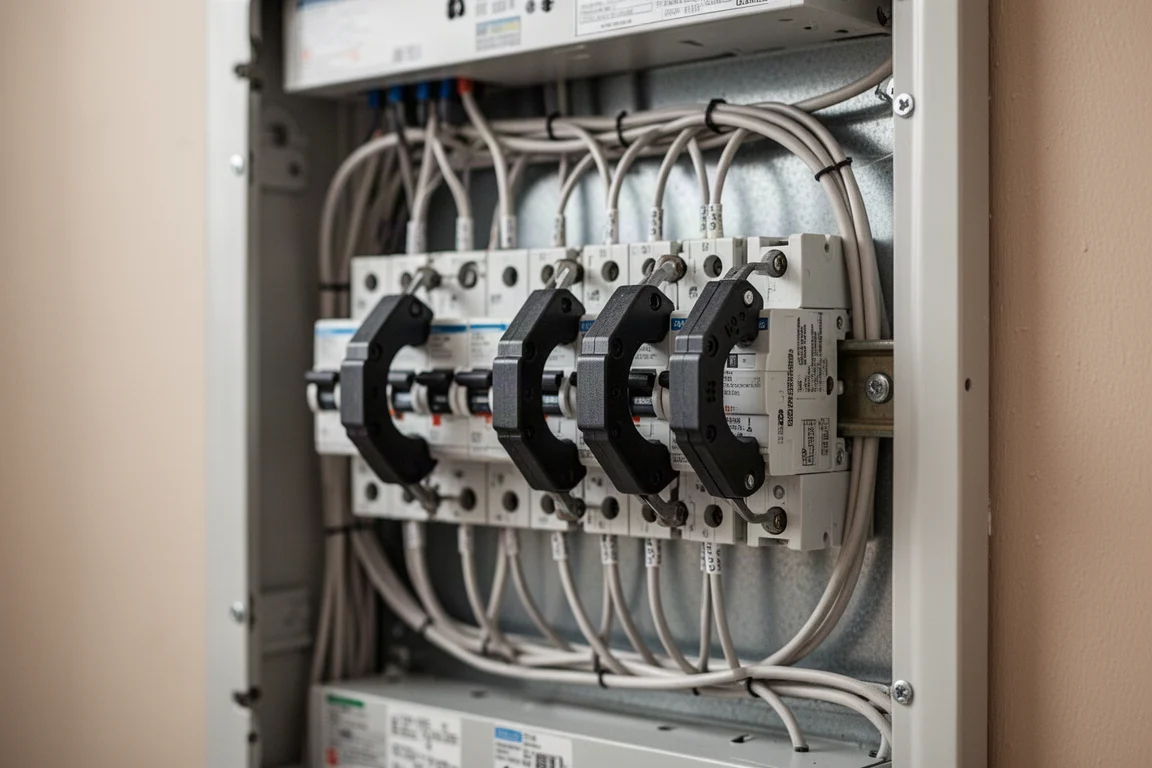

The first step in reducing power usage is understanding exactly where it goes. Many energy monitors rely on device discovery through electrical signatures, which can be unreliable. A more effective approach is circuit-level monitoring, where each individual circuit in the electrical panel gets its own sensor.

This method provides much more granular data about what is using power. Instead of guessing which devices are running, each circuit reports its actual consumption. For homes with multiple sub panels, one monitor may be needed per panel. The installation involves attaching current transformer clamps to each circuit, and while it can be tight in panels with arc fault breakers, the data quality is worth the effort.

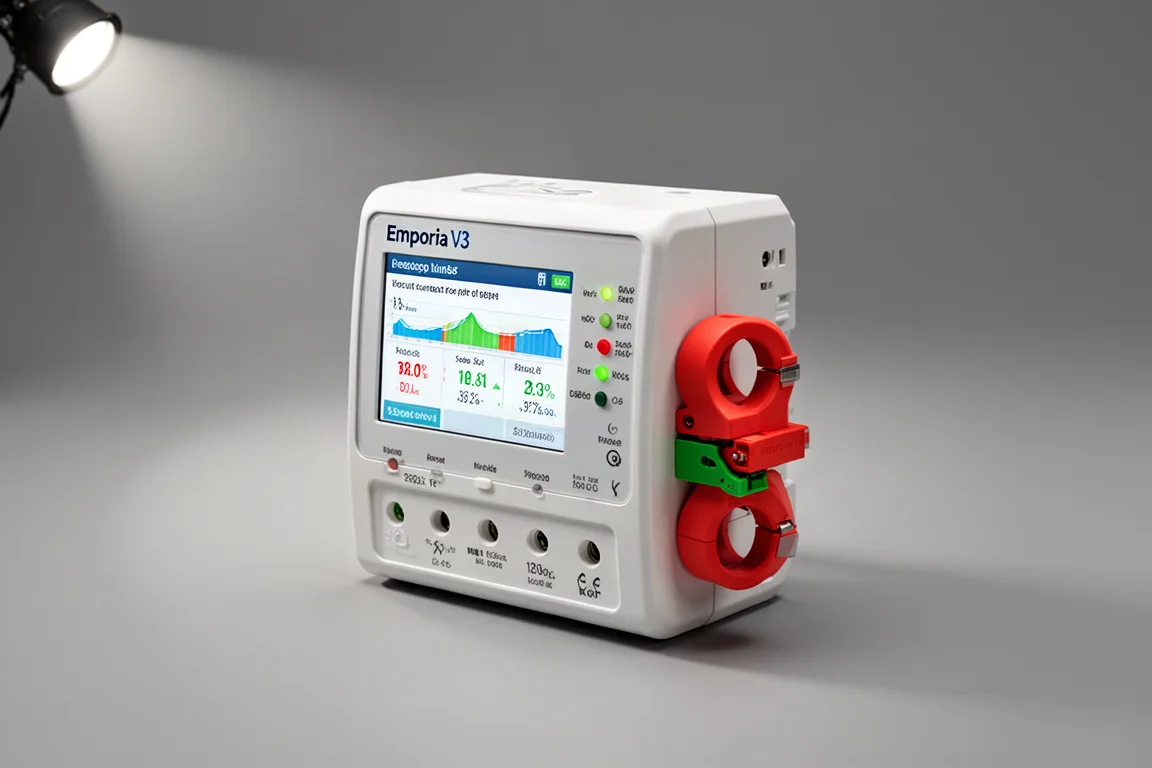

Emporia V3: Granular Circuit Monitoring

The Emporia V3 power monitor stands out because it assigns a dedicated sensor to each circuit. This means every 120 volt circuit gets its own clamp, and 240 volt circuits can use one or two clamps depending on the downstream configuration. The result is precise, actionable data about what is consuming power at any given moment.

For homes with multiple panels, purchasing more than one unit may be necessary. The installation can be somewhat involved, and the wiring may look messy in the panel, but shortening the sensor wires to the exact length needed can clean things up significantly. The accompanying app is well-designed and easy to use, providing real-time usage charts and historical data.

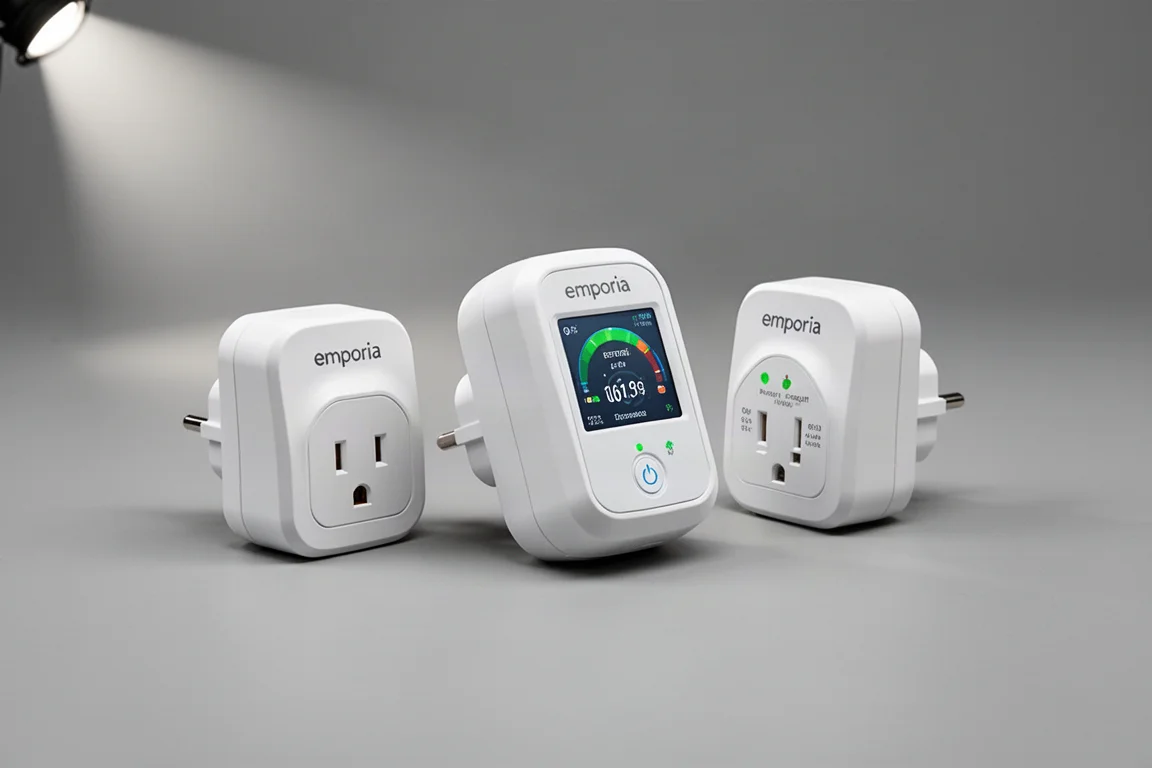

Emporia Power Monitoring Plugs: Device-Level Insight

For specific devices that need even more detailed tracking, individual power monitoring plugs are a useful addition. These plugs nest under whichever circuit they are connected to in the app, and they subtract their measured energy from the overall circuit total to avoid double counting.

This setup is ideal for identifying problematic equipment such as desktop computers, networking gear, or entertainment systems. The plugs provide instant feedback on power draw, making it easy to spot devices that consume more than expected.

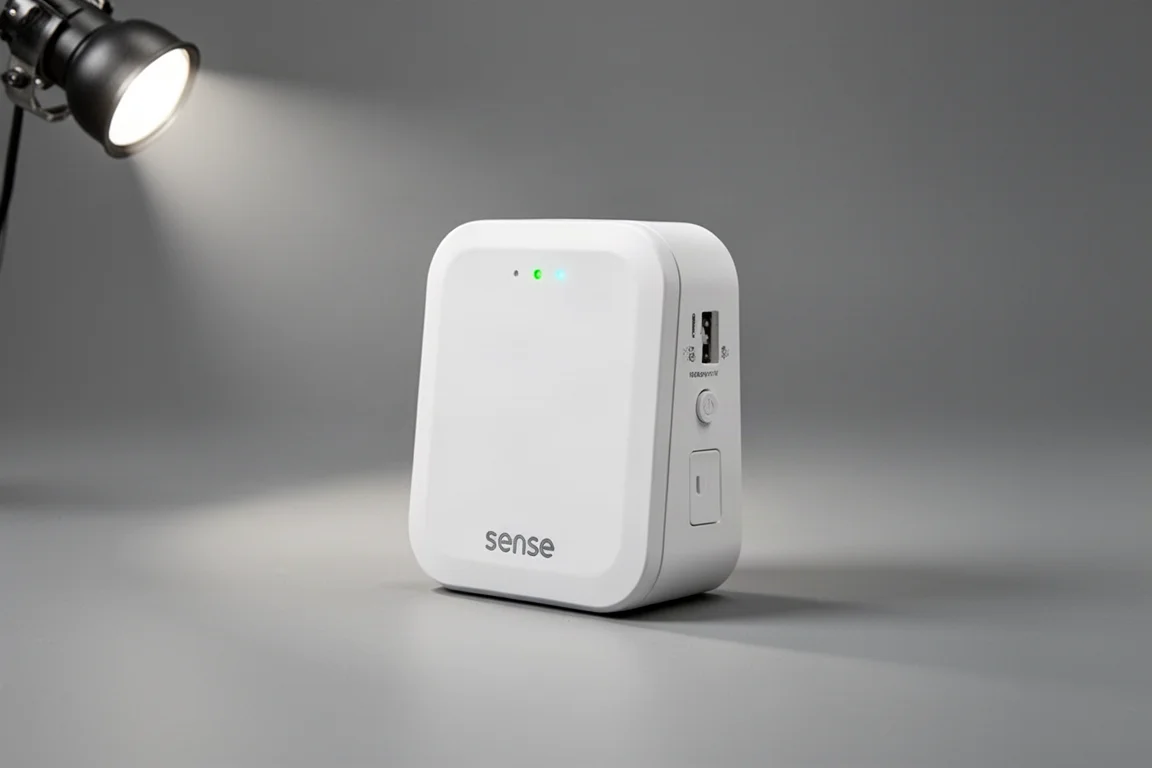

Sense Energy Monitor: A Cautionary Tale

Not all energy monitors deliver on their promises. The Sense Energy Monitor attempts to discover devices based on their electrical signature, but in practice this approach can be frustrating. After years of use, it may still fail to differentiate between similar appliances, and the devices it does identify are often tools that are rarely used.

The core limitation is that signature-based detection cannot match the accuracy of dedicated circuit sensors. For anyone serious about understanding their energy usage, circuit-level monitoring is a more reliable investment.

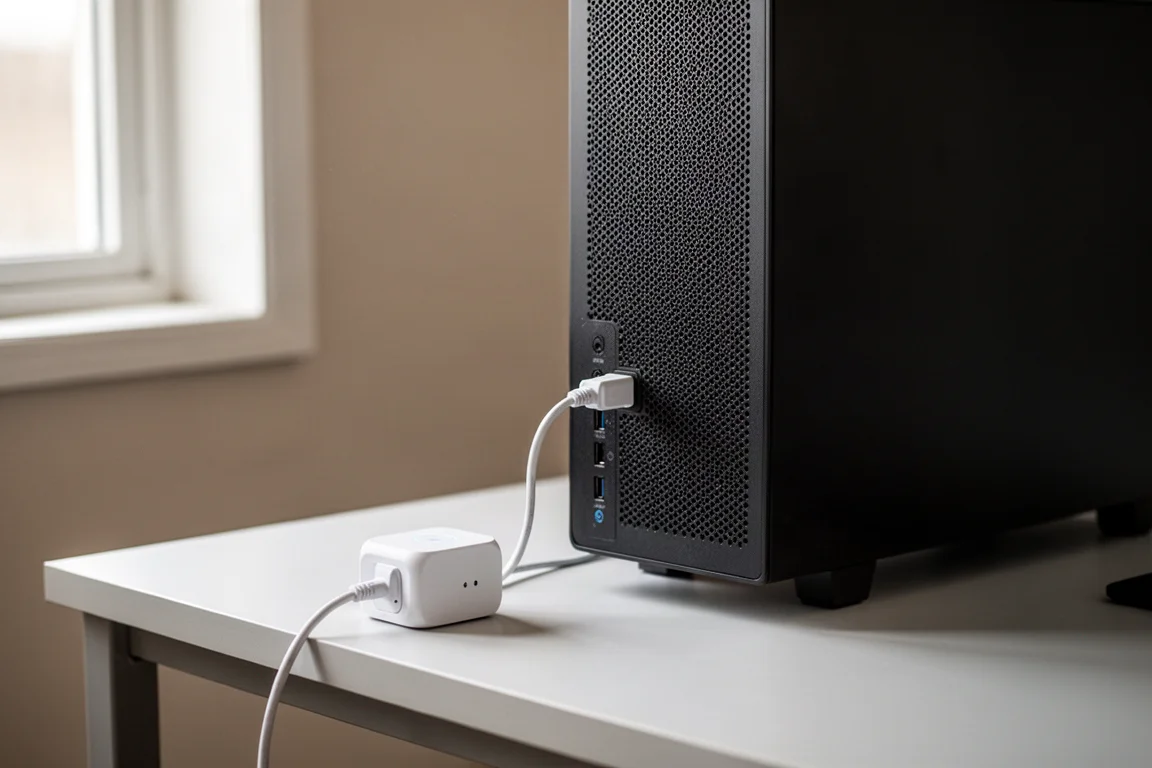

Automating Computer Power Usage

Desktop computers and networking equipment can be a surprisingly large portion of monthly energy use. Many people leave computers running all day because Windows sleep mode has historically been buggy, causing display issues and peripheral disconnections. Hibernate, however, tends to be much more stable.

Using a Home Assistant PC control agent, computers can be set to hibernate automatically during a bedtime routine or when someone leaves the house. Wake-on-LAN can bring the computer back when the owner returns, so it is always ready to use. This approach delivered a significant daily reduction in power usage with essentially no compromises.

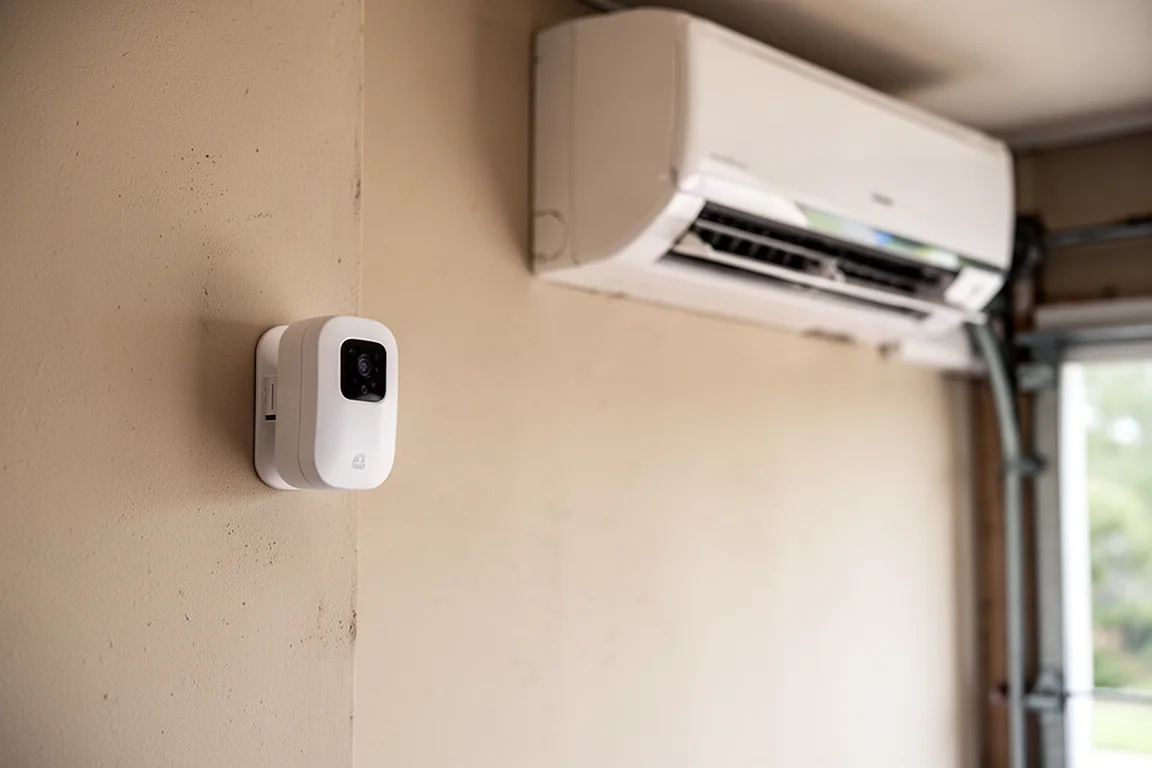

Controlling a Non-Smart Mini Split

Air conditioning is often the largest energy expense in hot climates, and garage mini splits can be particularly costly. When the unit is not directly smart-enabled, an infrared hub can bridge the gap. By learning the IR codes for the air conditioner, the hub can control power and settings through a smart home platform.

An automation that turns the mini split off during hours when the garage is not in use, such as overnight, can reduce consumption without affecting comfort during active hours. This simple schedule change produced measurable savings.

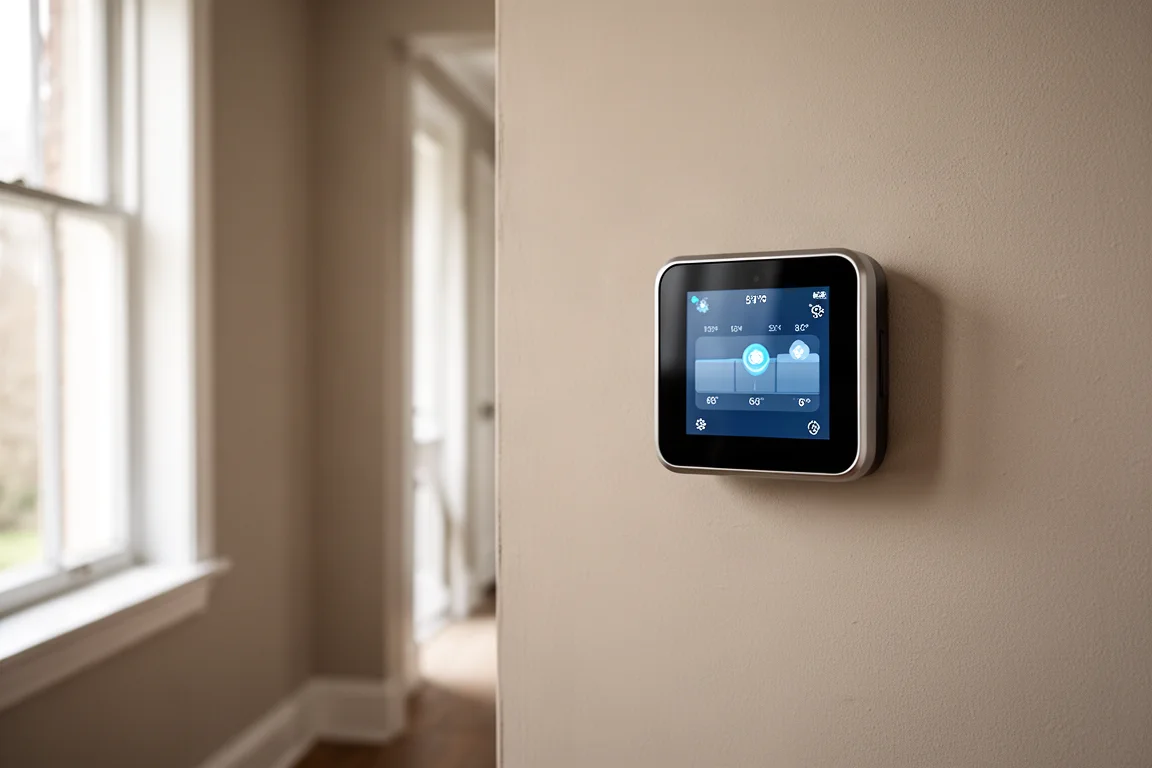

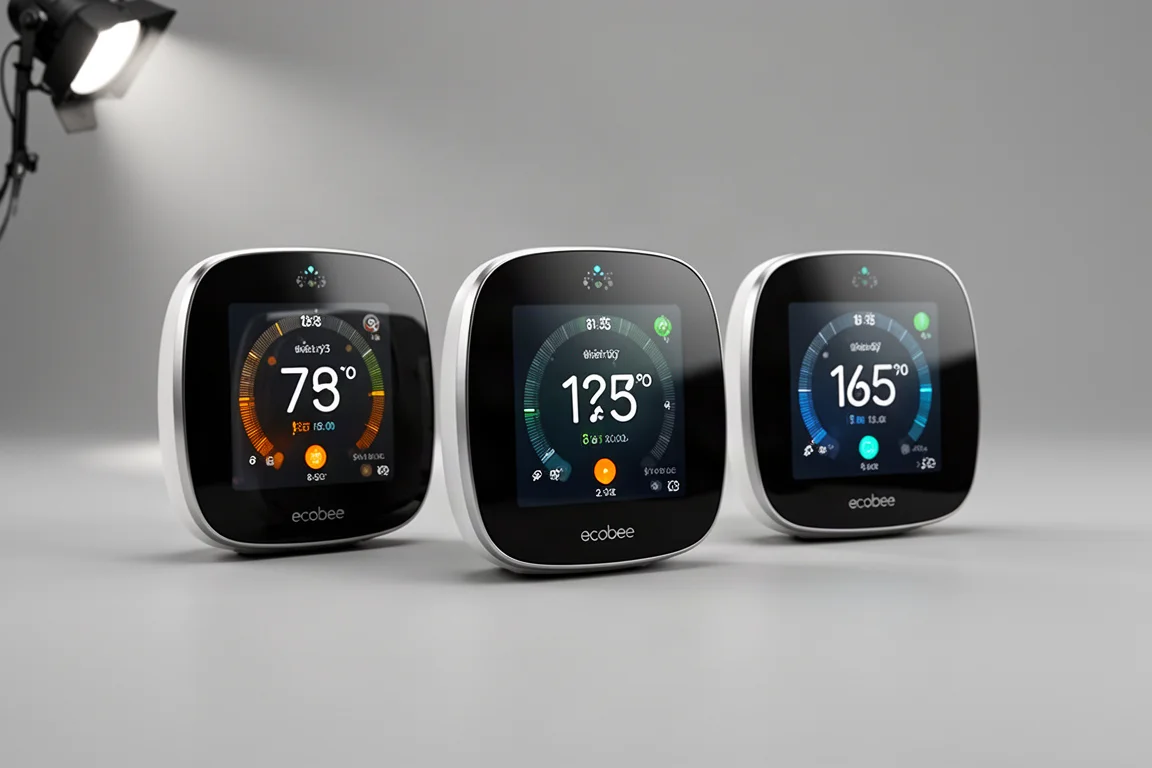

Thermostat Scheduling: What the Data Shows

Smart thermostats are already common in many homes, but scheduling does not always deliver the expected savings. In one test, removing a constant temperature hold and adding schedules saved nothing, and in some cases slightly increased usage. Weather variability makes daily comparisons difficult, and aggressive scheduling can make a home uncomfortable for negligible gains.

The lesson is that air conditioning in hot climates accounts for a massive amount of power, but there are no magical savings beyond improving insulation or accepting comfort trade-offs. Smart thermostats remain useful for convenience, but expectations about energy savings should be realistic.

Other Easy Wins Around the House

Beyond the major appliances, smaller adjustments can add up. Lowering a variable speed pool pump from 1,800 to 1,500 RPM reduced power draw by 145 watts, saving about 21 cents per day at a 10-hour runtime. Turning off garage lights at bedtime saves another 12 cents nightly. Even being mindful of a large OLED television that draws around 190 watts can make a difference.

Overall Buying Advice

Energy monitors are an investment, but they provide the information needed to target the biggest power users and the motivation to act on that data. For homes with a single electrical panel, one monitor may be enough. For those using Home Assistant, the monitors integrate through the cloud, and a local-only option is available by flashing the hardware with custom firmware, though that disables the official app.

The total daily savings from a combination of computer hibernation, mini split scheduling, and small adjustments can be substantial, often paying for the monitoring hardware within a year. The real-time feedback of seeing usage drop is itself a compelling reason to make the investment.

Conclusion

Reducing a high electric bill does not have to mean changing habits or sacrificing comfort. Circuit-level energy monitoring reveals exactly where power is going, and simple automations can target the biggest users. Computer hibernation and scheduled mini split operation delivered the most meaningful savings, while thermostat scheduling proved less impactful. For anyone willing to spend a little time on setup, the combination of monitoring and automation is a worthwhile experiment with lasting benefits.
