The Ultimate Bike Light Setup: Five Magic Shine Lights Worth Considering

Introduction

The end of summer is when most riders discover that their lights are not quite ready for the darker half of the year. Evenings close in fast, and roads that feel familiar in daylight look very different after dark.

Building a setup that works is less about chasing the biggest number on the box and more about seeing the road clearly, being seen early, and still having battery left when you get home. It is also about not dazzling the people coming the other way.

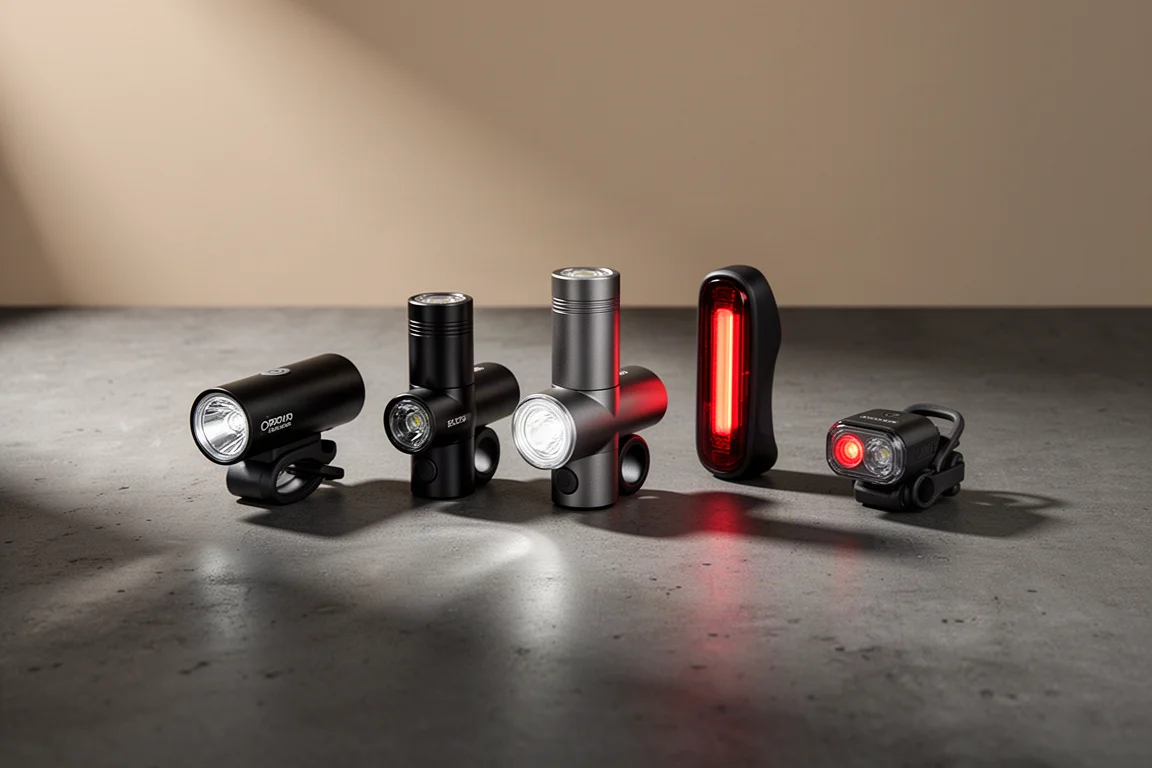

Magic Shine supplied the lights covered in this guide, and the five models below show how the different jobs fit together.

What to Look For in a Modern Bike Light

Start with control. On a narrow road you want to dip your headlight when something approaches, exactly as you would in a car, and reaching forward to the light itself is awkward, especially when it sits under the computer mount. A handlebar remote solves this, and the neatest option is integration with an electronic drivetrain, where a hood button toggles between high and low beam. That level of integration is currently limited to Shimano Di2 systems, but as electronic groupsets reach more price points it becomes relevant to more riders.

Rear lights have become smarter too. Radar systems alert you to the presence and position of a vehicle behind you, and some display that information on a compatible head unit. That matters more than it used to, because electric cars are quiet and easy to miss until they are close. Some rear lights also dim automatically when they sense another cyclist behind, or adapt to changing light levels and braking forces.

Battery range deserves as much attention as brightness. Running out of power a kilometre from home means walking, and that kilometre feels very long when it is cold, dark and wet. Check the run time of the mode you will actually use most, not the maximum figure on the box.

Beam shape decides how usable a light really is. A good beam lights the road ahead and the verges, so you can spot obstacles and stay aware of your surroundings. Too narrow and you get tunnel vision; too scattered and the light is wasted in every direction. The ideal is a focused, broad beam with a clean cut-off at the top.

Mounting orientation is the last piece. Many lenses use anti-glare shaping along the top edge to push the beam down onto the road, so a light mounted upside down will not perform as intended. Some models are sold in a dedicated version for under-bar mounting to keep this correct.

How Many Lights You Actually Need

Four is the number that works best for a mix of urban and rural riding. A front and rear light mounted on the bike is the foundation, and after dark it is a legal requirement in the UK.

Add a front and rear light on your helmet. The rear one raises your visibility, and the front one improves your view when cornering, because it follows your head rather than the bars.

For a mix of town and country riding, the bike lights run a constant beam: a steady front light for vision and a steady rear point so drivers can judge distance. The helmet rear light runs in flashing mode, which makes you easier to identify as a cyclist. The helmet front light can go either way, on a low flash in town to catch the eye of a driver pulling out of a side street, and on constant mode on faster rural lanes for extra cornering visibility.

Power needs differ front and rear. Red rear lights are easy to see at night, so roughly 100 to 200 lumens is plenty for most riders, while a daytime rear light can use up to around 450 lumens. At the front, 1,200 lumens suits commuting on fast country roads with no street lighting at all.

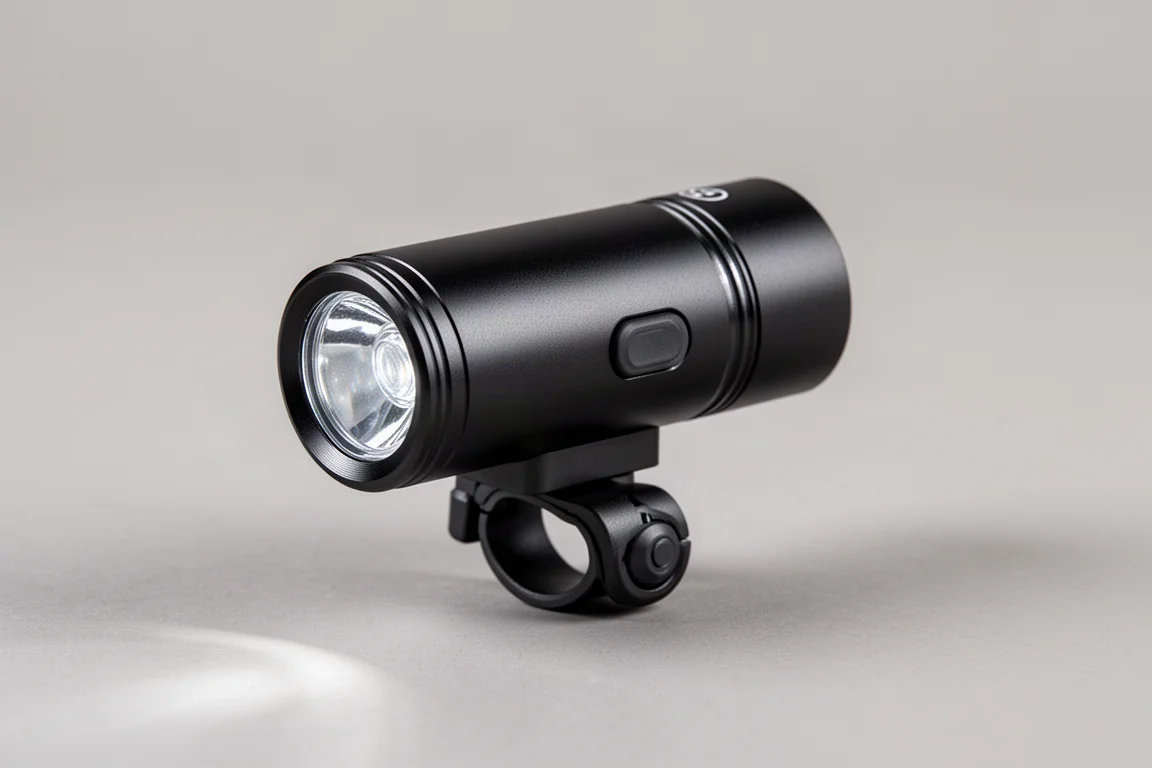

Best for Electronic Shifting Integration: Magic Shine Evo 1700 SD

The Evo 1700 SD is the cleanest answer to the dipping problem. Connected to a Shimano Di2 system, it can be controlled from the hood buttons, so a single click toggles between high and low beam without moving your hand off the bars.

That integration is limited to Shimano Di2 for now, but the light is not tied to it. Magic Shine’s FTR technology also lets a wireless remote switch the front and rear lights on and off with one press of a button.

The Evo 1700 SD is also one of the larger lights here, with a bigger battery to match, which matters if you would rather run a moderate mode for the whole ride than a maximum mode for part of it.

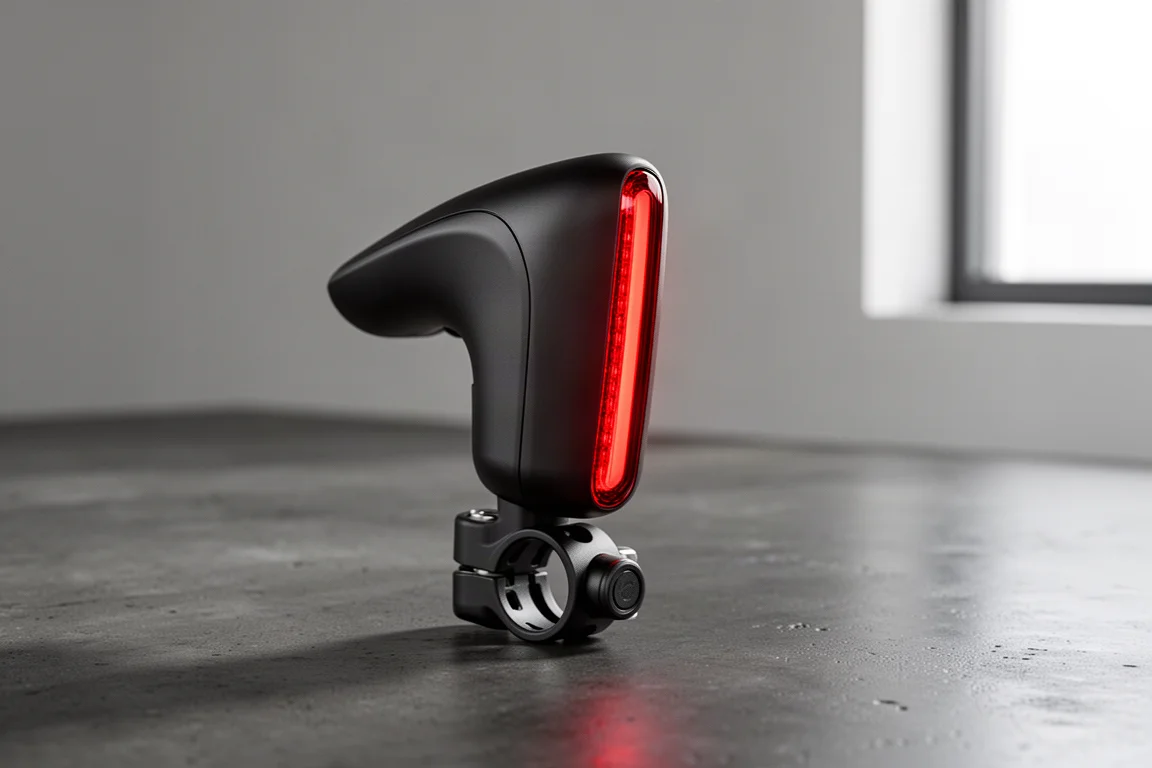

Best for Group Ride Visibility: Magic Shine C50 v2.0

The C50 v2.0 is a rear light built around Peloton sync flash. In that mode it syncs with other compatible lights nearby so they flash together, which makes an entire group more visible rather than a scatter of independent blinks.

That is the feature worth knowing about before you buy, because it pays off most when the rest of your group runs compatible lights. Used on its own, the C50 v2.0 remains a rear light designed for the job.

For riders who spend the darker months in a group, the sync mode is the reason to choose this one over a simpler rear light.

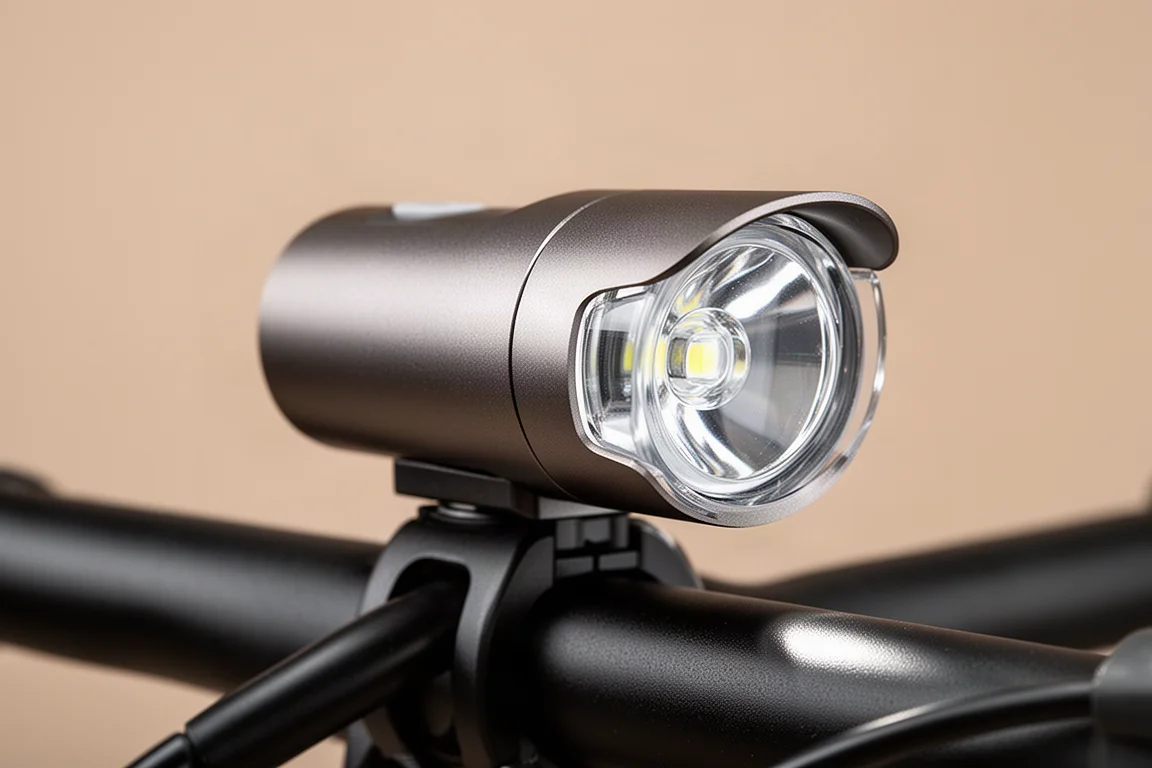

Best All-Round Front Light: Magic Shine Ulti 1500S

The Ulti 1500S tops out at 1,500 lumens, comfortably above the 1,200 lumens that suits fast, unlit country roads. Buying more power than you strictly need is a deliberate strategy rather than a vanity purchase.

Running a bigger light in a lower mode is usually the smarter approach. It keeps the beam bright enough for the road while leaving battery in reserve, instead of draining the maximum setting and running out before you get home.

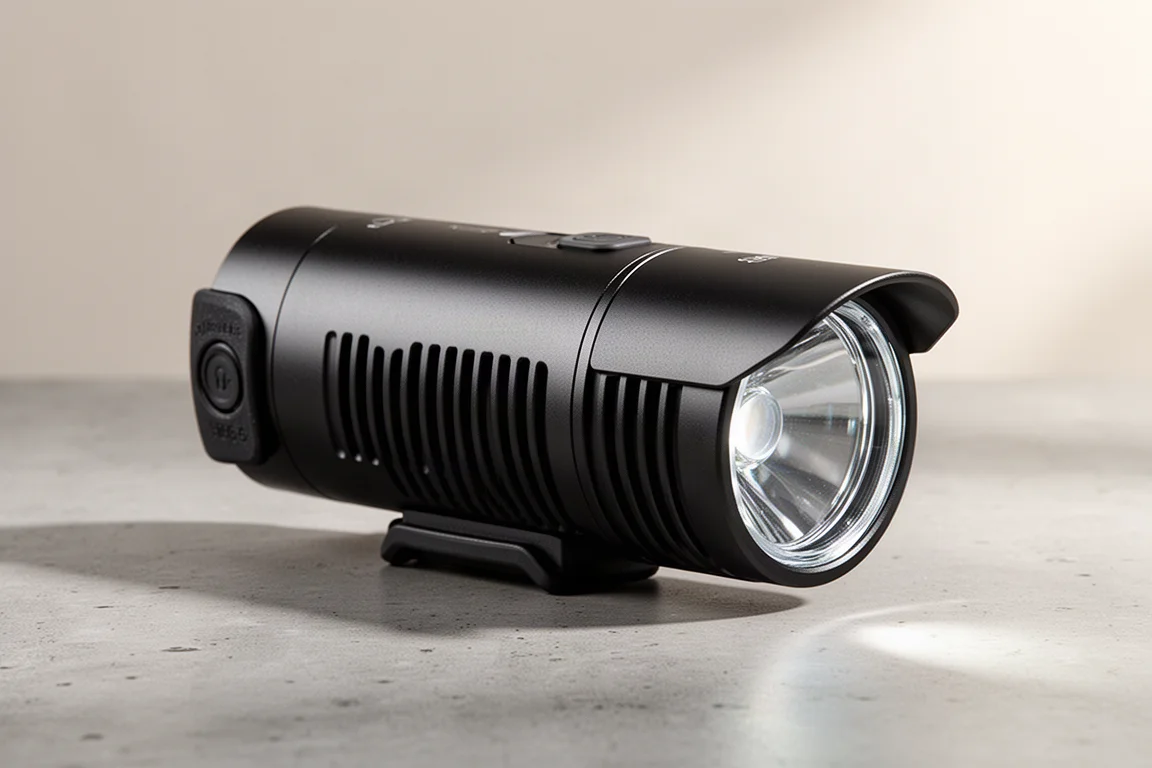

Best for Longer Rides: Magic Shine Ray 2600B

The Ray 2600B sits at the top of the range for output, and it carries a larger battery to match. On the 1,200 lumen setting, that combination lasts well beyond a typical commute.

That headroom is the whole point. The light you choose should cover your normal ride time in the mode you will use most, with something left over for a detour, a delay or a colder than expected evening.

It is a bigger unit than the compact front lights here, so it suits riders who value run time over the smallest possible footprint on the bars.

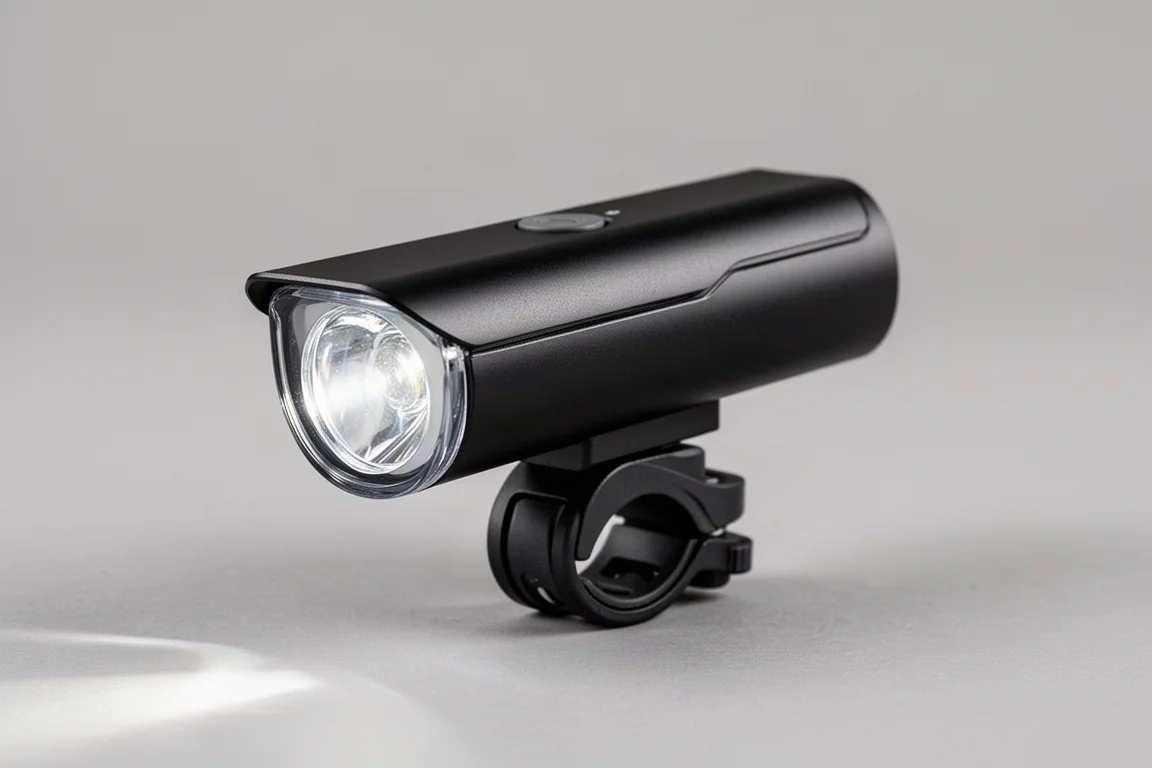

Best for Under-Bar Mounting: Magic Shine LT 1 1200

The LT 1 1200 is a 1,200 lumen front light that matches the output many commuters settle on. Its most useful detail is the choice of versions: a standard model and a special U version made for mounting underneath the bar.

That matters because of the anti-glare shaping along the top edge of the lens, which is designed to deflect the beam down towards the road. Mount the light upside down and it will not work as intended.

Overall Buying Advice

Decide where the light will live before you order it. A bar mount, a computer mount and an under-bar position all change which version of a light you should buy, and the under-bar setup is the cleanest of the three if you want an uncluttered cockpit.

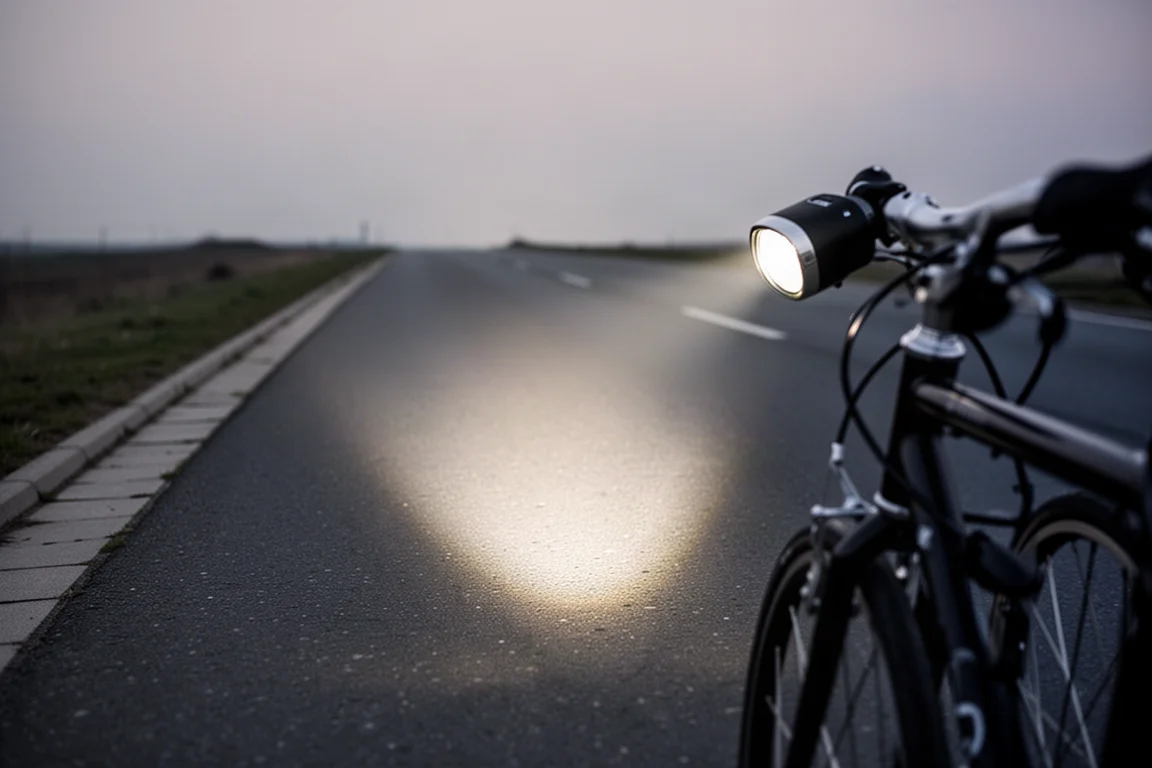

Aiming takes two minutes and makes a real difference. Prop the bike against a wall so it stands roughly straight, then step back about ten big steps: that is where the centre of the beam should fall for city riding and steady speeds. On unlit roads and at faster speeds, use 15 to 20 steps. Where possible, angle the light a fraction towards the kerb.

The goal is always the same: maximise the light that reaches the road and minimise the light that reaches other people’s eyes. That is what separates a bright setup from a genuinely good one.

Check battery life against your real ride time rather than the headline figure, and pick a beam that lights the verges as well as the road ahead. A focused, broad beam with a clean top cut-off lets you ride at daylight speed with confidence.

Conclusion

The ultimate setup is not the most expensive collection of lights. It is four lights doing four clear jobs: a front and rear on the bike running constant beams, and a front and rear on the helmet, with the rear one flashing.

Match the power to your roads, choose a light with enough battery for the mode you will use most, and take the time to mount and aim it properly. Do that, and the darker months stop being a reason to leave the bike at home.
