Best OEM Motor Oil Tested: Honda, Toyota, Ford, ACDelco, Mopar vs Mobil 1

Introduction

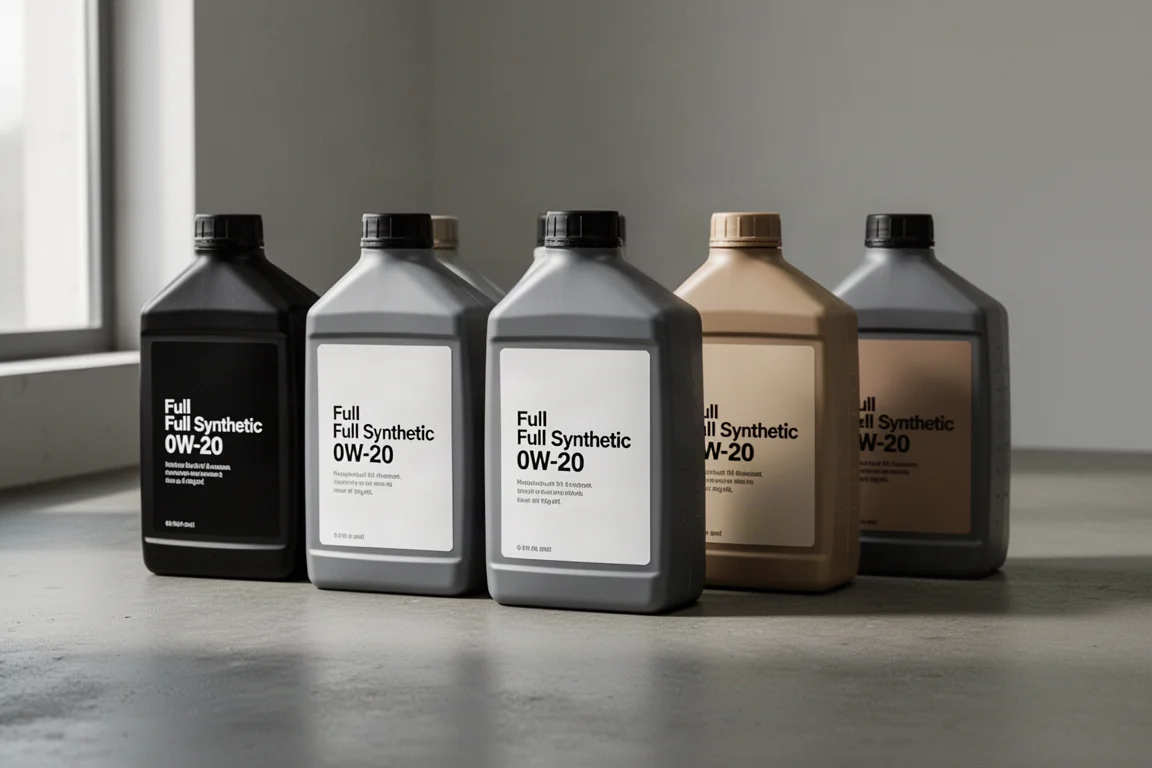

Does the brand on the bottle actually matter when it comes to motor oil? To find out, six full synthetic SAE 0W-20 oils went head to head: Honda Ultimate Full Synthetic, Toyota Full Synthetic, ACDelco Full Synthetic Dexos 1, Ford Motorcraft Full Synthetic, Mopar MaxPro, and Mobil 1 Advanced Fuel Economy.

Every oil was purchased at retail, and samples were sent to an independent oil analysis lab for a detailed report. Combined with hands-on bench testing for cold flow, wear protection, and resistance to thermal breakdown, the results produced a clear ranking, and a genuinely surprising one: four of the OEM oils outperformed Mobil 1.

How the Oils Were Tested

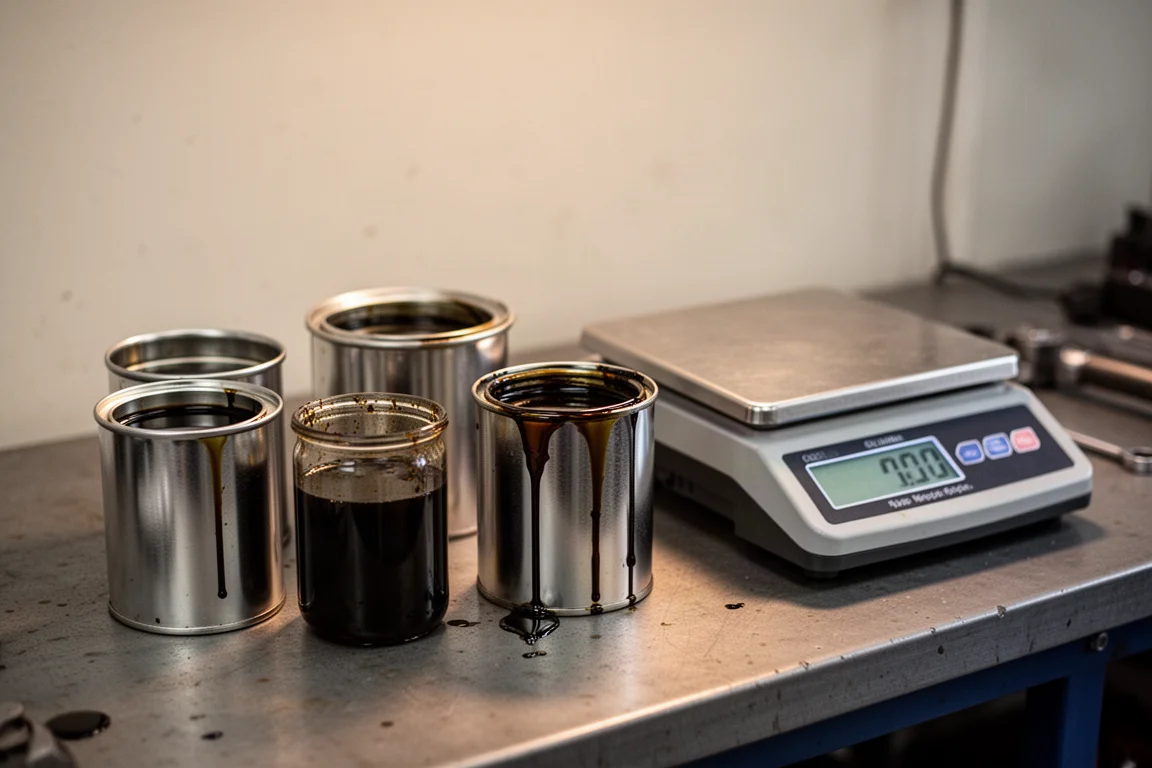

Three main tests shaped the comparison. First, an evaporative loss and thermal breakdown test: 200 g of each oil was heated to around 410 degrees F for two hours, with containers rotated every 10 minutes, then weighed to measure how much oil evaporated. This mirrors the spirit of the ASTM Noack volatility test, which simulates the extreme heat near an engine’s upper piston rings.

Second, a lubricity or film strength test on a pin-and-wheel tester. Wear scars on the test pins were measured under a microscope, with smaller scars indicating better wear protection. Third, a cold-flow test: heat-treated oils spent about 10 hours in a freezer at -40 degrees F, then raced on a downhill tester to see which flowed fastest when extremely cold. Simple gravity races at room temperature, around 70 degrees F, added a quick-flow comparison. Additive content, detergent levels, and total base number (TBN) came from the lab analysis.

One note before the results: Motorcraft’s API SP formulation could not be located, so the bottle tested is rated API SN Plus and ILSAC GF-5, a slightly older spec than the rest of the field.

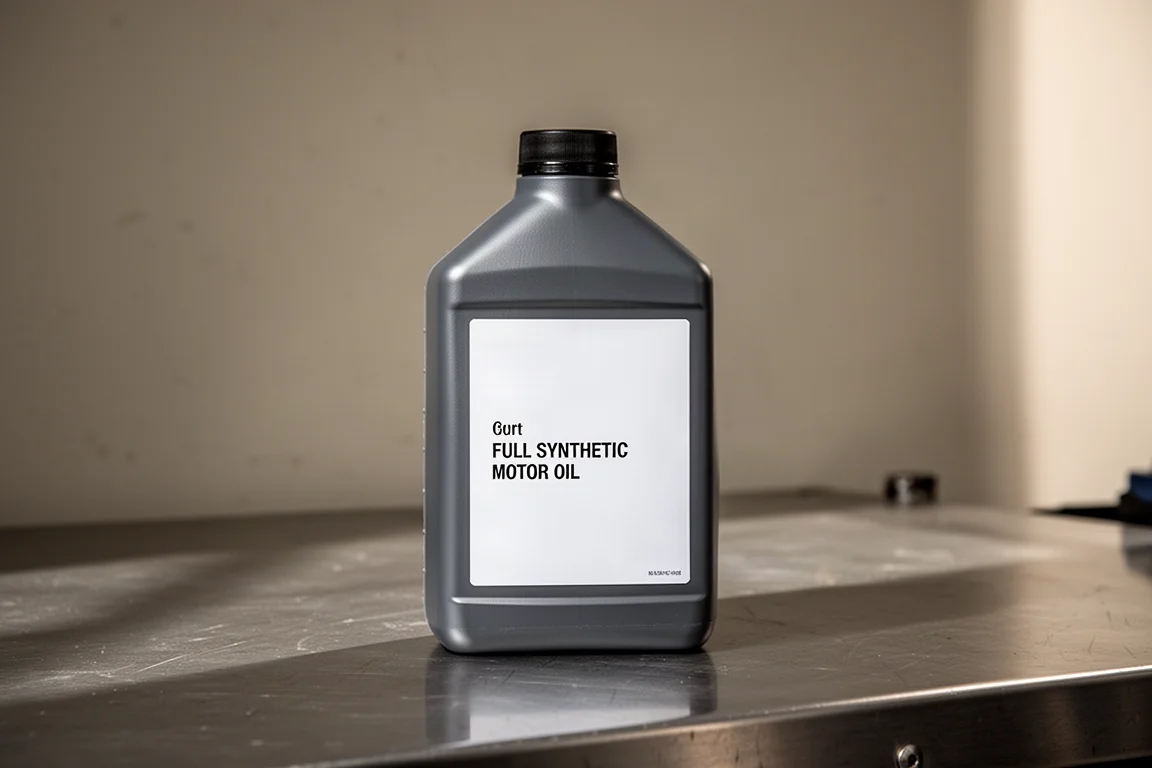

Honda Ultimate Full Synthetic

Honda’s oil, distributed by American Honda Motor Company and priced at about $13 a quart, is API SP and ILSAC GF-6, with claimed outstanding resistance to viscosity and thermal breakdown.

In testing, it held up well. Evaporative loss came in at 7.72 g, the highest of the six but still respectable, and its wear scar of 7.41 mm was among the best. Honda finished second overall in wear resistance and placed second in the room-temperature flow race. In the lab report, its detergent and dispersant content sat close behind Motorcraft, and it posted a TBN around 6.5, right in line with the field. Cold flow was solid at 45.6 seconds, third best of the group.

Toyota Full Synthetic 0W-20

Toyota’s full synthetic, bought for about $14 and made in the USA from domestic or imported components, is API SP 0W-20. It turned out to be the strongest cold-flow performer of the bunch, winning the frozen oil race at 41 seconds, narrowly beating Mopar’s 41.5.

Where it fell behind was additive chemistry. The lab report showed a notably lower anti-wear additive package at under 1,300 ppm, roughly 25% less than most rivals, and a lower TBN around 5.7 versus about 6.5 for the others. Its detergent and dispersant content also matched Mobil 1 at roughly 500 ppm less than the leaders. Evaporative loss was a middling 6.67 g, and its 7.6 mm wear scar was the largest recorded.

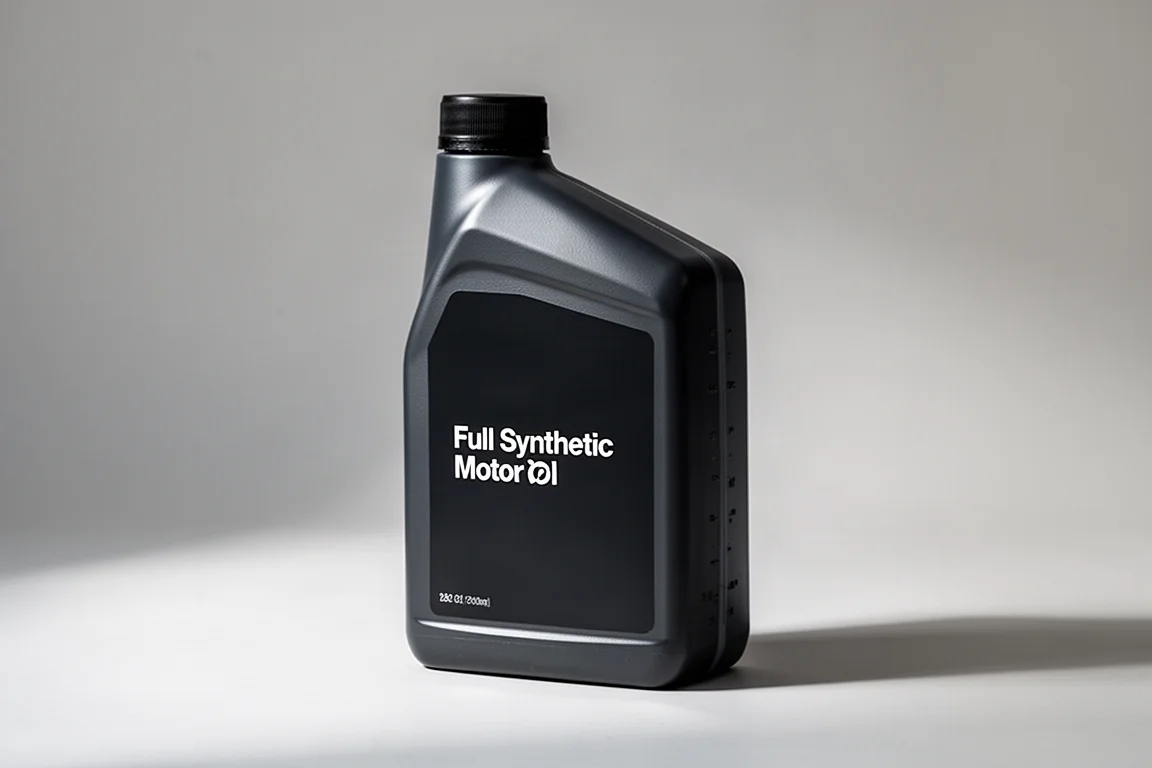

ACDelco Full Synthetic Dexos 1

ACDelco’s offering, priced at $18 a quart and distributed by General Motors, is API SP and carries Dexos 1 certification. It delivered the standout wear result of the entire comparison: the smallest wear scar of all six oils, a clear win that also edged Honda by around 3% in the direct lubricity matchup.

Evaporative loss of 6.34 g was better than both Honda and Toyota, and in the post-heat flow race it tied Mobil 1 for the win. The lab report showed strong detergent and dispersant levels just behind Motorcraft and healthy anti-wear additive content in the 1,600 to 1,700 ppm range. With an average finish of 3.2, it ranked third overall.

Ford Motorcraft Full Synthetic

Motorcraft, at around $20 a quart and distributed by Ford Motor Company, claims its full synthetic blend is designed to reduce engine friction, protect against piston damage from oil-derived pre-ignition, and improve fuel economy. The tested bottle is API SN Plus and ILSAC GF-5 rather than the newer API SP spec.

It produced the best evaporative loss result of the day at just 6.17 g, edging out ACDelco. Its lab report showed the highest detergent and dispersant content at 2,189 ppm, along with slightly more trace wear metals (aluminum, iron, copper, and tin) than the others, though still only at trace levels. It finished third in wear protection with a strong lubricity run, placed third in the cold-flow test, and claimed the overall top spot with an average finish of 2.2.

Mopar MaxPro

Mopar MaxPro, at $15 a quart, is an API SP and ILSAC GF-6A oil made in the USA. It came impressively close to the leaders. Evaporative loss of 6.24 g was second best, just behind Motorcraft, and it was visibly the freshest-looking oil partway through the two-hour heat test, while Mobil 1 darkened quickly.

Cold flow was its highlight: 41.5 seconds, essentially tied with Toyota for the fastest frozen-oil performance. Wear protection landed mid-pack, behind Honda and ACDelco but comparable to Mobil 1. With an average finish of 3, it took second place overall, and without the lab data folded in it tied Motorcraft for first.

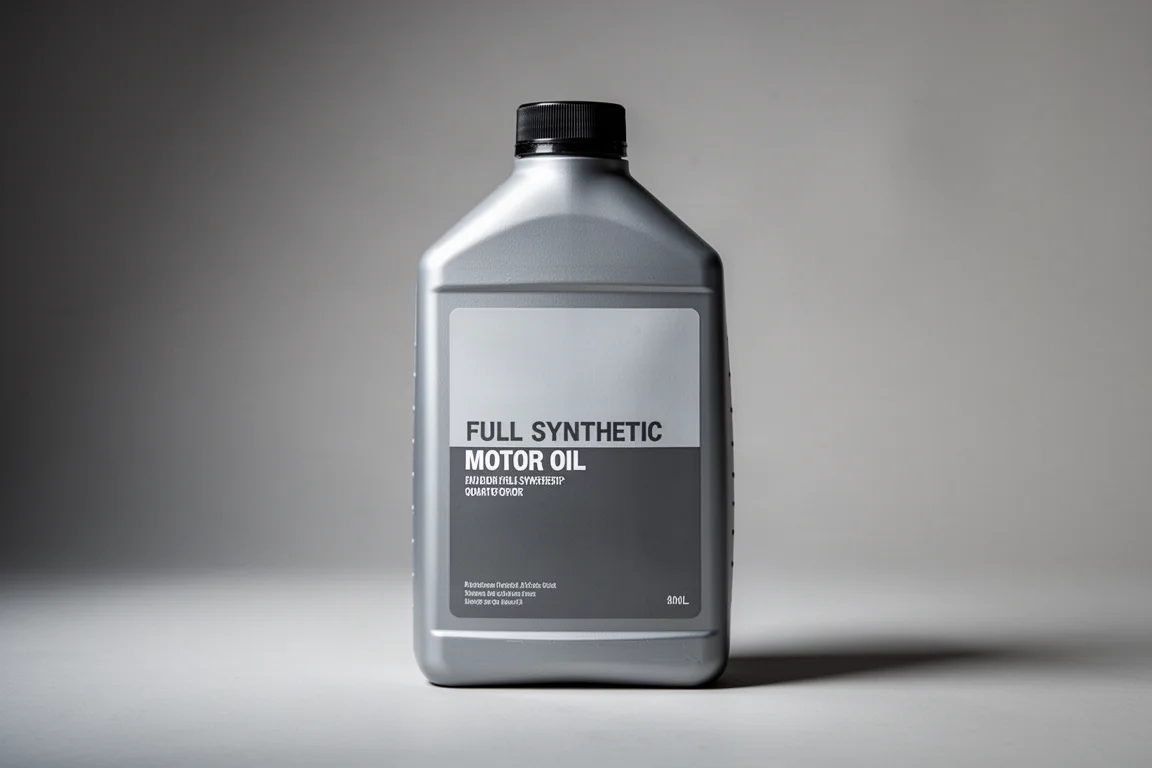

Mobil 1 Advanced Fuel Economy

The benchmark of the test, Mobil 1 Advanced Fuel Economy, was also the cheapest at $12 a quart. It is API SP and ILSAC GF-6A, made in the USA, and claims protection for 10,000 miles. On the bench it looked strong early: it won both room-temperature gravity races and tied ACDelco in the post-heat flow race.

But the deeper tests told a different story. Evaporative loss of 6.39 g was better only than Honda and Toyota, and its wear scar was the fourth smallest, beaten by ACDelco, Honda, and Motorcraft. Lab analysis showed detergent and dispersant content around 500 ppm lower than Motorcraft, ACDelco, and Honda. A respected performer, yes, but outgunned here by four OEM oils.

Final Verdict: Which Oil Came Out on Top

Combining the bench results with the independent lab analysis, the ranking came out as follows:

1. Ford Motorcraft (average finish 2.2)
2. Mopar MaxPro (3.0)
3. ACDelco Full Synthetic Dexos 1 (3.2)

The order holds whether you look at the combined results, the bench tests alone, or the lab data alone. Honda followed as the best of the remaining OEM oils, with Toyota trailing mainly on additive content, and Mobil 1 finishing behind four of the five OEM brands, a genuinely surprising outcome.

Practical takeaways: if your priority is resisting evaporation and thermal breakdown, Motorcraft led the field. For maximum wear protection, ACDelco was the clear pick. For cold climates where oil needs to flow fast at startup, Toyota and Mopar were nearly identical at the top. Every oil tested was good quality, so you cannot really go wrong, but the OEM bottles proved they are worth paying for.

Conclusion

Brand-name motor oil is not just marketing. Motorcraft, Mopar, and ACDelco all beat the aftermarket benchmark in this comparison, and even the weaker performers like Toyota remain entirely serviceable 0W-20 options. Match the oil to your priority, whether that is wear protection, cold starts, or heat resistance, and any of these full synthetics will do right by your engine.
