Best Headlight Bulbs: Halogen and LED Sets Tested for Real Light Output

Introduction

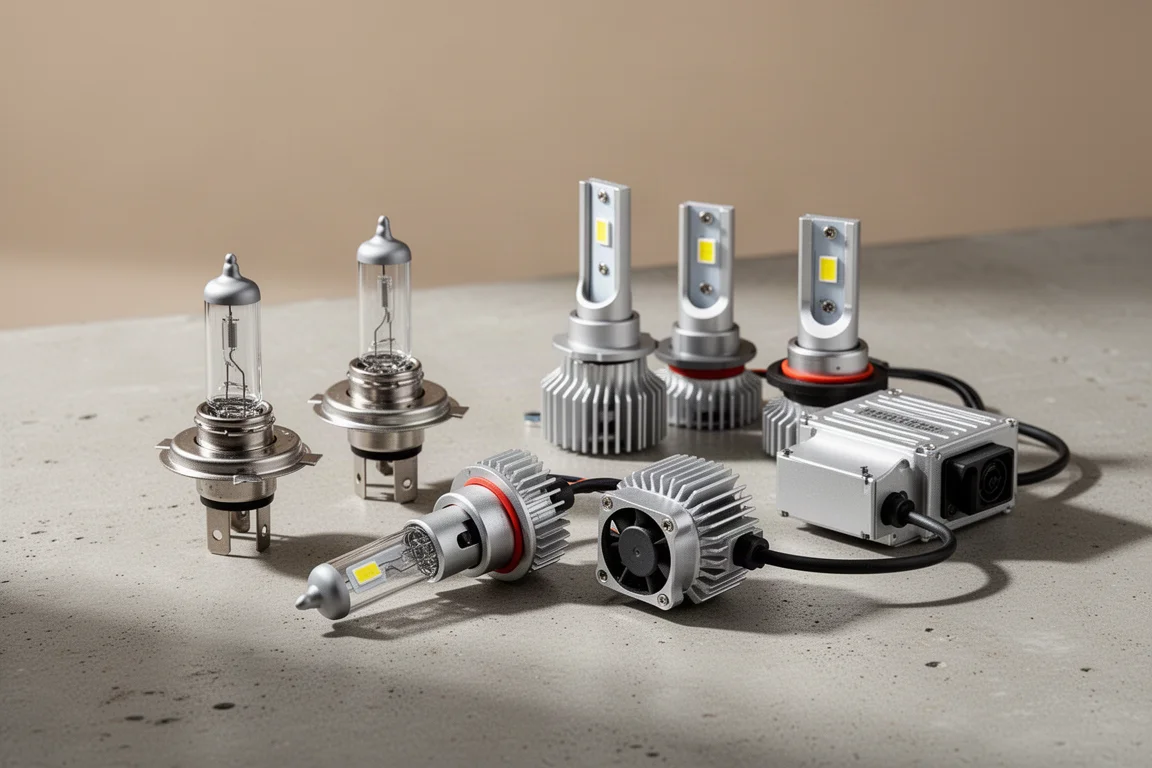

Headlight bulbs on Amazon are full of wild claims. A typical halogen H-series bulb produces around 1,000 lumens, yet imported LED replacements routinely advertise 10,000, 16,000, or even 36,000 lumens. To see what buyers actually get, five of the most popular and highest-spec bulbs were purchased and put through lumen testing with a calibrated light measurement setup, then evaluated inside an H11 headlamp for beam quality and color temperature.

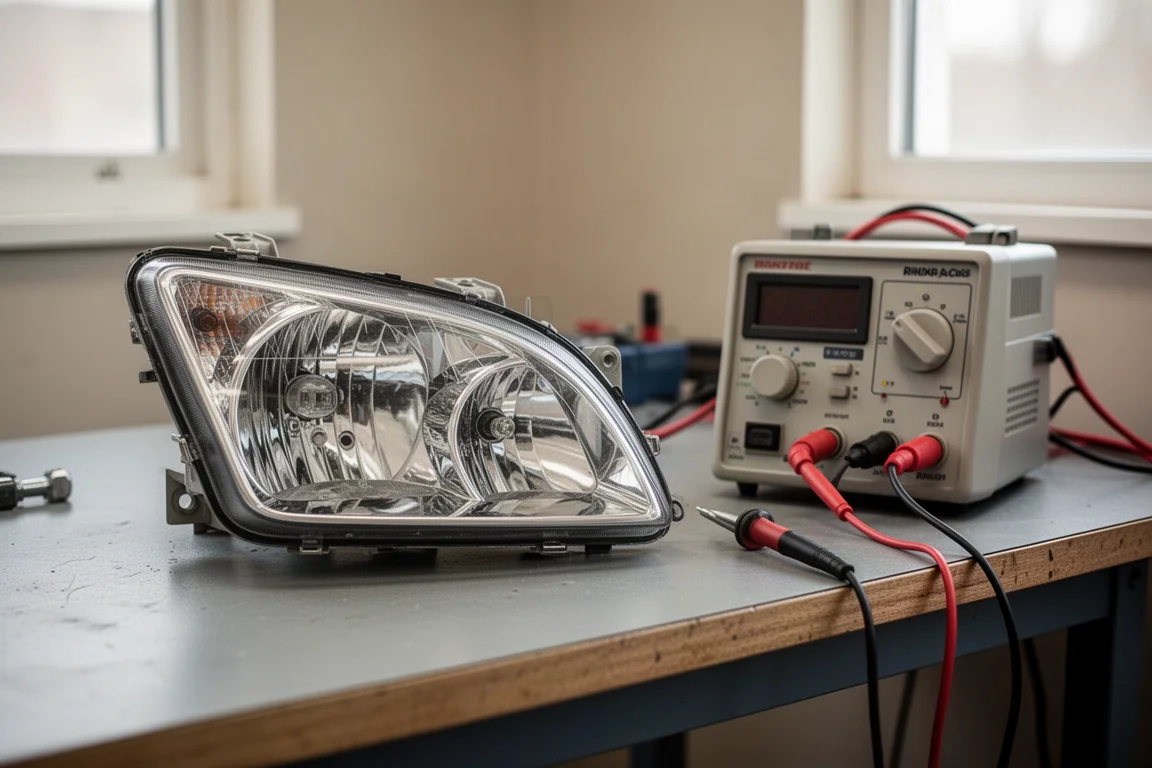

The H11 socket is the most common size, so it makes a sensible starting point for most shoppers. All bulbs below were tested at a simulated running voltage with a benchtop power supply, and each was photographed in the same headlamp under identical camera settings so beam quality could be compared fairly.

How the Bulbs Were Evaluated

Three things matter when replacing a headlight bulb. First, actual light output versus what the listing claims. Second, how the beam looks once installed: crisp cutoff lines, clean spread, and no stray light splashing where it should not be. Third, color temperature, since cooler blue-white light looks modern but can reduce perceived warmth and, in the case of some coated halogens, costs a few lumens.

Halogen bulbs here measured close to their claims, which was refreshing. The LED kits were a different story, with some delivering under 10% of their advertised output. Subjective in-housing appearance was scored out of 10 for each bulb.

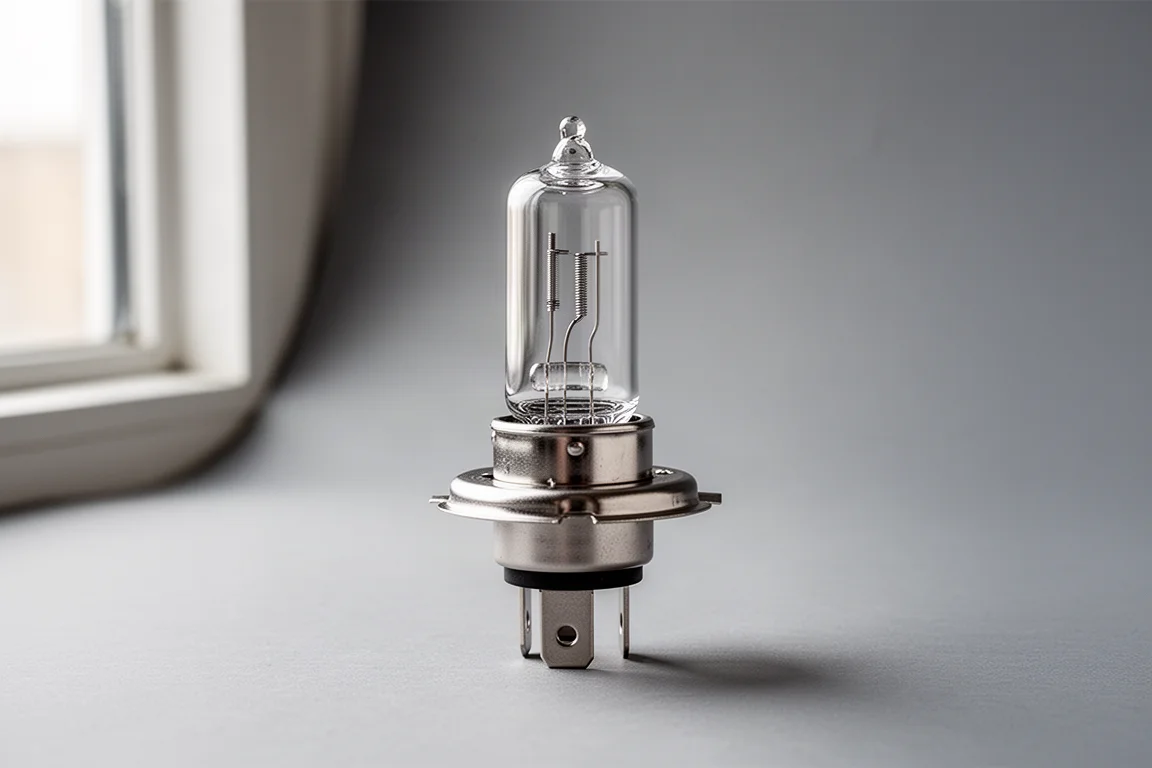

Halogen Pick: Sylvania XtraVision H11

Sylvania’s XtraVision sits one step above the brand’s basic replacement bulb at around $24 for a pair. It advertises 1,345 lumens and drew 64.8 watts in testing, producing a measured 1,370 lumens, which is actually slightly above the claim. In the headlamp it looked similar to the basic Sylvania, perhaps a touch brighter in the center and a little cleaner, earning a 5.5 out of 10.

The main caveat is lifespan. At a rated life of roughly 150 hours, this bulb trades longevity for performance, so plan on replacing it more often than a standard bulb.

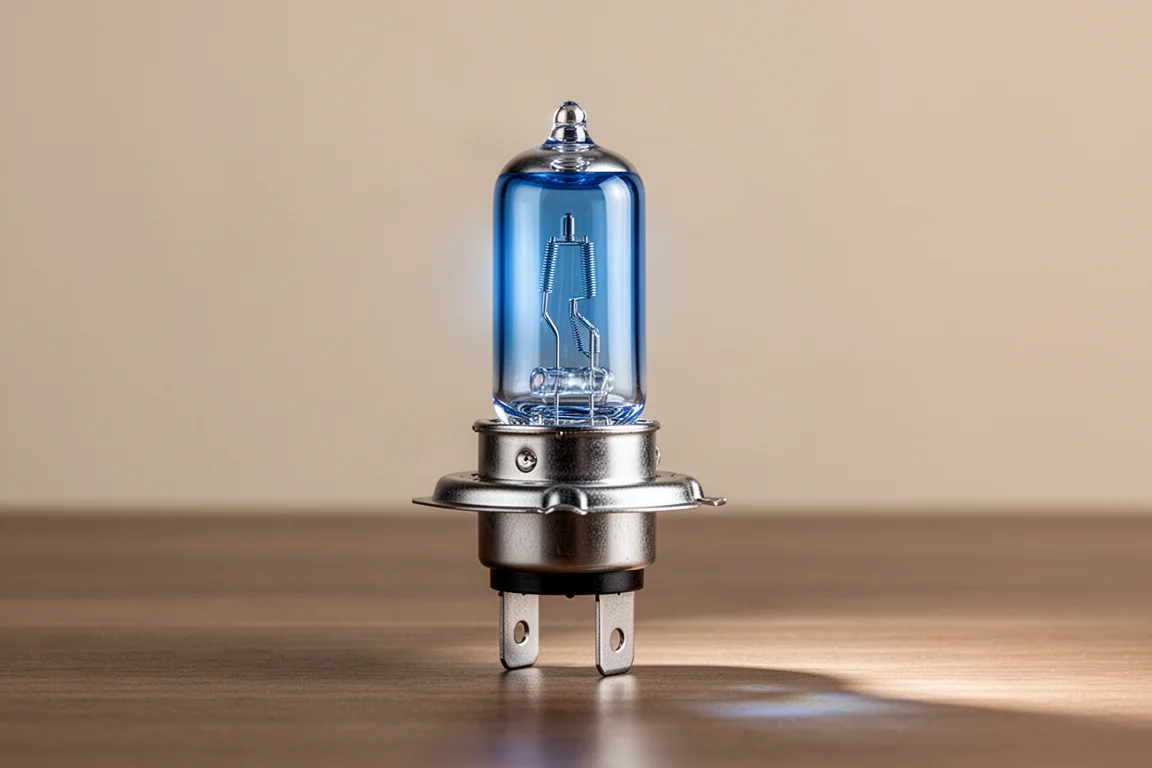

Halogen Upgrade: Sylvania SilverStar Ultra H11

The SilverStar Ultra is Sylvania’s two-steps-up performance halogen, priced around $45 for a pair. Like the XtraVision it advertises 1,345 lumens, and it measured 1,290 lumens in testing while drawing 60 watts. On paper that is less than the XtraVision, but in the headlamp it was the clear winner: a noticeably brighter, cleaner, and cooler light spread that earned a 7 out of 10, the best-looking halogen of the group.

Much of that comes from its cooler color temperature, rated 4,000K and measured around 4,300K. The blue-tinted filter on the lens costs it some lumens but produces a crisper beam pattern you can identify at a glance. Among halogens, the choice is simple: basic Sylvania for value, SilverStar Ultra for looks.

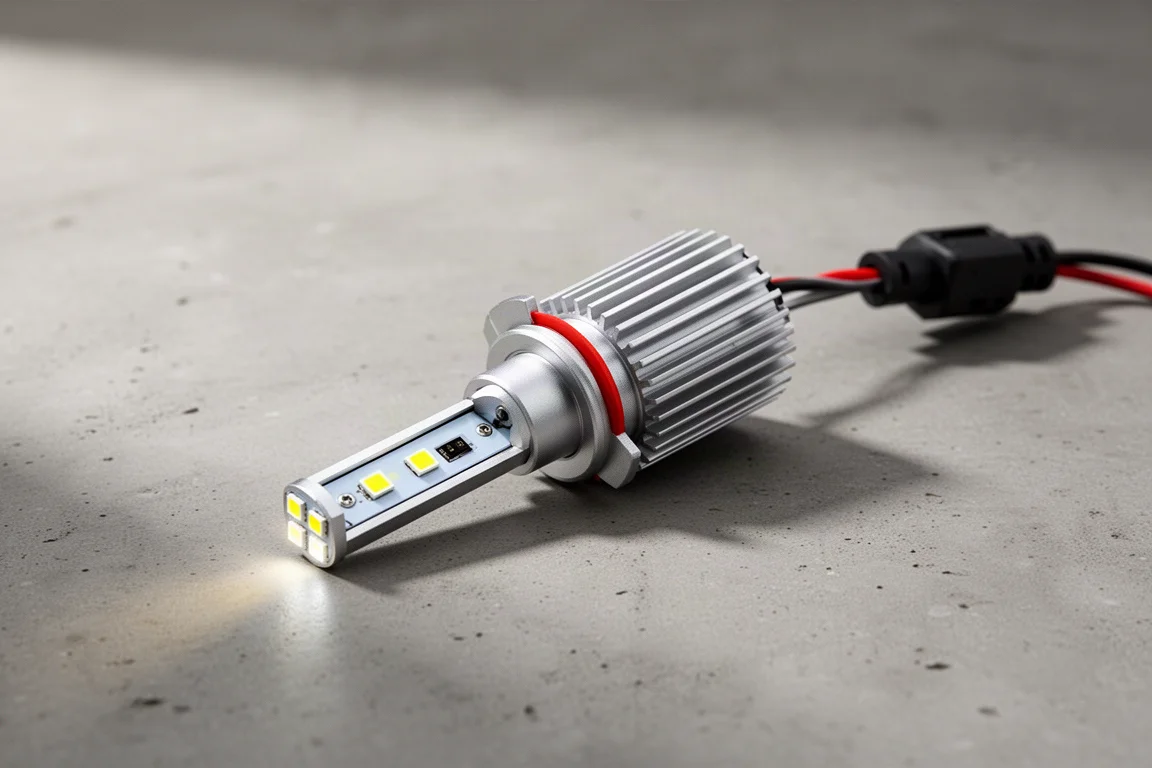

Budget LED: Auxito LED Headlight Bulbs

The Auxito LED bulbs are the best-selling LED conversion kit in the category, moving an estimated 7,000 to 8,000 sets per month. Priced at $28, they advertise 18,000 lumens and 6,000K white, and they run fanless. Measured output came in at 1,660 lumens total across both sides, just 9% of the claim, drawing only 21 watts.

Heat management is reasonable for a fanless design, running cooler than halogen bulbs, which can reach 330 to 390 degrees Fahrenheit. But in the headlamp the beam was messy: blurry edges, less crisp cutoffs, and extra shapes of stray light at the top and bottom of the pattern. A 5 out of 10 overall. It looks bright to the average person, but it is the messiest of the tested options.

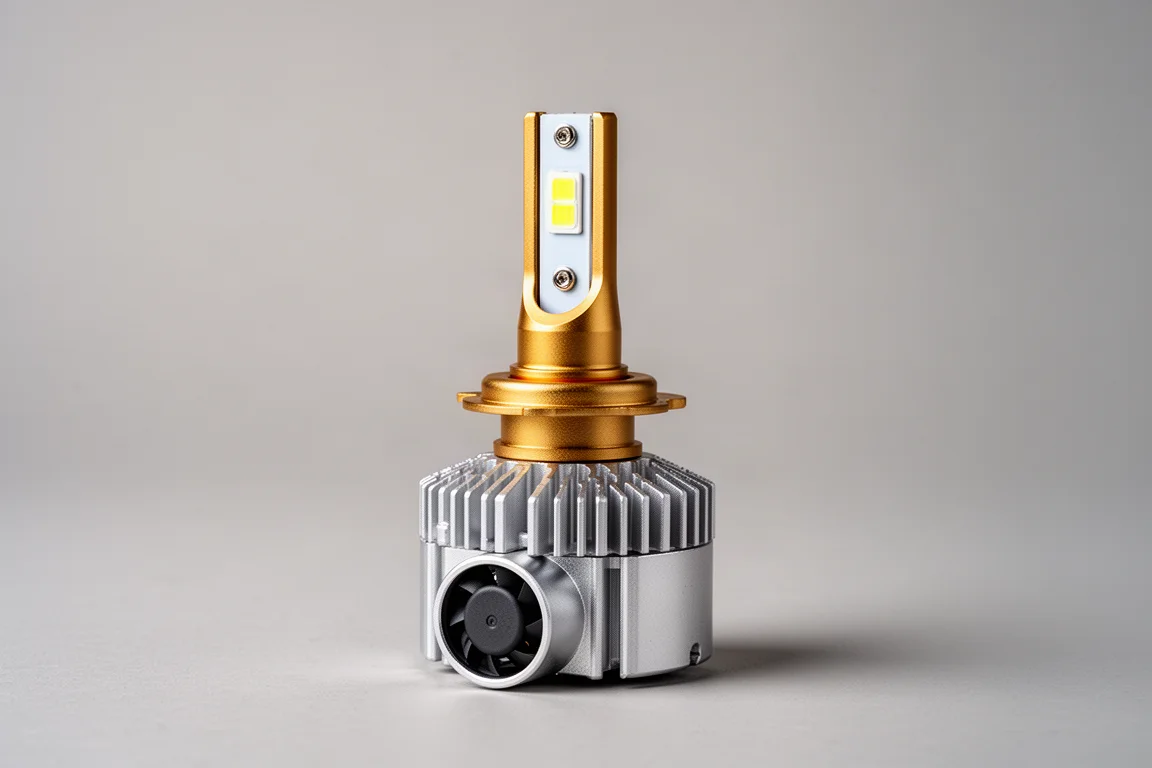

Mid-Priced LED: Ox Beam S3 LED Headlight Bulbs

The Ox Beam S3 series advertises a more restrained 10,000 lumens, which is why it was worth a look. At $30, with gold-finished bodies and ridged cooling fins, it ran the coolest of any LED tested at around 190 degrees, drawing 27.5 watts. Measured output was 2,540 lumens total, just over 25% of advertised, the best percentage result among the LED kits.

Unfortunately, beam quality collapsed in the headlamp. The light spread was wide and scattered, illuminating everything in front of the car rather than the road, scoring just 1 out of 10. A key cause appears to be orientation: the chips were clocked at a diagonal rather than the standard 3 and 9 o’clock positions, and this design offers only one installation orientation with no adjustable set screws to correct it. That is a significant design flaw for a plug-and-play product.

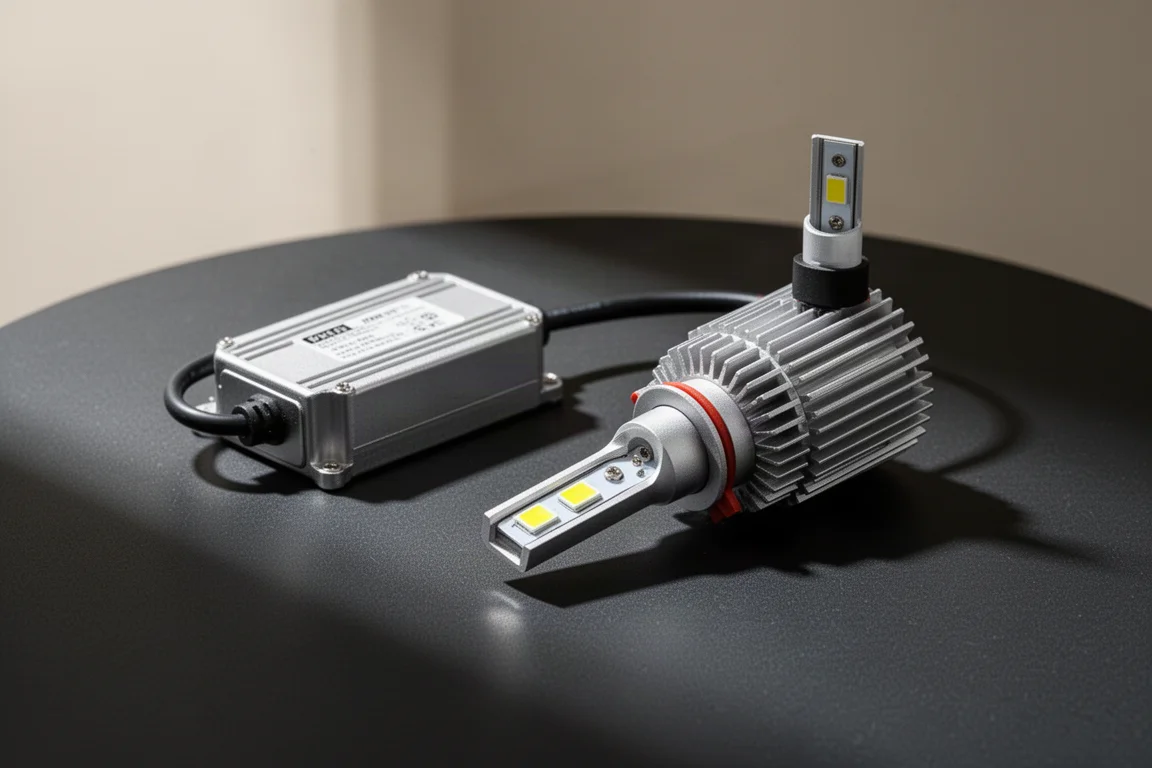

Premium LED: KW Huvolvi LED Headlight Bulbs

The KW Huvolvi combo is the most expensive set tested at $60, sold only as a four-bulb pack and claiming a head-turning 36,000 lumens per pair. In reality it drew around 40 watts with its included ballast-style driver and produced 2,600 lumens total, the highest measured output of the day, but still just 7% of the claim. Color temperature was accurate: rated 6,500K, measured 6,450K.

In the headlamp it performed well, with quite good crisp cutoff lines, brighter than everything else, though with some random streaks and splotches at the top and bottom of the pattern. It scored 7 out of 10 and could have approached 9 with a cleaner beam edge. If the claim of 36,000 lumens were true, it would likely melt the headlight housing, so treat those numbers as marketing fiction.

Overall Buying Advice

On value, the cheapest LED kit is a surprising standout: at roughly $15 it looked better in the headlamp than the SilverStar Ultra halogen and costs little enough that trying it is a low-risk gamble. For pure measured performance, the KW Huvolvi delivered the most light and decent beam quality, and its ballast-style driver may be a useful indicator of genuinely higher-power LED designs. Among halogens, the XtraVision had the best paper specs but the worst rated lifespan and looked no different from the basic bulb, so stick with basic Sylvania for value or the SilverStar Ultra for the best-looking halogen beam.

The biggest takeaway is that advertised lumen numbers on LED conversion kits are essentially meaningless. There is nothing preventing brands from writing any figure they like in a listing title, and no buyer can be expected to compare eight sets with calibrated equipment.

Conclusion

Halogen replacements generally deliver what they promise, with the Sylvania SilverStar Ultra offering the best in-housing appearance and the basic Sylvania covering value duty. LED kits offer brighter raw output and longer life potential, but wildly exaggerated claims and inconsistent beam quality mean the cheapest good-looking option or the highest-output set with a ballast driver are the most sensible picks. Match your choice to whether you prioritize cost, beam appearance, or raw brightness.
