Apertura Armored USB Hub Review: Protection for Your Astrophotography Rig

Introduction

Astrophotography rigs are expensive, sensitive, and often left running unattended for an entire night. That is exactly the scenario the Apertura Armored USB Hub was built for. It positions itself as a USB control center with one core promise: if something goes wrong with one piece of your system, the rest of your equipment stays protected.

The short pitch is peace of mind. The longer story involves a board designed from the ground up around layered electrical protections, a genuinely rugged housing, and quality control that is unusually hands-on for a product in this category.

Why Not All USB Hubs Are Equal

It is fair to ask whether any USB hub offers this kind of protection. The honest answer is no, not all USB hubs are created equal. Some hubs on the market include a measure of protection, but they lack a complete package. The Apertura Armored USB Hub aims to deliver everything in one sleek black box rather than covering only part of the risk.

The protective logic matters because most astronomical USB devices are designed to operate at the industry-standard 5 volts on the USB side. Receiving well above or well below that can damage them. The hub’s automated protections isolate faults at the power input and prevent them from ever reaching your gear. It is not an invitation to plug in a 20V laptop power supply, but it does mean that if something goes catastrophically wrong, your equipment is far more likely to survive.

The Protections, Explained

Voltage protection comes in three layers. Over-voltage regulation ensures only 5 volts is sent to the USB ports. Under-voltage protection shuts the hub off if input falls below 4 volts. And the standout feature is reverse polarity protection, which guards against one of the most common and most damaging wiring mistakes.

The second layer is overcurrent and short circuit handling. The hub constantly monitors current draw on all six ports individually. If a device tries to draw more than 2.6 amps on a port, the smart protections reset that port and recheck the draw. If it exceeds 3 amps, the port shuts off completely, effectively quarantining the faulty device so it cannot take down the rest of your setup. The USB-A ports also sense short circuits and shut down only the affected port. Once the fault is corrected, the hub recognizes this and returns to normal operation.

Build Quality and Mounting

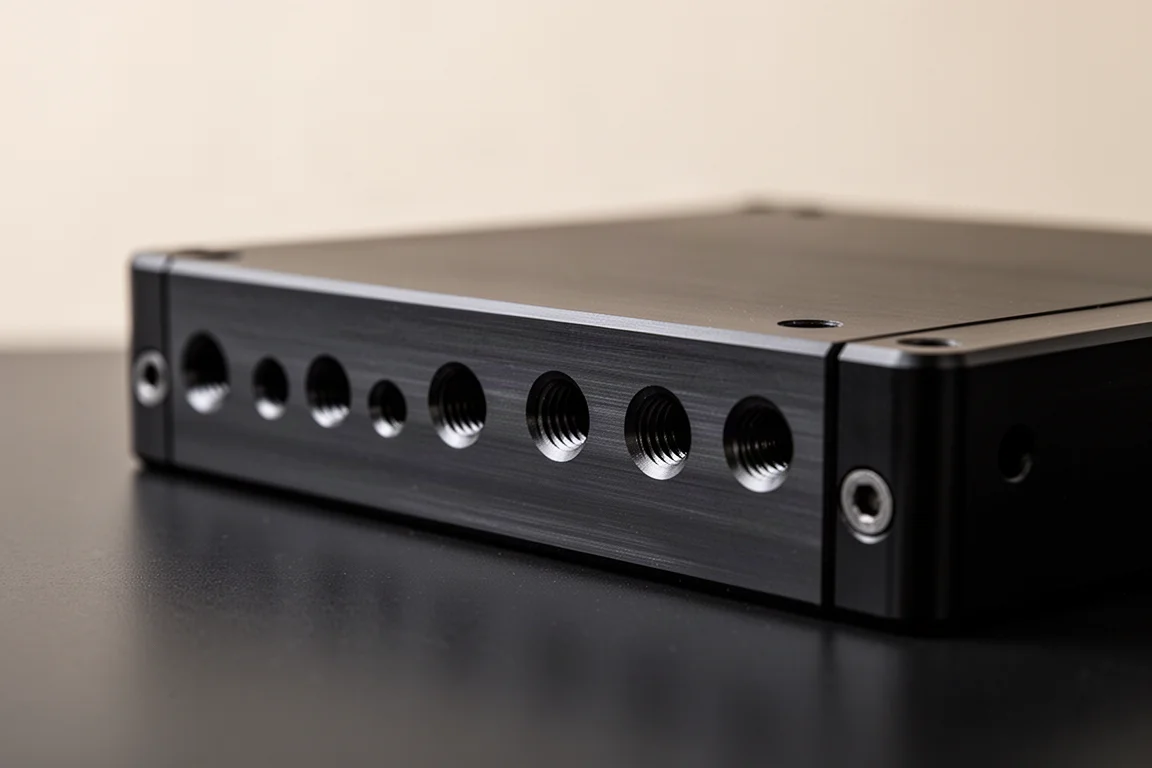

Physically, this is more than a generic plastic hub. It uses a custom-designed 4mm thick CNC-machined 6061 aluminum casing finished in black oxide, and it mounts via an industry-standard Synta dovetail. Two sets of mounting holes, M4 and quarter-20, give you plenty of attachment options on rigs of different shapes and sizes. A red powered LED confirms it is live and looks at home alongside other astronomy gear.

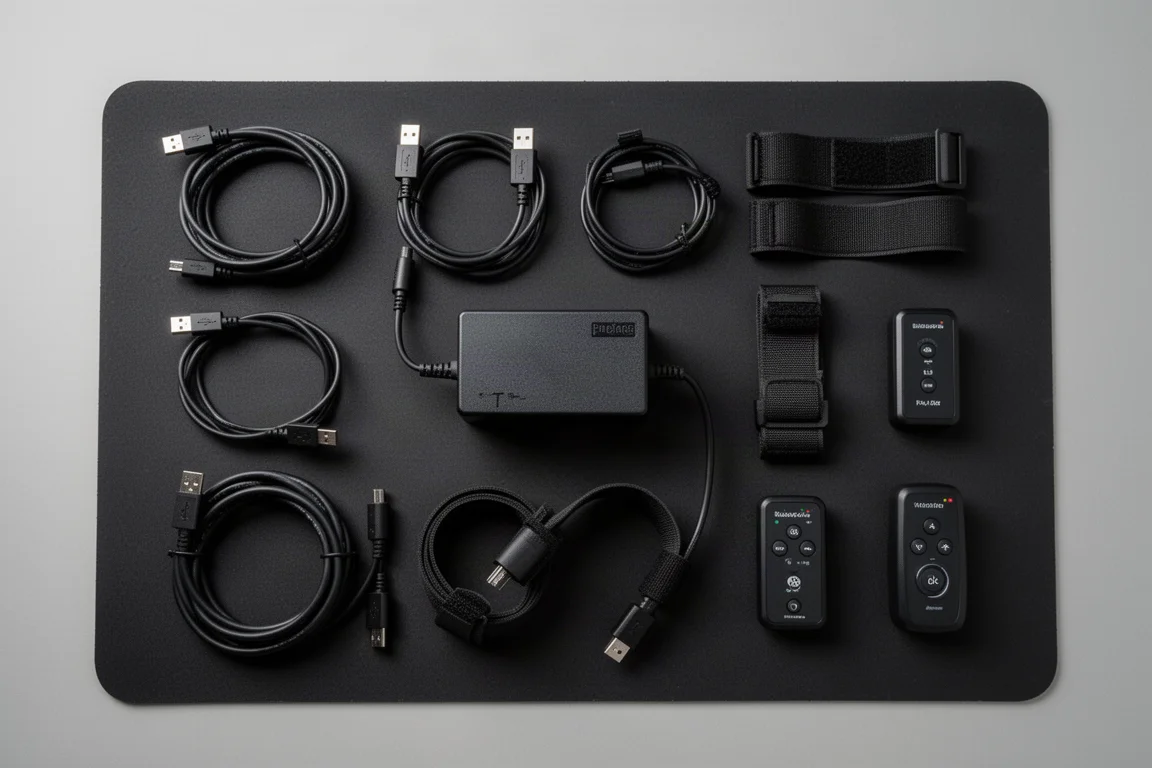

Quality control is a genuine highlight. Each hub is 100 percent quality controlled using Apertura’s own electronic equipment and is fully assembled in the United States. The unit reviewed here shipped with a 12V 5A power supply, and it is also available without one if you prefer to run it from a portable power supply or power tank.

Who This Product Is For

This hub is aimed squarely at astrophotographers running multi-device imaging setups: cameras, focusers, filter wheels, dew heaters, and mounts all hanging off a handful of USB ports. It requires no driver installation, works out of the box, and is compatible with both Mac and PC, which removes the usual setup friction.

It is also rated to operate in temperatures ranging from below 0 degrees to over 150 degrees, so it suits anyone imaging through seasonal extremes. Combined with its role in cable management, it functions as both a connectivity hub and a central nervous system for the rig.

Things to Consider Before Buying

The protections are entirely internal and invisible, so what you are really paying for is insurance for expensive gear. If your setup is a single camera on a laptop, you may not need this level of protection. Also note that the version reviewed included a 12V 5A power supply, but the hub is sold without one as well, so choose the variant that matches your power setup before ordering.

Buying Advice

If you want the best solution for cable management in a powerful USB control center, while protecting your equipment across a wide temperature range, the Apertura Armored USB Hub is a confident choice. It is the kind of accessory that earns its place the first time a fault would otherwise have taken out a camera or focuser mid-session.

For anyone planning full nights of unattended imaging, the value proposition is simple: your gear does the heavy lifting, and the hub keeps it protected while it does.

Conclusion

The Apertura Armored USB Hub combines layered electrical protections, a rugged machined aluminum build, flexible mounting, and US-based assembly and quality control in a single package. For astrophotographers with sensitive, expensive equipment on the line, it delivers exactly the peace of mind it promises.
