Shimano GRX 12-Speed Groupsets and RX880 Wheelset: A Practical Guide for Gravel Riders

Introduction

Shimano has launched a 12-speed version of its gravel-specific GRX groupset, a calculated and precise evolution of the previous generation. The new lineup includes the range-topping RX820 and the more budget-friendly RX610 groupsets, along with an updated RX880 carbon wheelset. These components are designed to make gravel riding more versatile, whether you are racing, bikepacking, or exploring unpaved adventures.

With three distinct “personalities” for the RX820 and trickle-down technology for the RX610, Shimano aims to offer choices that suit different riding styles. This guide breaks down the key details so you can decide which option fits your needs.

Evaluation Criteria

When choosing a gravel groupset, several factors matter: gearing range and options, cassette and freehub compatibility, lever ergonomics, brake performance, and overall weight. The new GRX lineup addresses these with 1x and 2x configurations, wide-range cassettes, and updated hubs. Budget also plays a role, as the RX610 offers a more accessible entry point without sacrificing 12-speed shifting.

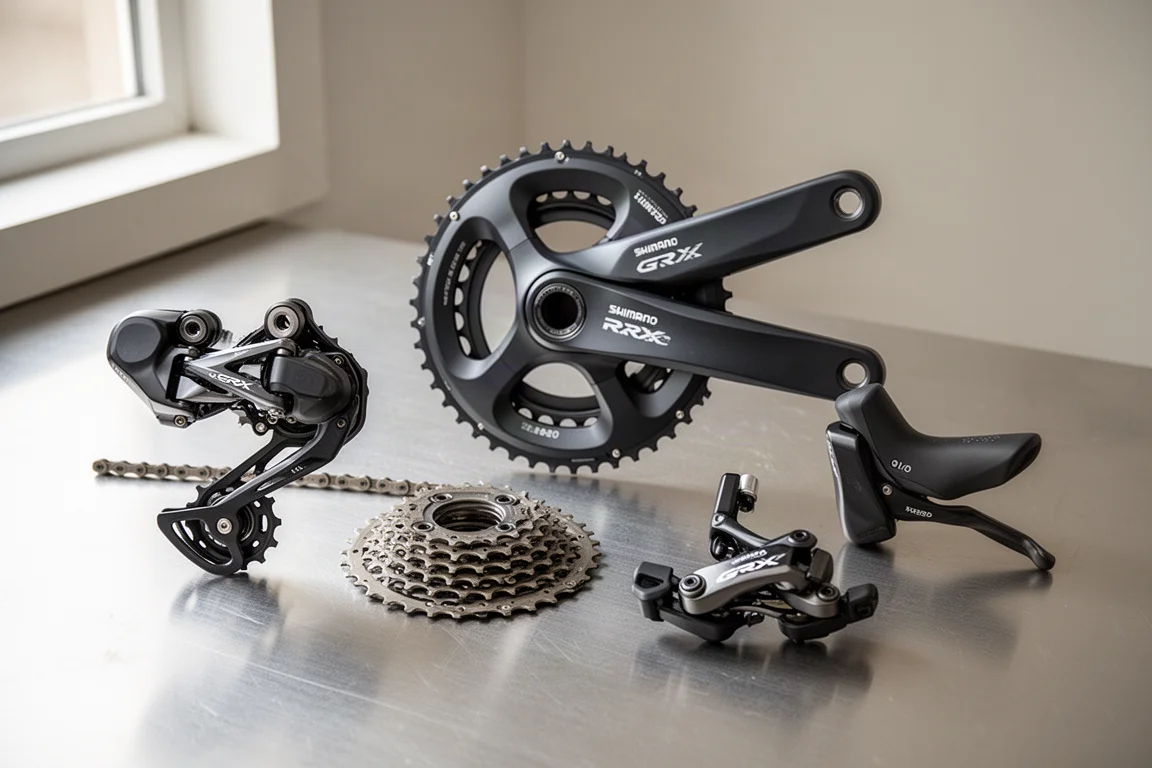

Shimano GRX RX820 Groupset

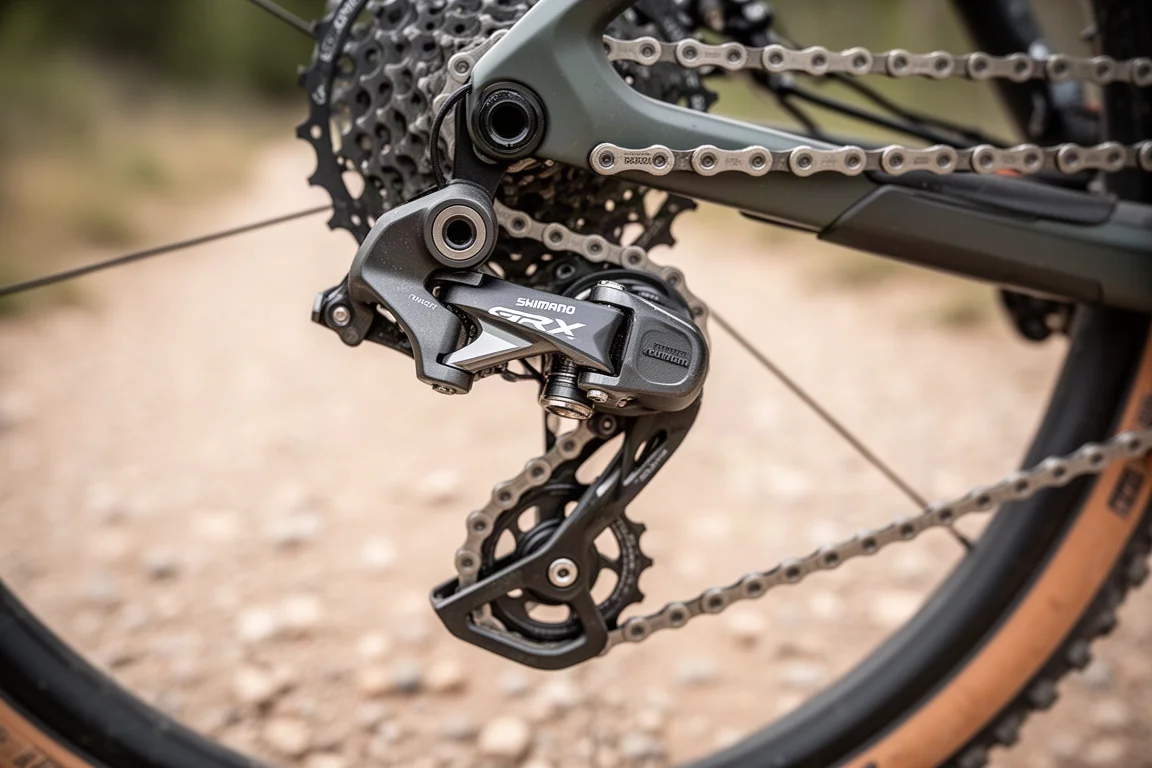

The RX820 is the range-topping mechanical groupset, available in three configurations Shimano calls personalities. The “Unstoppable” version uses a 1x crankset with a 40 or 42-tooth chainring, paired with a 10-51-tooth Micro Spline cassette and the RD-RX820-GSG rear derailleur. This derailleur features Shimano’s Shadow Road+ clutch to keep the chain secure and shifting smooth.

The “Unbeatable” personality also uses a 1x crank but with a 10-45-tooth cassette and a rear derailleur with a smaller pulley wheel cage. This design allows you to replace just the cage section if damaged, rather than the entire derailleur.

The “Undroppable” option is a 2x setup with 31/48-tooth chainrings and a front derailleur featuring Shimano’s toggle link technology for lighter lever action. It has a 2.5mm wider chainline to accommodate larger gravel tires. Cassette choices are 11-34 or 11-36-tooth HG L2 spline types.

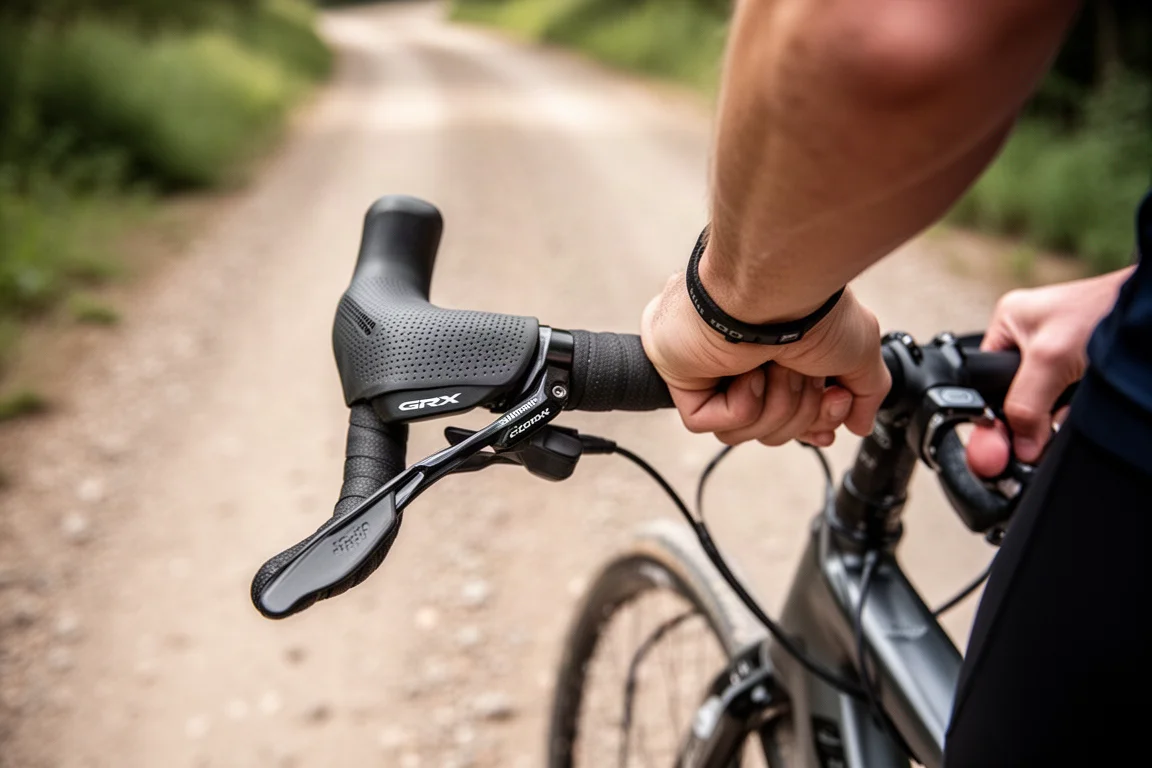

All configurations offer crank lengths of 170, 172.5, and 175mm. The dual control levers are 12-speed without increasing body size, designed for flared drop bars, and feature a grippy surface coating on the lever blades. For 1x setups, the left lever can be brake-only or used for a dropper post.

The brakes have been updated with a more compact caliper design offering 10% more pad clearance over the previous generation. There are no GRX-specific rotors; you can use Shimano road or mountain bike rotors in 140 or 160mm sizes.

The RX820 groupset is aimed at riders who want the most options and top-tier performance for gravel riding.

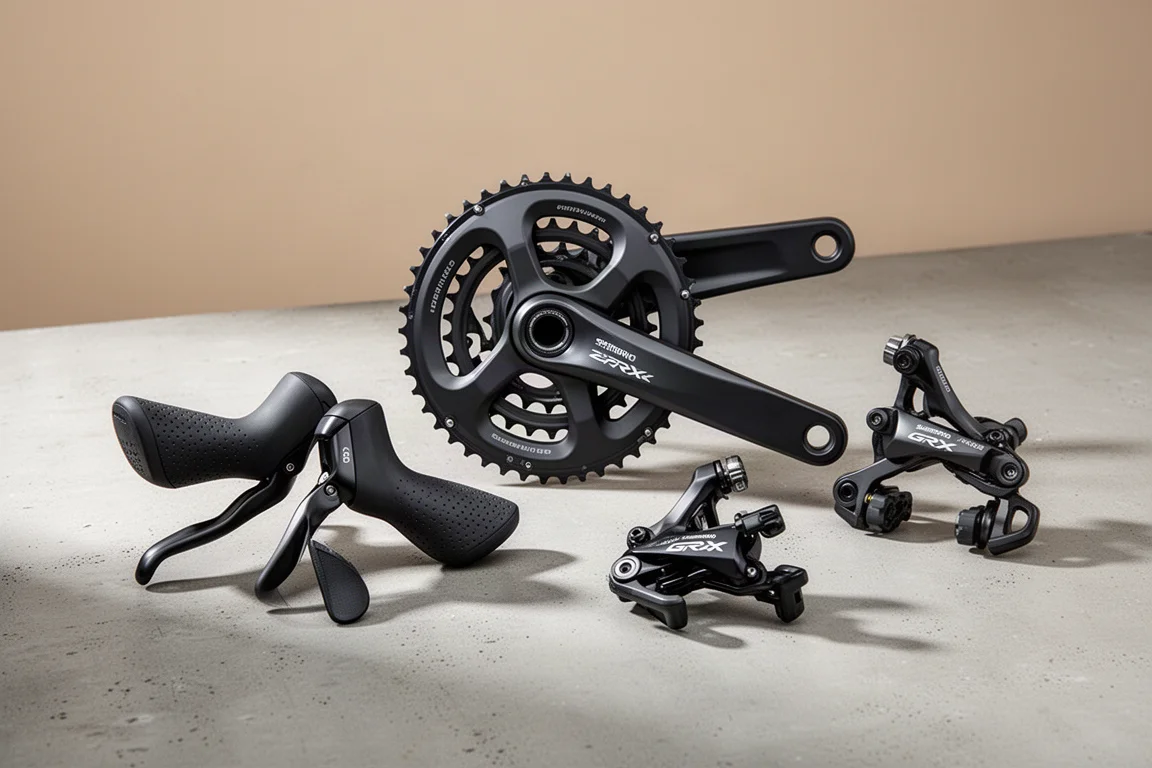

Shimano GRX RX610 Groupset

The RX610 brings 12-speed shifting to a more budget-friendly price point. It uses trickle-down technology from the RX820, with new shifters that feature a textured rubber hood cover and the same grippy surface coating on the lever blades. Both 1x and 2x options are available, though there is no dropper post option for the left lever.

The 1x crank uses a 38 or 40-tooth chainring, while the 2x crank has 30/46-tooth chainrings. Four crank lengths are offered: 165, 170, 172.5, and 175mm. The RX610 does not have its own specific derailleurs, so it uses the same cassette and derailleur options as the RX820. Chains are Deore mountain bike level, while the RX820 uses XT chains.

Shimano has not quoted a specific weight for the complete RX610 groupset, but the difference between the RX820 and RX610 is estimated to be around 200 to 300 grams, depending on the chosen options.

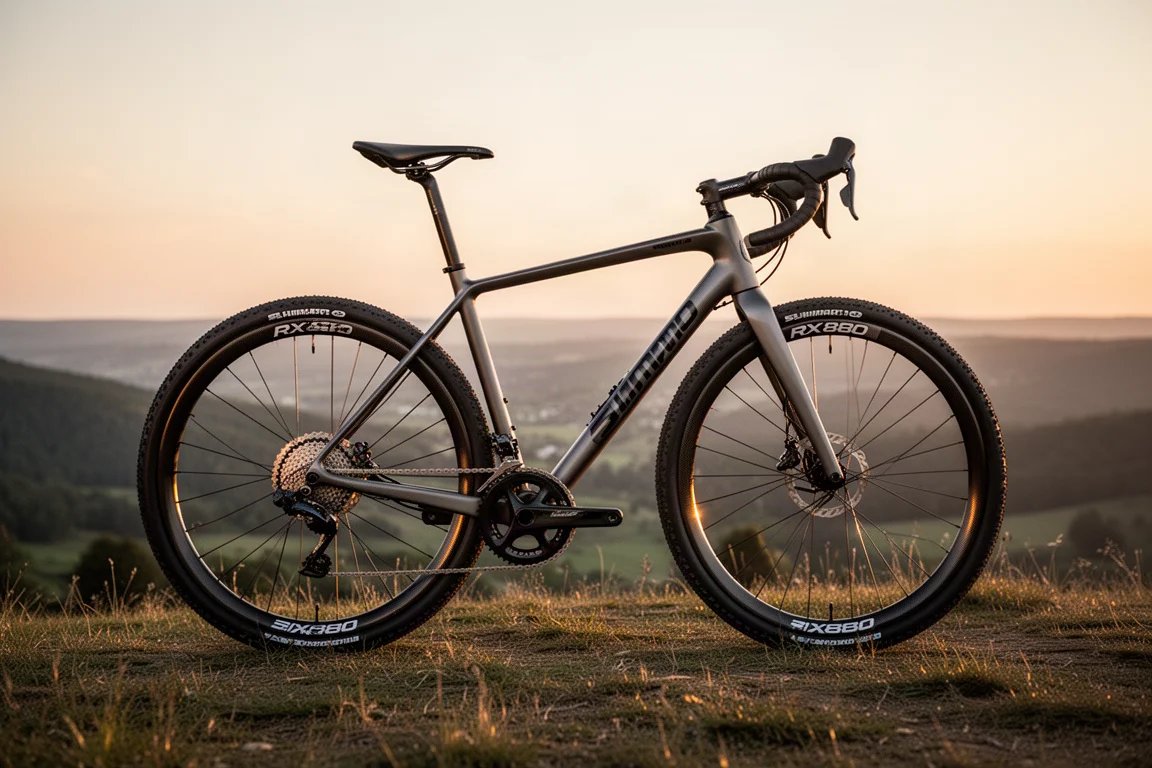

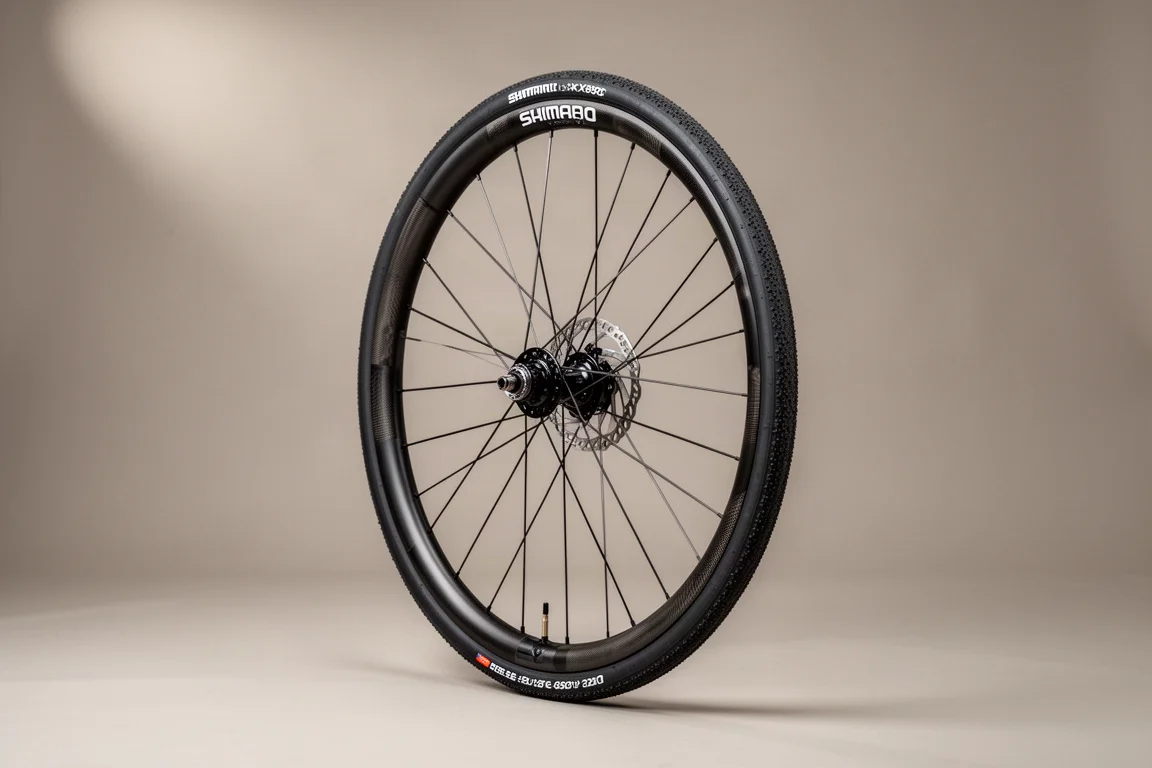

Shimano RX880 Wheelset

The RX880 is an updated carbon fiber tubeless-ready wheelset, now lighter than the previous version. The rims are 32mm deep with a 25mm internal width, suitable for tires from 32 to 50mm wide. The updates are in the hubs, which save 68 grams off the total wheelset weight and use the same direct engagement freehub as Shimano’s Dura-Ace road wheels.

The new hubs feature interchangeable freehub bodies, which is essential for compatibility with different gearing options. The RX880 wheelset is now 12-speed only. If you choose a 1x setup with Micro Spline cassettes, you need a smaller Micro Spline freehub body. If you go 2x with HG L2 cassettes, those can fit on older 11-speed HG freehub bodies, but 1x Micro Spline cassettes will not.

This wheelset is designed for riders who want a lighter, carbon upgrade with modern standards and the flexibility to run either 1x or 2x drivetrains.

Cassette and Freehub Compatibility

One of the most important considerations with the new GRX lineup is cassette and freehub compatibility. The 1x options use Shimano mountain bike cassettes with Micro Spline fitment, which require a smaller Micro Spline freehub body. The 2x options use HG L2 cassettes that fit on the older 11-speed HG freehub bodies, a standard that has been used for years.

This means that if you have an older wheelset with an 11-speed HG freehub, you can run a 2x GRX setup, but not a 1x setup with Micro Spline cassettes. The RX880 wheelset includes interchangeable freehub bodies to accommodate both, but it is 12-speed only. Be sure to check your existing wheels before upgrading.

Overall Buying Advice

Choosing between the RX820 and RX610 comes down to budget and desired features. The RX820 offers more personalities, including the Undroppable 2x option and dropper post compatibility, plus lighter components. The RX610 provides 12-speed shifting at a more accessible price, with a slight weight penalty but the same cassette and derailleur options.

The RX880 wheelset is a solid upgrade for riders seeking weight savings and modern hub technology, but keep freehub compatibility in mind. For most gravel riders, the 2x setup with HG L2 cassettes offers the widest compatibility with existing wheels, while 1x setups with Micro Spline are ideal for those who want simplicity and a wide gear range.

Conclusion

Shimano’s 12-speed GRX groupsets and RX880 wheelset represent a thoughtful evolution for gravel riding. With multiple configurations and a budget-friendly option, there is a setup for different riding styles and budgets. Consider your gearing preferences, existing wheels, and riding goals to make the best choice.
