Overengineered Mechanical Pencils Part 3: Six Clever Designs That Go Beyond Writing

Introduction

Some mechanical pencils just hold lead. Others are small engineering projects that solve problems you didn’t know a pencil could solve: lead that advances itself, barrels that double as toolkits, grips you can tune like a suspension setup, and tips that cushion your writing pressure. This third installment in our series on overengineered mechanical pencils brings together six designs that push the category further, and not all of them come from Japan.

Auto-Advancing Lead: Pentel Orenz AT

The Pentel Orenz AT is built for uninterrupted writing. Once you press its top push button, the pencil automatically pushes lead out each time you lift the tip from the paper, so you don’t need to click again until you start a fresh piece of lead.

While you write, the lead pipe matches the length of the extended lead, keeping it from snapping if you apply too much pressure. It returns to its original length once the lead gets too short and the pencil is lifted. The grip section has raised rubber portions that secure your hold, and the pencil sits with a comfortable low center of gravity.

This is a strong pick for anyone who writes quickly or presses hard, since the pencil effectively manages lead length for you.

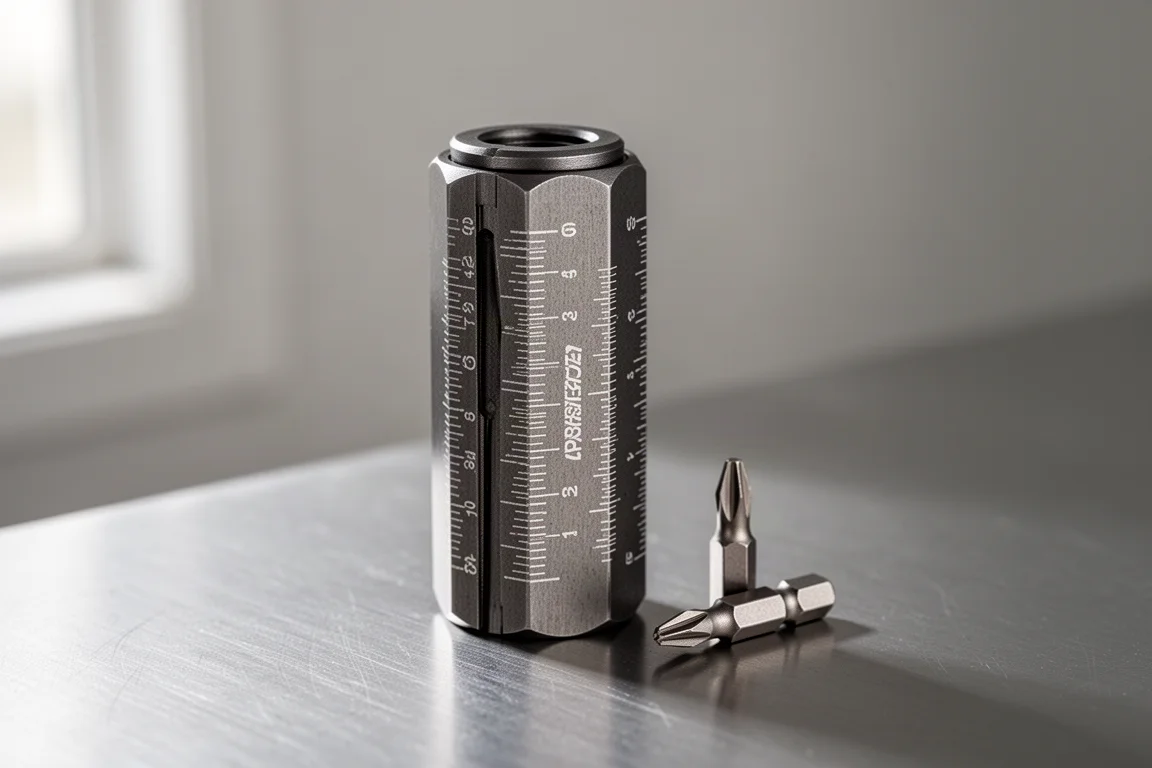

Multi Tool: Monteverde One Touch Tool Pencil

The Monteverde One Touch Tool Pencil is more than a pencil. Its weighty outer body carries four rulers in inches, centimeters, half-centimeters, and third-centimeters, and you can draw straight lines by pulling the pencil component out of the barrel and drawing along the edge.

Removing the pencil also reveals a hidden eraser. The end of the barrel features a stylus that works on smartphones, tablets, and other touchscreens, and underneath the stylus sits a double-ended screwdriver bit with a Phillips head on one side and a flat head on the other. A spring-tensioned ball bearing keeps the bit firmly in place, and the drivers handle the small screws found on electronics and small accessories. The eraser, stylus, and screwdriver bit are all replaceable, which adds to the pencil’s longevity.

If you like gear that consolidates, this barrel replaces a surprising number of desk drawer items.

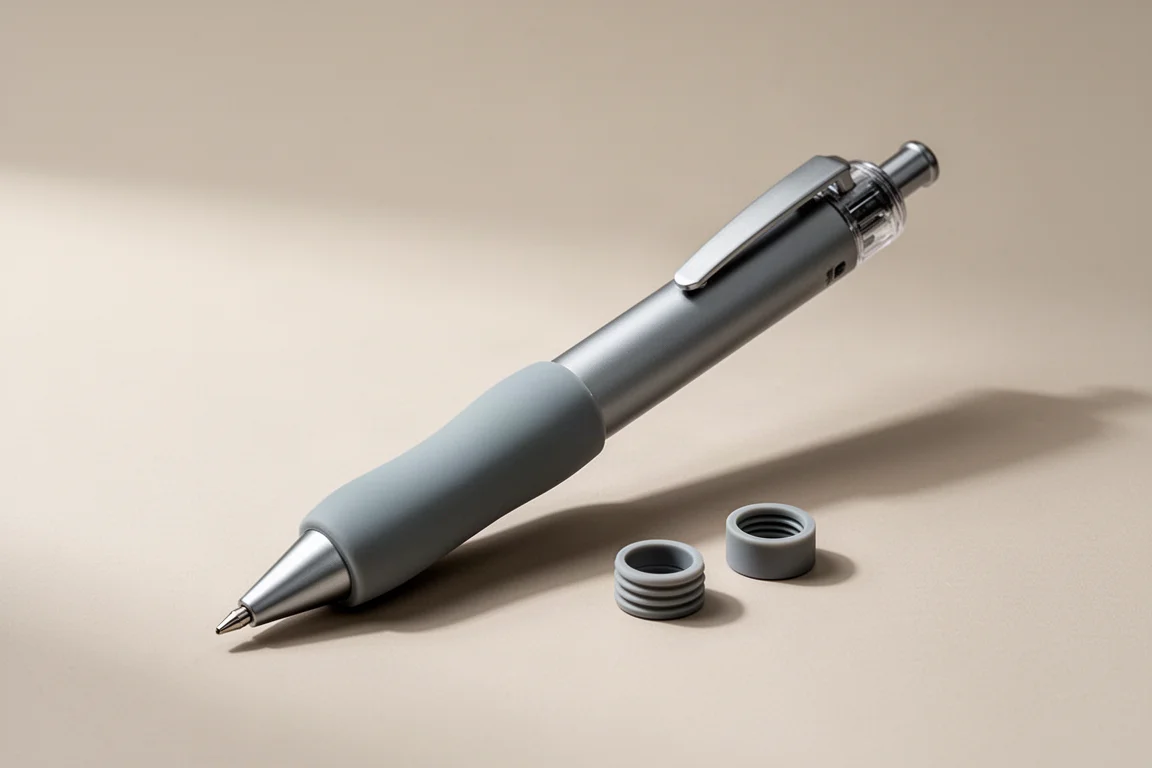

Customizable Grip: Pilot Dr. Grip CL Play Balance Shaker Mechanical Pencil

The Pilot Dr. Grip CL Play Balance Shaker lets you tune your writing experience. It includes grip sections made of silicone or metal, so you can set your preferred weight and balance. The silicone parts reduce weight and provide a cushioned grip, while the metal ones produce a firmer grip and a weighted writing feel. Altogether there are eight possible weight and center of gravity combinations.

It also carries Pilot’s Fure Fure Shaker mechanism: just shake the pencil to extend the lead.

This pencil suits writers who care about comfort and want to dial in exactly how a pencil feels in hand.

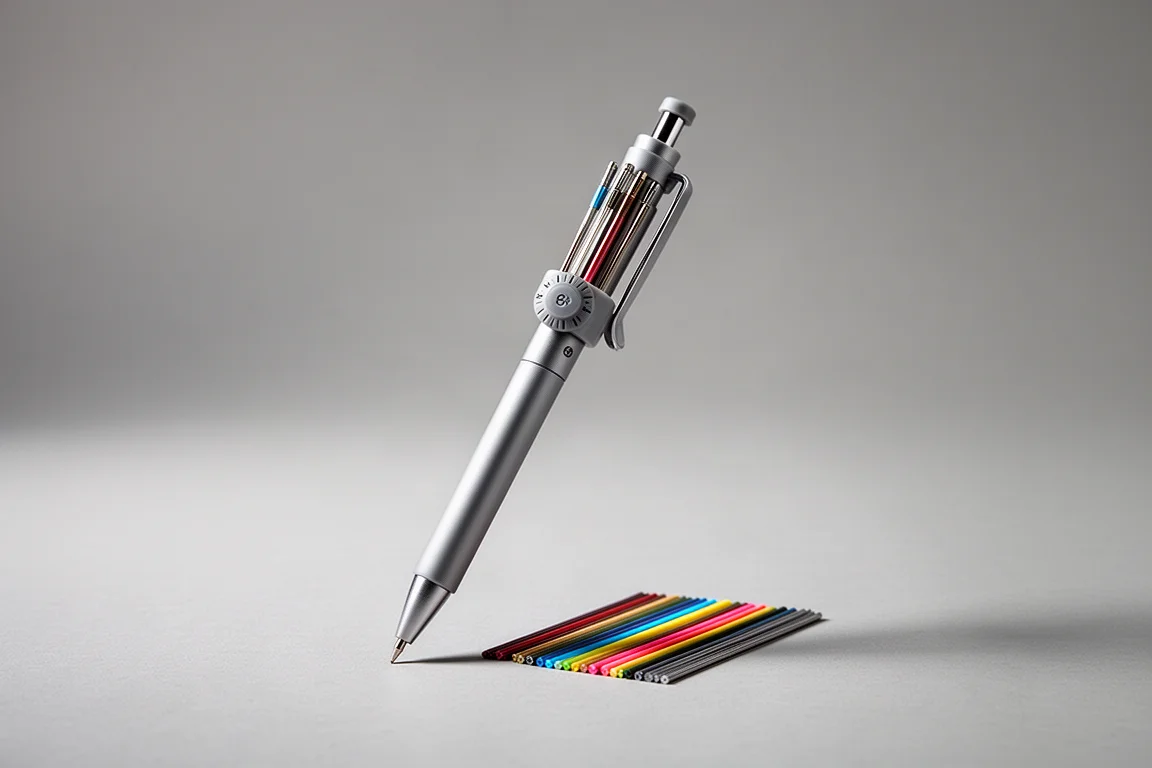

Specialty Leads: Pentel Multi 8 Lead Holders

Multi pens are common, but multi pencils like the Pentel Multi 8 are few and far between. This one holds a whopping eight leads, including six colors plus Diazo non-copy and PPC non-copy leads, which are especially useful for designers and artists.

Switching colors is simple: rotate the plastic clip to the color you want, then press the top button to release the lead. If the included colors or lead types aren’t to your taste, several other lead colors are available, and even ballpoint refills. If you’re more of a pen person, the related Pentel Super Multi 8 combines three ballpoint inks with five 2 mm leads.

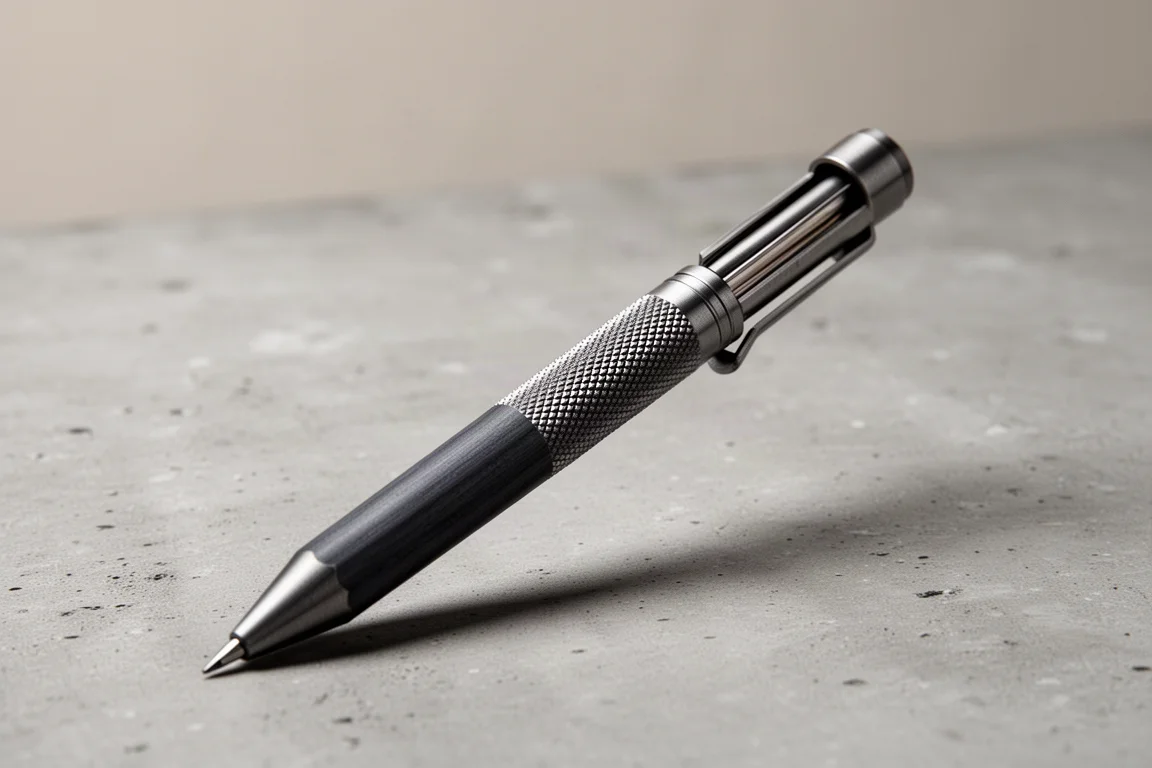

Shift and Lock Mechanism: Uni Shift Pipe Lock Drafting Pencil

Made for students and designers, the Uni Shift Pipe Lock Drafting Pencil combines form and function with a unique shift and lock mechanism that protects the pencil tip on the go. To extend the lead sleeve, you unlock the pencil by twisting the upper body and sliding it toward the tip, pushing the lead sleeve out, then lock it in place with another twist. When you’re done, unlock the shift pipe to let the sleeve recede back into the barrel and twist once more to lock it safely inside.

The pencil is weighted with a low center of gravity, so longer writing sessions are less likely to cause hand fatigue. The metal grip section uses a knurled design to keep it from slipping.

Pocketability with a protected tip makes this a sensible everyday carry for students.

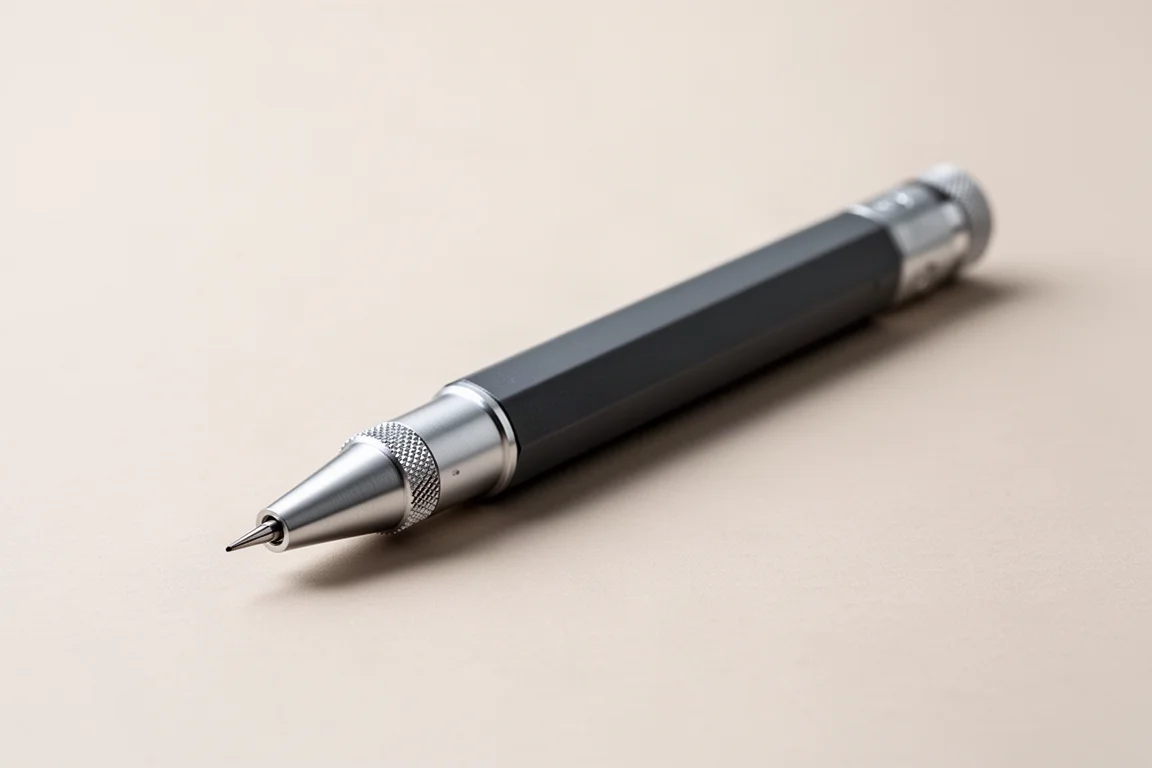

Pressure-Absorbing Spring Mechanism: Platinum Pro-Use 171 Drafting Pencil

The Platinum Pro-Use 171 Drafting Pencil aims to end broken leads. A special spring mechanism in its tip can be activated to reduce lead breakage: if you apply too much pressure, the spring helps the lead slide back slightly. Switch the mechanism off and the lead stays firmly in place, giving a more sensitive, tactile writing feel.

The lead sleeve length is adjustable too. Twist the nose cone to extend it up to 4.5 mm. A longer sleeve works well for drawing with a ruler, while a shorter length suits general writing. Because the lead sleeve is fixed to the body of the pencil, the lead feels stable no matter how much is extended.

For heavy-handed writers and technical sketchers, this is arguably the most practical kind of overengineering on this list.

Overall Buying Advice

Match the pencil to your actual habits. If you write long sessions without pausing, the auto-advancing Orenz AT removes clicks entirely. If your bag doubles as a toolbox, the Monteverde One Touch earns its weight. If comfort matters most, the Dr. Grip’s swappable grip sections are hard to beat. Designers who switch colors constantly will love the Multi 8, commuters get real value from the Uni’s locking sleeve, and heavy-pressure writers should look closely at the Platinum’s spring-cushioned tip.

Conclusion

Each of these six pencils is overengineered in the best sense: the extra mechanism solves a real writing problem rather than adding gimmickry. Whichever one impressed you most, the right choice comes down to whether your biggest frustration is clicking, breaking lead, discomfort, or carrying too many tools at once.
