WeCreat Lumos Ultra Review: A Versatile UV and Fiber Laser Engraver

Introduction

The WeCreat Lumos Ultra is a desktop laser engraver that stands out because it combines two powerful laser types in a single unit. Instead of choosing between a UV laser for delicate materials or a fiber laser for metals, this machine includes both, along with a MOPA fiber source that supports color engraving. It arrives well packaged with multiple field lenses, a rotary attachment, and a slider that extends the working area beyond what a typical galvo laser offers.

Who This Product Is For

This machine is aimed at small businesses and serious hobbyists who want to produce a wide variety of engraved products without maintaining multiple laser systems. The combination of UV and fiber lasers means you can work with crystal, glass, plastics, wood, leather, stainless steel, titanium, aluminum, and carbon steel. If you run a craft business, a personalization shop, or a small manufacturing operation, the Lumos Ultra covers a broad range of materials and applications.

UV Laser: Cold Engraving and Fine Detail

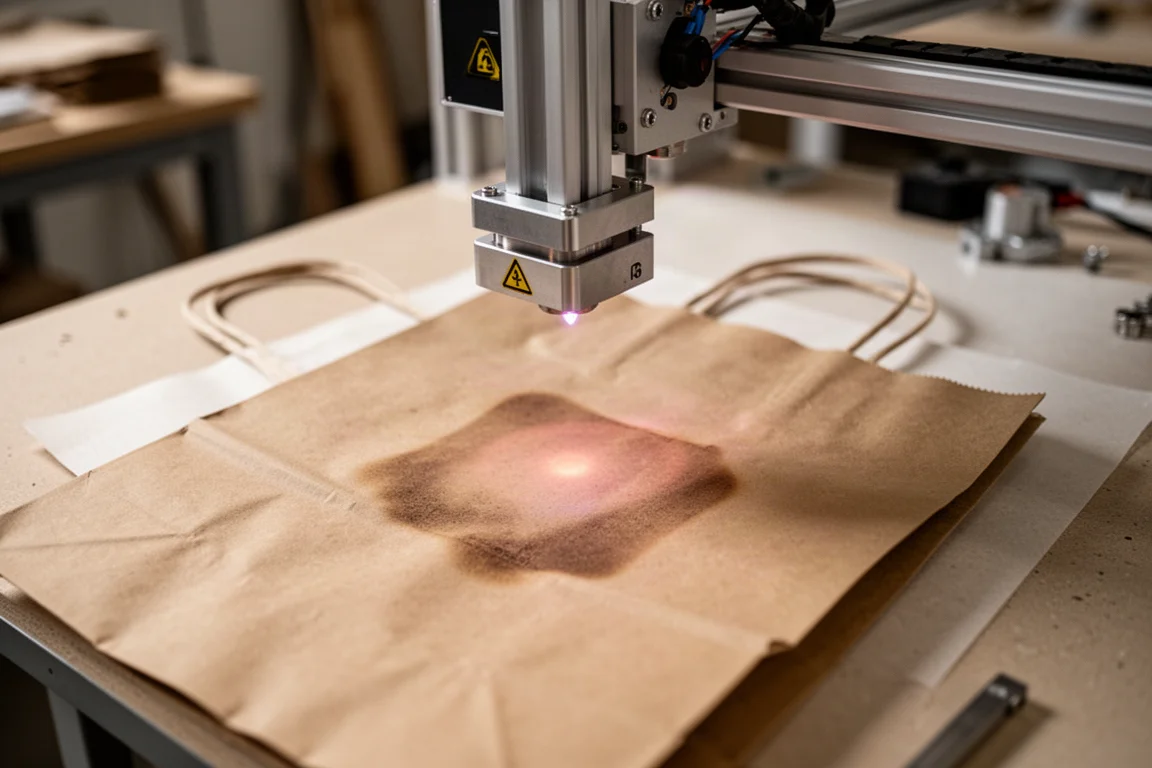

The UV laser is the first of the two laser systems in the Lumos Ultra. It processes materials without overheating them, which means it does not burn or char the surface. A good demonstration of this is engraving on a brown paper bag. Instead of leaving burn marks, the UV laser creates a discoloration similar to a sun fade. This cold engraving approach is particularly useful for delicate materials.

The fine detail from the UV laser is impressive. When comparing engravings on coated aluminum cards made with CO2, fiber, diode, and UV lasers, the UV laser produces noticeably sharper resolution. This makes it a strong choice for detailed logos, markings, and intricate designs.

The cold engraving also works well on 3D printed parts. You can add logos, connection indicators, or other markings without burning the plastic. The result is a clear, durable mark that does not damage the part.

Synthetic leather is another common material for craft businesses. With a CO2 laser, synthetic leather can easily burn if you are not careful. The UV laser on the Lumos Ultra gives a clean color change while keeping the material intact.

On wood, the UV laser delivers clear detail without the charred appearance typical of CO2 or diode lasers. Clear acrylic also performs well. Diode lasers struggle with clear acrylic, and even CO2 lasers produce mediocre results. The UV laser, however, creates an excellent, clean engraving on clear acrylic.

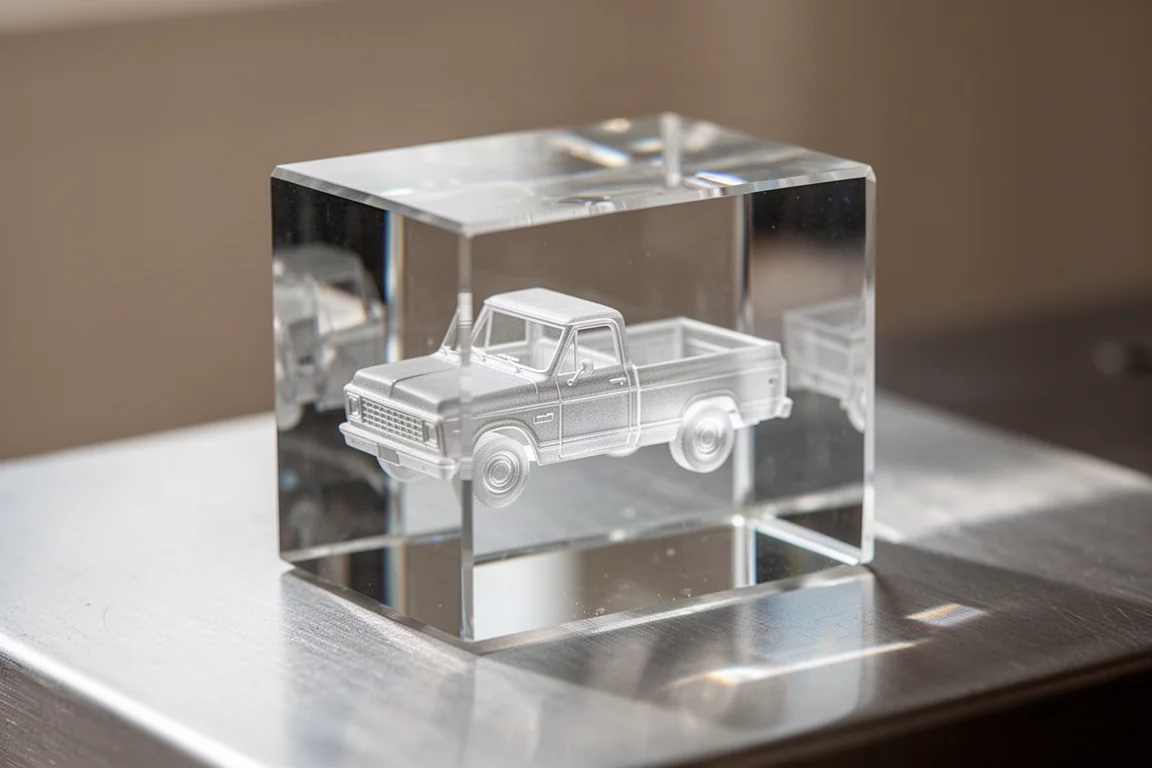

Internal 3D Engraving in Crystal

One of the most distinctive features of the Lumos Ultra is its ability to engrave internally inside crystal. To do this, you need to swap the field lens to a special one included in the kit. The process works similarly to 3D printing, with the software slicing the model into layers and engraving one plane at a time. The Z-axis indexes upward after each layer until the full 3D image is complete.

The software offers several options for 3D engraving, including AI tools that can convert 2D images into 3D models. You can also import a 3D model directly, then rotate, scale, and position it within the material. The slicing process is automatic, and the results are remarkably detailed. Watching the internal engraving take shape inside the crystal is genuinely impressive.

MOPA Fiber Laser: Color Engraving and Deep Marking

Switching to the fiber laser is straightforward. The MOPA 100W fiber laser source is removable from the main unit, which is a thoughtful design choice since many fiber lasers are fixed in place. The source is a JPT fiber laser, known for top-tier quality. The unit also includes built-in fume extraction with a fan and a protective cover.

The 100W MOPA fiber laser enables two key capabilities: color engraving and deep engraving. Color engraving works by controlling the oxide layer that forms on the surface, which produces different colors. This technique works on stainless steel and titanium.

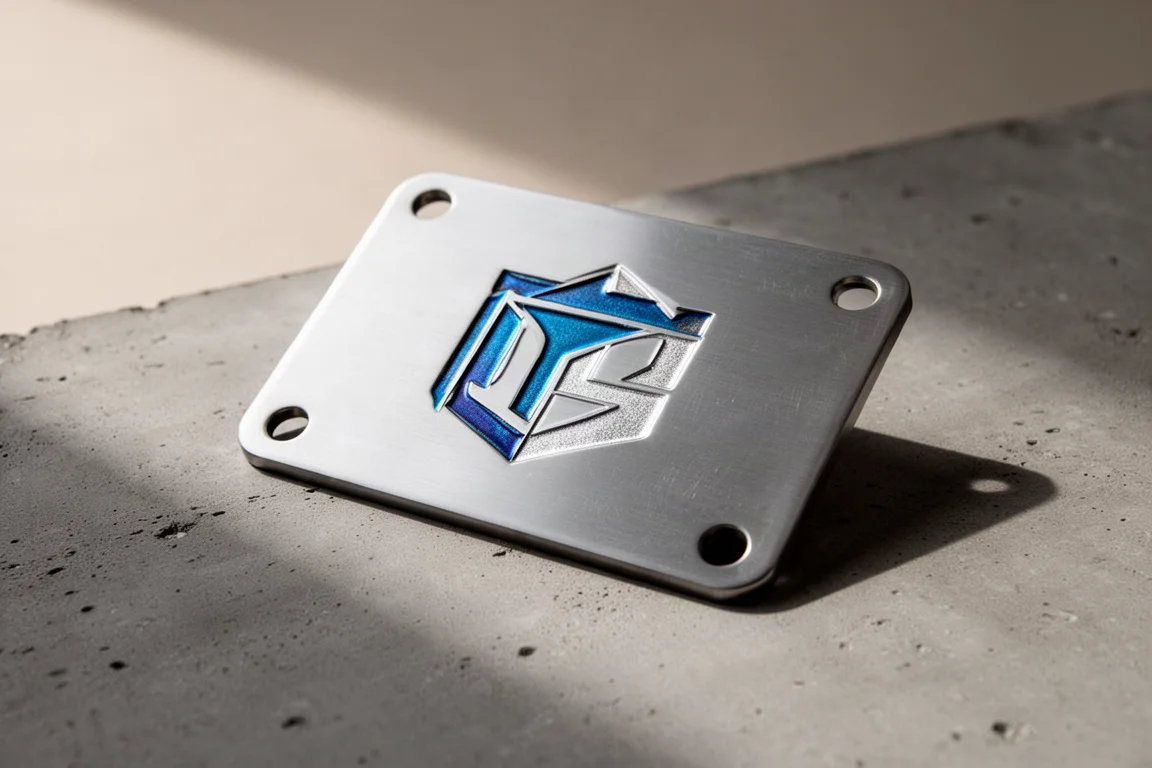

Running a parameter test on titanium helps you understand which settings produce which colors. From there, you can create multi-tone logos by selecting different sections of your design and assigning different parameters to each. The software supports this workflow, though it may take a little experimentation to get the exact look you want. A two-tone logo with a blue background and a contrasting foreground is achievable with some adjustment.

For regular material engraving, the fiber laser handles carbon steel, stainless steel, and aluminum without issues. Carbon steel produces clear, crisp marks. Stainless steel offers a wide variety of surface effects. Aluminum typically results in a white tone regardless of settings, as long as you have enough power.

Deep engraving is another strength. On a brass coin, running multiple passes with the 100W laser removes material to create depth. The emboss feature takes this further by using a grayscale image to control depth. Darker areas of the image correspond to deeper cuts, and the laser carves down layer by layer, similar to 3D printing. The result is a three-dimensional coin effect with impressive detail.

Slider and Rotary Accessories

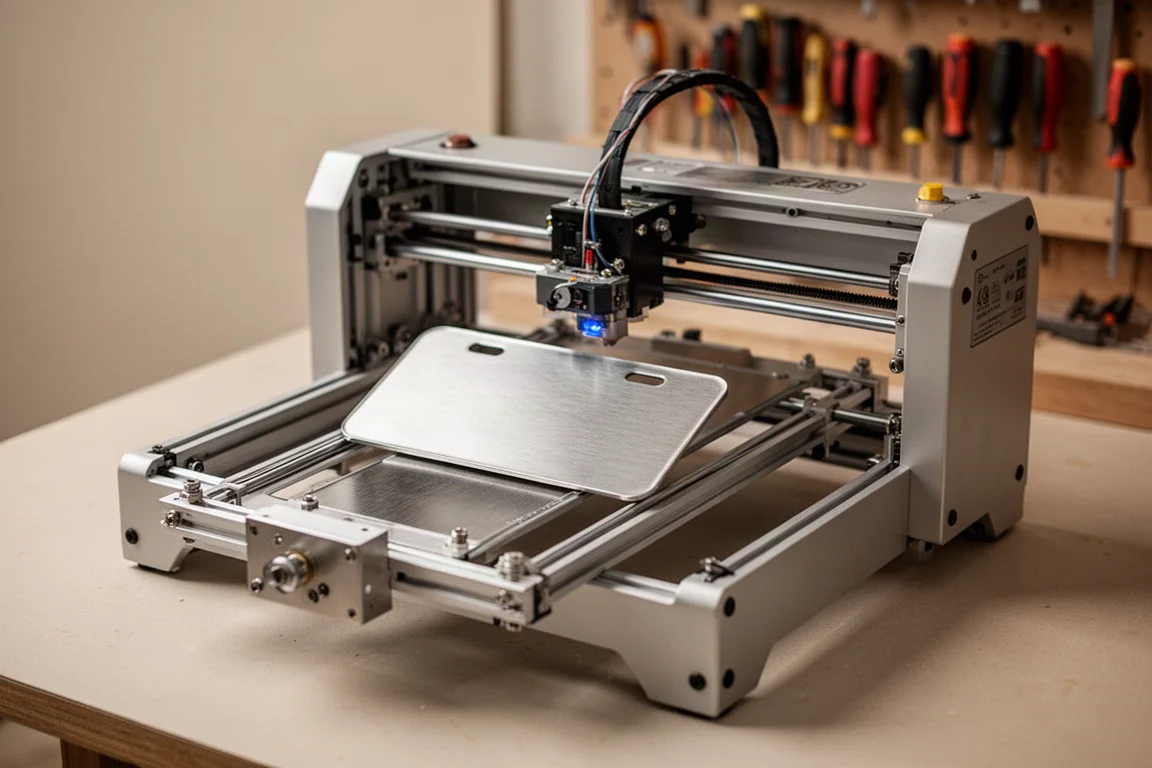

The slider accessory significantly expands the working area by moving the material underneath the galvanometer. This makes it possible to work on longer pieces, such as custom license plate blanks. You can laser cut the blank shape, brush it for a finished appearance, and then use the camera to align your engraving. The camera captures multiple images and stitches them together, even when the slider is in use. A framing feature traces the design if you want to preview placement.

Because the laser only runs vertically on the galvanometer while the slider handles the horizontal movement, the final result has no blocky appearance. The engraving looks clean and professional.

The rotary accessory allows you to engrave on round objects. Testing it on the surface of glass produces a clear, precise etching. The rotary includes a tailstock, so you can work on tumblers and other cylindrical items. It can also be used in combination with the slider for additional flexibility.

Things to Consider Before Buying

While the Lumos Ultra is a very capable machine, it does have a few shortcomings. The exhaust fan is noticeably loud, which could become bothersome during long, continuous runs. This is a hardware limitation and harder to address than software issues.

The software has a few known issues that the manufacturer is actively working on. Generating tool paths for crystal engravings can sometimes take a few minutes, which feels slow. Occasionally, stray engraving lines appear, though they never ruined a project. The system also failed to start a couple of times, requiring a reset. These are minor issues for a pre-production unit, and the overall software maturity is impressive.

Buying Advice

If you run a small business or a craft operation and want to expand your product range, the Lumos Ultra is a strong investment. Having both UV and fiber lasers in one unit means you can produce high-value items like crystal awards, personalized metal products, and detailed leather goods without buying separate machines. The software is easier to learn than most laser engraver software, which lowers the learning curve.

The machine is not cheap, but the versatility justifies the cost for users who will regularly use both laser types. If you only need one type of laser, a dedicated unit might be more economical. However, for those who want to cover a broad range of materials and applications, the Lumos Ultra is a compelling all-in-one solution.

Conclusion

The WeCreat Lumos Ultra is a well-designed laser engraver that combines UV and MOPA fiber lasers in a single, thoughtful package. It delivers cold engraving on delicate materials, internal 3D engraving in crystal, color marking on metals, and deep engraving for dimensional effects. The slider and rotary accessories extend its versatility further. Despite minor software quirks and a loud fan, this is a mature and capable system that should serve small businesses and serious makers well.
