Topdon TopScan Review: Bi-Directional Diagnostics for Under $70

Introduction

Bluetooth OBD2 scanners are a dime a dozen, but almost all of them stop at reading trouble codes. The Topdon TopScan is a little bigger than your standard Bluetooth scanner, and it packs a whole lot more punch: this is a genuinely bi-directional diagnostic tool, the kind of capability that usually lives on scanners costing $200 to $400. At a street price around $60, it is hard to ignore.

This review is based on hands-on use with a 2014 Ram 3500 HD Cummins diesel, performed entirely through the TopScan app on an iPhone 13 Pro. Here is what it does well, and where you should think twice.

Who This Product Is For

The TopScan is aimed at DIY owners who want real diagnostics without paying professional scan tool prices. If you own a truck, a diesel, or an aging vehicle that throws the occasional code, this tool lets you read trouble codes, stream live data, and actively test components rather than just passively watch them.

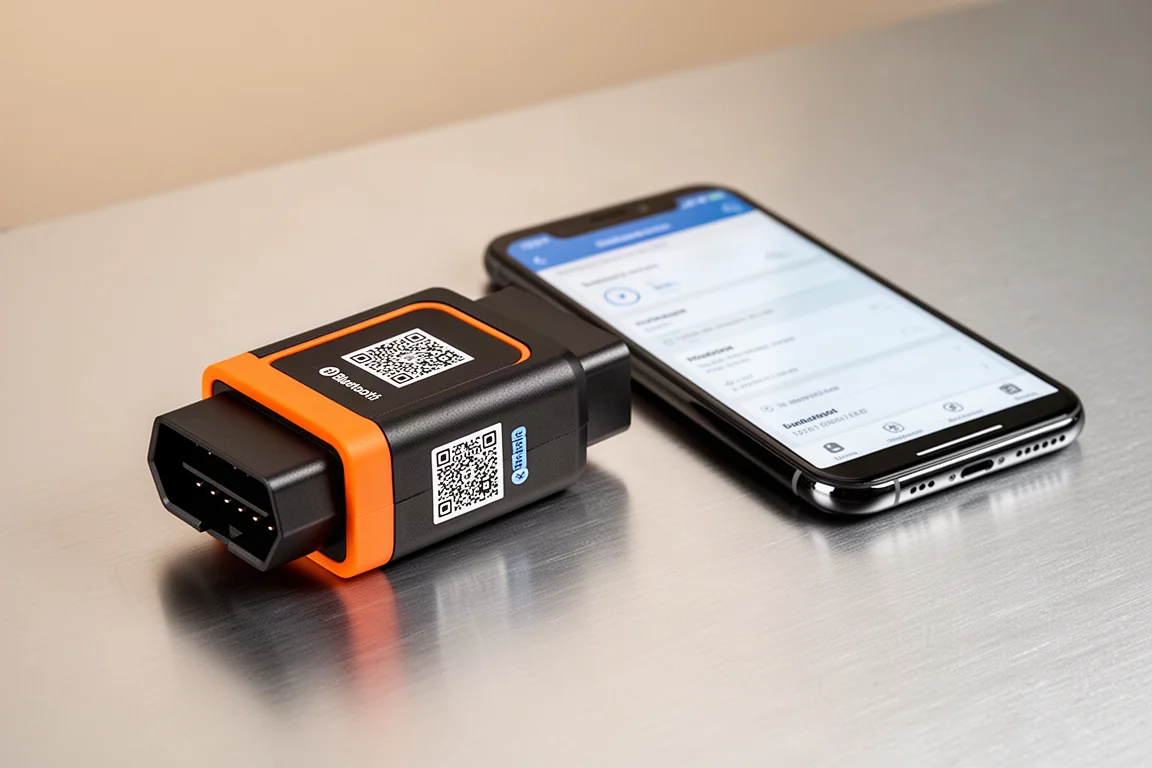

Setup involves downloading the TopScan app (not the Topdon app), scanning the QR code on the device itself, and registering the VCI. One quirk: after registering the adapter, you still need to connect via Bluetooth before the app will let you download the vehicle software package. That step confused us briefly, since the app reported the vehicle software as unavailable until the Bluetooth connection was live. Once connected, the vehicle data downloaded quickly, even on 4G LTE, and the app automatically acquired the VIN.

Main Strengths

The headline feature is bi-directional control. During testing, the TopScan fired the horn, toggled the heated seats on and off, and switched cruise control on and off, with each command registering on screen. That is active testing: you command an output and confirm the vehicle responds, which is a genuinely useful diagnostic method for tracking down electrical and module faults.

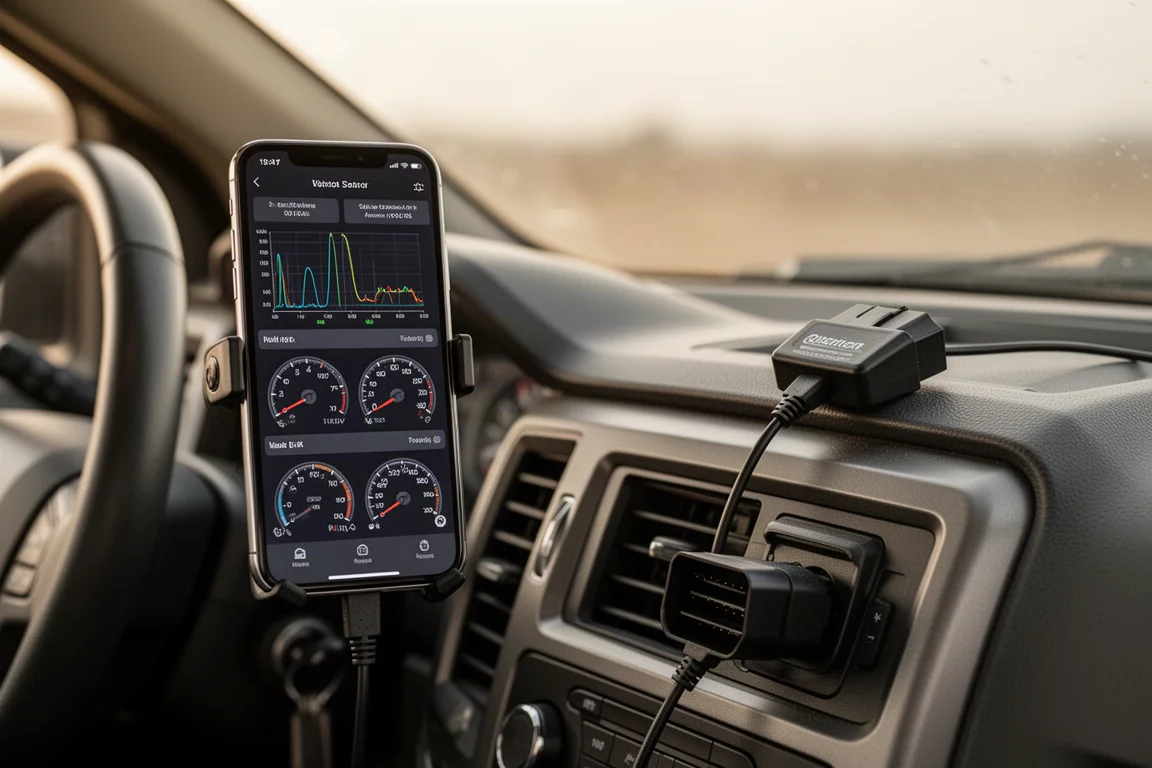

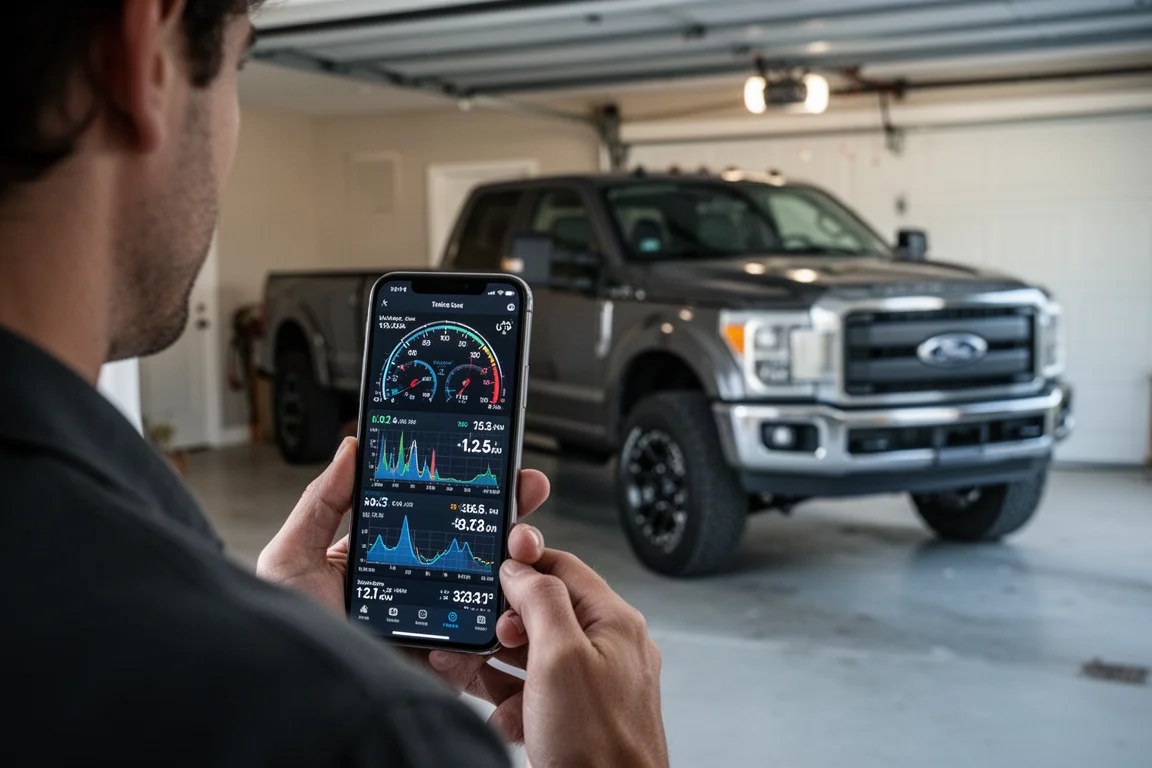

Live data streaming is equally impressive. In the power control module alone there is a metric ton of data: AC pressure, accelerator position and voltage, battery voltage, boost pressure, compressor outlet temperature, coolant temperature, DEF tank temperature, EGR functions and voltage set points, engine speed, transmission limp-in status, vehicle speed, and water-in-fuel sensor status. For a diesel owner in a cold climate, being able to check DEF tank temperature is a nice touch. You can toggle systems like the AC on and off and watch the parameters respond in real time, which makes it easy to verify whether a component is actually working.

Beyond diagnostics, the TopScan covers a range of maintenance reset functions, including oil, throttle, EPB, steering, DPF, ABS, BMS, and airbag resets.

Things to Consider Before Buying

There were a couple of friction points worth knowing about. The QR code scan on the device took longer than expected to register, and the Bluetooth connection requirement before downloading vehicle software is not obvious. Neither is a dealbreaker, but expect a few minutes of fiddling during first-time setup.

There was also a previous version of this product that had software issues, which Topdon pulled back to get the software right. The current version is what we tested, and it behaved well, but it is worth making sure you are buying the latest hardware.

The performance-testing feature is fun, but it bears repeating: do not use it on open roads, and never drive badly on public roads. The live data volume can also feel overwhelming at first; there is almost too much data to parse in a single session, though most owners will come to appreciate the depth.

Buying Advice

Pricing has been moving around. At the time of this testing there was a lightning deal around $70, and an additional $10 off coupon code brought it down to $60. Even without a deal, this class of bi-directional capability at a sub-$100 price is genuinely unusual, and we would have expected a tool like this to cost closer to $200. Note that coupon codes may not stack with lightning deal pricing, so check the current listing before buying.

If you just want to read and clear codes, a cheaper basic scanner will do. But if you want to actively test components, stream deep live data, and perform maintenance resets on your own vehicles, the TopScan offers a remarkable amount of capability for the money. Topdon also has a strong track record with its jump starters and Bluetooth battery testers, which adds some confidence in the ecosystem.

Conclusion

The Topdon TopScan is a lot of power in a tiny package. Bi-directional control, extensive live data, and a full set of maintenance resets in a pocket-sized Bluetooth adapter is a combination that normally costs several times more. The initial setup has minor quirks, but once connected, it is a genuinely capable diagnostic tool that makes professional-level vehicle testing accessible to anyone willing to learn the app.
