Spectral 29-Piece Step Point Drill Bit Set Review: Step Geometry in a Full Range

Introduction

Step drill bits occupy a curious corner of the tool world. Many people already own a classic cone-style unibit for sheet metal and electrical work, yet traditional twist drill bits remain the default for almost everything else. The Spectral 29-Piece Step Point Drill Bit Set blends the two ideas: each bit keeps a familiar twist-drill shank and flute, but the cutting end carries graduated step geometry designed to start fast, reduce burring, and drill without a pilot hole. The set uses M2 high-speed steel, is color-coded by size, and spans 1/16 inch up to 1/2 inch across 29 pieces, all housed in a single case.

This review puts the set through a practical round of testing on wood, curved surfaces, galvanized pipe, a heavy steel electrical box, and aluminum, with comparisons against Milwaukee hard-metal, titanium-coated, and Diablo bits. The short version: the Spectral bits grab aggressively, start cleanly on difficult surfaces, and consistently outdrilled the standard bits in the comparison.

Who This Product Is For

This set suits anyone who drills into metal regularly: metalworkers, electricians, fabricators, and overlanders who want one comprehensive kit instead of hunting for individual bits. If you already love step drills for sheet metal and thin stock, this set extends that start-anywhere behavior into a full fractional range, from tiny 1/16-inch pilot work up to half-inch holes. Anyone who has learned the hard way that cheap drill bits wander, burn, and dull quickly will appreciate the premise of a well-made set that starts on contact.

What Is a Step Point Drill Bit?

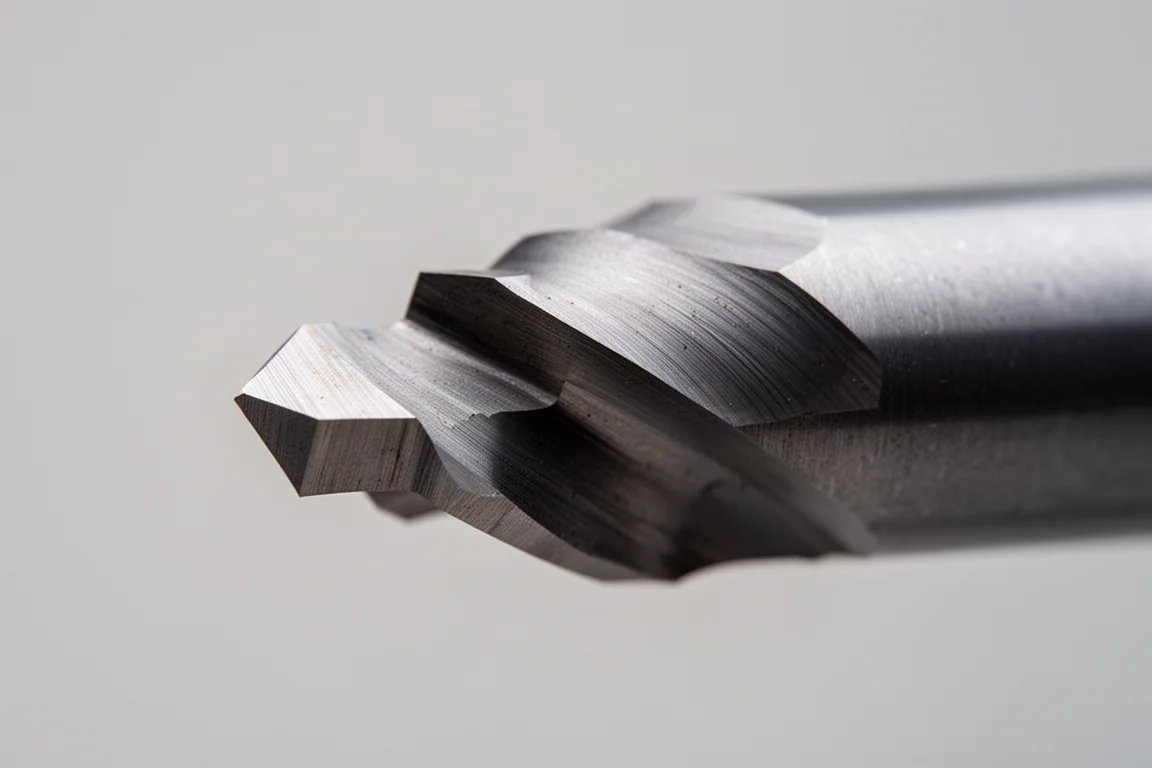

The concept is simple once you see it. A classic step drill, like the familiar cone-shaped unibits from Irwin or Klein, uses a series of graduated diameters to enlarge a hole in stages. The Spectral set takes that same step philosophy and applies it to the tip of a conventional twist drill bit. The result looks like a normal bit until you get close: the front end carries a subtle first step, and the geometry becomes more elaborate further back along the cutting edge.

The claimed advantages follow logically from that shape. Because the stepped tip establishes its own starting point, the bit should not wander or spin across the surface, which means no pilot hole is needed. The stepped cutting action also tends to reduce burring compared with a standard point. And, as with cone-style step drills, the larger sizes can open up a much larger hole quickly once the tip bites.

One detail worth noting: the smallest bit in the set, the 1/16-inch size, does not have a pronounced step on the front end, which is expected at that scale. The step evolution on the larger bits is where the design becomes obvious.

How It Performed in Testing

Testing started easy and got progressively harder. In wood, the bit grabbed impressively fast, biting on contact with no hesitation. That set the tone for everything that followed.

The first real test was a curved surface: the domed cap of a fence post, held steady with pliers. Curved metal is where standard twist bits usually skate and wander, and the comparison showed it. The Spectral bit drilled through almost instantly. The Milwaukee hard-metal bit managed the same hole but noticeably slower, and the Diablo bit needed more effort and still was not in the same league. The difference was not subtle.

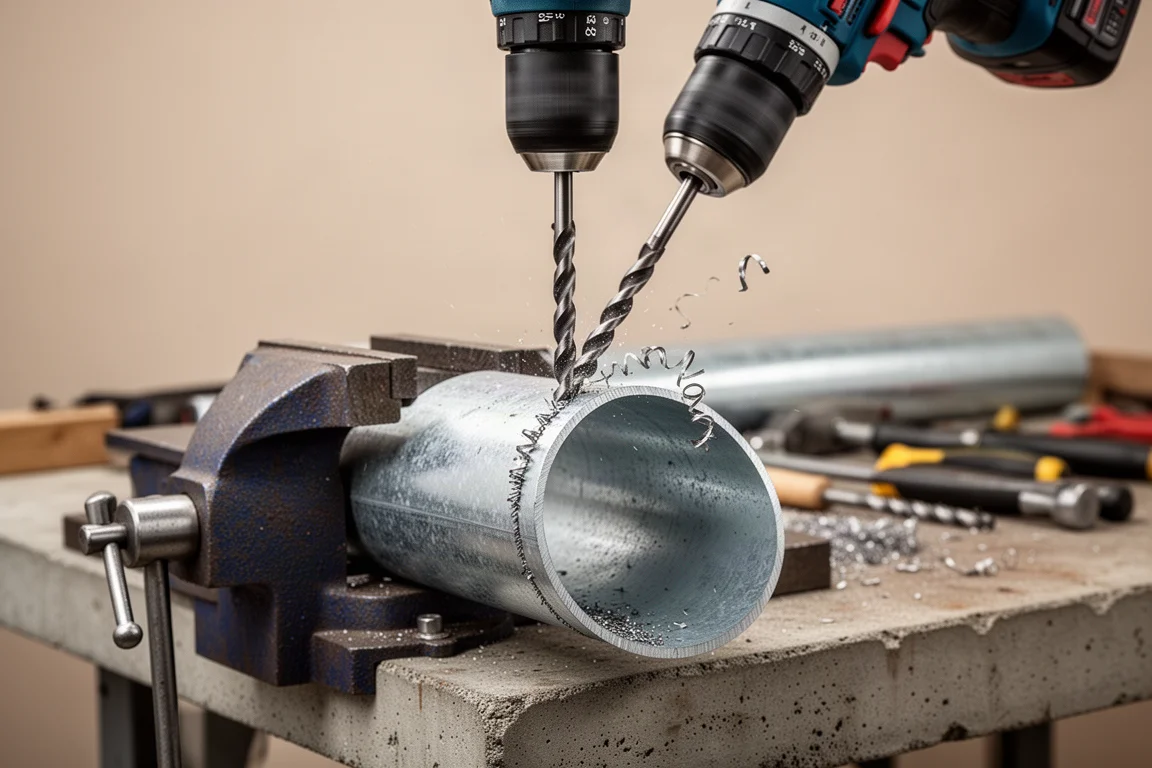

Galvanized pipe was the next challenge, another curved surface with a reputation for making bits skate. Here the Spectral bit grabbed so hard it caught the tester off guard, pulling hard enough that secure clamping clearly matters. Once the workpiece was held properly, the bit went through quickly and cleanly. The lesson from these tests is straightforward: this bit starts so aggressively that the workpiece needs to be clamped or held firmly, because it will transfer torque into whatever is not secured.

A heavy steel electrical box followed, and the Spectral bit went right through it with visible speed. On a fresh hole in the same material, the titanium-coated Milwaukee bit eventually got through but only under heavy pressure, and the Diablo bit struggled more in the same spot. Across these side-by-side comparisons, the Spectral bits consistently outperformed the alternatives.

Angle and Curved Surface Starts

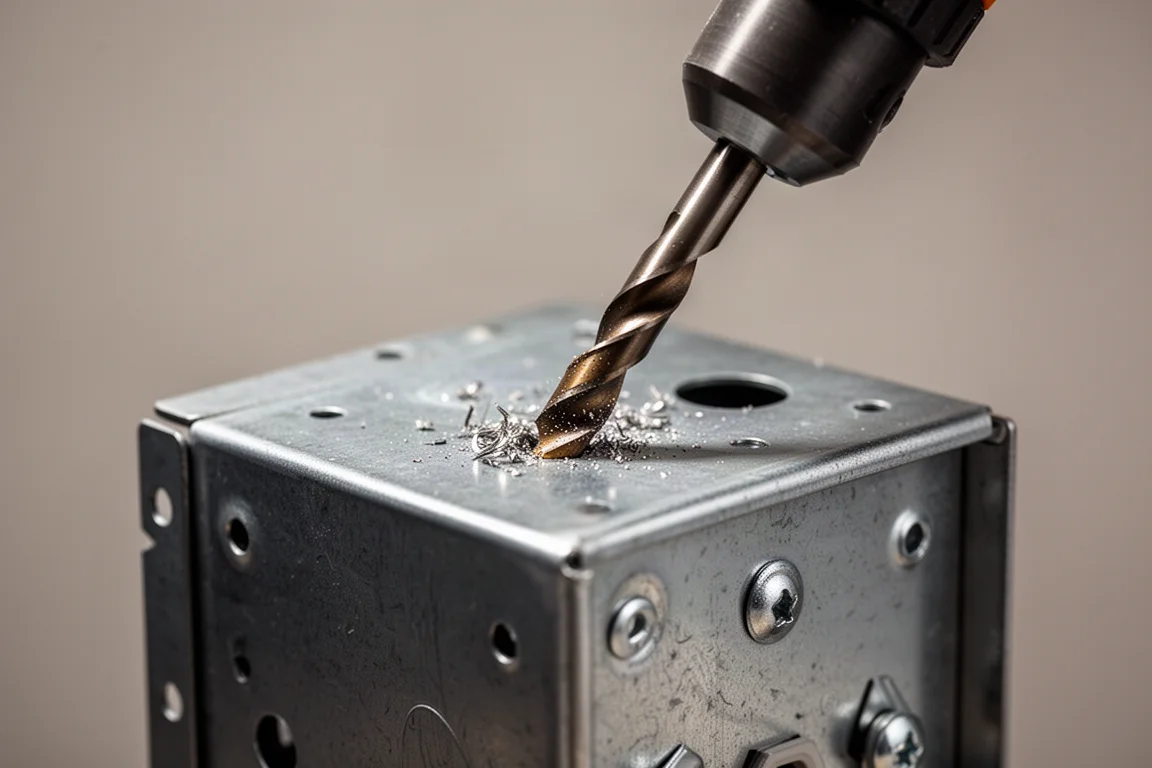

Drilling into metal at an angle is one of the hardest starting scenarios, because a conventional tip tends to slide down the slope before it ever bites. The Spectral step point handled this test with only minor initial movement. Where a standard bit wandered off the angled surface, the Spectral tip caught, established itself, and pulled through.

Aluminum provided a softer-metal test, and here one useful lesson emerged about chuck depth. The bits have what amounts to a three-lobe engagement at the cutting end, and seating the bit slightly too far into the work caused it to grab hard enough to twist loose. Backing off and using a fresh, slightly smaller bit with the proper depth produced a clean, controlled hole. A final return to a curved surface with a smaller bit confirmed the pattern: clean entry, fast cut, no wander.

For stainless steel, the guidance is to use cutting oil or lubricant, which is standard practice for any high-speed steel bit in that material. That caveat aside, the set handled everything thrown at it during testing.

Things to Consider Before Buying

The aggressive bite is the set’s best trait and its main operational caveat. Because the step point grabs on contact with such authority, unclamped workpieces can spin or shift, and the bit itself can torque in the chuck if seated too deep. Plan on a vise, pliers, or clamps for anything smaller than a full sheet of material. Stainless steel work will also want cutting oil, as with any HSS bit.

The case is sturdy plastic, and opening it for the first time takes some effort, but the arrangement keeps all 29 color-coded bits organized and easy to identify at a glance. At roughly $130, the set undercuts similar step-point designs that run closer to $200, which makes the value proposition one of the strongest parts of the package.

Buying Advice

If your work involves regular metal drilling, especially on curved surfaces, thin stock, or awkward angles, this set earns its place in the drawer. The step geometry solves the two most common frustrations with twist bits, wandering starts and burring, and the full 1/16 to 1/2 inch range means you rarely need to reach for another bit.

If you only occasionally drill a few holes in sheet metal, a single cone-style unibit may still be the more economical choice. But for anyone building a serious kit, the Spectral set delivers step-drill convenience across the whole fractional range at a price that undercuts comparable designs. For stainless work, budget for cutting oil and clamp everything securely.

Conclusion

The Spectral 29-Piece Step Point Drill Bit Set delivers on its core promise: fast, self-starting holes with minimal wander across wood, galvanized steel, heavy electrical steel, and aluminum. It consistently outdrilled comparable Milwaukee and Diablo bits in the same tests, and the M2 high-speed steel construction with color-coded sizing makes the set easy to live with. At around $130 for 29 bits spanning 1/16 to 1/2 inch, it is a compelling value for anyone who drills metal regularly. Just respect the bite: clamp your work, and let the step geometry do its job.
