Slide Hammers vs Air Pullers: Which Pulling Tool Really Delivers?

Introduction

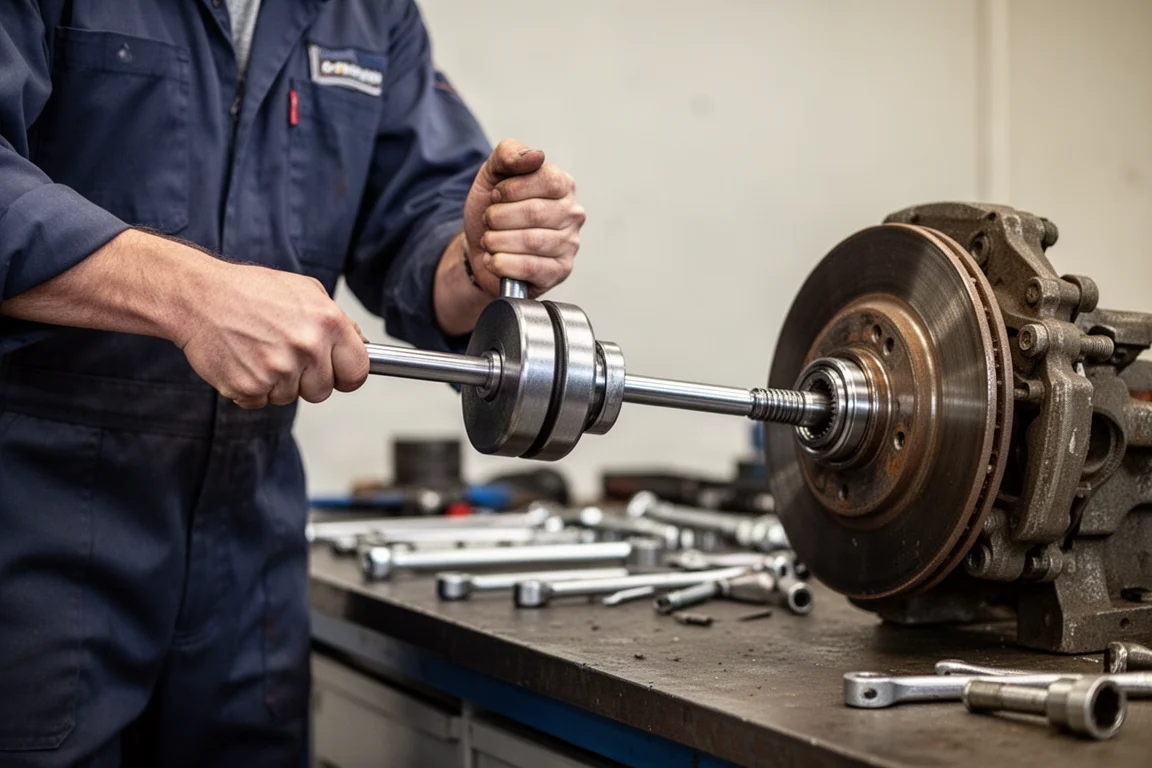

Slide hammers have been a staple in automotive workshops for decades. They are simple, reliable, and get the job done when you need to pull bearings, pulleys, or stubborn wheel hubs. But a new generation of air-powered pullers promises the same results with less physical effort. The question is whether these modern tools can actually match the pulling force of a traditional slide hammer.

To answer that, we measured the force produced by six different tools: three manual slide hammers and three air-powered pullers. Each was tested on a purpose-built dyno designed to register the peak force of every impact. The results reveal some surprising comparisons and a few clear winners for specific tasks.

How We Measured Pulling Force

The test rig uses four hardened steel wedges stacked in parallel. A hydraulic force meter registers the pressure from each impact, which we convert into pounds of force. The wedges are forged and designed to be hammered under large equipment, so they handle the repeated impacts without deforming. A T-valve allows quick resets between tests, ensuring repeatable results across all tools.

For the manual slide hammers, we used each tool’s best result from three attempts. Human-powered tools come with natural variability, so we added a 5 to 10 percent buffer to account for differences in strength and technique. The air-powered tools were tested at standard shop pressure, with some additional runs at 150 PSI to check for gains.

The resolution of the force measurement is impressive. Even small hits register clearly, with no significant resistance to overcome that would hide data. This gives us a reliable picture of how each tool performs in real-world conditions.

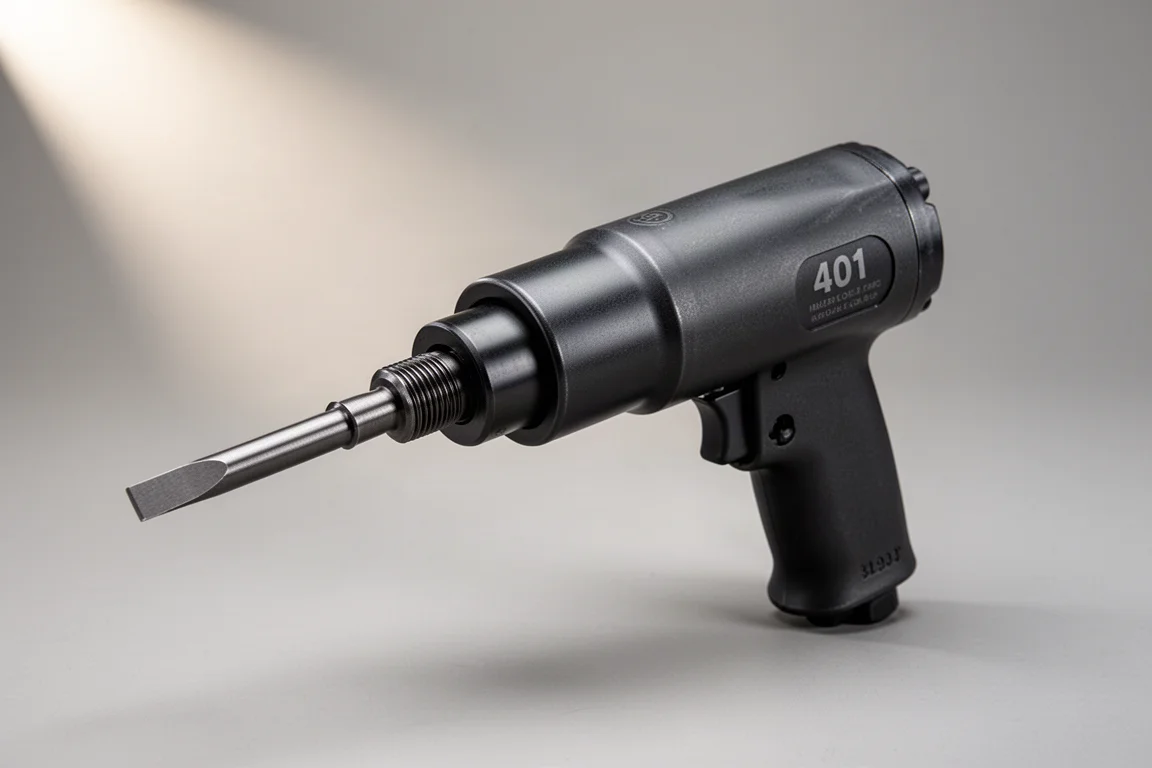

SunX Air Hammer: A Compact Powerhouse

The SunX air hammer is a 401 shank unit that delivers surprising punch for its size. It is designed to work as a traditional air hammer, but with the right attachment, it can be turned into a puller. The attachment we used cost around $80 and threads onto the front of the tool, redirecting the impact force 180 degrees.

The SunX produced a maximum of 750 PSI on the dyno, which translates to about 3,200 lb of force. That puts it in the range of a 1 lb slide hammer. It is not the strongest tool here, but its compact size and air-powered operation make it convenient for tight spaces where a full-size slide hammer cannot fit.

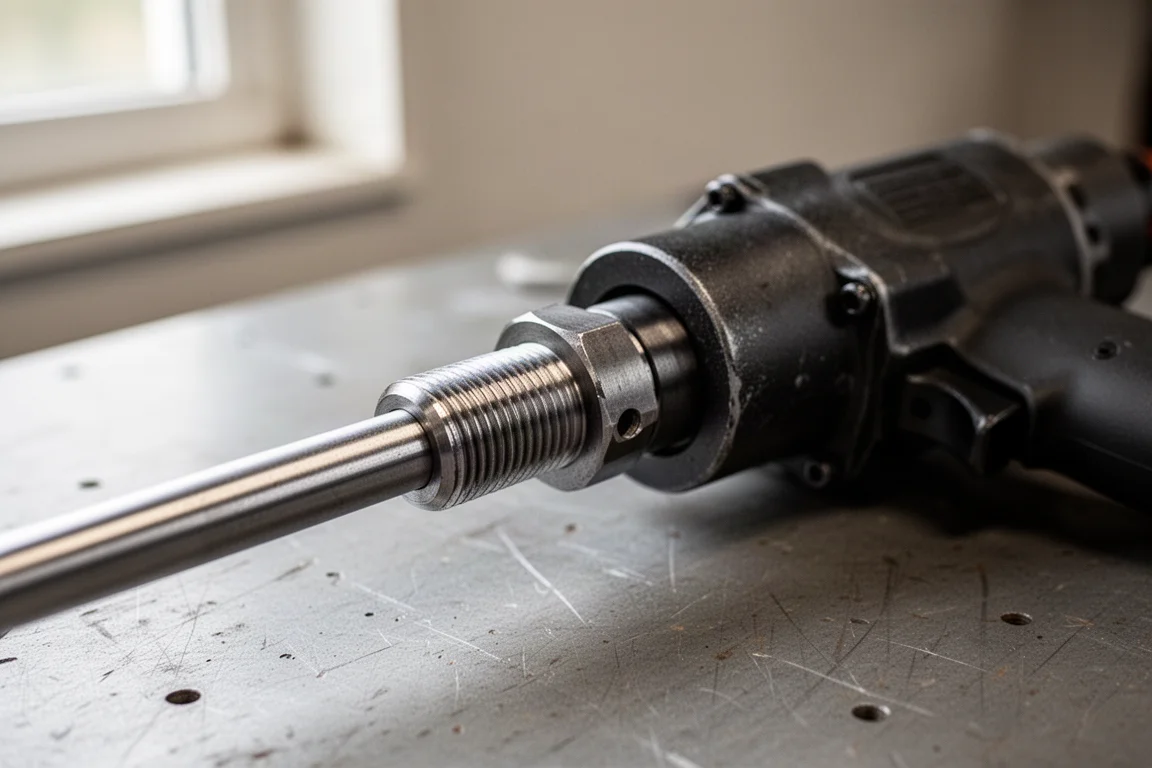

One limitation is the thread size. The shaft uses a non-standard thread, so you will need an adapter to use common slide hammer attachments. Given its power output, it is likely designed for lighter pulling tasks rather than heavy-duty work.

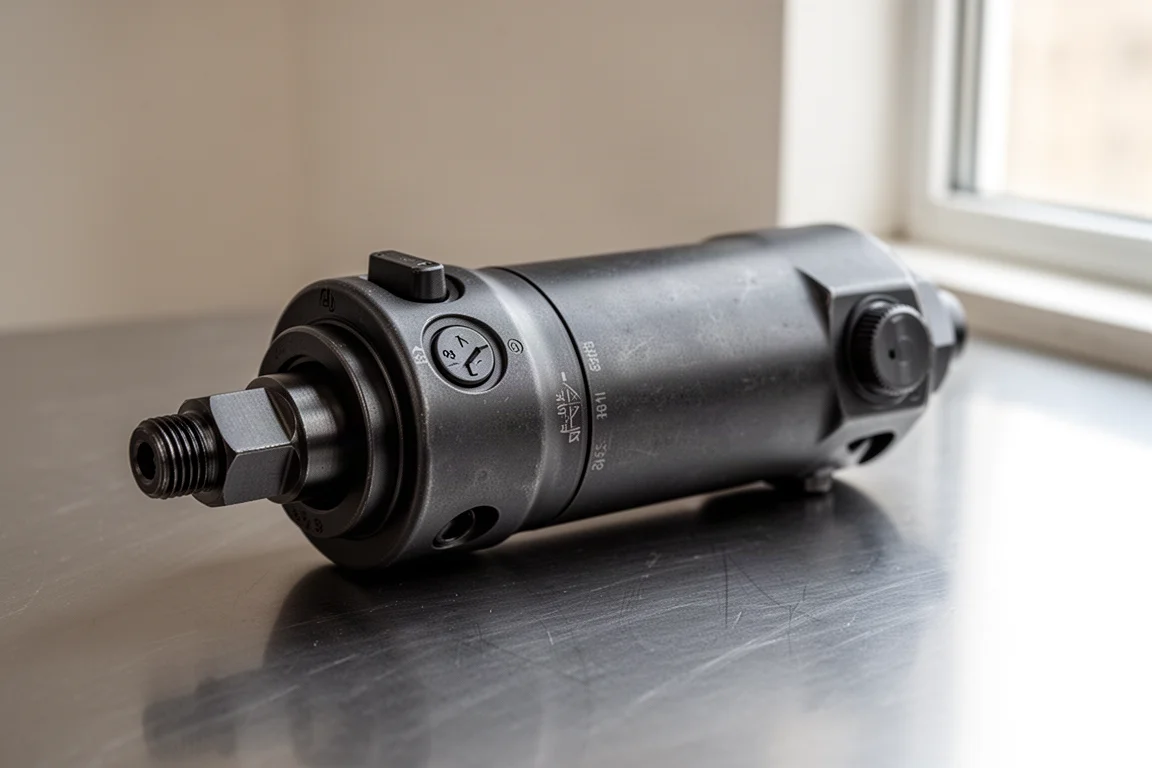

Sunmake 250 mm Air Puller: A New Design Worth Trying

The Sunmake 250 mm air hammer air puller is a new design that looks like a traditional air hammer but switches between hammering and pulling modes. It was purchased directly from the Taiwan market for around $200. The tool features a direction switch at the front, and pressure on the tool places the valve body in the correct position for either mode.

It is not the most intuitive tool to use at first. You can sometimes get it stuck in a neutral position where nothing happens. But once you have it locked in, it performs well. At 150 PSI line pressure, it reached 1,800 PSI on the dyno, which works out to about 7,700 lb of force.

That puts it in the same range as a 2 1/2 lb slide hammer. It is a solid performer for medium-duty pulling tasks, though it may not be the best choice for the biggest jobs. The lack of instructions means you will need to experiment to find the right technique.

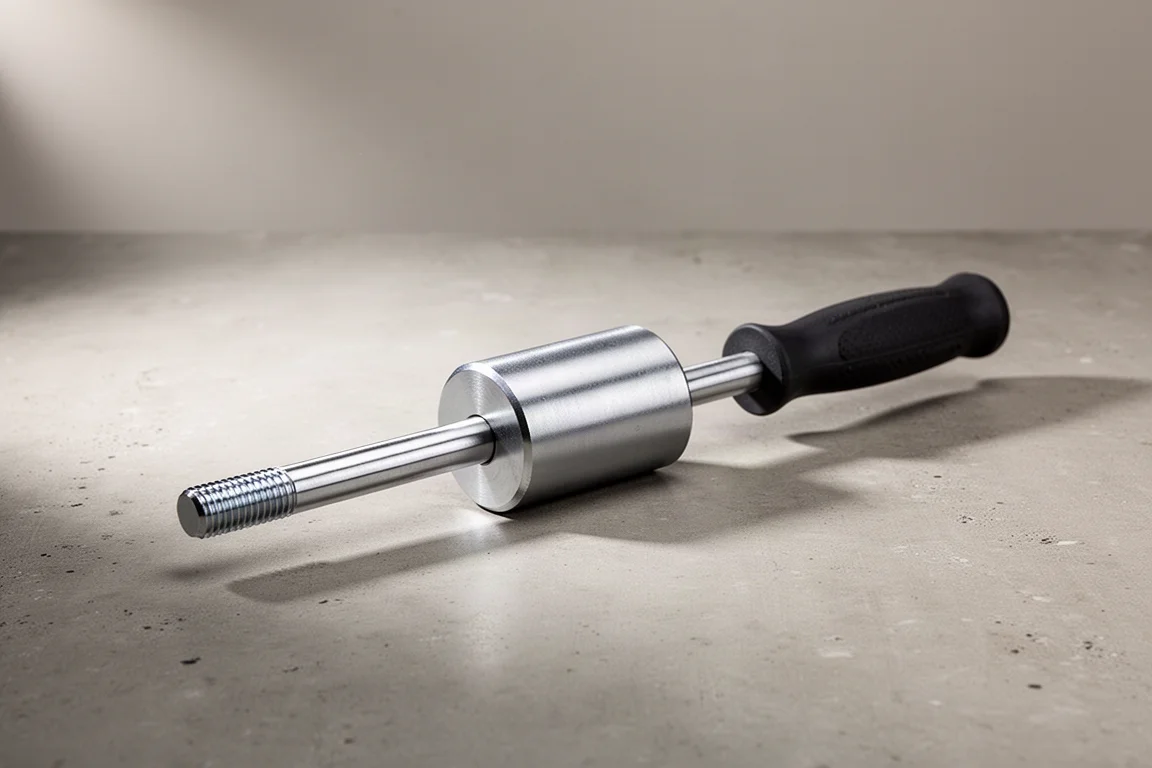

Harbor Freight Maddox Puller Kit: The Budget 5 lb Option

The 5 lb slide hammer from the Harbor Freight Maddox puller kit is a straightforward, no-frills tool. You can also find 5 lb slide hammers sold by themselves for around $40 to $50. The longer slide portion compared to the 2 1/2 lb model gives it more runway to build speed before hitting the stopper.

In testing, it reached a maximum of 3,670 PSI, which translates to a range of 3,600 to 3,800 PSI for most users. That is 15,500 to 16,400 lb of force. It is a significant step up from the smaller manual hammer and the air-powered pullers we tested earlier.

One issue we noticed is that the holder pin on the end can pop off after repeated impacts. It is a minor annoyance rather than a dealbreaker, but worth knowing if you plan to use it for extended sessions.

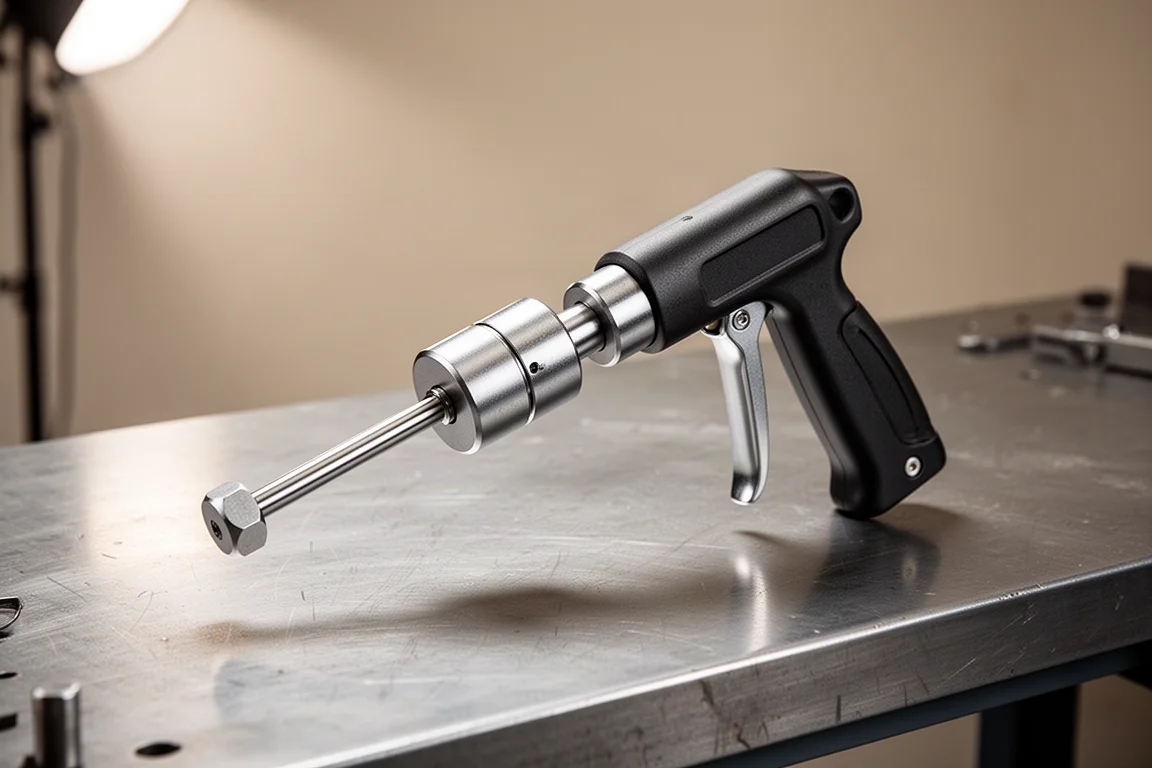

Astro 658 Stubby Slide Hammer: Compact Convenience

The Astro 658 stubby slide hammer is a compact alternative to traditional slide hammers. It features 5/8 fine thread on both the tool and the included extension, making it compatible with most common slide hammer attachments. At $185, it sits between the budget options and the premium models.

The 658 is advertised to compare to a 4 1/2 to 6 lb slide hammer on non-hard joints like dent pulling, and a 3 1/2 to 4 1/2 lb slide hammer on seized or solid joints. Our testing confirmed this range. It reached about 3,540 PSI, which is 15,200 lb of force. That is close to, but not quite within, the range of a full 5 lb slide hammer.

The main advantage is convenience. Squeezing a trigger is much easier than swinging a hammer repeatedly, especially on stubborn joints. The compact size also makes it easier to use in tight spaces. However, for heavy-duty tasks like wheel hubs, you may still want a manual 5 lb slide hammer or larger.

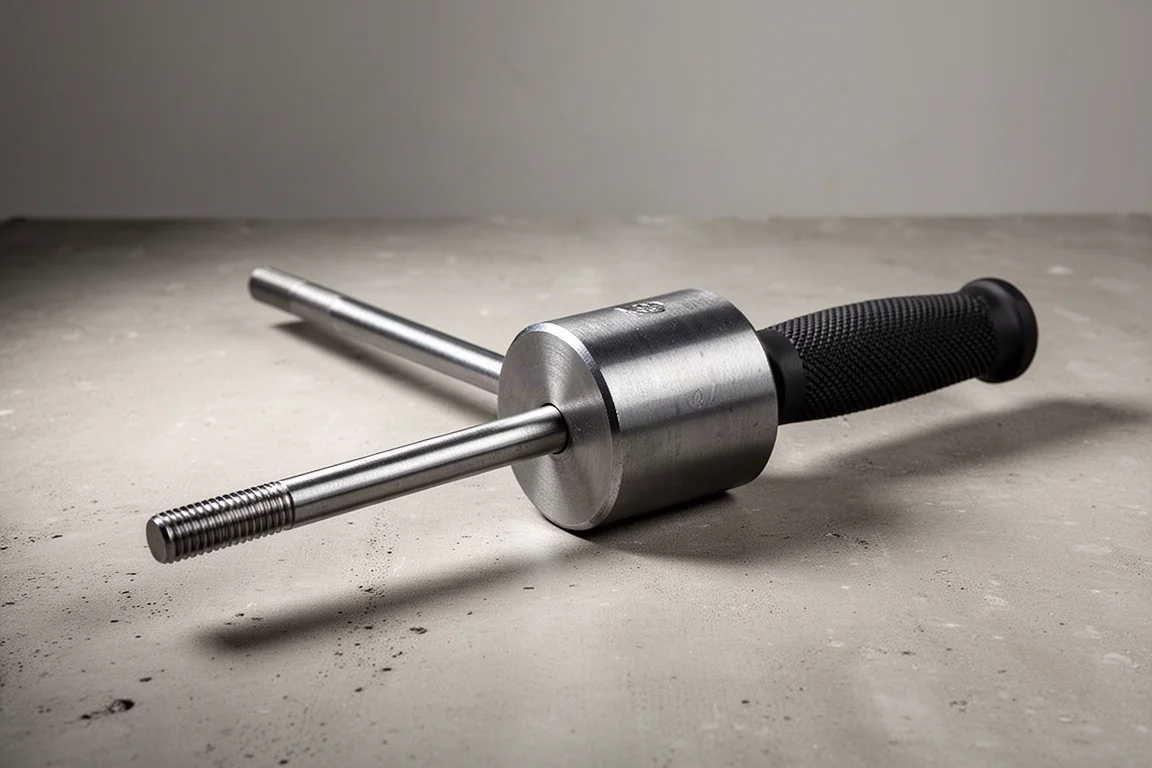

OTC 10 lb Slide Hammer: The Traditional Heavyweight

The OTC 10 lb slide hammer is the top dog among common slide hammers. At $110, it is one of the few 10 lb options with a general-purpose 5/8 thread end. The slide rail is about the same length as a 5 lb model, so you have the same distance to build speed, but twice the weight to get there.

In testing, it reached a peak of about 4,925 PSI, with a realistic range of 4,900 to 5,300 PSI for most users. That works out to 21,000 to 22,800 lb of force. It did not quite double the force of the 5 lb model, but the weight increase alone is substantial.

Using a 10 lb slide hammer is physically demanding. Once you get into the upper 3,000 to 4,000 PSI range, things start to get solid, and you will be swinging for a while. This is especially true on rusted or seized hubs. But for the toughest jobs, there is no substitute for raw weight and momentum.

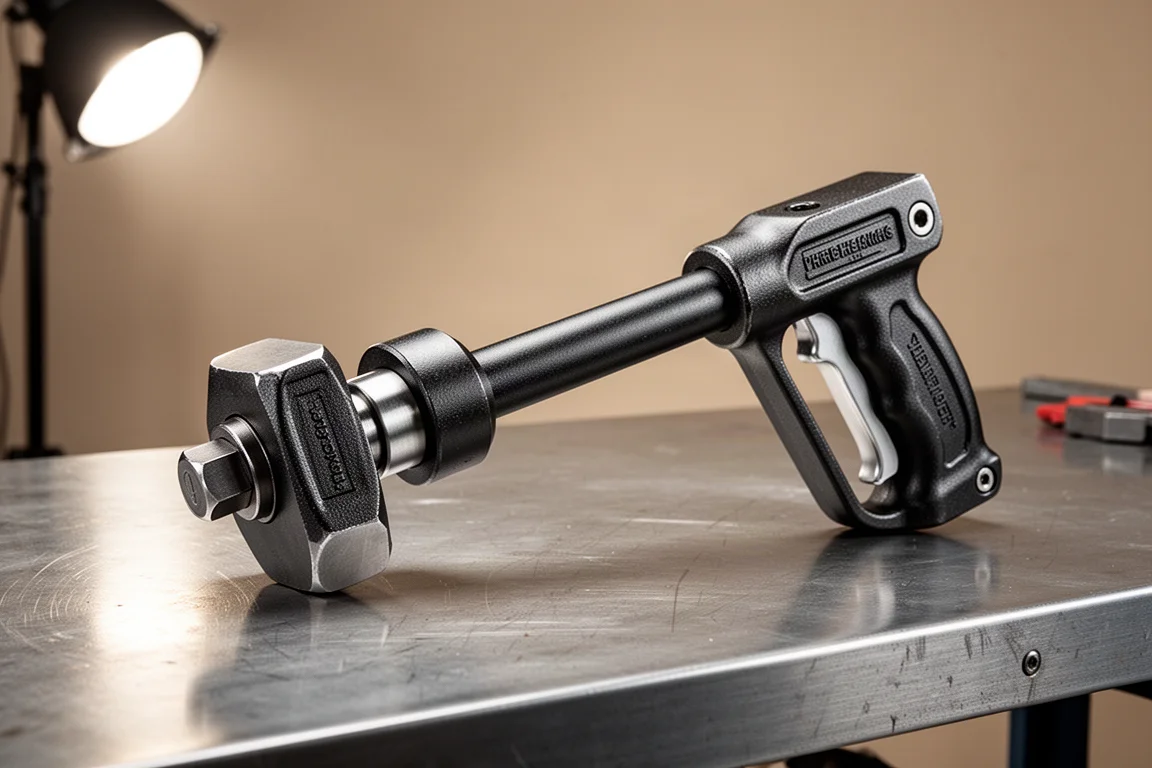

Astro 658 HD Slide Hammer: Heavy-Duty Performance

The Astro 658 HD is the heavy-duty version of the 658 stubby slide hammer. It features a heavier hammer, a longer stroke, and a beefier handle casting. It is advertised as having one and a half times the power of the standard 658, and it costs $245, up from $185.

The HD hits slower than the standard model but delivers more force per impact. It reached 4,425 to 4,620 PSI in testing, which translates to up to 19,800 lb of force. That puts it in the range of an 8 lb slide hammer, according to our trend line analysis.

It uses a lot of air, so you will want a good compressor. We tested it with larger 3/4 inch airlines and Chicago fittings, but there was no significant difference. Increasing line pressure on a regular hose did bump the results from 4,200 to 4,300 PSI up to 4,425 PSI.

Overall Buying Advice

The results show a clear hierarchy. The SunX air hammer is equivalent to about a 1 lb slide hammer, making it best for light pulling tasks. The Sunmake air puller matches a 2 1/2 lb slide hammer, good for medium-duty work. The Harbor Freight 5 lb slide hammer delivers solid performance at a budget price.

The Astro 658 stubby slide hammer performs close to a 4 1/2 lb slide hammer, offering convenience and compact size. The Astro 658 HD steps up to about an 8 lb slide hammer, making it a strong contender for heavier jobs. The OTC 10 lb slide hammer remains the most powerful option, delivering the highest force for the toughest tasks.

None of these tools will handle everything. Even a 10 lb slide hammer struggles with some wheel hubs until you mix in an air hammer or torch assistance. But for most pulling tasks, there is a tool here that will get the job done with less effort than you might expect.

Conclusion

Choosing between a manual slide hammer and an air-powered puller comes down to your specific needs. If you want maximum force and do not mind the physical effort, a 10 lb slide hammer is the way to go. If you prefer convenience and compact size, the Astro 658 HD offers impressive power in a much smaller package.

The air-powered options are not quite as strong as their manual counterparts, but they are several times more powerful than the smallest slide hammers. For many workshop tasks, they offer a practical balance of power and ease of use. Consider what you will be pulling, how often, and how much effort you are willing to put in, and you will find the right tool for your garage.
