Shimano GRX RX 820 Review: The 12-Speed Mechanical Gravel Group Set With Real Range

Introduction

Shimano’s GRX RX 820 is a 12-speed mechanical gravel group set, and its headline feature is a 1x drivetrain built around a 10-51T cassette. That single change delivers the range Shimano’s previous gravel group set could not offer, since it was limited to an 11-42T cassette that left adventure riders short of the gearing they needed.

The update goes well beyond the cassette. Shimano has redesigned the brake calipers, moved the system onto the latest RT-CL800 rotors and revised the shifter clamps so that flared handlebars are more comfortable to ride.

GRX RX 820 sits at the top of a three-part line-up. This Unstoppable version pairs a 1x crank set with the 10-51T cassette and is aimed at adventure riding, bikepacking and similar mixed-surface touring. Unbeatable uses a 1x crank set with a tighter 10-45T cassette for gravel racers and faster riders who mix road and gravel surfaces and want more even cadence. Undroppable is a 2x system with 11-34T or 11-36T cassettes and 48/31T chainrings. Shimano also offers the same three configurations in a lower-tier RX 610 range.

Who this product is for

This group set is aimed squarely at riders who need a very wide gear range from a mechanical drivetrain. The 10-51T cassette is the headline here, and it makes the Unstoppable version a natural fit for bikepacking, long mixed-surface routes and loaded riding where steep loose climbs are part of the plan.

Riders who race gravel, or who split their time between tarmac and dirt and prefer a tighter spread of ratios, are better served by the 10-45T Unbeatable version. Riders who want two chainrings and closer steps between gears should look at the Undroppable 2x option.

If you want the simplicity of one shifter, one derailleur and a single chainring, without giving up climbing gears, this is the version of the group set that delivers it.

Main strengths

Drivetrain performance is the standout. Shifting is quiet and efficient across both rough and smooth terrain, and the system handles the extremes of the cassette without hesitation. Dropping into the tiny 10T cog shows no delay, and moving back up to the largest sprockets, where the tooth gaps are far bigger, happens without crunching or undue effort.

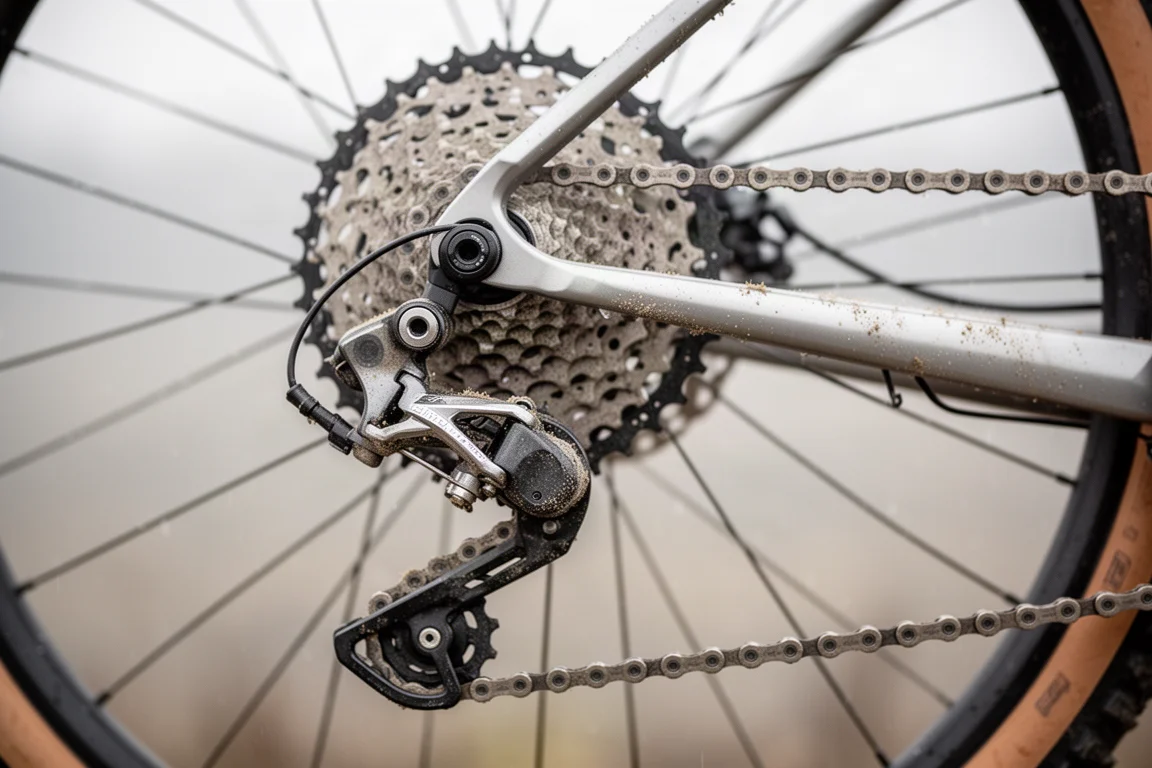

The most significant development in this generation is the rear derailleur’s ability to accommodate a 10-51T cassette. Shimano’s earlier gravel group set topped out at 11-42T, which left adventure riders without the range their riding demanded. The new derailleur borrows from the mountain bike range and uses Shadow RD+ clutch technology, which keeps the chain controlled and lets the system shift calmly between gears over rough ground without delay or excess noise.

Shifting and drivetrain performance

The move to 12-speed adds one more cog and brings the group set in line with the widest 1x drivetrains available. The 10-51T cassette itself comes from the XT mountain bike range, and the rear derailleur is drawn from the same family, which is a pragmatic approach: it allows faster rollout of the group set and means parts are more readily available when something needs replacing.

In practice the shifting matches, and in places surpasses, equally wide-range 1x group sets from other brands, as well as 12-speed mountain bike drivetrains. The chain moves into and out of the 10T cog promptly, and the wider jumps at the other end of the cassette are handled without drama.

One practical note: because the 10T cassettes run on a Micro Spline freehub, existing wheels will need converting or upgrading. The 11-34T and 11-36T cassettes use standard HG freehubs.

Braking and rotor performance

The new calipers follow the design of Shimano’s latest hydraulic road calipers. The bleed port has moved to the external face of the caliper body for easier access and is now opened with an Allen key rather than a spanner, and an Allen head bolt replaces the flat blade screwdriver bolt on the retention pin, which reduces the chance of stripped heads. It is still worth applying a dab of anti-seize compound to those threads before installation so they do not seize.

The system also gains Servo Wave technology and an additional 10 percent of pad clearance, both carried over from Shimano’s latest road group sets. The latest CL rotor series is used here as well, with the RT-CL800 rotors replacing the RT-900 units. Shimano added a slightly heavier aluminium carrier that is said to reduce heat deformation, and the result is the quietest rotor operation yet from the brand, with the power and modulation the system is known for.

Things to consider before buying

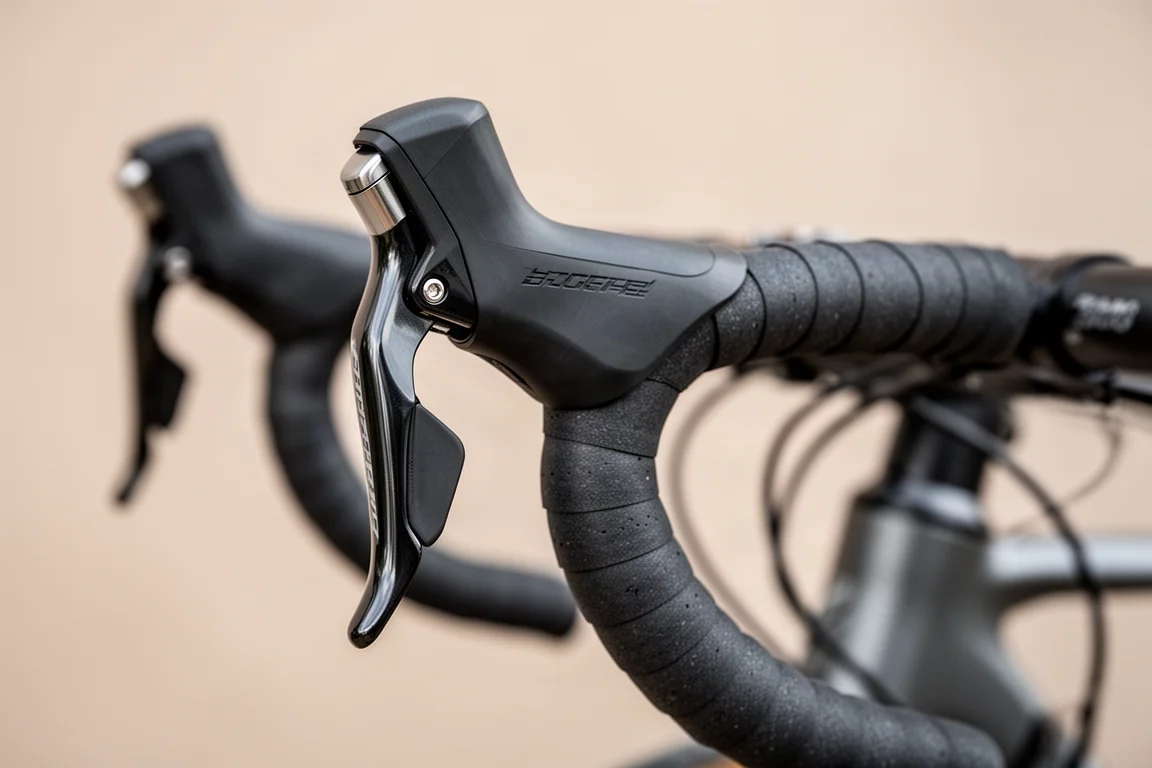

The mechanical shifter body is still noticeably larger than Shimano’s electronic equivalents, and it does not look or feel as refined. Shimano has reduced mechanical shifter body sizes on other recent groups to bring them closer to the slimmer shapes used by electronic systems, but that has not happened here.

The crank set is another point to weigh. It is carried over from the previous generation, marked as such on the inner face, and Shimano does not offer anything shorter than 170 mm. There is also no power meter option in the range.

Freehub compatibility is the practical consideration that matters most before ordering. Any build using the 10-51T or 10-45T cassettes needs a Micro Spline freehub, so plan for a wheel conversion or a new wheelset if your current wheels run HG.

Gearing options and value

Pricing is where the group set makes a strong case for itself. At an RRP of $542.33 there is no direct comparison at the same level from SRAM, because Force offers no 12-speed mechanical option. The closest competitor in terms of both price and functionality is SRAM Apex Eagle at $1,020, and GRX RX 820 is lighter at 2,822 g against 3,148 g for Apex Eagle. For anyone building a lightweight gravel bike, that weight advantage is worth factoring in.

Moving further up the market, a SRAM Force AXS Eagle 1x group set would cost around $2,241, and Campagnolo’s 1x13 Ekar group set sits at $1,764. Against those figures, GRX RX 820 looks like very good value.

There is an upside to Shimano’s use of existing mountain bike components beyond cost: parts are easier to source, and discounts are already appearing on some key components.

Buying advice

Buy GRX RX 820 if you want a mechanical 12-speed gravel drivetrain with genuinely wide gearing, quiet and powerful braking, and straightforward parts availability. The 10-51T Unstoppable version is the one to choose for bikepacking and loaded adventure riding, while the 10-45T and 2x options cover racers and riders who prefer tighter ratios.

Think carefully if you need cranks shorter than 170 mm, want an integrated power meter, or prefer the slimmer feel of an electronic shifter body. Also budget for a freehub change if your wheels are not Micro Spline compatible.

It is worth remembering that the 2x and tighter-cassette versions widen the appeal considerably, so the right question is not whether this group set suits gravel riding in general, but which of the three configurations matches the terrain and load you actually ride.

Conclusion

Shimano GRX RX 820 does the important things close to perfectly. Shifting is precise and quiet, braking is powerful and, notably, free of the noise that often follows heavy braking, which is a genuine day-to-day improvement. The availability of a 1x 10-51T option alongside a closer-range 1x and a 2x system means most gravel riders will find a configuration that fits.

The compromises are real but narrow: a bulkier mechanical shifter body, an unchanged crank set with no sub-170 mm option and no power meter. Set against that, the gearing range, the braking behaviour and the value compared with rival 12-speed and 13-speed group sets make this a compelling choice for riders who want mechanical simplicity without sacrificing range.
