Harbor Freight Fuse Slot Circuit Amperage Draw Measurement Tool: A $25 Hidden Gem

Introduction

Some tools look almost too simple to be useful, and then you realize they solve a genuinely annoying problem. That is exactly the case with this little Harbor Freight fuse slot circuit amperage draw measurement tool. It sells for around $25 and works like a dummy fuse: you slot it straight into a vehicle’s fuse box and it reads the amperage draw of that circuit on the spot.

If you have ever tried to chase a parasitic draw or verify a suspect circuit, you know the traditional method is anything but pleasant. This tool replaces the fiddly probe work with something that takes seconds.

Who This Product Is For

This is aimed at DIY mechanics, hobbyist wrenchers, and anyone who does their own electrical troubleshooting. The most obvious use case is hunting parasitic draws, meaning current that keeps flowing when the ignition is off. Instead of guessing which circuit is the culprit, you can insert this tool into each fuse slot and see immediately whether that circuit is pulling current.

It is also handy if you suspect a fuse is bad. You can seat the existing fuse, or a fresh one, into the tool and put the whole assembly into the slot, so the circuit stays protected while you measure.

What It Is and How It Works

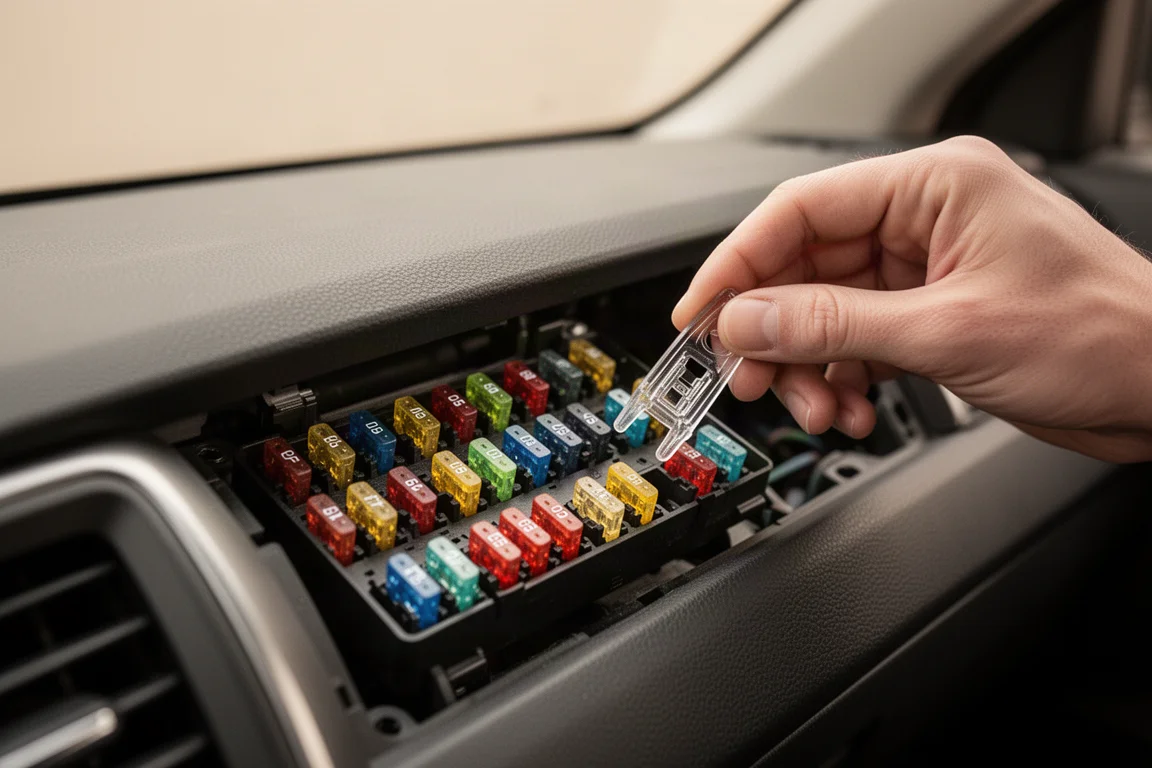

The design is refreshingly straightforward. You pull the existing fuse from the slot, seat it (or a replacement fuse) into the tool, and insert the assembly directly into the fuse box. The tool effectively puts the fuse in line with the system, so if there is a genuine fault, you keep the same protection the original fuse would have provided.

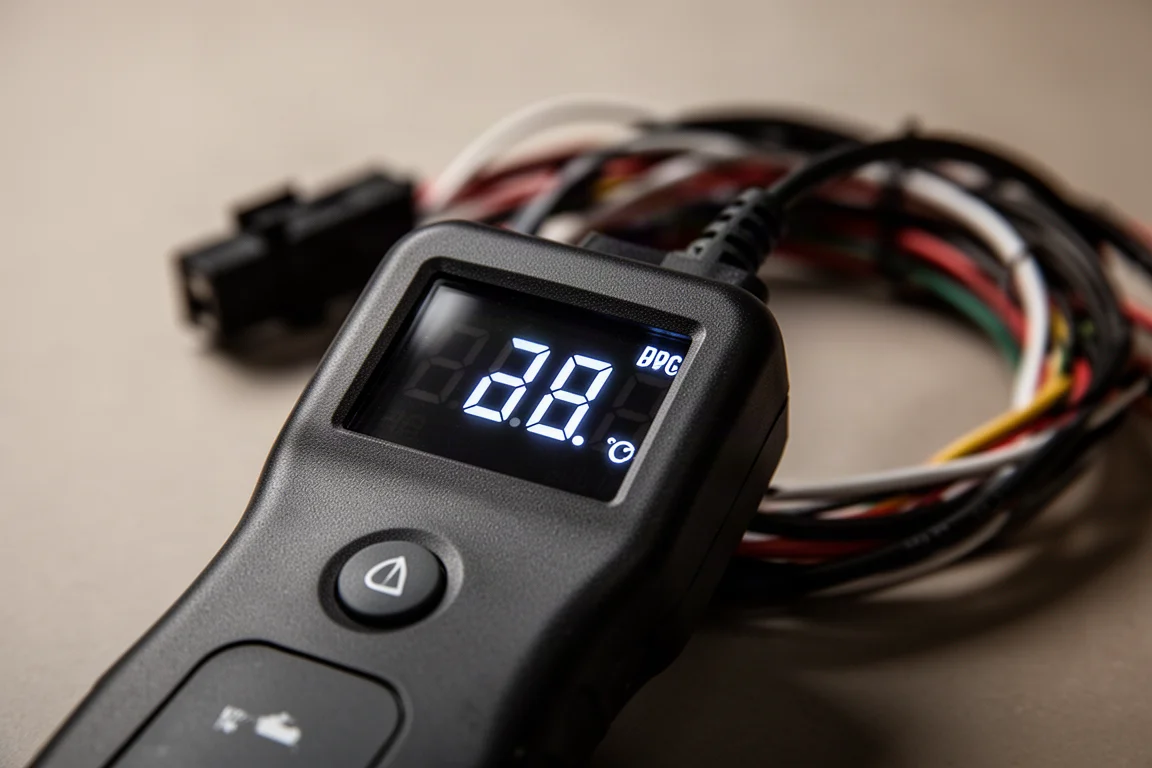

Once it is in place, you switch it on and read the draw. You can check for a parasitic reading with the ignition off, then start the vehicle and watch what the circuit pulls while running.

One important limit to know up front: the tool is rated for up to about 30 amps. It does not include an adapter for Maxi fuses, and even with one, a heavy circuit could easily overdrive the meter. Stick to standard-size fuse slots.

Fuse Sizes and Adapters

The unit is designed for standard-sized fuses. If your vehicle uses the smaller formats that have become increasingly common, adapters for mini fuses and micro fuses are available separately. If your car is newer, check which fuse types it uses before buying so you are not caught without the right adapter.

Why It Beats the Old Way

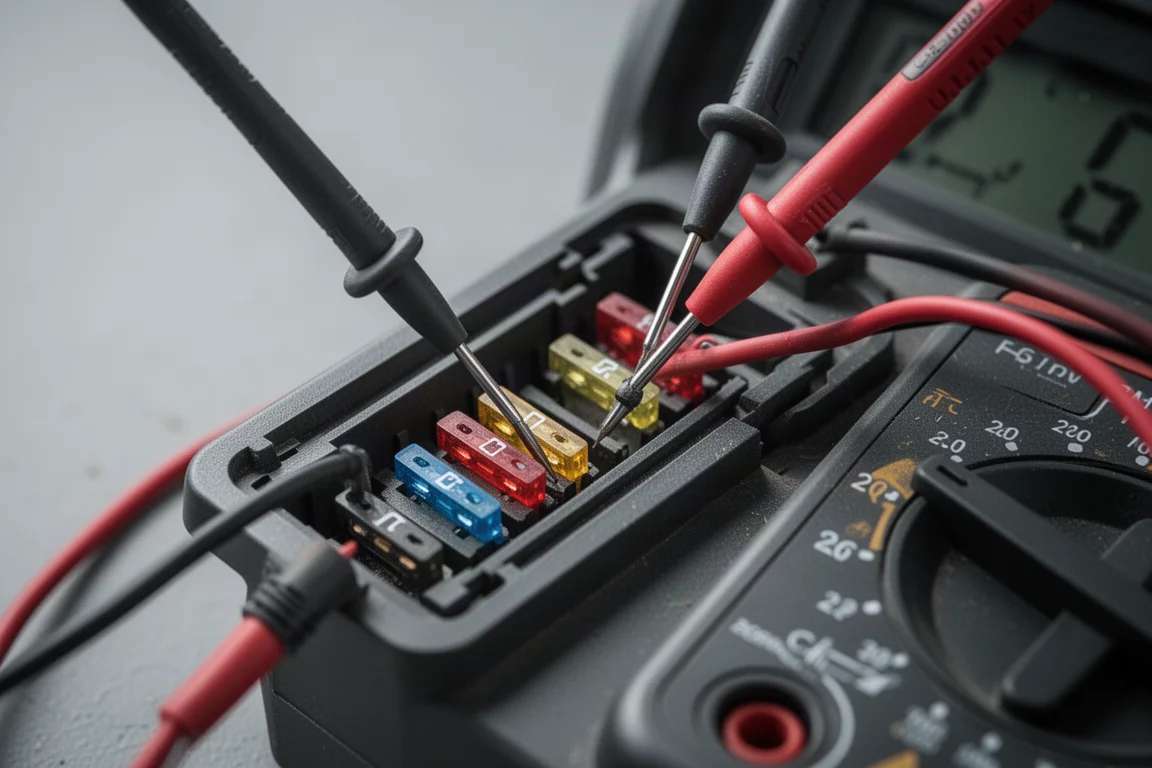

The traditional approach is wedging the probes from a multitester into the fuse box contacts and hoping you do not slip and damage something. On older vehicles that is awkward enough. On newer vehicles with delicate electrical systems, it is genuinely risky.

This tool makes the same measurement fast, safe, and repeatable. Slot it in, read the number, move on to the next fuse. For anyone who likes sensors and probes, it is also just a satisfying little piece of kit to own.

Using It on an Older Vehicle

In a real-world test on an older Toyota, the workflow was simple: pull the ignition fuse, seat it into the tool, insert the assembly, and take readings. With the key in the ignition but not turned, the tool registered some draw, which was an interesting finding in itself.

With the engine started, the draw was modest, likely the small current needed to engage the starter circuit rather than the current to actually turn the starter over. Either way, the readings came quickly and without any contorted probe work.

The whole session ends with the engine off, the reading noted, and the tool popped back out of the slot. Nothing about the process slows you down.

Small Quirks to Know Before Buying

There are two minor annoyances worth mentioning. First, the tool runs on an A23-style battery, a wonky little cell that most people only encounter in garage door openers. It is cheap to replace, but it is not the battery you have lying in a drawer.

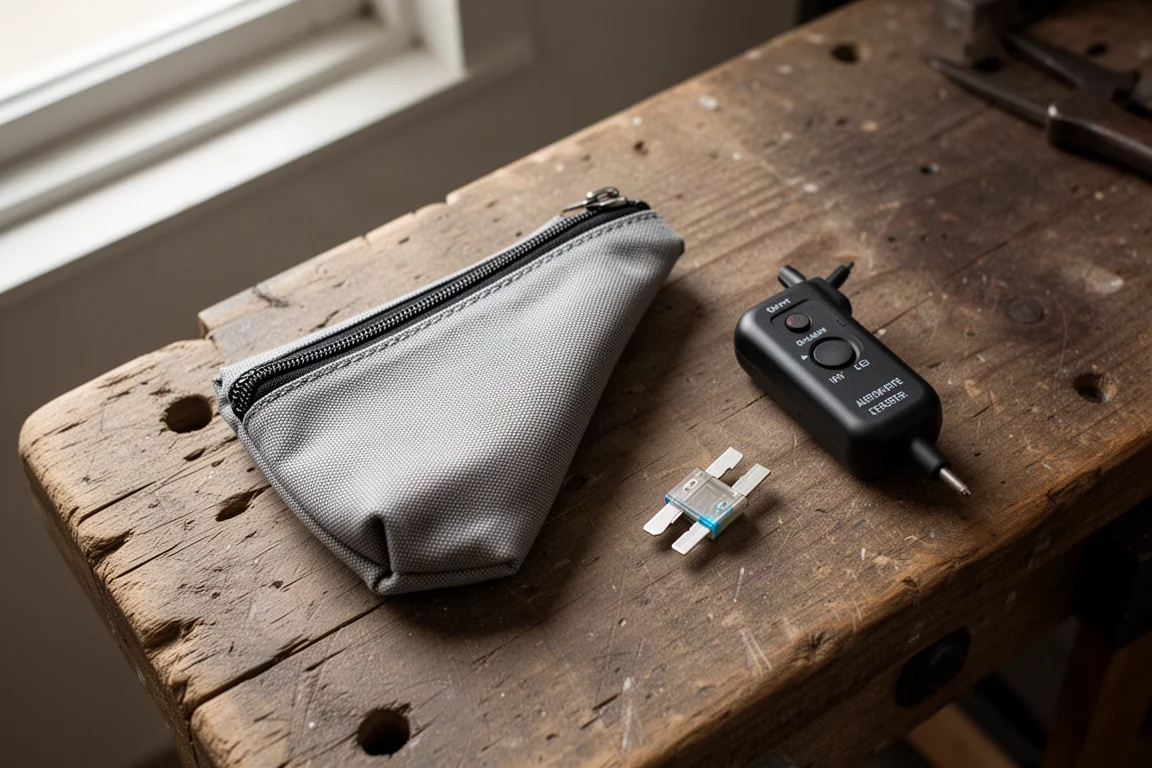

Second, the included storage pouch is tight. Getting the tool back in takes some effort, so many owners simply swap it into a small resealable bag, which fits everything comfortably.

Neither quirk is a dealbreaker, but knowing about them ahead of time sets the right expectations.

Buying Advice

At around $25, this is an easy impulse buy for anyone who touches automotive electrical work. It is not a tool you will reach for every day, but when you need to trace a parasitic draw or verify a circuit, it saves real time and removes real risk. If your vehicle uses standard fuses, buy it as-is. If it uses mini or micro fuses, factor in the adapters.

Conclusion

This fuse slot amperage tool is exactly what a hidden gem should be: inexpensive, simple, and genuinely useful for a problem that has no better cheap solution. It will not replace a proper multimeter for general work, but for fuse box diagnostics it is faster, safer, and far less fiddly than the alternative. For occasional electrical troubleshooting on any vehicle, it is an easy recommendation.
