FNIRSI HS-03 Cordless Soldering Iron Review: A Portable Option for On-the-Go Work

Introduction

The FNIRSI HS-03 is a cordless soldering iron designed for portability. It heats up quickly, runs on a replaceable battery, and includes a digital display for precise temperature control. This review covers its features, real-world performance, and the limitations you should know about before buying.

Who This Product Is For

This soldering iron suits anyone who needs to solder in places without easy access to a wall outlet. It is especially practical for vehicle accessory installs, field repairs, and hobbyist work where a corded station is inconvenient.

The HS-03 is also a good fit for component-level soldering on circuit boards. Its fine tips and adjustable temperature range make it capable of handling small surface-mount parts and delicate work.

Design and Build

The FNIRSI HS-03 comes in a carrying case that includes the soldering pen, a screwdriver, a USB-C charging cable, extra screws for the battery cover, and a detailed user manual. The manual explains how to change settings and how to remove the battery cover.

The soldering pen itself has a cylindrical body with a metal cap at the front. The cap is magnetic and includes vents that allow the tip to cool down even while covered. This is a thoughtful design for storing the tool safely after use.

The battery compartment is secured with a Phillips screw. Inside, you will find a replaceable 18650 battery rated at 3.7 V and 2600 mAh. Because the battery is removable, you can replace it if it wears out after a few years instead of discarding the whole tool.

Charging is handled through a USB-C connector at the end of the pen. A clear charging cable is included, and once fully charged, the tool is ready whenever you need it.

Display and Controls

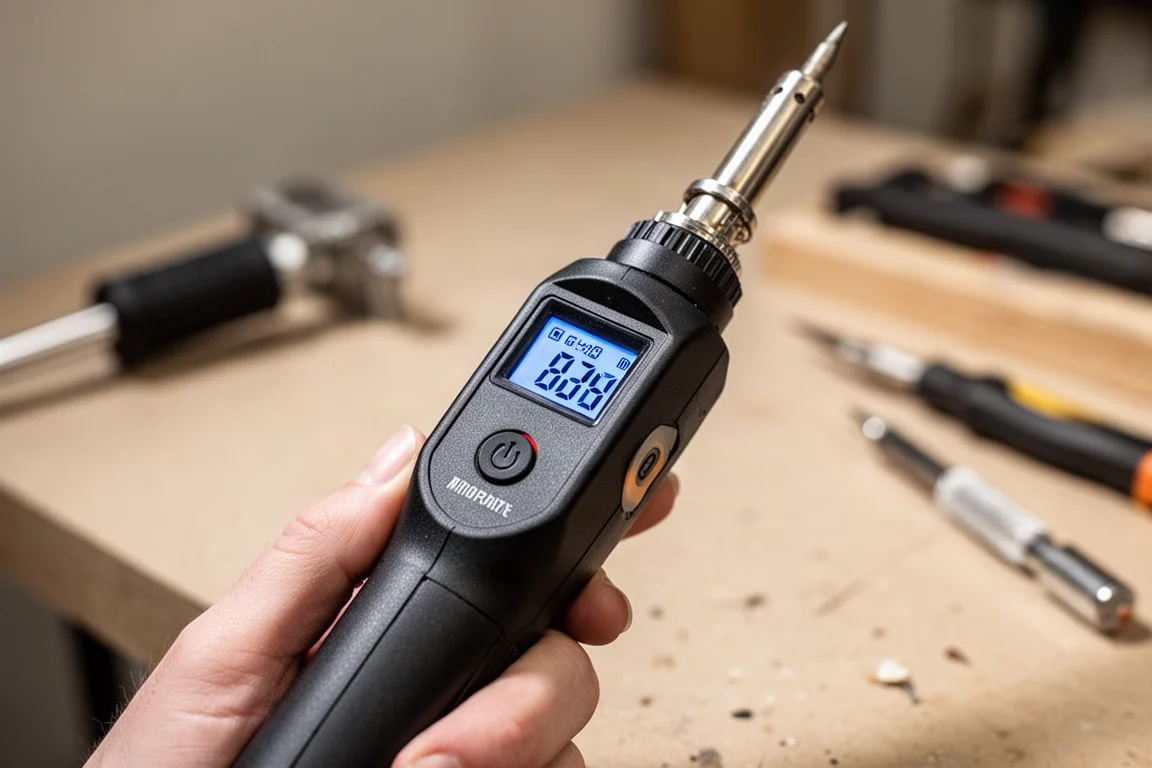

The HS-03 features a 0.96-inch IPS HD LCD display. The interface includes an OK button and left and right select buttons. To power the device on, you press and hold the OK button. On first use, the tool prompts you to select a language and a temperature unit.

The display shows the current soldering tip temperature in a large number, with the target temperature shown smaller on the right. A bar at the bottom indicates heating progress, and icons show speaker status, battery level, and heating status. A clock at the bottom tracks the sleep mode timer.

Temperature adjustment is flexible. A dial on the right side of the pen is marked from minimum to maximum with numbers 1 to 5. Each click of this dial increases or decreases the temperature by 50 degrees. The left and right buttons allow finer adjustments in 10-degree steps.

The settings menu includes options for sleep time, standby time, sleep temperature, handle orientation, language, temperature unit, volume, brightness, and display scrolling. There is also a temperature calibration option, a firmware update setting, and a factory data reset.

Heating Performance

The HS-03 is rated at a maximum power of 10 W. It reaches its target temperature quickly, and the manufacturer states you can start soldering in about 7 seconds. The temperature range spans from 100 to 450 degrees Celsius, or 212 to 842 degrees Fahrenheit.

The 10 W power rating is worth noting. For small wires and component-level work, the tool maintains temperature well. However, when soldering thicker wires or surfaces with large conductive pads, the wire acts like a heat sink and absorbs heat quickly. The temperature on the display drops during these tasks, and the tool takes a moment to recover once the tip is lifted.

Real-World Soldering Performance

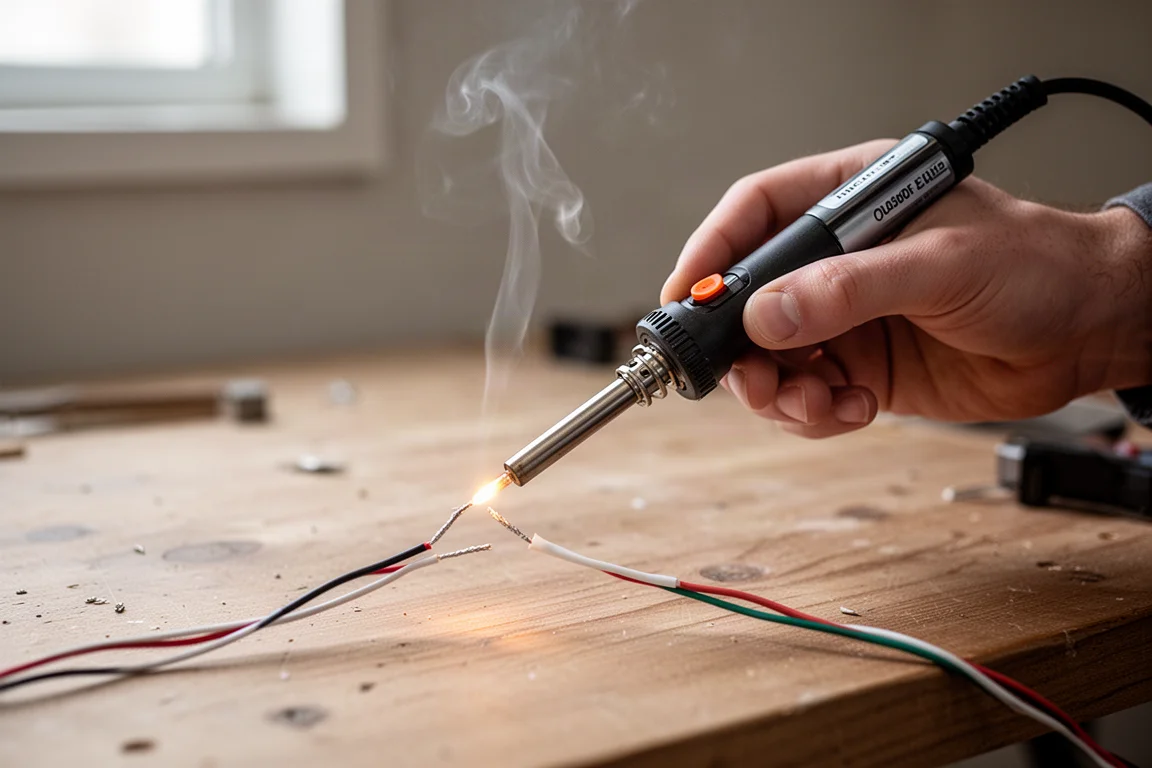

In practical testing, the HS-03 handled a variety of tasks. Soldering two 20-gauge wires together was straightforward, and the joint came out clean. A ring terminal with a 16-gauge wire also soldered well.

When soldering two 14-gauge wires together at the maximum temperature of 450 degrees Celsius, the temperature drop was noticeable. The larger conductor absorbed heat faster than the 10 W iron could replenish. Once the tip was removed from the wire, the temperature climbed back to the target value.

This behavior is not a flaw in the tool itself, but it is a limitation to understand. For larger conductors, a higher-wattage soldering station will hold temperature more consistently. The HS-03 is best suited for smaller gauge wires and component-level work.

Component-Level Work

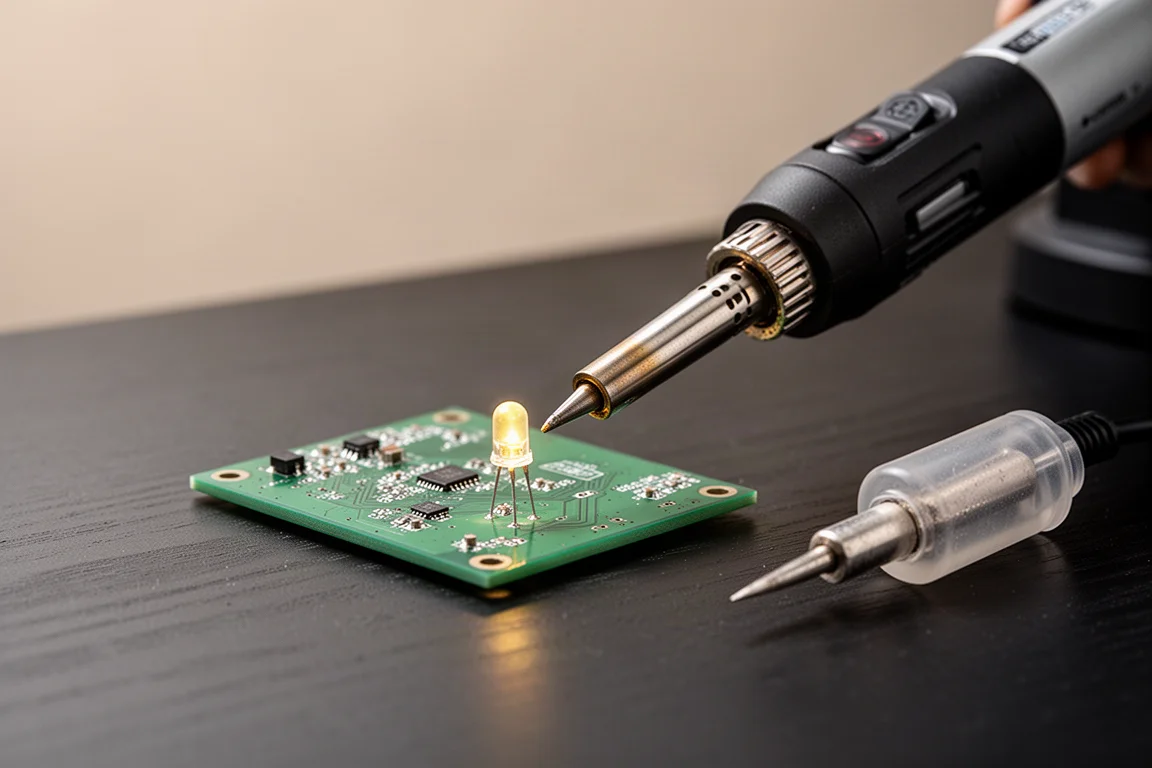

The HS-03 performs well on circuit boards. In testing, it successfully desoldered an LED from a simple circuit board at 370 degrees Celsius and soldered it back on without issue. The fine pointed tips make it easy to work on small components like surface-mount devices.

The included three tips cover different needs. One tip has a very sharp point for small components. Another has an angled sharp point, also suited for small parts. The third tip has a larger surface area, which is useful for soldering wires during vehicle installs.

Things to Consider Before Buying

The HS-03 has a few design points to keep in mind. The cylindrical body has no flat spot at the bottom, so it can roll around when placed on a surface. You will need to set it down carefully or use the cap to keep it stable.

The tip gets very hot, so you need to be mindful of where it is placed, especially when working inside a vehicle. Accidental contact with wires or panels could cause melting damage.

The 10 W power limit means this tool is not ideal for heavy-duty soldering on large conductors. If your work regularly involves thick wires or large ground planes, a corded iron with higher wattage will serve you better.

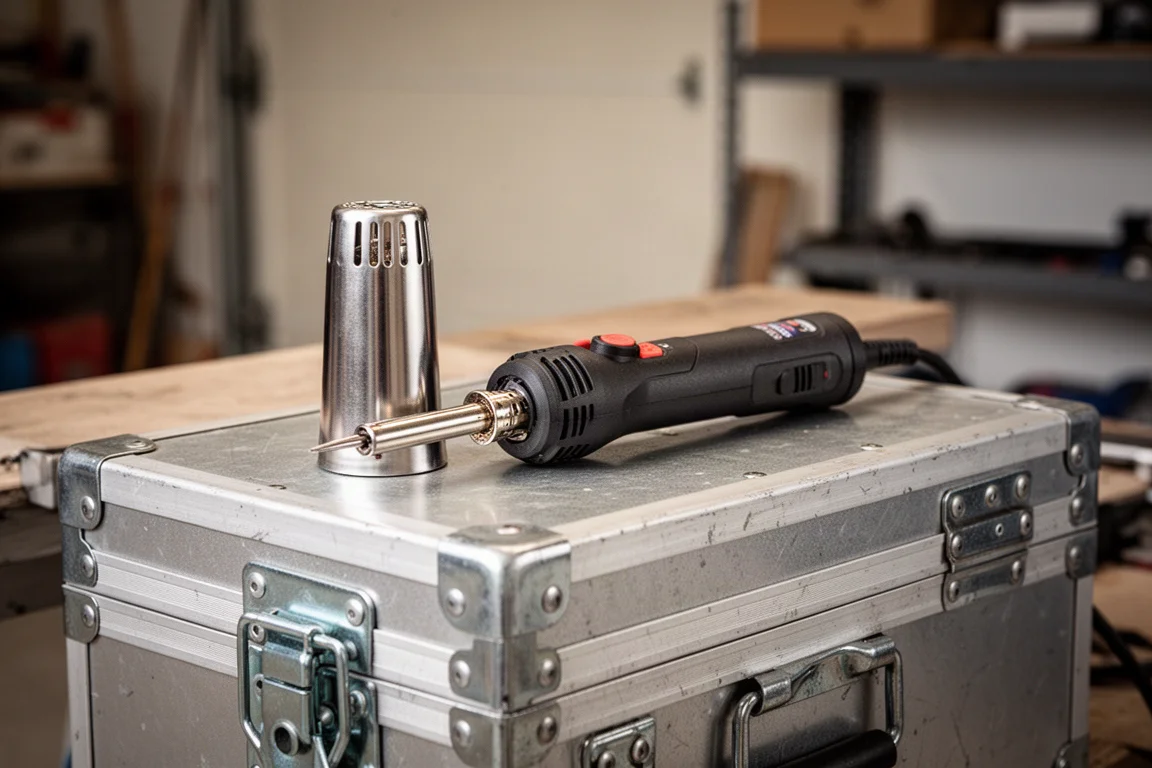

The metal cap with vents is a practical feature. After use, you can place the cap on the hot tip and return the tool to your toolbox while it cools down.

Buying Advice

The FNIRSI HS-03 normally retails for around $70, and sometimes a coupon drops the price to $60. At that price, it offers good value for a cordless soldering iron with a digital display, fast heating, and a replaceable battery.

This tool is a strong choice if you need portability and do most of your soldering on small components or lighter gauge wires. It is less suitable for heavy soldering tasks where sustained temperature on large conductors is critical.

Conclusion

The FNIRSI HS-03 is a capable cordless soldering iron for portable use. It heats quickly, offers precise temperature control through a clear LCD display, and runs on a user-replaceable battery. Its performance on small wires and circuit boards is solid, and the included carrying case and extra tips add value.

The main limitation is the 10 W power output, which affects performance on larger conductors. If you understand that constraint and your work fits within it, the HS-03 is a practical and convenient tool to have on hand.
