Best Wheel Bearing Adapter Press Kits: 7 Kits Ranked From Budget to Pro

Introduction

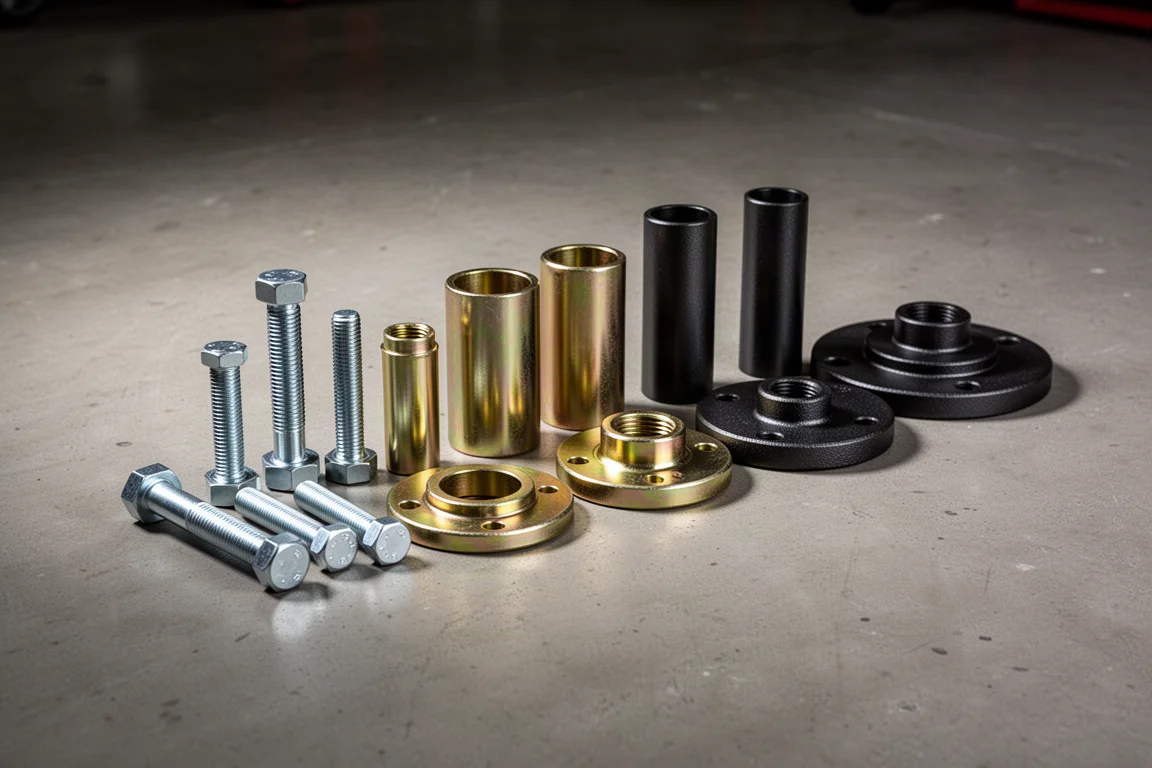

Front wheel drive bearing adapter press kits all look practically identical on the shelf, yet they range from about $50 to $800 in price. The premise is simple: instead of pulling the knuckle, pressing the old bearing out on a shop press, pressing the new one in, and paying for an alignment afterwards, you press the bearing out and in at home, in the driveway, for far less money. Every kit uses the same basic recipe: a driving bolt, washers, and plates, tubes, cups, or adapters. You pick the adapter that fits your bearing diameter and push the old bearing out into a receiving tube and plate.

The catch is that the drive bolt has to survive the process, and that is where cheap kits fall apart. To find out which ones are actually worth buying, each kit was pushed to its limit with progressively larger impact wrenches, from a mid-torque all the way up to a 3/4-inch drive monster, measuring the real tons of pressing force each set could deliver before something bent, split, or stripped.

Windmax 23-Piece Bearing Adapter Kit

At just $50, the Windmax 23-piece kit is the cheapest way to try this job at home, and it punches above its price. The bolt is surprisingly hard, measuring around grade 8 to grade 9 hardness, while the long hex nut is a soft grade 1 and the washers sit around grade 5. The washers are only about 30 HRC compared to the 46 of the bolt head, so they cup and deform around the bolt head under heavy load, but they are still harder than the plates, which is better than hammering directly against them.

In testing, the kit delivered 4.7 tons with a mid-torque impact and peaked at 8.2 tons with the 3/4-inch drive impact. One useful trick discovered along the way: greasing the washers as well as the threads boosted pressing force by nearly 20 percent, from 4.7 to 5.6 tons. For fifty dollars, that is genuinely respectable.

Orion Motor Tech Bearing Adapter Kit

Coming in at $70, this is the bestselling kit on Amazon by a wide margin, with over 7,700 reviews. It is also one of the most confusing. The pieces are painted rather than phosphate or black oxide coated, including the hex nut, which cannot be good for the threads. The so-called 8.8 grade sliding screws are really metric class 8.8, which equals SAE grade 5, and they measure about 32.8 HRC. The plates and cups are too soft to even register on the hardness scale.

The result is a kit that barely works with a mid-torque impact, peaking at just 3.7 tons, and only reaching 5.5 tons with a high-torque before the soft washers split and curl over the bolt head. Notably, adding a standard off-the-shelf grade 8 washer transformed it: 7 tons with the high torque and 8.1 tons with the 3/4-inch impact. That ten-cent fix is exactly the kind of detail this kit should have included from the factory. Given the gap between its sales numbers and its performance, it is a set we would hesitate to recommend at its price.

Harbor Freight Maddox Bearing Press Kit

The Maddox kit from Harbor Freight hides a surprise: despite listings, photos, and packaging all showing a black 3/4-inch drive bolt, the current version ships with a larger 7/8-inch coarse-thread gold zinc plated drive bolt, 7/8-thread hex nut, and adapters with 7/8 holes, clearly inspired by the Astro design. Gold zinc plating normally denotes grade 8 or grade 9 hardware, and the cups are the thick type, around 4.5mm, unlike the noticeably thinner cups in the two cheaper kits.

The large coarse threads make it a steeper hill for a lower-powered impact, so the mid-torque maxed out at a modest 5.2 tons. But abuse is where the bigger threads pay off: 8.8 tons with the high-torque, and 9.8 tons with the 3/4-inch drive, the best stock result at that point. The downside is bolt stretch: the drive bolt stretched a full eighth of an inch, because despite the excellent cups, nut, and plates, the head of the bolt itself measures only around grade 5 and the threads grade 4 at best. Mostly very good hardware, let down by the single most expensive piece to make right.

Astro 7825HD Heavy Duty Bearing Press Kit

If you like gold-plated looking parts, this is pay dirt. The Astro 7825HD is a 25-piece set with everything yellow zinc plated, unlikely to scratch off and rust, and it includes the thicker cups you expect from pricier sets. It uses 7/8 threads on the bolt and nut like the Maddox, but its unique trick is an XL thrust bearing in place of washers. Your impact or wrench turns against a roller bearing rather than grinding into washers, so more of the energy goes into pressing instead of heat and friction.

The advertised grade 9 drive screw measures a genuine 48 HRC, the nut is grade 9, the cups equivalent to grade 9, and the plates around grade 5. The results were outstanding: 7 tons with just a mid-torque, more than any previous kit survived even with the 3/4-inch impact using the high-torque alone, and a crushing 12.8 tons with the 3/4-inch drive before the impact stalled out and the thrust bearing started smoking. Even then, the bolt and nut were still threading on and off fine. The large hex nut spreads the load over roughly twice the thread engagement of competing kits, which verifiably keeps it from failing prematurely. This is the one that was genuinely hard to kill.

Powerbuilt Bearing Service Set

At $150, the Powerbuilt is one of the more popular and well-reviewed sets in this price range, and it is the first in the lineup with fine 3/4-inch threads and an unusual design: a hex nut welded to the top of a threaded rod. The threads measure at the upper end of grade 8, possibly grade 9, and the hex nut and plates match, which is nice. The washers are grade 5, and the cups are the main weakness, both thinner and unhardened.

Fine threads take less torque to turn and are harder to break, but they deform and cross-thread more easily under repeated impact use. In testing, the Powerbuilt managed 6.2 tons with the mid-torque, 8 tons with the high-torque, and 8.5 tons with the 3/4-inch drive before the hex on the bolt head rounded off. The culprit: the welded hex measured just 15.3 HRC, apparently losing its temper during welding. A good kit undermined by one soft, preventable part.

OEM Tools Bearing Service Set

This is the auto parts store rental special, the brand that fills most loaner tool programs, and it cost $250 to buy outright. It is very similar to the Powerbuilt: the same 3/4-inch fine threads, the same style of hex nut welded on top, similar part hardnesses, and the same thinner-than-ideal cups, all for roughly twice the price.

Performance started well, matching the Powerbuilt with 6.3 tons from a mid-torque. But with the high-torque, after the third tightening cycle, the hex nut fully pulled its threads. The failure mode is like cheap bed sheets: not enough thread count. Harder washers and more threads in that hex nut, an estimated dollar in manufacturing cost, would have made this a much better kit, which is hard to accept at a $250 price point.

OTC Hub Grappler Kit

The full OTC hub grappler kit runs $800, though the hub puller assembly and its bits sell separately for about $210, making the bearing service portion roughly a $590 kit. It shows. It has the thicker class of cups and genuinely clever machined washers: matching concave and convex pieces that spin on each other in front of the bolt head, so friction is spent on rotation rather than marring. It also has by far the best drive bolt, starting from large-diameter stock and machined down to a 1-inch hex so you can use a smaller, more common impact socket. Hardness measures 60.6 HRC, beyond grade 9, on both the bolt and the spinning washers. Oddly, the plates and cups are grade 1 soft.

The performance reflects the hardware: 7.8 tons from a mid-torque, the best yet, then 8.9 tons with the high-torque after re-greasing the washer stack, and into the high 9s with the 3/4-inch drive, peaking around 9.9 tons before the softer hex nut threads began pulling out. With double the thread engagement and a slightly harder nut, this kit could have taken the whole contest. It is made from serious stuff.

Buying Advice

Ranked on stock performance with each impact size, plus part durability and value, the Astro 7825HD comes out on top thanks to its thrust bearing and genuinely hard 7/8 hardware. The OTC is the strongest performer overall and would have won outright if its plates were hardened, but its sky-high price drags its value score down. The Harbor Freight Maddox offers the best balance of price and strength among the affordable sets, and the $50 Windmax does surprisingly well for the money. The Orion Motor Tech and OEM Tools sets score poorly relative to their cost.

A few tips apply no matter which kit you buy. Grease everything: the threads, the bolt head, and the washers, which alone can add nearly 20 percent more pressing force. A large thrust bearing is a cheat code if your bolt can handle it. And remember, these kits are not lifetime tools; treat the drive bolt as the consumable heart of the set. Note that none of these matched a 20-ton shop press, though several beat a 10-ton press, which is plenty for home wheel bearing work.

Conclusion

For most home mechanics, the Astro 7825HD is the set to buy if you want something that will survive repeated jobs, while the Harbor Freight Maddox or even the $50 Windmax make sensible budget choices for occasional use. Skip the overpriced middle options unless a loaner program means you never actually pay for one. Whichever you choose, grease generously and add a quality washer or thrust bearing if the kit does not include one.
