Tape Measures Compared: Standout, Readability, and Durability

Introduction

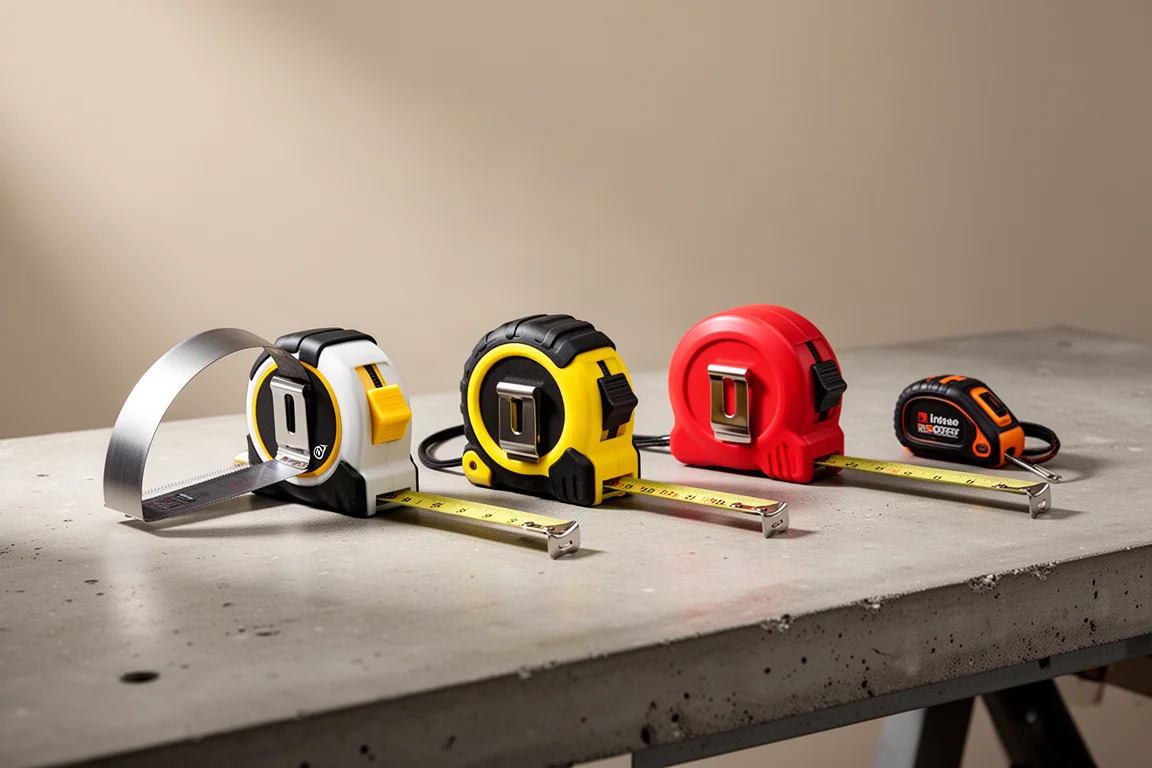

Tape measures are one of those tools where everyone has a different idea of what perfect looks like. There is a huge range on the market, and the honest truth is that you may not like what someone else likes. Rather than telling you there is one perfect tape, this comparison looks at several popular models, mostly Lufkin and Crescent tapes, plus a couple of DeWalt and Milwaukee options, and focuses on what actually matters in daily use: standout, readability, how the tape sits during layout, and how it holds up when dropped.

How We Evaluated the Tapes

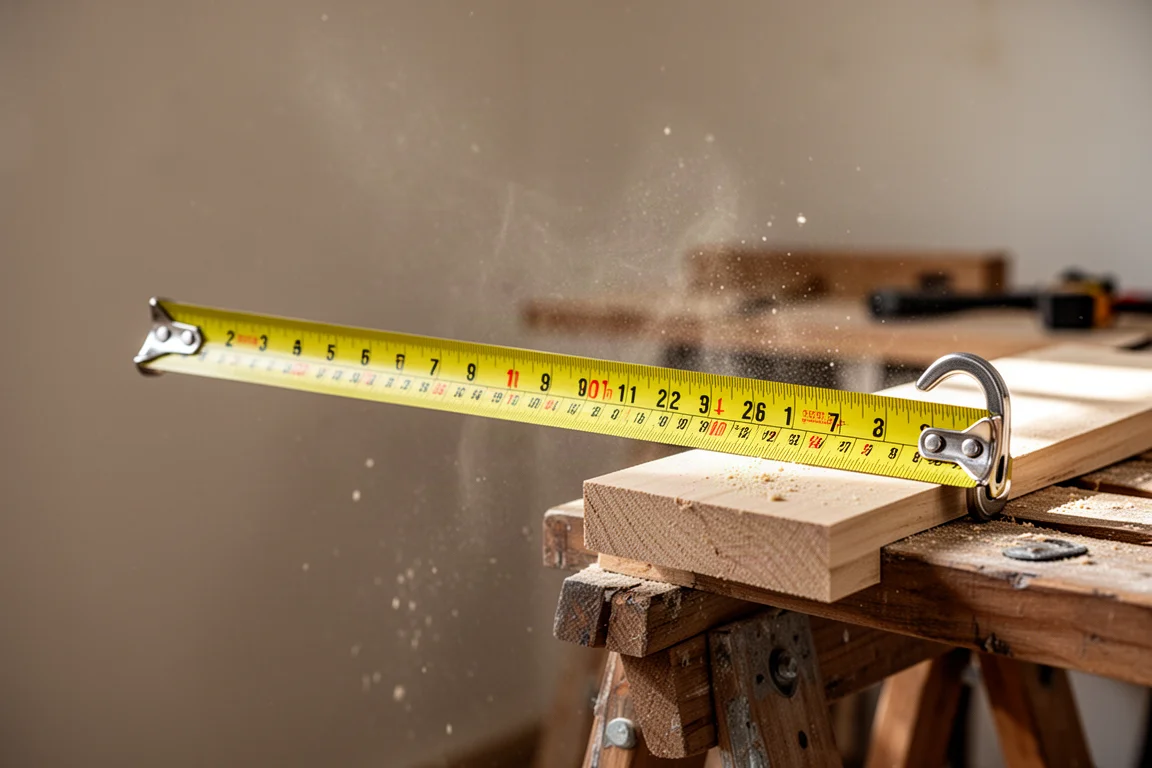

The standout test was done the way most people actually use a tape: pulling it out by hand and letting it run until it collapses, without jigs or clamps. That means the numbers below reflect real-world use rather than a lab setup. Readability, blade width, coating, and case design were also considered, since all of these affect how pleasant a tape is to live with.

One important caveat: repeated bending wears down any tape. A used tape loses rigidity over time, so standout results are a snapshot, not a permanent rating.

Milwaukee Tape Measures

The Milwaukee tapes on hand here are the standard, less expensive models rather than the wide stud version. They reached roughly 8 to 8.5 feet of standout, which is respectable but not exceptional. One model is particularly useful for beginners because it carries fractional markings along the bottom, letting someone who does not know how to read a tape still take accurate measurements.

These inexpensive Milwaukee tapes are nice to use, but they simply do not have a lot of standout. Where they fall short is layout work: they sit up off the wood rather than flat, and the markings read a little dull compared with brighter competitors.

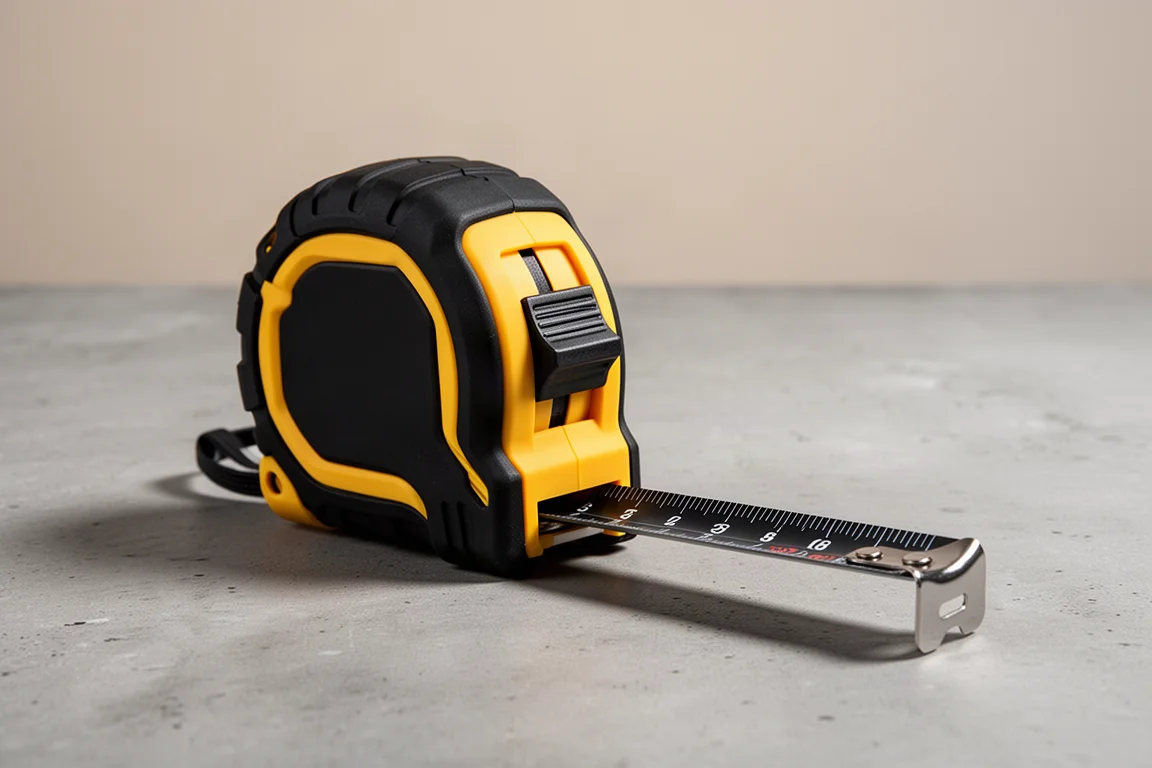

DeWalt ToughSeries

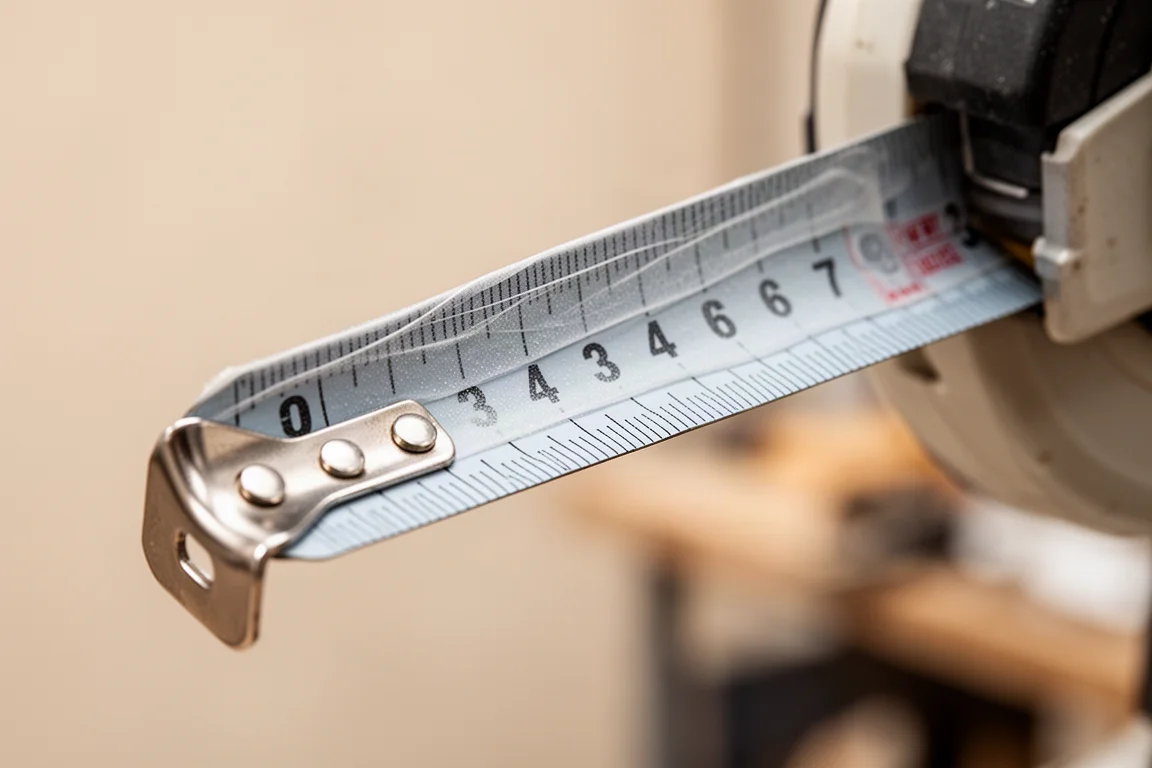

The DeWalt ToughSeries delivered the best standout in this comparison, reaching about 12 feet before collapsing. The blade carries the same protective coating found on many modern tapes, though only to about 6 inches instead of the 7 to 9 inches some rivals cover. The numbers are slightly less bright than the best in class, but it is comfortable to hold and not overly wide.

This tape earned a lot of use for layout because it sits low on the material and the dark lettering is easy to read. Its main weaknesses are the shorter coated zone and the less exposed metal cage around the case compared with some competitors.

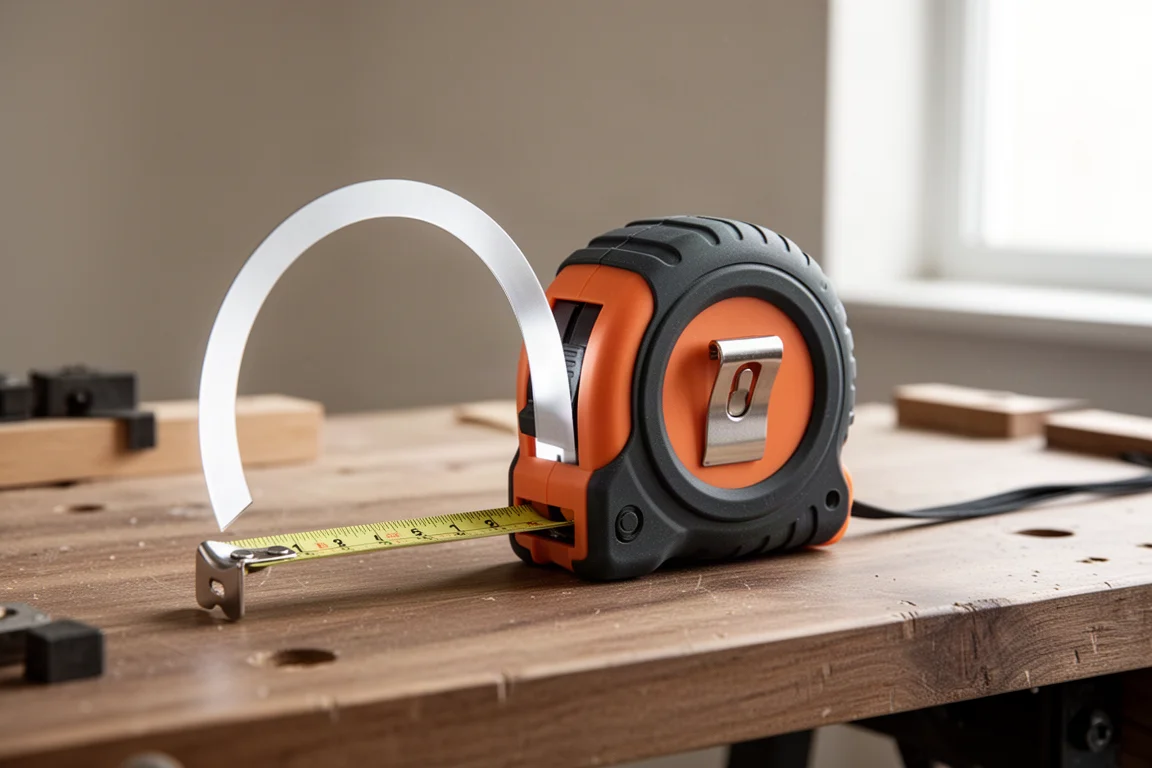

Lufkin G2 Series

The Lufkin G2 lineup is the most varied group here. The standard wide, strongly curved version has Mylar coating for the first 7 inches, clear coloring, and labels on both sides of the blade, and it hit about 11 feet 2 inches of standout. A basic G2 magnetic model actually went further, reaching 11 feet 10 inches, though the magnet is a mixed blessing on construction sites because it picks up everything.

An auto-retracting G2 variant with a lock came up short at around 10 feet 5 inches despite being nominally the same blade, which is a good reminder that every tape is a little different. The night version, designed for low light, made it to about 11 feet and is genuinely usable after dark.

On the downside, G2 blades are bigger and wider, which means more tilting of the tape to read an accurate measurement. That is the trade-off you always make with more standout and more curvature. Lufkin also claims a 120-foot drop rating, equal to 12 stories, though that is a rating rather than a tested guarantee.

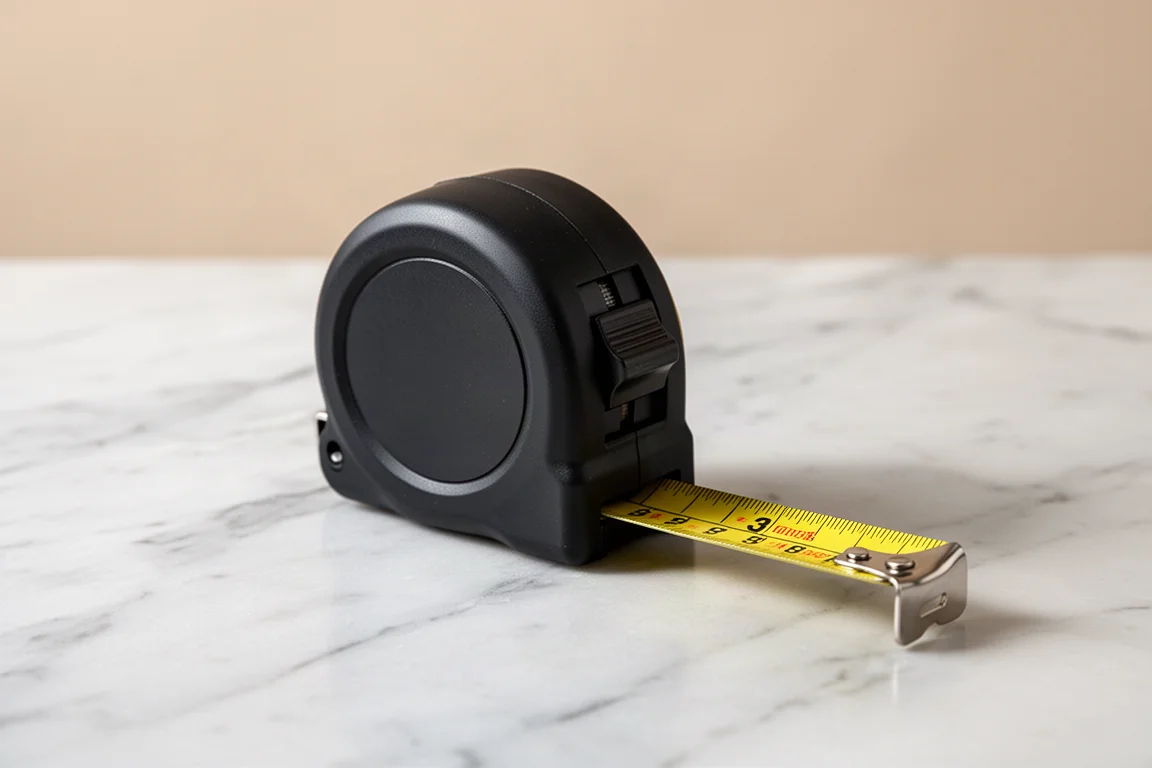

Crescent Tape Measures

Crescent occupies the budget-friendly side of the lineup, and a large share of the tapes in this comparison were Lufkin or Crescent because of how decent they are on cost versus what you get. The standout verdict in the source comparison went to the DeWalt, so Crescent tapes are best approached as good-value everyday tapes rather than standout champions.

Layout and How the Tape Sits

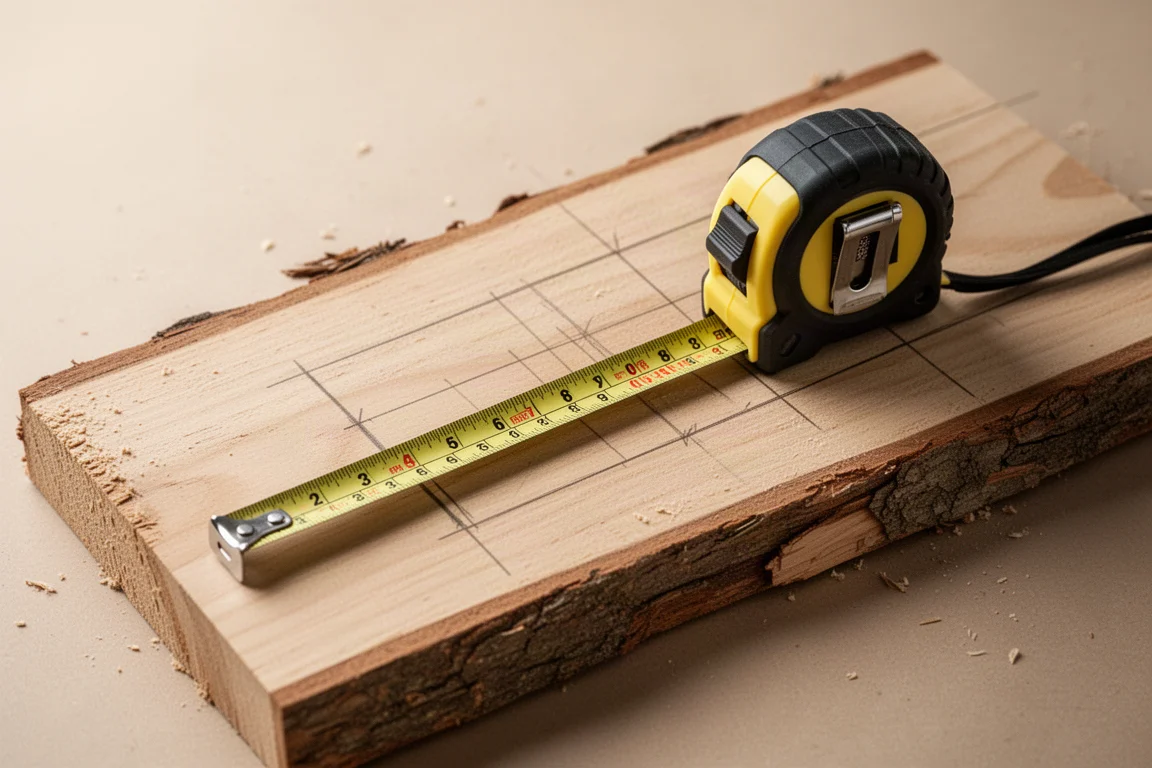

Something not discussed often enough is layout behavior. When laying out a board or a piece of metal for repeated cuts, it helps to roll the tape out, let it sit flat, and make marks as you go. Tapes that sit up on an angle make this harder. The push-to-retract Lufkin G2 was the favorite here because it sits nice and flat on the wood, while lock-style tapes tend to perch higher. The Milwaukee tapes were not the choice for layout work for the same reason.

Accuracy is another quiet difference: cases and blade thicknesses vary slightly between brands, so a 3-and-3/8 read on one tape can be a hair different on another. They all work, but they are not identical.

Torture Test and Build Quality

To stress-test the standout leader, one tape was dropped repeatedly from a significant height. The first throws bent the front hook, which would ruin accuracy in normal use, and a later drop separated the case. Even so, the internal mechanism, lock, and spring survived, and with some bending and reassembly the tape returned to being fully usable. The belt clip was the only casualty.

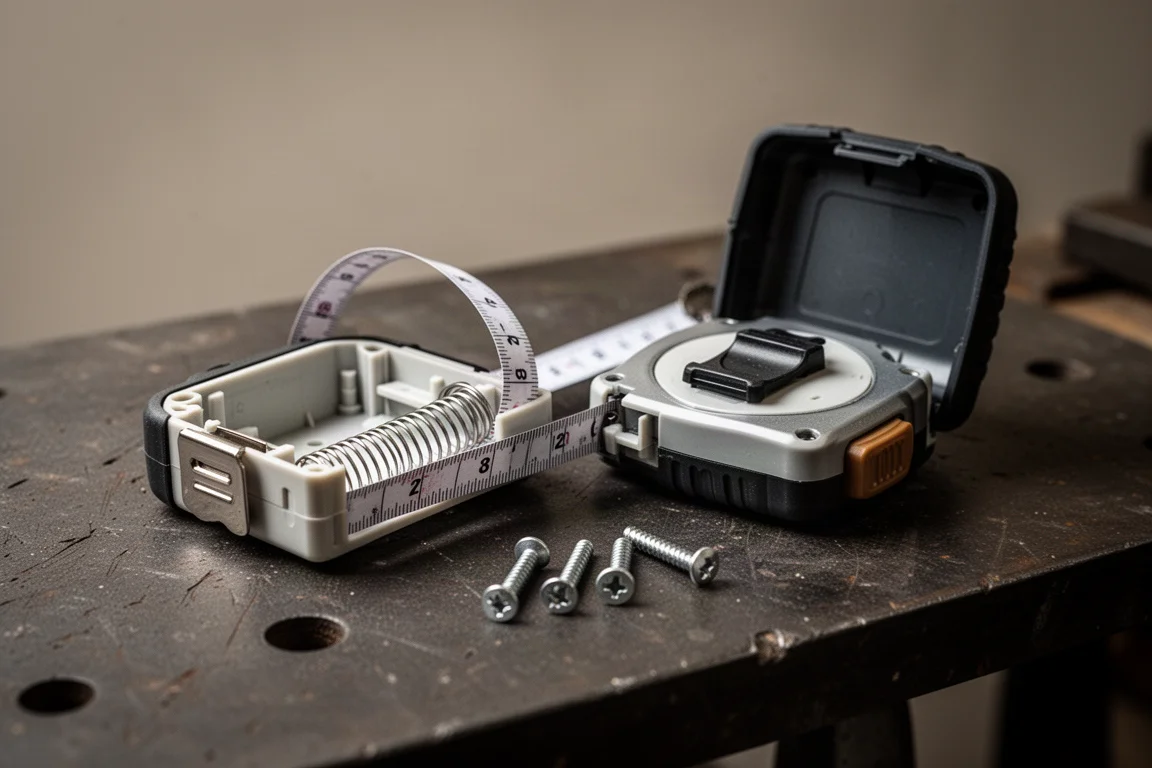

Opening the case revealed small but tight screws, a simple plastic housing, a brake mechanism, and a ribbon spring anchored to a metal bar so it cannot pull free. The design is not badly built; the case is the vulnerable part. Belt clips bent in the drops too, despite the slide-in clip being easy to use.

Buying Advice

For the price, the Lufkin G2 tapes land at roughly a dollar a foot of blade, with some models a little more or less depending on what is inside. If standout is your priority, the DeWalt ToughSeries won this comparison, and wider premium Milwaukee stud tapes are worth a look too. If you want a tape that can survive abuse and be rebuilt, the Lufkin construction is encouraging. Whatever you buy, try it in the store if you can: pull the blade, check the markings, and confirm the readability suits your eyes. If a store will not let you test a tape, it is usually worth walking away.

Conclusion

There is no single perfect tape measure. The DeWalt ToughSeries leads on standout and layout use, the Lufkin G2 range offers strong all-around value with double-sided labeling and a surprisingly resilient build, Milwaukee’s budget tapes shine for beginners with fractional markings, and Crescent delivers solid value at low cost. Pick the one that matches how you actually work.
