Berger 135 MP Multi-Process Welder Review: A $120 Flux Core, Stick, and TIG Machine

Introduction

A $120 multi-process welder sounds almost too good to be true. The Berger 135 MP from Harbor Freight promises flux core, stick, and TIG capability in a compact 120-volt machine that plugs into a regular outlet. It does not come with the accessories needed for TIG welding, but for the price, the flux core and stick functions alone make it worth a closer look.

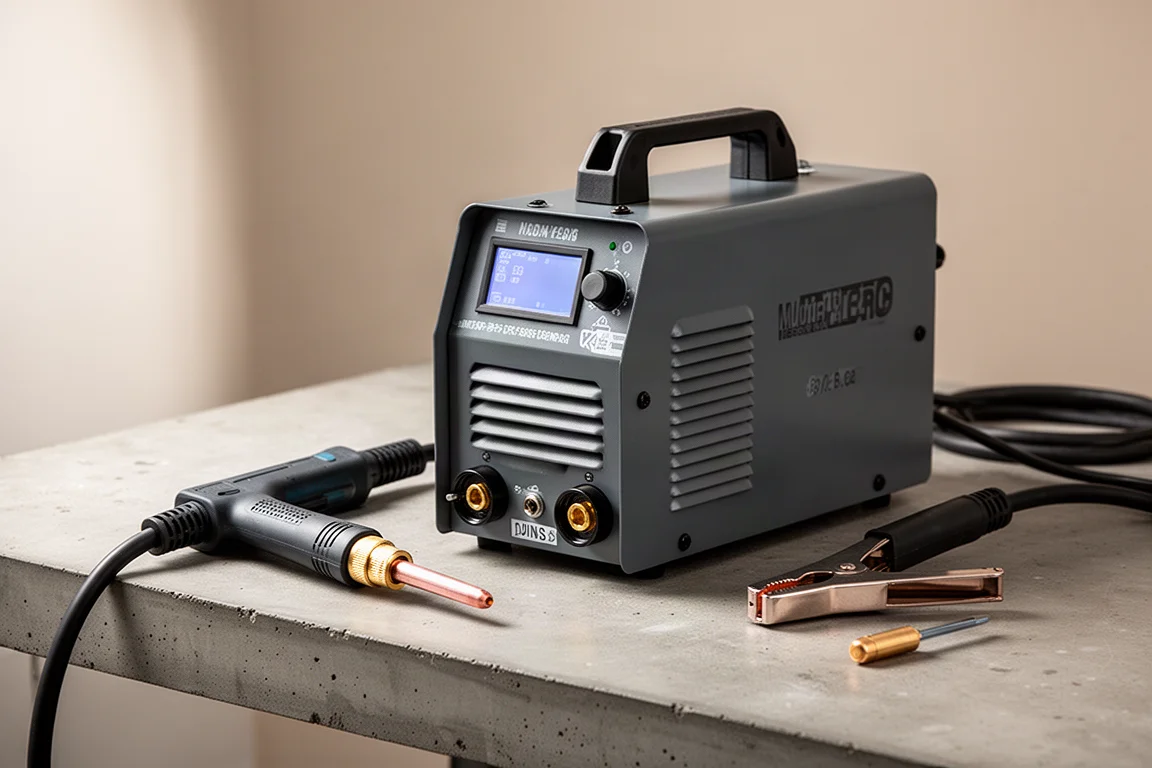

This machine is positioned as an entry-level option, and it shows in some of the components. The wire feeder and spool brake feel simpler and a little cheaper than what you would find on more expensive units, which is price appropriate. The gun is removable and connects with a DINs connector, a detail that is surprisingly convenient. The LCD screen feels like overkill for this level of machine, but being able to read an actual number when setting up is genuinely useful.

What Is the Berger 135 MP?

The Berger 135 MP is a side-load wire feed machine that takes the small 4-inch spools. It offers three modes: stick, TIG, and flux core wire feed. The stick lead and work clamp are basic but functional. The machine runs on standard 120-volt household power, so there is no need for special wiring or a dedicated circuit.

For someone who wants a single machine for light repairs, small projects, or learning to weld, this covers a lot of ground. The TIG mode is present in the menu, but since the necessary torch and accessories are not included, it is not a practical option out of the box. The real strengths here are flux core and stick welding.

Flux Core Welding Performance

Flux core is where this machine is expected to do most of its work, and it delivers. On 16-gauge sheet metal, the welder runs smoothly and produces functional beads with good penetration through to the back side. There is noticeable spatter, but the larger spatter balls brush off easily and are not a real problem.

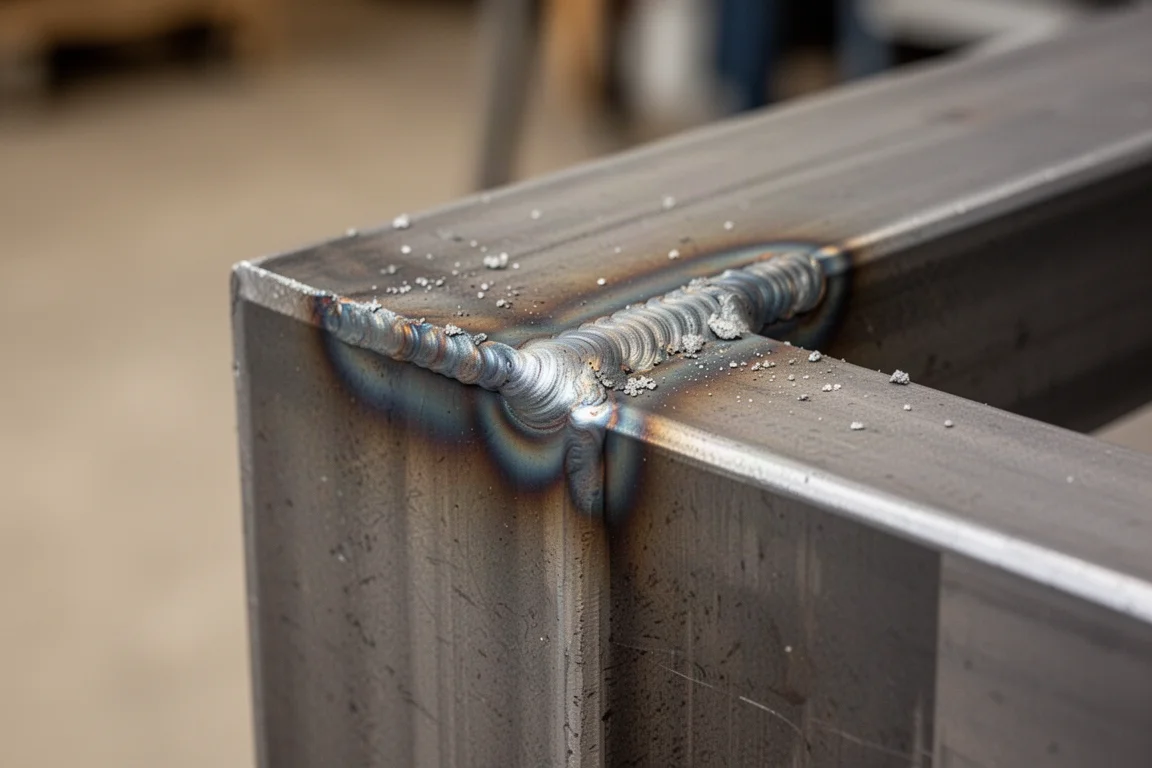

On square tubing, the machine handles fillet welds on inside corners and face joints without issue. Using a drag angle keeps the slag manageable, and the self-shielded flux core produces light slag that is easy to clean. The welds are not going to win any beauty contests, but they are solid and functional. You could build a go-kart frame, a bookshelf, or a range of other projects with square tubing and this machine.

Cranking the machine up on 1/8-inch plate produces even better results. The bead quality improves, and the weld holds up well when tested by bending it open from the root. It did not open up at all, which speaks to decent penetration. You might be able to push to 3/16-inch in a pinch, but it is probably wise not to go beyond that.

Stick Welding Performance

Stick welding on this machine is best described as a bonus feature. The arc is surprisingly smooth for a secondary function on a budget multi-process unit. Starting the arc is a little harder than on machines with a hot start feature, and the 75-amp maximum output is limiting.

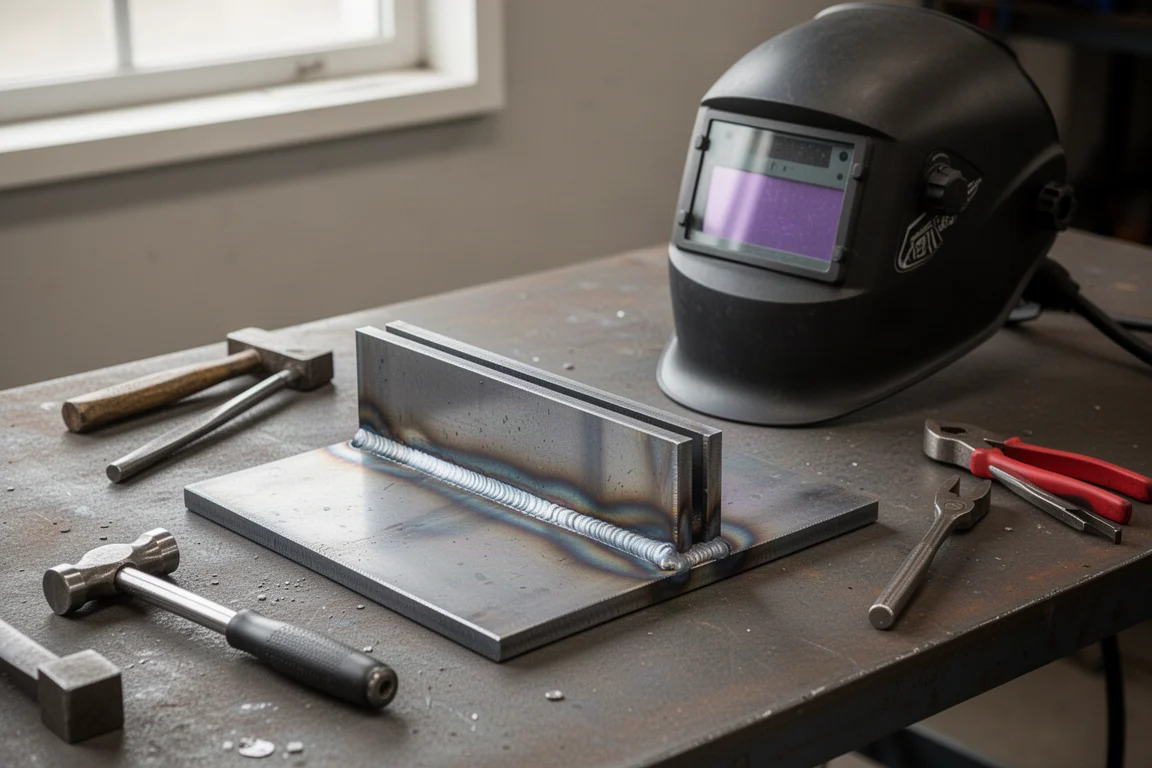

With 3/32-inch 7018 rods, the machine sits right at the very bottom end of the rod’s recommended amperage range. It works, but you are fighting a slight lack of power. Running several beads with practice produces decent results, and the arc stays smooth once it is going. A fillet weld break test on a 1/4-inch T-joint showed penetration down to the root in some portions, though not consistently across the entire joint. The weld itself was strong, better than what you would typically get with flux core on thicker material.

The machine also lists 3/32-inch 6010 as a supported rod, but it struggles with it. Getting a 6010 to run well on this unit is difficult, and it is not something you would want to plan practice drills around. The better choice for stick welding on this machine is 3/32-inch 6013, which runs nice and smooth with manageable spatter.

Things to Consider Before Buying

The Berger 135 MP is not built with top-tier components. If you plan to do a lot of welding, this machine will likely not last as long or perform as well as a more expensive unit. You will probably outgrow it if welding becomes a serious hobby or profession.

The 75-amp ceiling on stick welding is a real limitation. It works for light stick work and learning the basics, but if stick welding is your primary interest, a dedicated stick welder in the same price range would serve you better. The TIG mode is essentially non-functional without purchasing additional accessories, so treat it as a menu option rather than a feature.

For flux core work, the machine is most comfortable between 16-gauge and 1/8-inch material. That covers a lot of common repair and fabrication tasks, but it is not a heavy-duty machine.

Buying Advice

For $120, and often around $100 with a coupon, the Berger 135 MP is an impressive value. The bill of materials alone, including the boards, motors, leads, and wire, makes it hard to understand how anyone is making money at this price. It works well for light household repairs, small fabrication projects, and as an extra machine to keep in the back of a truck for whatever comes up.

If you are just starting out with welding, this is a reasonable entry point. The flux core function is genuinely capable for its class, and the stick mode gives you an option for thicker material or learning stick technique. Just keep expectations in check: this is a budget machine, and it performs like one. For occasional use and light projects, it is a solid choice. For heavy or professional work, you would want to step up to something more capable.

Conclusion

The Berger 135 MP delivers more than its price suggests. Flux core welding on sheet metal and tubing is functional and dependable, and the stick mode, while limited by the 75-amp ceiling, is a useful bonus for thicker material or learning. It is not a machine for heavy use or professional work, but for $120, it is a surprisingly capable tool for light repairs, small projects, and getting started with welding. If you need a compact multi-process welder for occasional jobs around the house or shop, this is worth serious consideration.
