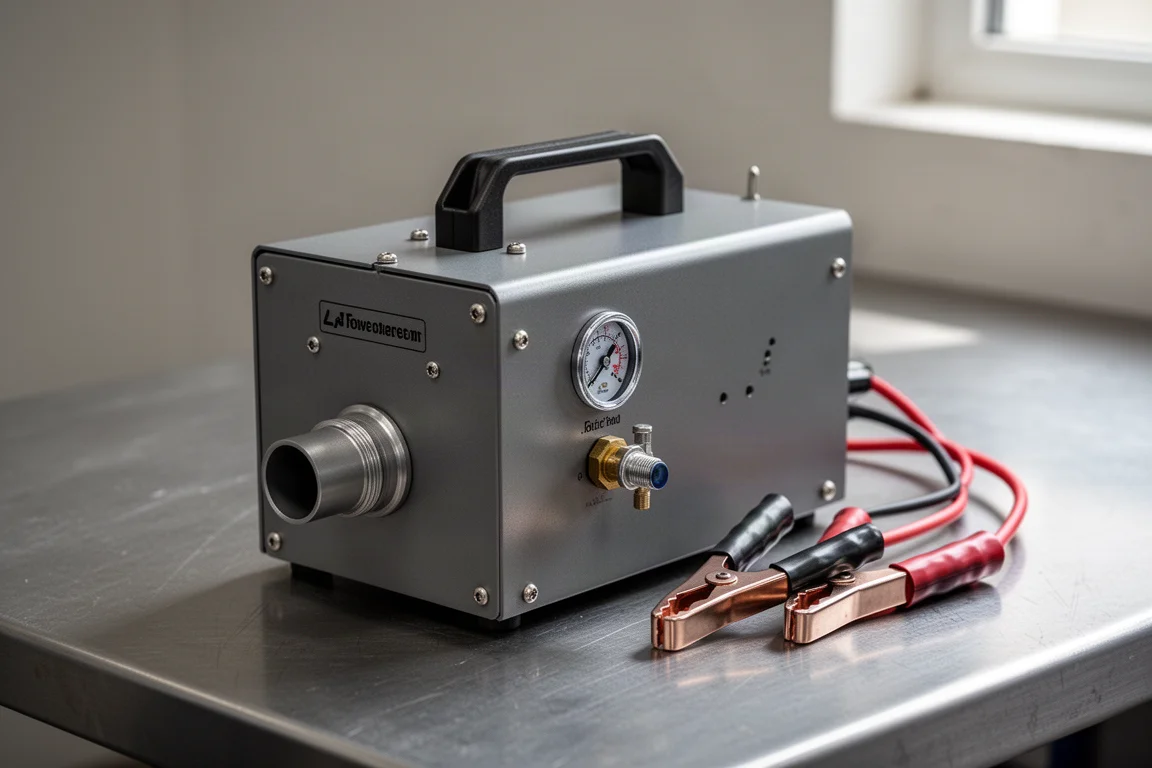

ANCEL S100 Smoke Machine Leak Detector: A Budget-Friendly Way to Find Vacuum and Exhaust Leaks

Introduction

Smoke machines are one of those diagnostic tools that feel out of reach for most home mechanics. Conventional units are often self-contained, requiring an onboard compressor or dedicated power, and good ones can cost upwards of a thousand dollars for a shop-grade setup. The ANCEL S100 takes a different approach: it outsources the two most expensive parts, using your own shop air and the vehicle’s 12V battery, and lands at around $100. That design choice is what makes it interesting, so let’s look at what you actually get.

How the ANCEL S100 Works

The S100 floods an area with visible vaporized oil smoke, which is exactly what you want for tracking down leaks in vacuum lines, hoses, and exhaust systems. Instead of a built-in compressor, it needs an air source delivering at least half a psi or more, and power comes from any 12V battery, generally the one on the vehicle itself. Inside, a heating element vaporizes mineral oil into a dense, highly visible stream.

It uses mineral oil as the fluid, which is another cost saving, and the manufacturer specifically recommends Johnson’s baby oil, which is inexpensive and easy to find. The unit consumes surprisingly little of it, too.

Setup is straightforward: connect the battery clips, flip the power switch on the back, watch for the red indicator, and open the flow valve. One thing worth knowing is that the fluid gauge on the back is hard to read in practice, so avoid overfilling, which can push oil out of the output port.

Smoke Output and Flow Control

Once running, the S100 produces a substantial amount of smoke at a good clip. At maximum flow it fills an exhaust system in a minute or two, and there’s plenty of volume to work with. The adjustable valve gives you fine control, so you can tone it down to a gentle, well-defined stream for pinpointing a leak or open it up for filling larger volumes.

The author found that the unit ran continuously for a long stretch without running out of fluid, which was a genuine surprise given how compact it is.

What It Can Be Used For

Vehicle diagnostics are the obvious use: vacuum leaks, intake leaks, and exhaust leaks all show up clearly as smoke escapes from the problem area. But because the S100 outsources its air and power rather than carrying its own compressor and power supply, the price comes way down, and that opens the door to other low-scale uses.

The original tester was also exploring HVAC applications on a small scale, using the smoke to visualize where air moves in a home and where it gets sucked into systems, such as around intake vents. That kind of secondary use makes the tool more versatile than its automotive-first positioning suggests.

Things to Consider Before Buying

A few practical points are worth knowing before you buy. First, close the valve after use. As the unit cools, the air inside contracts and creates a slight vacuum that can pull oil back from the vehicle into the machine, which you want to avoid. Second, do not overfill the fluid, or you’ll get mineral oil coming out of the output.

For attachment, the S100 comes with a standard cone adapter plus a couple of other accessories for fitting larger or smaller tubes, which covers most common hookups on a vehicle.

Buying Advice

For around $100, the S100 offers real speed, good control, simple operation, and plenty of smoke volume. If you’re starting a small shop or just want to get into this kind of diagnostics without committing to a four-figure machine, it’s a sensible entry point. If you need UV tracer capability or shop-grade throughput, you’ll have to look further up the market, but for most leak-hunting jobs on personal vehicles, this covers the fundamentals well.

Conclusion

The ANCEL S100 earns its place by removing the cost drivers that make traditional smoke machines expensive. Using your own compressor and the vehicle’s battery, running on cheap mineral oil, and delivering controlled, abundant smoke output, it makes leak detection accessible to beginners and home mechanics without feeling like a compromise.
