AceMeter Digital Caliper Updated Version: Bigger Screen, Fraction Mode, and Tested Accuracy

Introduction

The AceMeter digital caliper, sold through the QFun Amazon storefront for precision tools, already earned a positive first look for its accuracy and easy handling. The updated version builds on that design in a few meaningful ways, and after working through its features and running a few measurement checks, it holds up well as an affordable precision tool.

What’s New in the Updated Version

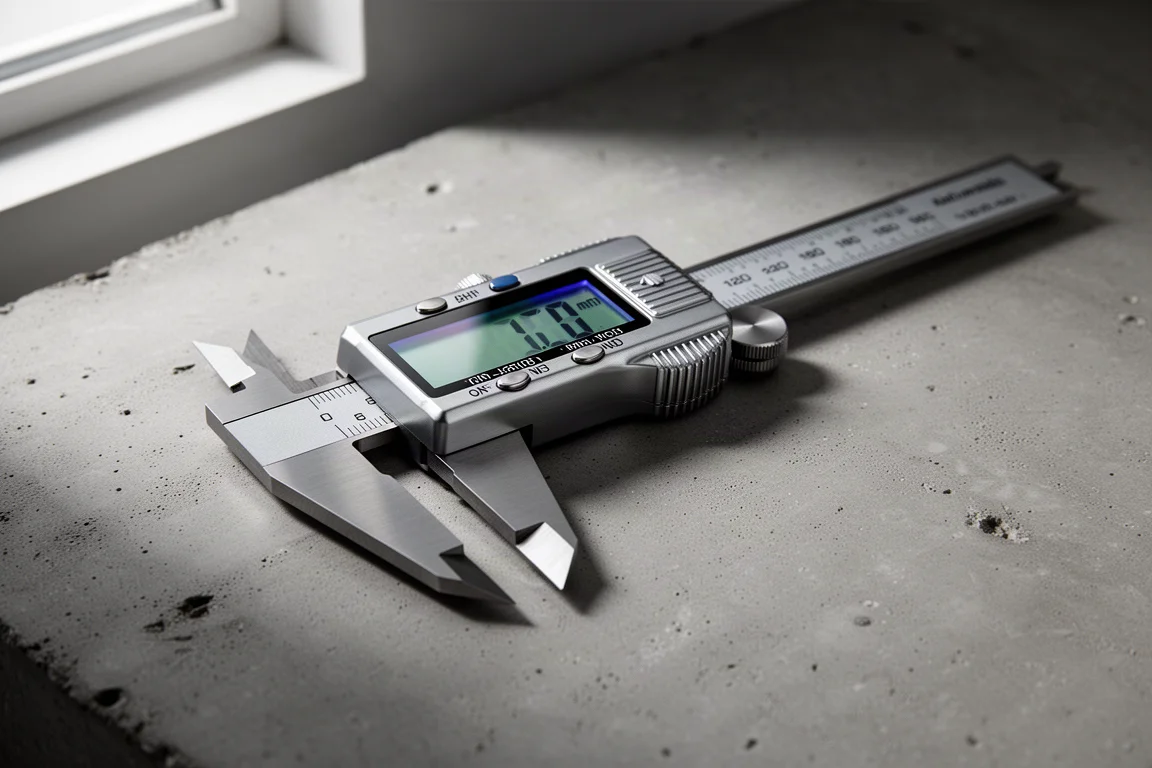

The most obvious change is the display. The screen is noticeably larger and brighter, which makes readings easier to glance at mid-task. The unit still measures in millimeters and inches, but the update adds fraction-of-an-inch mode alongside decimal inches, giving you three ways to read the same measurement.

Fraction mode goes surprisingly deep: readings can be shown in fractions down to 1/128 of an inch. For anyone working in imperial units, that turns a decimal readout into something far more intuitive when transferring measurements to plans or layout work.

Accuracy Testing: How It Performed

A fair question for any budget digital caliper is whether the readings are actually trustworthy. To check that, the updated unit was zeroed and tested against known reference gauges.

First test: a 0.025-inch blade from a Starrett feeler gauge set. The caliper read 25.0 thousandths dead on. Second test: a 0.150-inch feeler gauge. After re-zeroing, the caliper read 0.150, again matching the reference exactly.

Both checks landed on target, which is about as convincing an accuracy demonstration as a home workshop can produce. The body is steel and looks much the same as the earlier version from the back, so the core design carries over.

Battery and Build Details

The caliper runs on a CR2032 coin cell. The included battery is the kind of demo-type cell commonly supplied with battery-powered tools, so swapping in a fresh one right away is a sensible habit. The battery cover has been redesigned with a small fingernail notch, a welcome improvement over the earlier version where the cover had to be pried out from the side.

The beam itself is steel, and the scale along the body includes both centimeter and inch markings. To be clear, those engraved scales are for rough reference rather than precision work; the digital readout is where this tool earns its accuracy.

Included Accessories and Everyday Use

The package includes a nice plastic case, a microfiber cloth, and instructions. The overall design is solid, and with the bigger, brighter screen plus the added fraction mode, the update makes an already capable tool genuinely easier to use.

At its price point, this sits in the category of inexpensive precision tools that punch above their cost. QFun remains a good source for this kind of gear, and the turnaround on adding requested features like fraction mode suggests the brand pays attention to user feedback.

Buying Advice

If you work in fractions and want them natively on the display, this updated version is the one to pick over the previous model. If you mostly measure in millimeters or decimal inches, either version serves, but the larger screen alone justifies choosing the new one.

Conclusion

The updated AceMeter digital caliper takes a solid, accurate design and improves it where it counts: a bigger bright display, fraction readout down to 1/128 of an inch, and a friendlier battery cover. With accuracy confirmed dead-on against feeler gauges and a full accessory kit included, it is an easy recommendation for anyone who needs dependable digital measuring without spending serious money.
