Milwaukee 3020-20 16-Gauge Finish Nailer Review: Clean Holes and Balanced Handling

Introduction

Milwaukee has a new straight 16-gauge finish nailer on the market, the 3020-20, priced at $329 as a bare tool. It loads from the bottom, holds up to 110 nails, and takes anything from 1-inch to 2-1/2-inch fasteners. On paper that covers most trim and finish carpentry work, and in use it delivers on the two things that matter most: consistently small nail holes and a tool that is easy to live with all day.

What Makes It Different

The bottom-load magazine is a genuinely convenient design. You take the head of the nail strip, slide it into the section, push the lever down, and slide it up into place. Loading is quick and intuitive, and the 110-nail capacity means fewer interruptions mid-task.

One standout feature is the anti-dry-fire protection. When only four or five nails remain in the magazine, an internal actuator stops engaging, preventing you from firing the last nails. That keeps the striker from hitting nothing and helps the tool deliver the very small, consistent holes it is advertised for.

Controls and Feedback

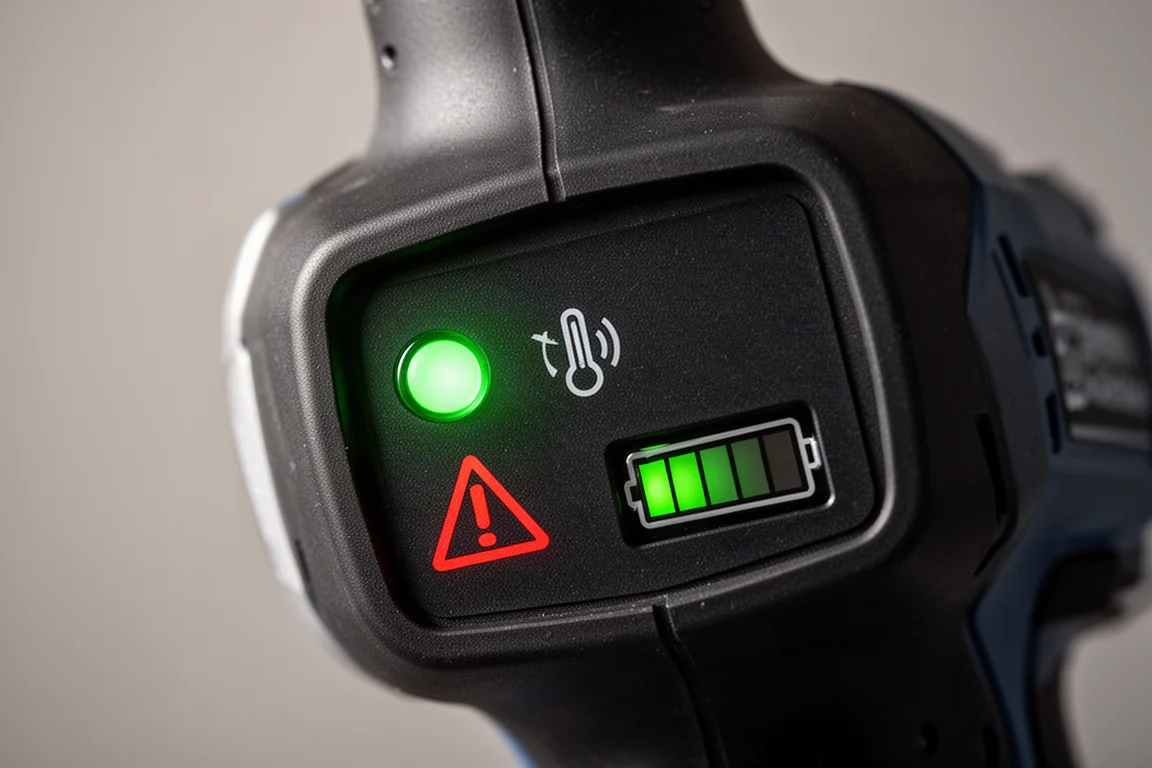

The control layout is clear and well executed. You can switch between single mode and bump fire with a button near the base, and the white indicator light tells you which mode you are in, while a green light confirms the tool is powered on. On the left side there is a temperature indicator that warns you if the gun is overheating, and on the other side a battery meter keeps you informed about the battery installed, which works with any M18 pack.

Depth adjustment is simple to use, and there is an LED light at the nose to help in dim corners. Everything feels positive and precise, including the trigger, which gives you exactly the feedback you want when setting nails by feel.

Weight and Handling

Without a battery, the Milwaukee 3020-20 weighs 6 lb 2 oz. Adding a 2 amp battery brings it to 7 lb 2 oz, and a CP3 battery takes it up to 7 lb 8 oz. That is a bit of weight, but the balance is excellent. The tool moves well in the hand, the rubberized sections protect the housing when you set it down, and the belt hook can be moved from side to side.

Nail Hole Quality and Depth Consistency

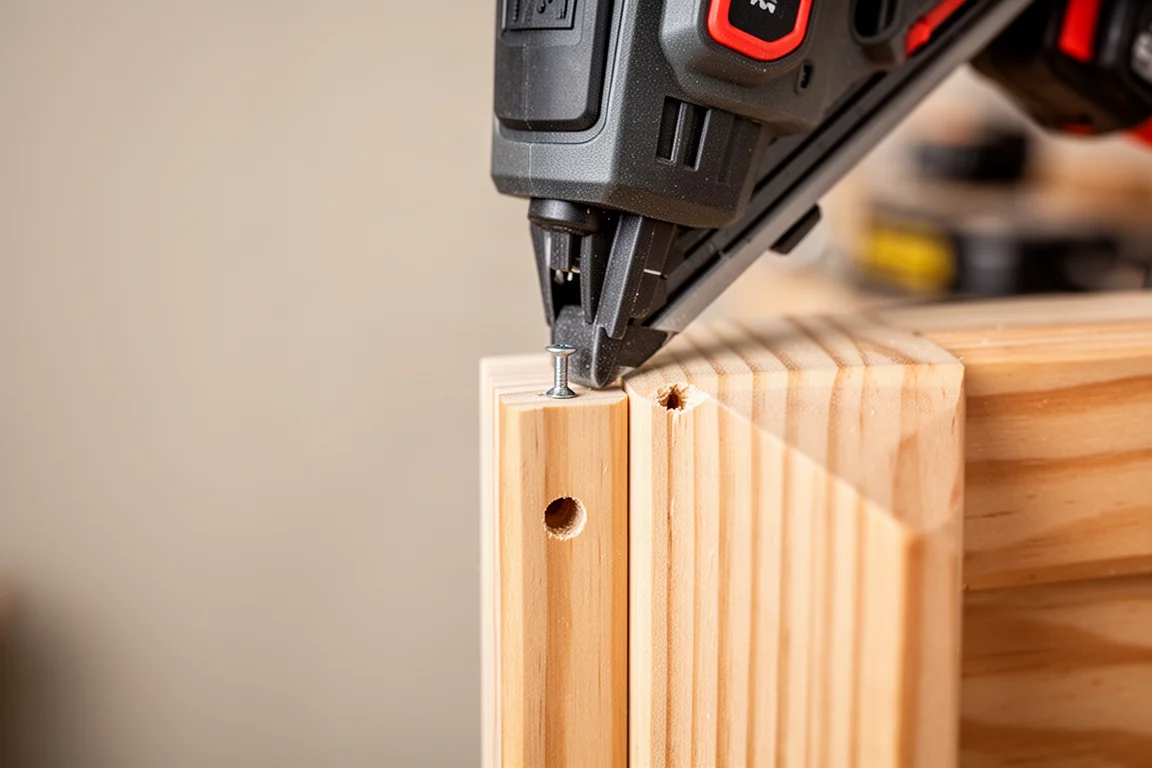

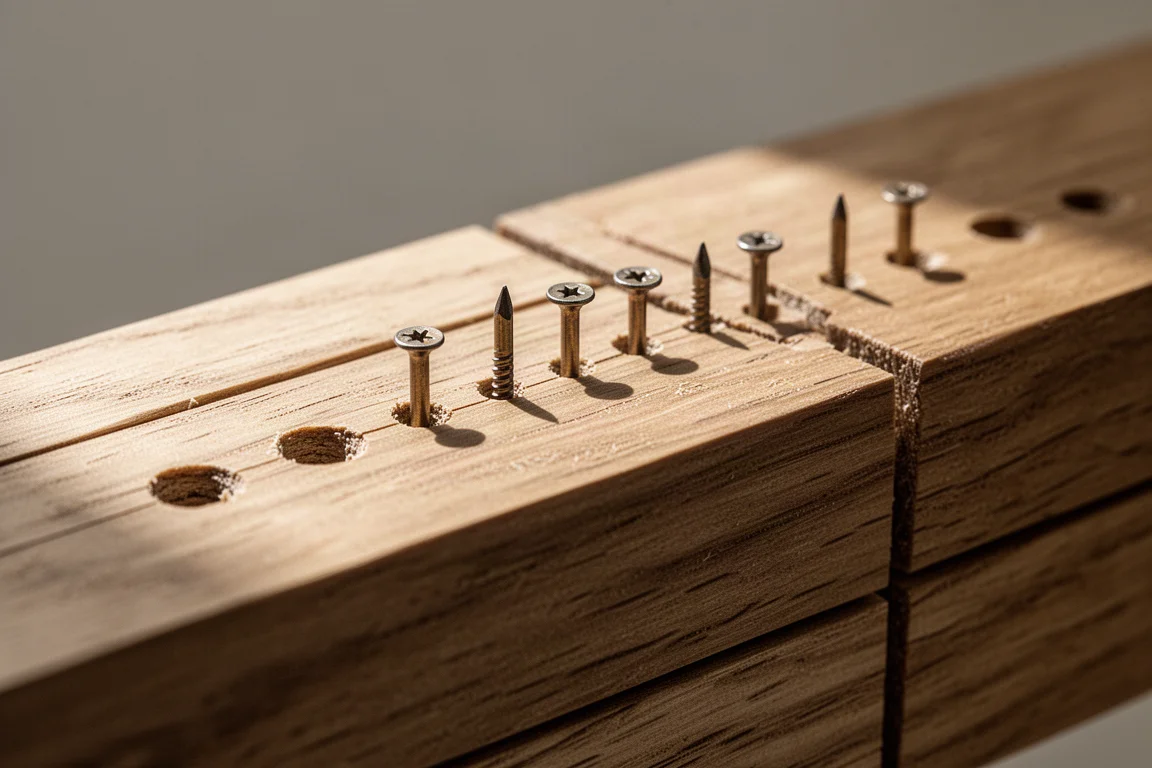

Testing with 2-1/2-inch nails driven into oak and dimensional pine, the results were impressive. At full depth, the hole was basically the size of the nail head. Backing the depth off slightly still sank nails deep enough to be flush, and the holes stayed consistently small across repeated shots.

Switching to bump fire mode produced the same story: consistent, small, easy-to-fill holes. Depth held steady once set, and even in softer pine the difference between holes was minimal. The magazine ran down smoothly, and the anti-dry-fire feature kicked in right where expected, stopping the tool with just a couple of nails left in the strip.

Ergonomics and Everyday Handling

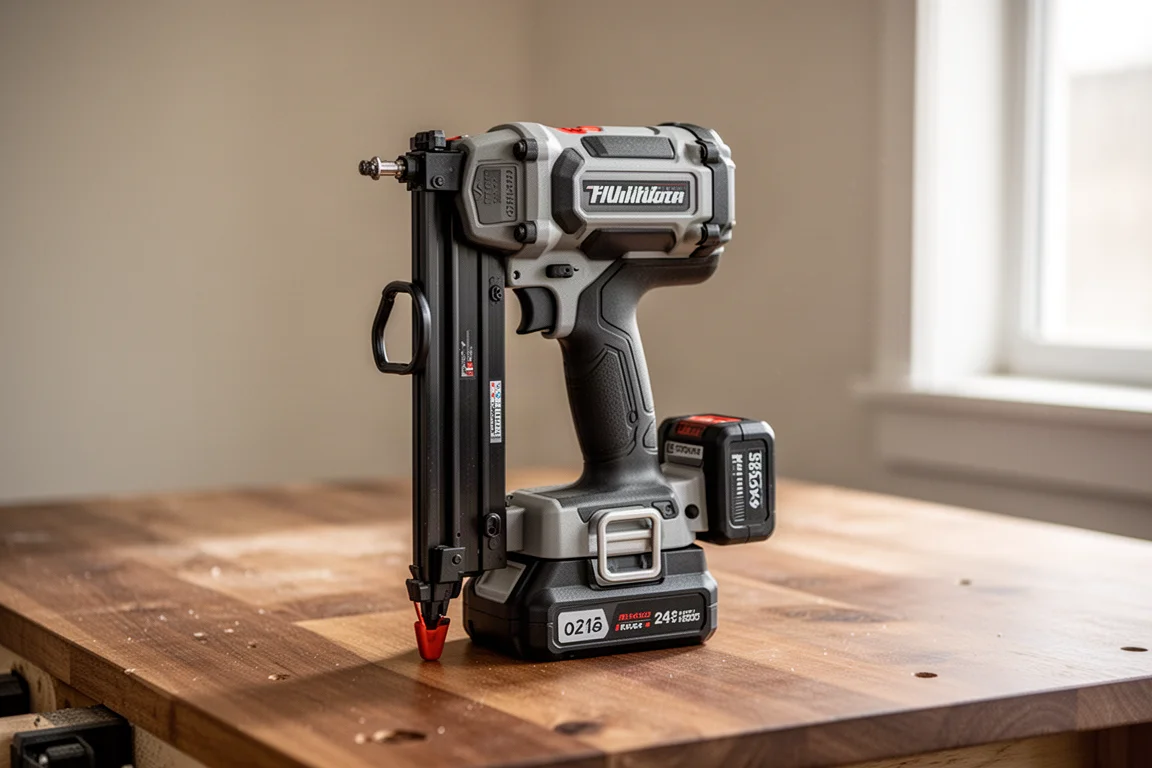

The 3020-20 stands upright on its own as long as you use a compact battery. With a larger 5 amp hour pack it could tilt forward, but it remains very stable. Onboard nose pieces are a nice touch, so replacement tips are always with the tool rather than lost in a drawer.

Being a straight 16-gauge design rather than an angled one may matter depending on how you use the gun. If you need to work in tight areas, the straight format is worth considering; otherwise the angled versus straight difference is mostly a matter of preference.

Buying Advice

At $329 for the bare tool, this nailer makes sense for trim carpenters and serious DIYers already invested in the M18 battery platform. If consistently clean, small nail holes, thoughtful safety features, and a well-balanced, precise tool are what you need for finish work, the 3020-20 ticks all the boxes.

Conclusion

The Milwaukee 3020-20 is a very simple, very easy finish nailer that gets the fundamentals right. Bottom loading, anti-dry-fire protection, clear controls, small and consistent nail holes, and excellent balance add up to a tool that feels well designed end to end.
