Metabo HPT 18V 18-Gauge Narrow Crown Stapler: Compact Power for Subfloor and Trim Work

Introduction

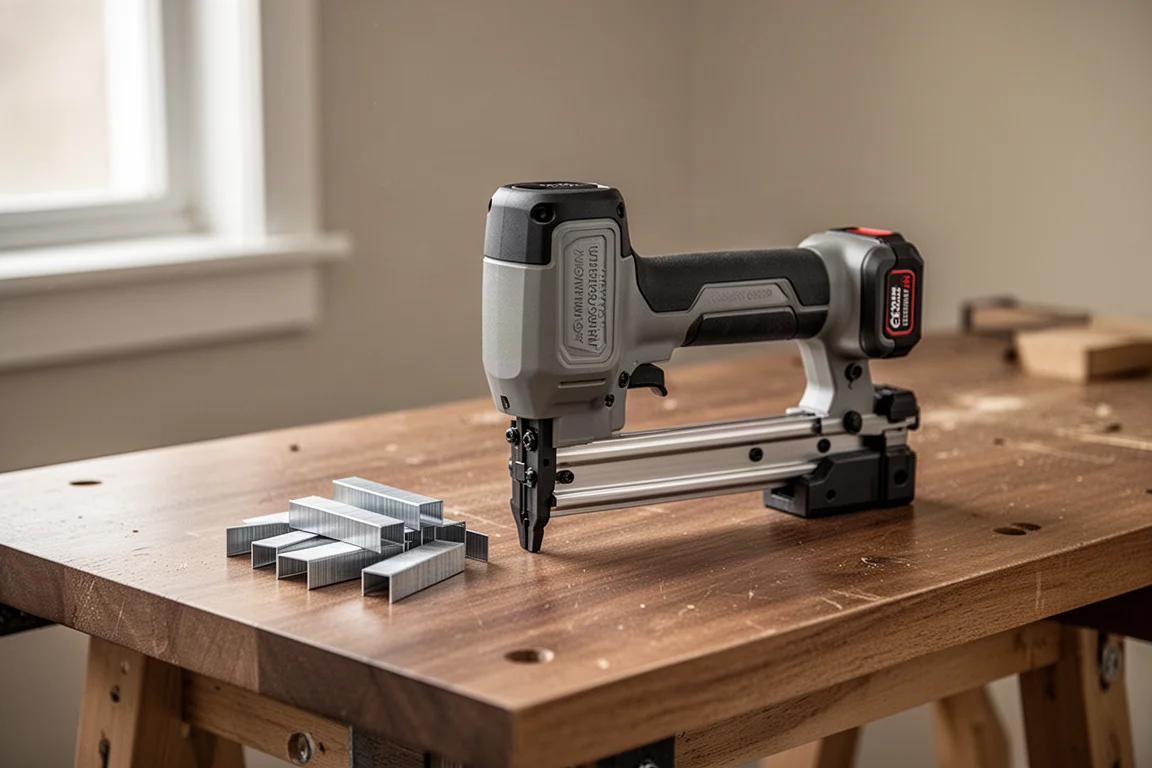

Metabo HPT’s compact 18V 18-gauge narrow crown stapler is built around a simple idea: a small, light tool that still has the modes and adjustments pros expect. It offers single feed and bump feed modes, an LED work light, and a long list of tool-free features that make jams, loading, and depth changes quick to handle. It is a straightforward tool, and that simplicity is a big part of its appeal.

Weight and Battery Compatibility

Weight is a genuine highlight. With 100 staples loaded and no battery attached, the tool weighs 4.8 oz. Add a 2 Ah battery and it comes in at 5 lb 2 oz, and a 4 Ah battery pushes it to about 5 lb 10 oz. Either way, you are working with a tool that stays easy to maneuver in tight spots.

It is a brushless 18V tool and accepts Metabo HPT or Hitachi 18V batteries, including MultiVolt batteries. One limitation worth noting: it will not run with the Metabo HPT MultiVolt corded adapter, so AC power is not an option here.

Modes, Lockout, and Power Switch

The controls are simple to learn. A lockout mode disables the trigger entirely, which is ideal before dropping the tool into a bag or truck bin. Powering on requires pushing and holding a dedicated power switch on the bottom of the tool. Once on, the LED light on the side illuminates and a green indicator next to the power switch confirms the tool is live.

Mode switching is handled by a single button paired with a status light. A solid light shows the tool is ready, and pressing the button makes it blink to signal bump feed mode for fast, repeated firing. Press it again and it switches to single feed mode, which fires one staple per trigger pull once the safety is depressed.

Tool-Free Jam Access and Magazine Loading

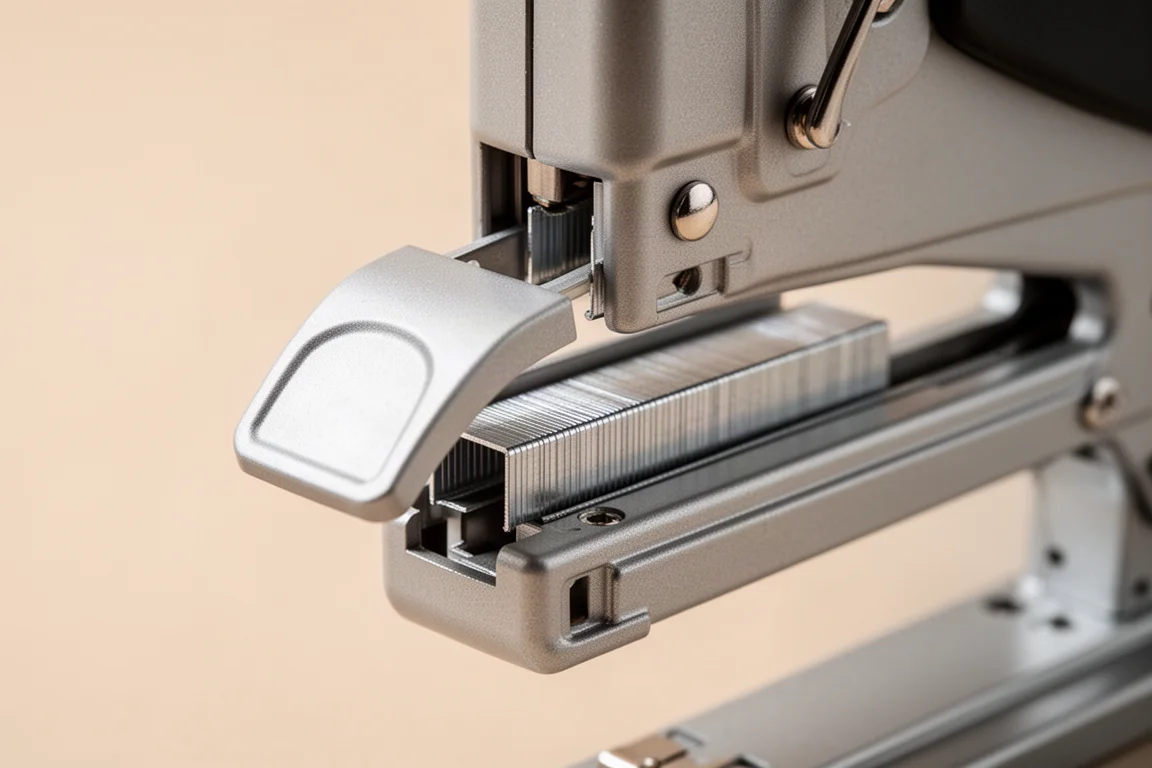

Jam clearing is fully tool-free: slide the front latch forward and you have direct access to the nose for removing a bound staple or anything else causing trouble. The nose piece itself is removable and replaceable, and you can also run the tool without the rubber nose piece if you prefer.

Loading is just as simple. Pull the magazine slide all the way down, load up to 100 staples, then press the button at the bottom of the magazine to push the staples up into position. A small plastic retainer keeps the staples in place and makes loading easy.

Depth Adjustment

Depth control is a tool-free wheel system. Rolling the wheel forward and up drives staples deeper; pulling it back and turning raises the drive depth. There is a light detent that locks the setting in place, so the adjustment will not drift or rub against materials mid-task and change your depth.

Driving Performance in Hardwoods

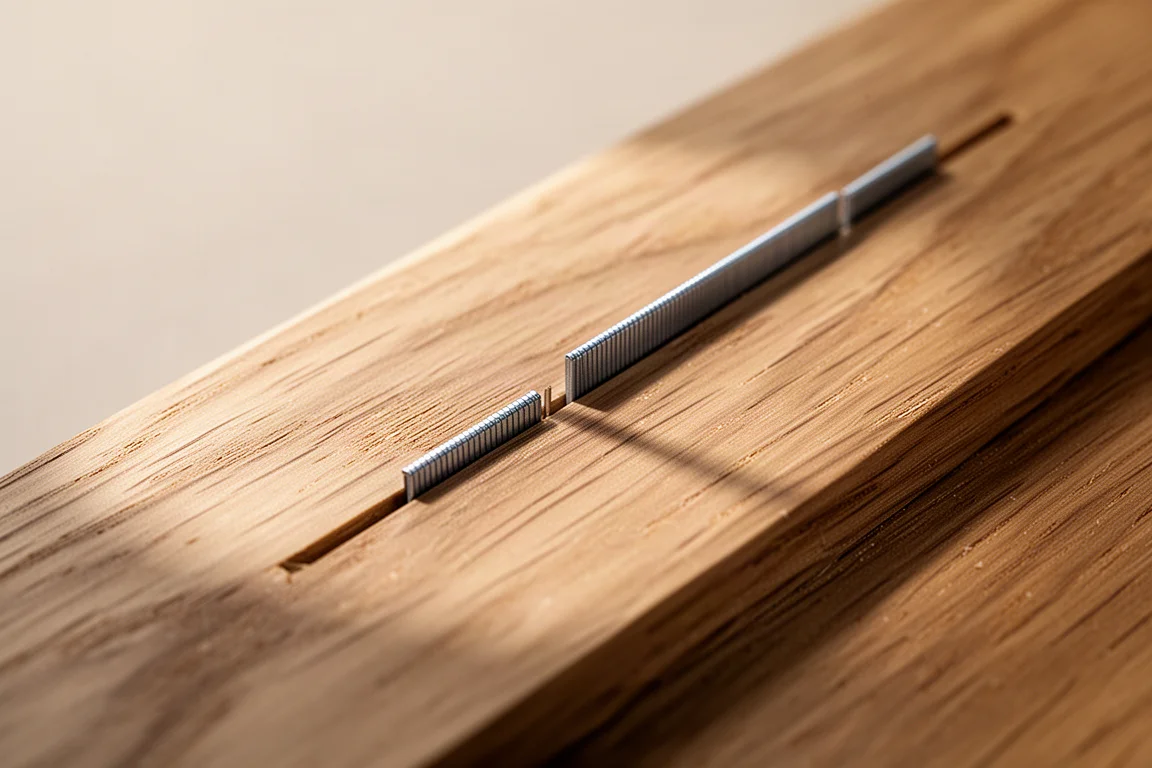

At max depth, the stapler buried 1-inch narrow crown staples right down into oak, sinking them well below the surface. That matters most for subfloor work: driving staples deep enough that underlayment or finished flooring can sit on top without obstruction.

In bump feed mode, the tool lays down staples quickly, which is exactly what installers covering large subfloor areas want. Speed, reliability, and deep driving are the three things that separate a good subfloor stapler from a frustrating one, and this tool checks those boxes.

One observation from testing through a plywood-over-OSB stack: driven staples showed a mix of closed and slightly open crowns on the underside, so results vary depending on the material stack and staple length you choose.

Handling, Storage, and Everyday Details

The tool feels well balanced and easy to move around, especially with the smaller 2 Ah battery keeping total weight near 5 lb. A belt clip installs on either side; mounting it on the left worked well because the tool can then rest on its three rubber feet plus the front base rather than sitting on the exposed metal magazine slide.

That magazine slide is one thing to watch. It is uncovered metal, so setting the tool down carelessly or stepping on it could push the slide into a soft surface. The lockout mode helps here too, making the tool safer to stash between tasks. Maintenance is minimal: a small oil point near the nose should be kept lightly lubricated, taking care not to get oil on the wood. There is also a temperature cutout that stops the tool and alerts you if it overheats.

Buying Advice

This stapler makes the most sense for anyone doing trim, subfloor, or detail fastening who values a light, compact tool over maximum power. If you routinely staple large subfloor areas, bump feed mode plus max-depth driving will save real time. If you already own Metabo HPT or Hitachi 18V or MultiVolt batteries, you avoid the cost of a new platform. Just plan on battery power only, since the corded adapter is not supported.

Conclusion

The Metabo HPT 18V 18-gauge narrow crown stapler is a well-thought-out compact tool: light, fast in bump mode, easy to load and clear, and simple to adjust without tools. Its lockout mode, LED light, and detented depth wheel round out a design that is easy to live with daily. For staple-down subfloor work or tight-space trim fastening, it is an easy recommendation.
