FNIRSI LPM-10A Network Cable Tester Review: A Practical Multi-Function Tool

Introduction

The FNIRSI LPM-10A is a multi-function network cable tester designed to help you verify, trace, and troubleshoot Ethernet cabling. It combines several useful tools into one handheld device: continuity testing, wire sequence verification, cable tracing, length measurement, PoE port checking, and switch port speed detection. Whether you work in networking professionally or manage a home network with lots of cabling, this tester aims to simplify common diagnostic tasks.

The device comes as a two-unit kit. The transmitter features a 2.4-inch color LCD display with adjustable backlight brightness, a navigation pad, and a confirm button. The receiver includes a non-contact voltage probe, a sensitivity dial, and a headphone jack for listening to test tones while tracing wires. Both units have internal rechargeable batteries rated at 3,000 mAh and charge via USB-C.

Who This Product Is For

This tester is aimed at anyone who regularly works with Ethernet cables and network equipment. If you install or maintain network infrastructure, the LPM-10A can help you quickly identify cable faults, verify pinouts, and confirm that PoE ports are delivering power correctly. It is equally useful for hobbyists who run their own home network and want a reliable way to test cables they have crimped or terminated themselves.

The tool is especially relevant if you work with power over Ethernet devices such as security cameras or VoIP phones. Being able to verify that an Ethernet port is supplying the expected voltage before connecting a device can save significant troubleshooting time. The tracing function also helps when you need to identify a specific cable within a bundle, which is a common challenge in network closets and server racks.

Main Strengths

The LPM-10A covers a broad range of testing scenarios. The cable test function checks continuity and wire sequence, and it can test either back to a switch port or between two ends of a cable using the receiver as the far end. The display clearly shows the pin-to-pin mapping, making it easy to confirm whether a cable is wired as straight-through or crossover.

The wire tracing function is another highlight. By connecting one end of a cable to the scan port on the transmitter and using the receiver in scan mode, you can follow a specific cable through a bundle. The receiver emits an audible tone that changes with proximity, and the sensitivity dial lets you adjust how close the probe needs to be. The included headphone jack is useful in noisy environments.

The length test measures each of the four wire pairs independently by calculating the propagation time of the electrical signal. This can reveal if one pair is significantly longer or shorter than the others, which may indicate a problem. The QC test checks the quality of the RJ45 connector itself, catching issues like a missing pin or a poorly crimped connection that a standard continuity test might miss.

The speed test verifies the link speed of a switch port, showing whether it is a gigabit port and whether the link is full duplex. The PoE test displays the voltage on each pin pair, the protocol, and the power class, giving you confidence that a port is delivering power before you connect a device. The receiver also includes a non-contact voltage detection mode for checking live AC voltage on wires.

Things to Consider Before Buying

The retail price of the FNIRSI LPM-10A is around $70, which positions it as an affordable option for a multi-function tester. However, it is worth noting that interpreting some test results requires a basic understanding of Ethernet pinouts. For example, recognizing a crossover cable from the pin-to-pin mapping on the display assumes you know the expected wiring for that cable type.

The QC test is a useful feature, but it only checks the connector itself rather than the continuity of the wires end to end. You will still need to run a full cable test to verify that all pairs are correctly connected. The length test relies on the propagation time of the signal, so results may vary slightly depending on the cable type and quality.

Both units need to be charged before first use, and the included USB-C cables make this straightforward. The receiver’s flashlight is a practical addition for working in dimly lit network closets, though it is not a substitute for proper work lighting.

Buying Advice

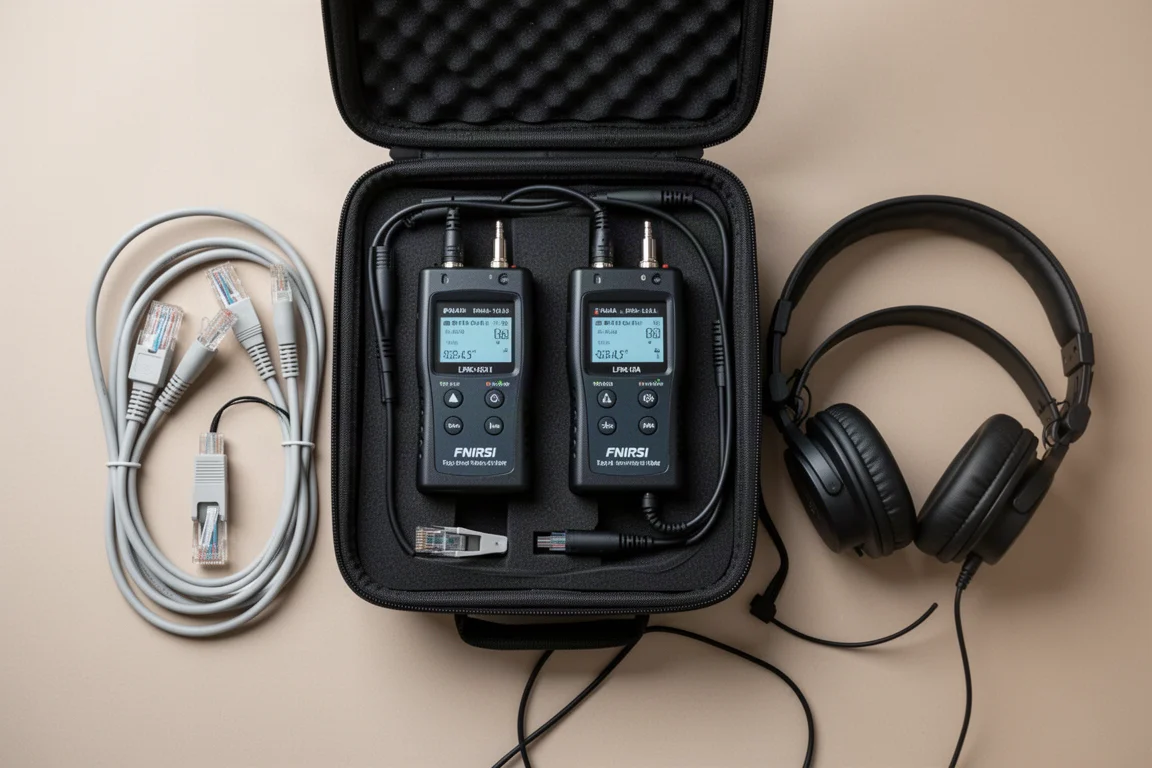

If you work with Ethernet cabling regularly, the FNIRSI LPM-10A offers a practical combination of testing functions in a single kit. The ability to test continuity, trace wires, measure length, verify PoE, and check switch port speed covers most common troubleshooting scenarios. The included accessories, such as the RJ45 test cable, RJ11 test clip, and adapter, add to its versatility.

For network installers, the PoE test and port flashing functions are particularly valuable. Being able to confirm power delivery before connecting a camera or phone, and quickly identifying which switch port a cable is connected to, can save considerable time on site. Home users who terminate their own cables will also find the continuity and QC tests helpful for verifying their work.

Conclusion

The FNIRSI LPM-10A is a well-rounded network cable tester that brings multiple diagnostic tools together in one portable package. Its combination of continuity testing, wire tracing, length measurement, PoE verification, and speed detection makes it a useful addition to any networking toolkit. At around $70, it offers good value for both professionals and serious hobbyists who want to keep their Ethernet infrastructure in good shape.
