DeWalt Power Tool Storage Kit Review: Wall, Toolbox, or Van Storage That Holds Real Weight

Introduction

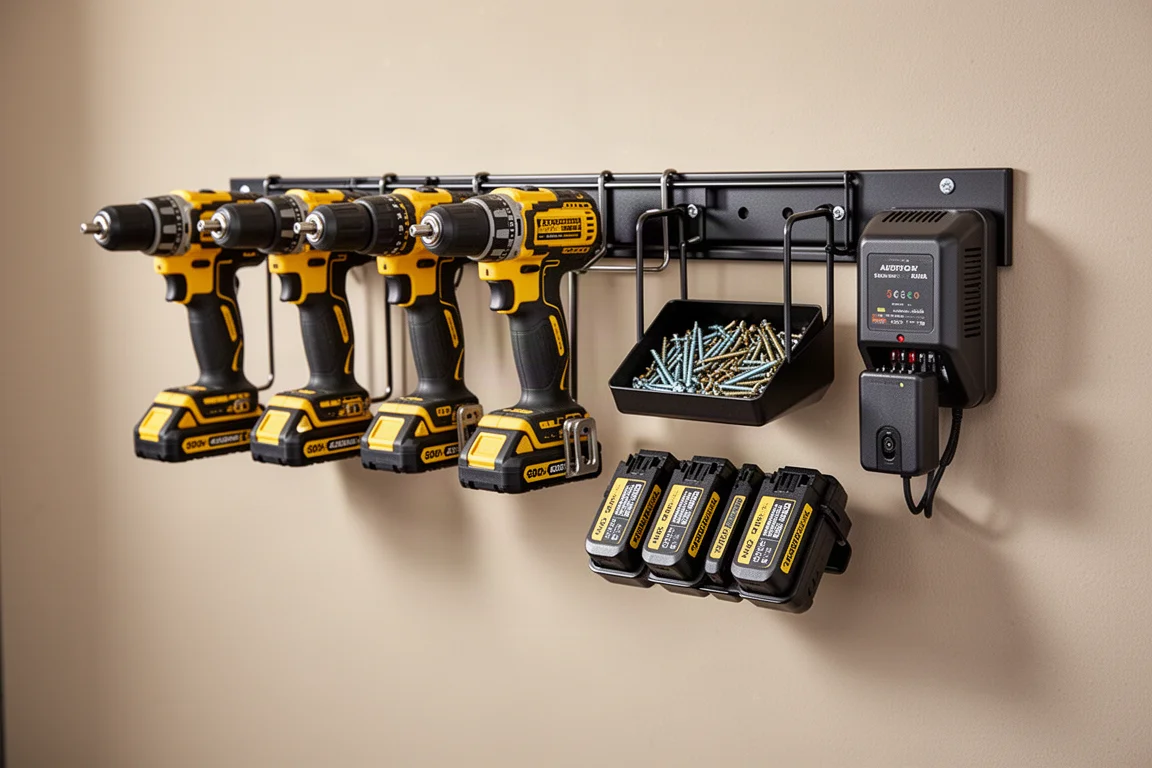

The DeWalt Power Tool Storage Kit is a wall-mounted, all-metal organization system for power tools, batteries, small hardware, and a charger. You can screw it onto the wall, bolt it onto a toolbox, or set it up in a van, and it is built to hold a significant amount of weight. Think of it as the Craftsman Versa Track system on steroids: everything here is metal rather than plastic, and the whole platform can hold a lot of different household and garage equipment with additional purchases.

It is not really designed for stacking, though you can put some pieces on top of each other. What it does do well is turn a small section of wall into a compact tool station without swallowing an entire garage wall.

What Comes in the Kit

The kit includes two brackets to mount on the wall, three hangers for power tools, two cubbies for whatever you would like to store, a battery charger mount, and a battery holder. Each cubby and hanger carries a 10 lb capacity, so anything under 10 lb can go in the tool hangers, and the cubbies handle screws, bolts, nuts, and other small material.

The rails come in 20-inch and 48-inch lengths, and there are little plastic end tabs that cap the rail for a clean finished look. There are also plenty of extra accessories available, including hangers for brooms and similar items, so the system can grow with your needs.

Assembly and Mounting Tips

Assembly is genuinely simple, even though the kit does not include a lot of instructions. Each tray uses two small metal clips that push up into the back section; there are tabs in the back and you need to push hard until you hear a click. If you do not push far enough, the silver piece falls out at the bottom and it is confusing until you realize the click is what holds it all in. To remove, push in on the bottom and everything comes back out.

For mounting, measure before you drill. If you use the end holes on the 48-inch rail, you will never find another hole on 16-inch centers. Skip over the DeWalt label and come in one hole, and every hole lines up on 16-inch centers, which is exactly what you want for catching studs on both ends of a 48-inch rail. It works on 12-inch centers too. The key is to do some measuring and avoid the end holes.

The hangers themselves work like the Craftsman Versa Track system: slide on the holder, then turn a knob and a piece comes up from the bottom to lock it into place. Most snap in easily, but some fit tight. That appears to be a stamping inconsistency, because as you slide a hanger across the rail it can get tight in certain spots. A wrench, which the kit includes a spot for, tightens things down. It is a little more effort than ideal, but a hammer and wrench will get anything on the rail.

One important note: without the plastic end tips installed, everything can slide right off the end of the rail. If you are mounting this in a van, glue those tips on or make sure they are secured so nothing slides off while driving.

Everyday Use: Tool Hangers and Cubbies

The power tool hangers hold just about anything with a handle. There is rubber on the inside and a hole in the front, so you can keep a bit installed or let the shaft of an impact wrench pass through. The DeWalt labeling on the side looks neat, styled like the front of an impact wrench.

A heavier drill with a battery attached sits in the hanger with no issue. With lighter tools, a larger battery such as a 6 amp hour pack can be pushed into place and held by the rubber, but it basically balances there rather than locking in. On a shop wall, pushed in tight and forward, it holds fine. If the setup is being driven around, such as in a van, it is smarter to avoid hanging a battery on a lighter tool.

The cubbies hold their 10 lb rating without any doubt; you can put serious force on them. They sit pop into place, do not move around, and do not rattle, because of how the tab holds them in. The battery holder is similarly secure: batteries sit in incredibly tight and will not vibrate the storage container. It is not as tight as some other pieces, so it does slide slightly along the rail, which could get annoying in a moving van, but a little foam behind it solves that.

The Battery Holder and Charger Mount

The battery holder accepts all DeWalt batteries, including FlexVolt packs. It connects to the rail just like every other accessory, sits flat, holds multiple batteries, and feels very secure.

The charger mount is set up to hold multiple DeWalt battery chargers, and with a bit of ingenuity it can adapt to fit just about any charger you would like. One pin is standard and welded into place; another is screwed in, and there are multiple screw locations for extra pins depending on your charger. You slide the charger onto the keyholes in the back, then line up the holes at the bottom and pop the included plastic plugs into place. Once seated, the charger is locked in and is not going anywhere. Some chargers can be screwed into place a bit more firmly as well.

Other brands are possible but require creativity. Milwaukee chargers center their mounting points, so nothing else lines up; you can flip the keyhole to the other side and it will hold the Milwaukee charger, but that is about it. A Makita charger would be simple to adapt with just one extra hole off to the side. With some time and patience, or an extra plate, you can make this work for almost anything, but it is clearly best if you are invested in the DeWalt ecosystem.

The Magnetic Power Strip: A Minor Design Miss

The kit includes a magnetic power strip, and on paper it is a great idea: stick it right on the rail and you are set. In practice, the rubber magnets on the back are too big to fit in the center of the rail, and there is really nothing to mount it on there.

It comes mounted on the battery backer, which is not a practical spot, because if you want to take a battery off while the strip is there, it will not hold the battery. For most people, the better move is to pop the strip onto something else. It works great on a toolbox or any other metal surface. You can also angle it downward on the rail so it sits fine, but for most setups, mounting it elsewhere is the cleaner answer.

Buying Advice

This system has some nuances, but the versatility is genuinely impressive. It does not take up a whole wall, just a small section, giving you room to pull tools in and out, and the look is clean. It is easy to use, easy to put together, and anyone can do it.

Buy it if you want sturdy, all-metal storage for drills, impact drivers, impact wrenches, batteries, and small hardware, especially if you already own DeWalt chargers and batteries, since the battery holder and charger mount are clearly optimized for that ecosystem. Plan to be invested in the DeWalt system to get the most out of the battery holder. It also pairs naturally with a 3D printer for anyone who wants to build out custom accessories for the rail.

Before mounting, take your time measuring, avoid the end holes, secure the plastic end tips, and decide where the magnetic power strip will actually live. Do that, and you are set.

Conclusion

The DeWalt Power Tool Storage Kit delivers serious weight capacity and real flexibility in a compact footprint, with a few quirks worth knowing: tight-fitting hangers in spots, a power strip that does not fit the rail well, and a battery holder that slides slightly. None of these are dealbreakers, and most have easy workarounds. For DeWalt owners looking to organize a shop wall, toolbox, or van, it is an easy system to recommend.
