DeWalt DCN920P1 XR Brushless 21° Cordless Framing Nailer Review

Introduction

For years, the cordless framing nailer conversation has revolved around one familiar name at the top of the heap. DeWalt has now entered its newest framing nailer lineup, spanning both 21° and 30° models, and the 21° plastic-collated version makes a strong case for reconsidering where you spend your money. The company still uses a flywheel system, but it has been meaningfully improved, and that improvement is exactly what this review sets out to verify.

This is the DeWalt XR Brushless 21° Cordless Framing Nailer, product number DCN920P1. The first impressions at a trade show were striking: zero ramp-up time, with rapid fire mode delivering full actuation from the very first nail. The question with any pre-production unit, of course, is whether the retail version holds up on a real job site.

Who this product is for

This nailer is aimed at framers, remodelers, and general contractors who want to drive 2-inch to 3-1/2-inch framing nails without a hose or compressor. It accepts 21° plastic-collated nails with diameters from 0.113 up to 0.48 inches, which covers the standard range of framing fasteners. The magazine holds 36 nails, and the tool weighs 8.65 lb without the battery.

If you already own DeWalt 20V batteries, this tool slots neatly into your existing ecosystem, and the included 5 amp hour XR pack means you can work out of the box. If you work in tight stud bays or joist bays, the nailer’s form factor is genuinely designed with those spaces in mind.

Main strengths

The headline feature is the improved flywheel system. A large flywheel spins up inside the head and builds inertia to strike the striker and drive the nail, and this generation reduces the lag that plagued earlier designs. The rapid fire mode sustains a genuinely quick pace on smooth shank nails, and single shot mode is available when precision matters more than speed.

Depth adjustment is handled by a roll wheel at the front: rolling one direction raises nail placement shallower, the other sinks nails deeper. At the base of the tool there is a simple selector between single shot and rapid modes.

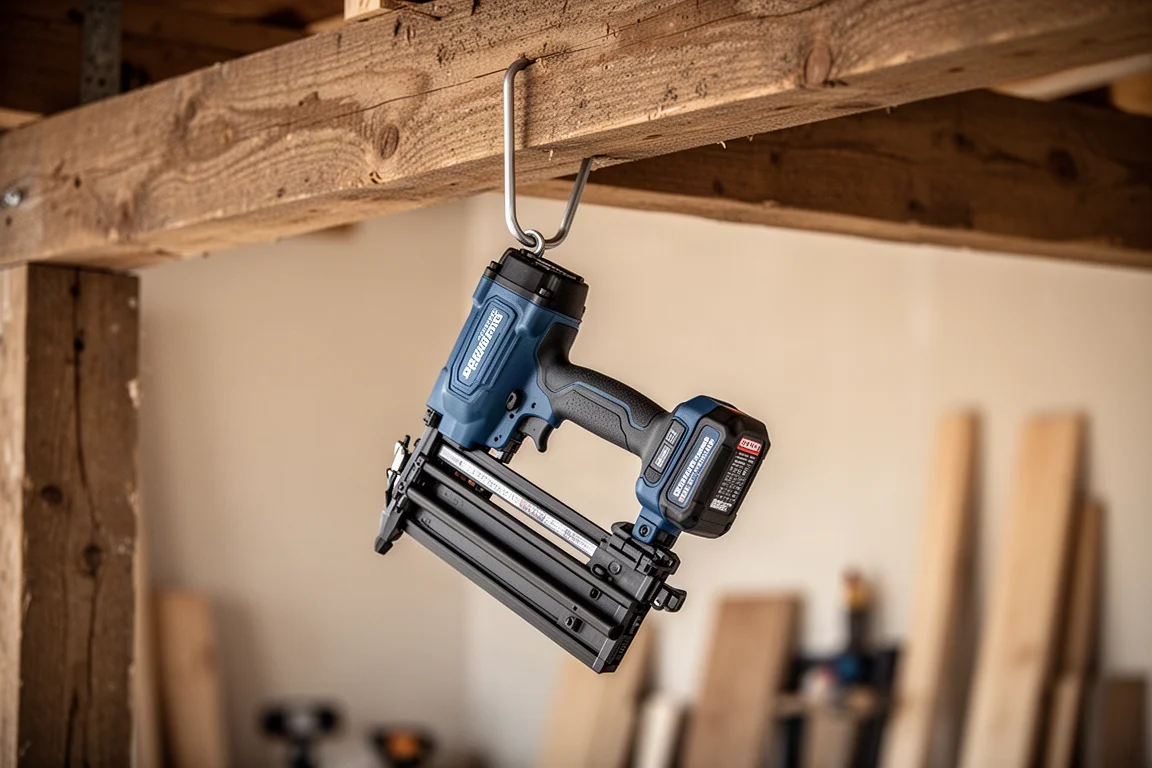

DeWalt has also thought about the small things. There is both a belt clip and a rafter hook, and the tool balances well enough to hang securely on a rafter or ladder. A front lever acts as a reset button if you get into a jam, with onboard storage for the Allen key needed to service the tool further. The kit also includes a contractor bag with reinforced skids at the base and side pockets for extra nail strips or compact batteries.

Things to consider before buying

The kit (DCN920P1) includes an XR 5 amp hour battery, the DCB1104 charger, and a bag. The charger is a rapid unit, though not DeWalt’s fastest, and it can charge both 20V and 12V batteries. DeWalt backs the tool with a 3-year limited warranty, one year of free service, and a 90-day money-back guarantee.

Two caveats are worth knowing. First, a full 36-nail magazine does not fit two complete strips, so a standard length trade-off exists; DeWalt has confirmed extended high-capacity magazines are planned. Second, hard-driving fasteners such as 3-inch ring shank nails noticeably sap momentum from the flywheel in rapid fire mode, and the tool can time out under that load. That is not unique to this nailer, since ring shank nails slow down every framing nailer, but it is worth understanding before you commit to it as your only nailer.

Buying advice

If your framing work is mostly smooth shank nails, this nailer’s rapid fire performance and zero ramp-up feel make it easy to live with, and it is vastly improved over the previous generation. If your daily diet includes lots of ring shank nails, expect a slower pace in rapid mode and consider how that fits your workflow.

For those who want more capacity between reloads, it may be worth waiting for the extended magazine option. And if you already run DeWalt batteries and chargers, the value of adding this tool to your kit increases further, since the included charger and battery work across the platform.

Conclusion

The DeWalt DCN920P1 brings a genuinely improved flywheel system, thoughtful ergonomics, and job-ready features like the rafter hook and jam reset lever to the 21° cordless framing nailer category. It is not flawless, with ring shank rapid firing being its toughest test, but the overall package suggests DeWalt has closed the gap with the long-standing category leader. For framers already in the DeWalt ecosystem, this is an easy tool to get excited about.
