DeWalt Countersink Drill Bits: A Simple Depth Stop Solution for Precise Drilling

Introduction

Some drilling jobs leave no room for error. Ski binding work is the classic example: screw holes have to stop at exactly the right depth, or you can damage the ski badly. The old tape-on-the-drill-bit trick works, but it is imprecise. These two DeWalt countersink drill bits offer a cleaner answer, because each one accepts an adjustable depth stop that you can set and lock with two allen screws.

How the Depth Stop Idea Works

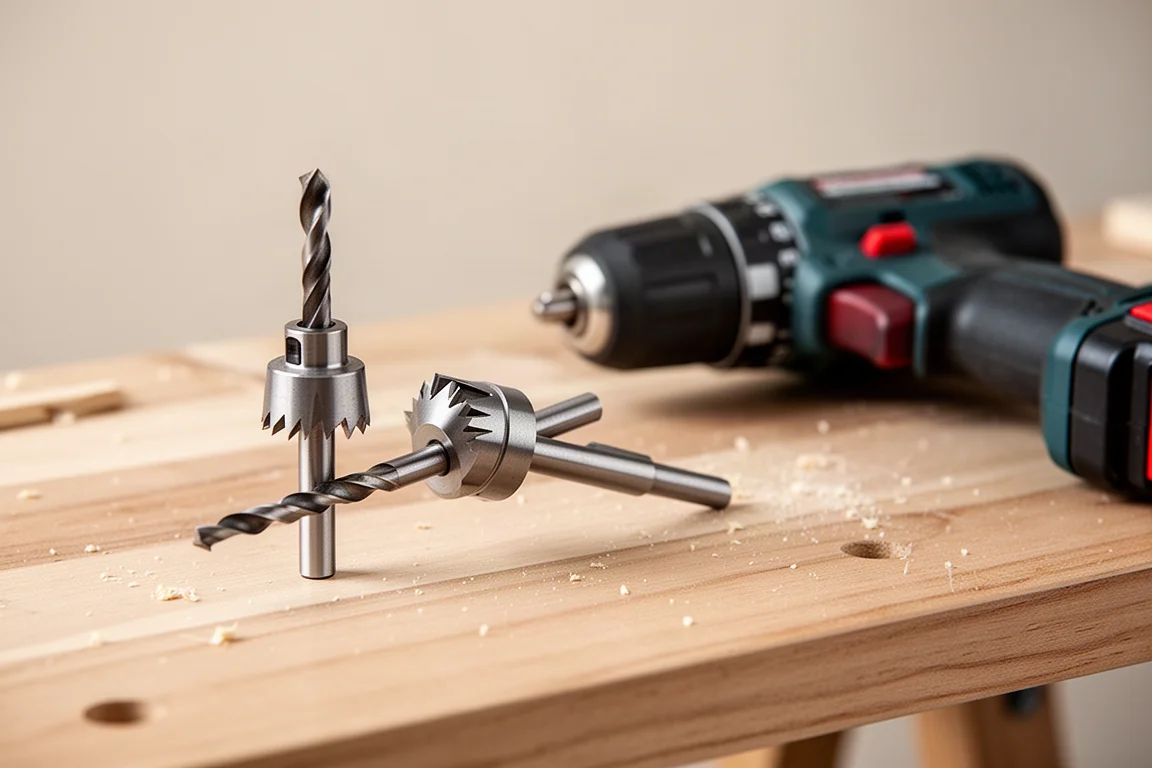

Each unit is built around a drill bit with a sliding depth gauge collar. You slide the collar to the depth you want, tighten the two allen screws, and the bit physically cannot go deeper. In its standard configuration, the bit drills the pilot hole and then countersinks, leaving the screw head flush with the mounting surface.

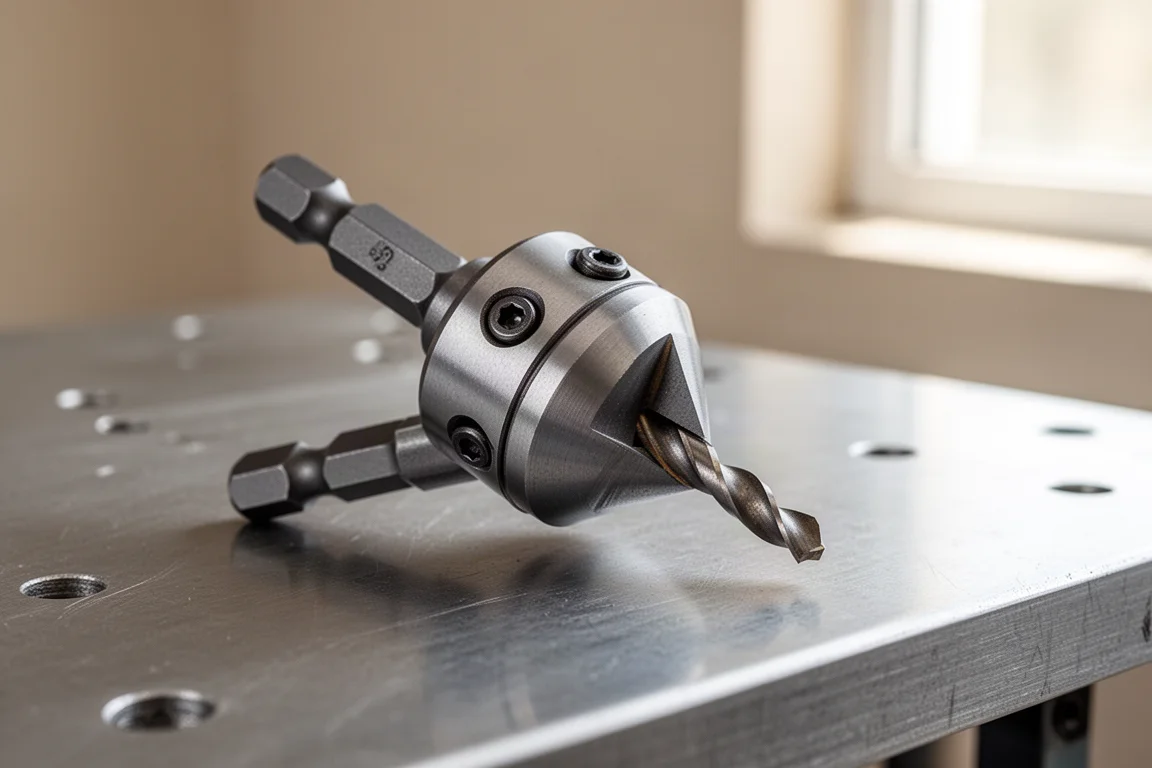

The Rapid Load version has indentations for a quarter-inch hex shank and comes sized for common drill bits in the number 6, 8, and 10 range. That flexibility across bit sizes is the main reason it works as a general-purpose depth stop rather than a single-job tool.

The Backwards Trick for Exact Depth

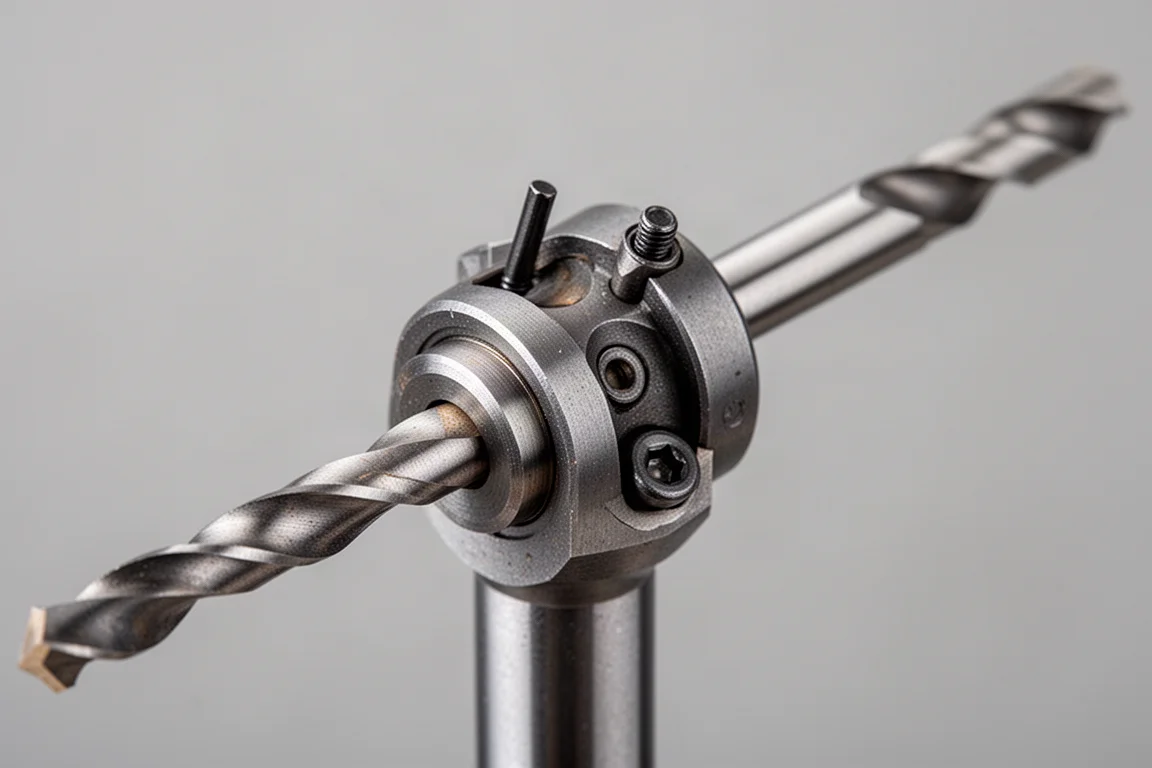

Here is where these bits get genuinely clever. The depth collar slides off the shaft and can be mounted backwards, reversing its position on the bit. In that reversed configuration, the collar acts as a hard depth limiter: the bit drills until it reaches the set point and then stops, no further.

One caveat matters. The drill bits supplied with the countersink units are tapered, and for applications like ski work that taper is too much. The fix is simple: the collar accepts other, conventional straight drill bits as well. Swap in a standard bit, slide the reversed collar to the exact screw depth, snug the allen screws, and the setup drills precisely to that line and no more.

Drilling to Depth Without Guesswork

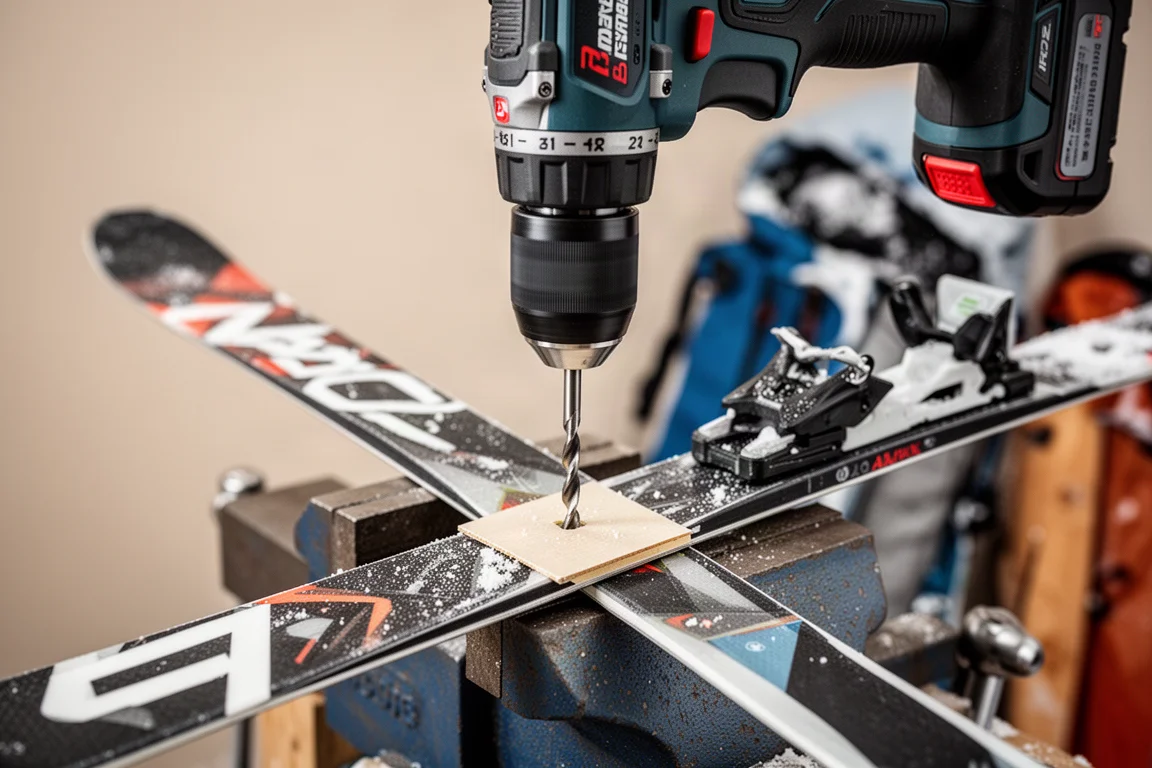

With the collar locked, the whole assembly goes straight into the drill. The result is consistent hole depth without hesitation or guesswork, which is exactly what you want when drilling into something expensive and unforgiving.

Compared with the bulky dedicated drill limiters on the market, this is a low-profile, inexpensive solution that also works across multiple bit sizes. Most standalone depth limiters are bigger and locked to one diameter, which makes this approach more flexible for a mixed tool drawer.

Which One Fits Your Setup

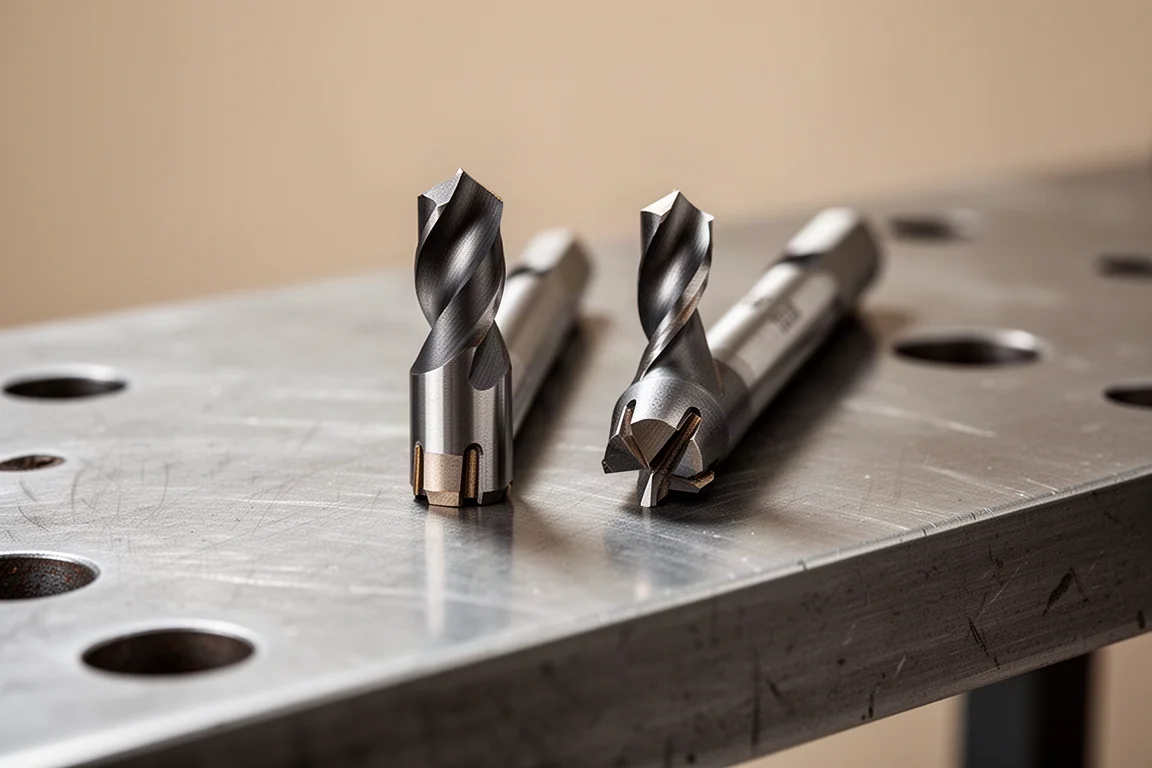

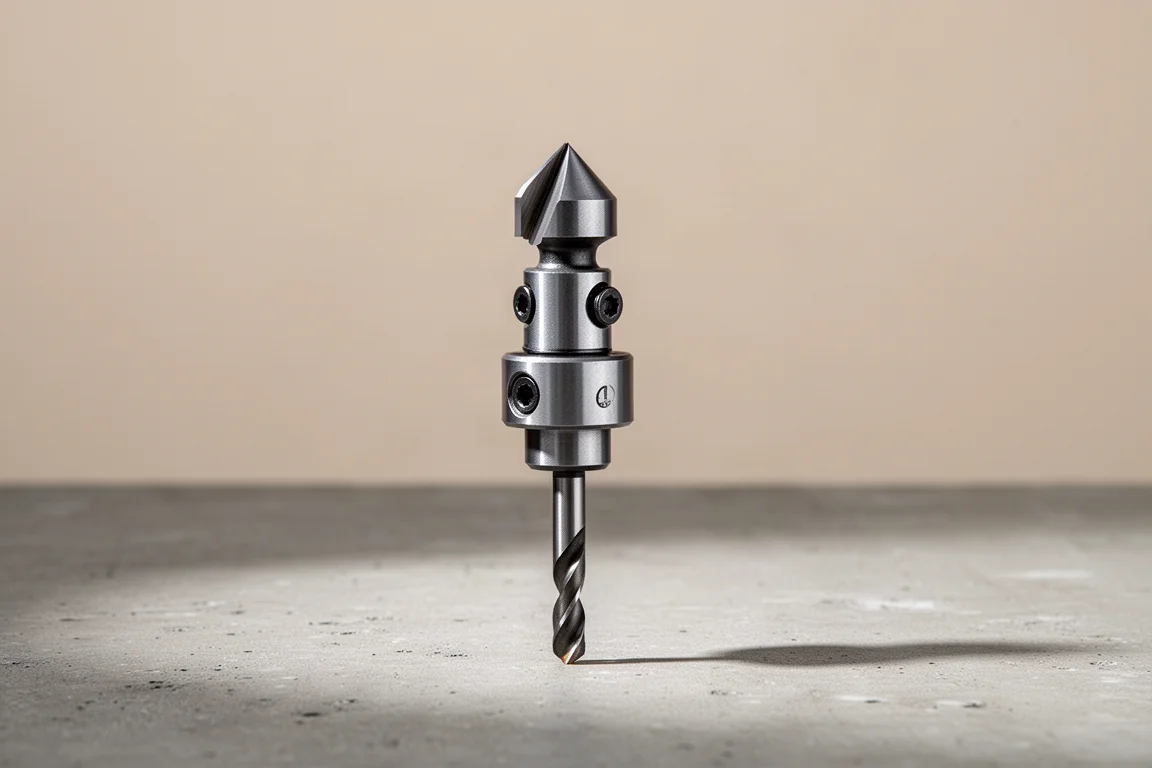

The two units are similar at the cutting head, but they differ in how they behave when the collar is reversed. The Rapid Load version carries the hex shank indentations and covers the number 6, 8, and 10 bit sizes. The smaller depth-stop unit is noticeably lower profile when the collar is mounted backwards, which helps in tight setups. The smaller bits that come with it can break more easily, and one of the number 10 versions is sold as a replacement, so it is worth keeping a spare conventional bit on hand either way.

For anyone who only occasionally needs exact depth control, either unit does the job. If you want one tool that adapts across several bit sizes, the Rapid Load is the more versatile pick. If a compact, low-profile stop matters most, the smaller unit has the edge.

Conclusion

These DeWalt countersink bits solve a narrow but frustrating problem: drilling to an exact depth without expensive dedicated tooling. The reversing depth collar trick turns a simple countersink attachment into an adjustable, repeatable depth stop, and swapping in a straight bit sidesteps the taper issue. For precision drilling around the workshop, they are a smart, inexpensive addition.
