Bosch GRD18V-127HX Review: A Right Angle Drill Built for Tight Spaces

Introduction

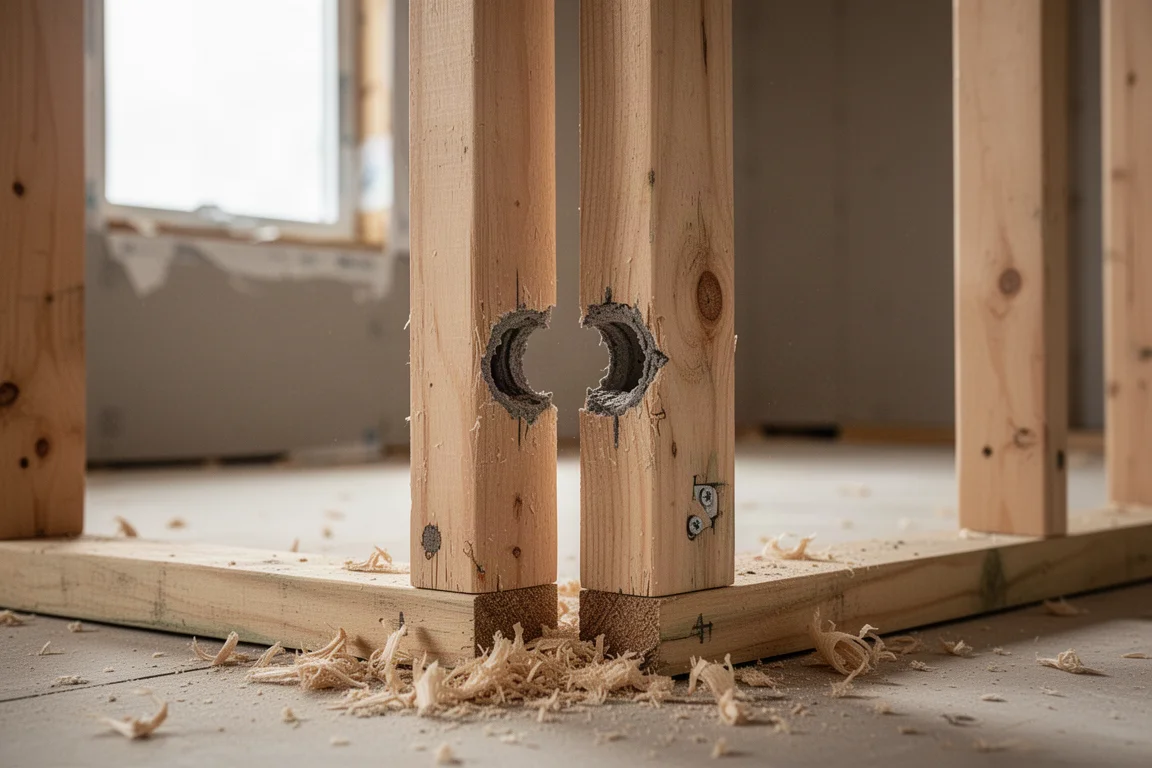

Anyone who has drilled holes for running cable or plumbing through a framed wall knows the problem: the space between studs is tight, and a full-size heavy duty drill does not make it any easier. Bosch’s new GRD18V-127HX is an 18V cordless right angle drill designed exactly for that job, with a compact head that reaches into cramped bays while still delivering serious torque.

Who This Drill Is For

This tool is aimed at rough-in drilling work, whether for new construction or remodels. Electricians, plumbers, and anyone pulling wire or pipe through framing will get the most out of it. The narrow right angle head is the whole point: it fits where a regular drill simply cannot.

The GRD18V-127HX is the hex-collet version of the GRD18V-127 family, and the compact size should not be mistaken for a lack of power. The brushless motor delivers plenty of torque at speeds of up to 550 or 1,800 RPM depending on the mode, so you can dial in the speed to bore through common construction materials smoothly without taxing the tool.

Safety and Handling

The standout feature is Bosch’s advanced kickback control. When a drill bit binds in wood, the rotational torque can wrench the tool out of your hands, and the wrist or arm usually takes the hit. With this drill, the tool shuts off by itself and an indicator illuminates to show what happened.

Handling is well thought out. The foregrip and trigger handle are both comfortable and allow ambidextrous use, and rubber overmold covers the front of the tool for protection. The drill weighs less than 7 lbs without a battery, which is genuinely light compared with other heavy duty right angle drills.

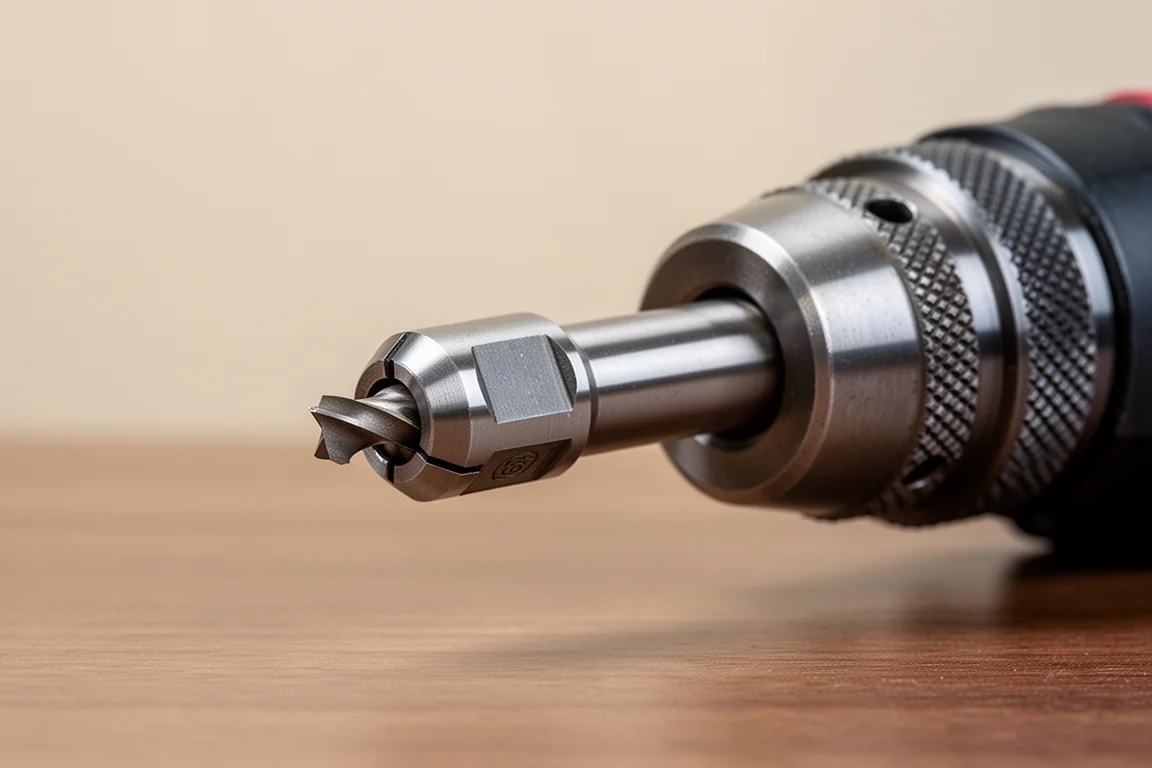

The 7/16-Inch Hex Quick-Change Collet

The HX model swaps the standard all-metal 1/2-inch keyed chuck for a 7/16-inch hex quick-change collet. That is the most common shank size for hole saws and boring bits, so swapping between them is fast and requires no chuck key. The rest of the features and performance are identical to the standard chuck model.

If you already run bits with 7/16-inch quick-change shanks, the HX version is the convenient choice. If you prefer the versatility of a full chuck, the standard GRD18V-127 remains available.

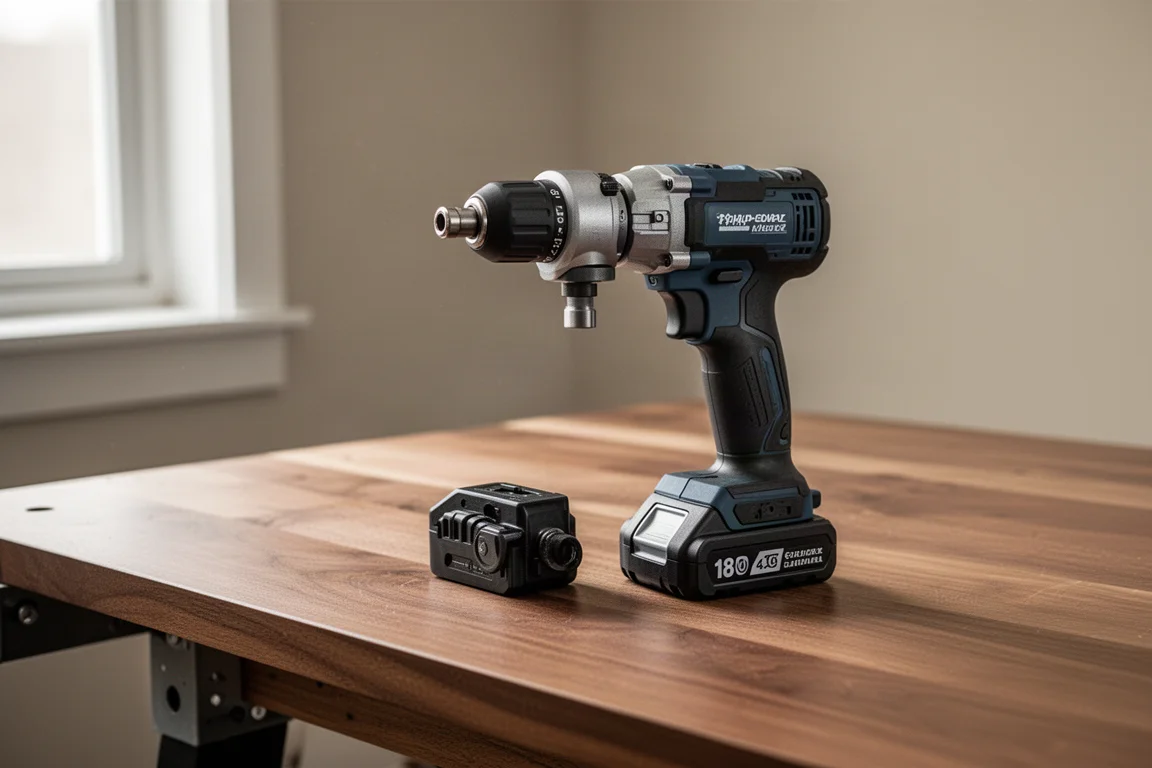

Battery System and Accessories

The drill runs on Bosch’s 18V battery system, so if you already own Bosch tools, your existing batteries will work with it. That alone makes it an easy add-on for anyone already in the platform. It also comes with a 5-year warranty, which adds confidence for a tool that will see hard jobsite use.

Real-World Performance

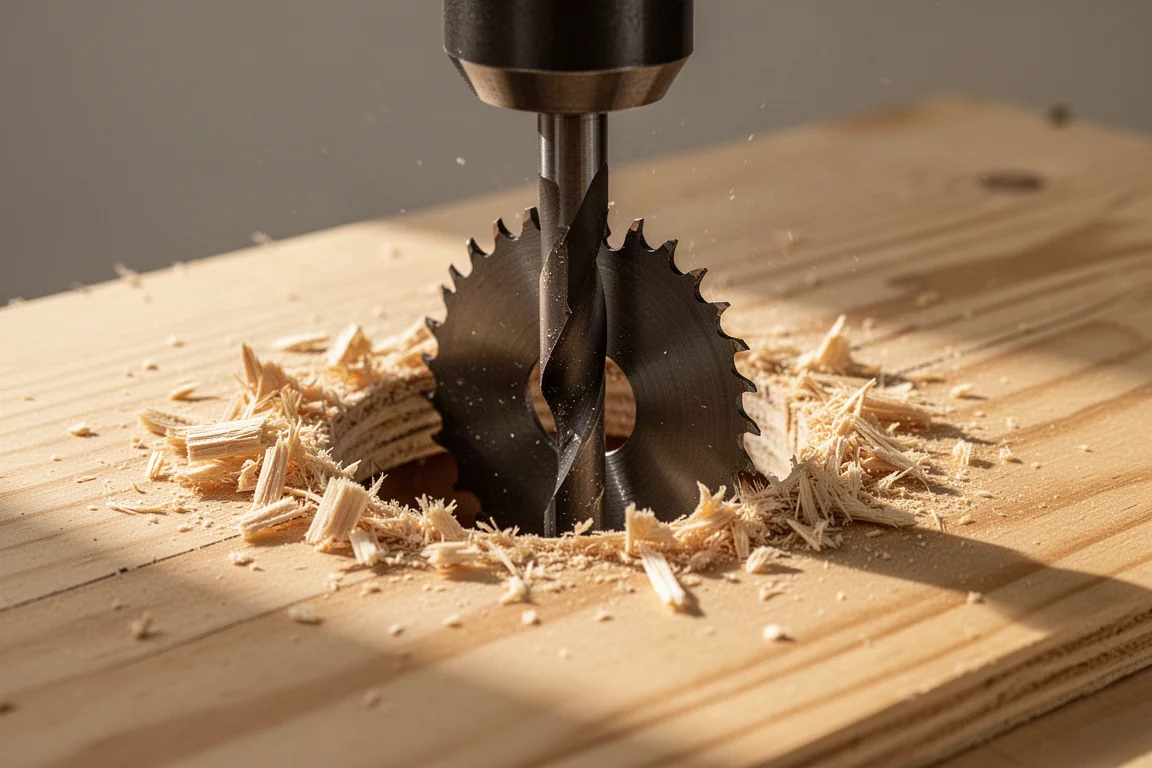

The drill is rated for hole saws up to 5 inches, which covers the kind of large holes needed for dryer vents and similar rough-in work. It handled that kind of boring duty cleanly, which is exactly what a right angle drill is asked to do.

For everyday holes between studs, the two-speed range lets you match the speed to the material, keeping the cut controlled and the motor from working harder than it needs to.

Things to Consider Before Buying

The main decision is chuck type: the 1/2-inch keyed metal chuck versus the 7/16-inch hex quick-change collet. The keyed chuck keeps the key clipped into a holder built into the handguard, so it is always on hand, but bit changes are slower than the hex collet’s.

Both models sell for $299 as a bare tool, so price does not influence the choice between them.

Buying Advice

If you are already using Bosch batteries, this drill is an easy recommendation for rough-in work. Even if you are not invested in the platform, it remains a compelling option thanks to its kickback control, light weight, and clean performance.

The only real choice is whether the 7/16-inch hex quick-change collet of the HX version or the standard 1/2-inch keyed chuck suits your bit collection better.

Conclusion

The Bosch GRD18V-127HX is a compact, well-protected right angle drill that takes the pain out of drilling between studs. Strong brushless torque, automatic kickback shutdown, a comfortable ambidextrous grip, and a 5-year warranty make it a practical choice for pros and serious DIYers alike.
