Best Thermal Imaging Camera: 12 Handheld Models Tested Head to Head

Introduction

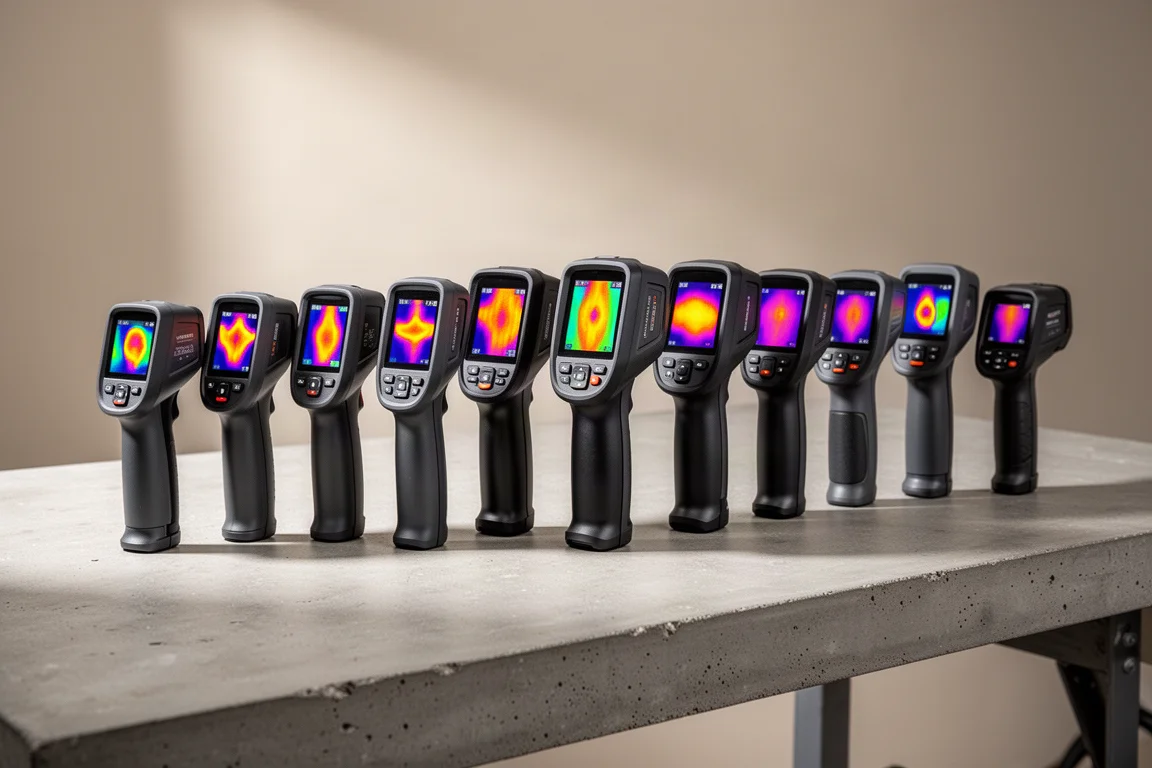

Thermal imaging cameras have dropped dramatically in price, but cheap and good are not always the same thing. To find out where the value really sits, twelve handheld models went through the same gauntlet: calibrated temperature accuracy tests against hot, cold, and reflective targets, boot-up timing, image quality and temperature contrast, and a few practical use-case checks. The spread runs from $110 to $438, and the results are genuinely surprising.

How We Compared Them

Every camera faced the same tests. First, a calibrated thermometer confirmed a concrete floor at 64.9 degrees Fahrenheit, giving each camera a chance to prove its room-temperature accuracy. High-temperature accuracy was measured against a steel plate holding steady near 440 degrees, cold performance against a 10-pound piece of steel fresh from the freezer at 14 degrees, and reflective-surface performance against a shiny aluminum wheel at 23.1 degrees. Boot-up time, weight, display size, and resolution rounded out the scorecard. Every camera was also drop tested from roughly six and a half feet.

Budget Picks Under $140

Beside Thermal Camera

At $110, the Beside is the least expensive camera in the lineup. It claims 240x240 resolution, a temperature range of -4 to 1,022 degrees Fahrenheit, 15 thermal palettes, a 320x240 TFT display, a 25 Hz refresh rate, storage for over 30,000 images on a memory card, and a 2,500 mAh rechargeable battery, with adjustable emissivity. It weighs 268 grams. In testing, it booted in 10.9 seconds, read 67.5 degrees against the 64.9-degree target, and lagged badly on high-temperature accuracy, missing by around 15.5 degrees. Its image is noticeably blurry compared to nearly everything else here, though hot spots remain easy to identify.

GoYoJo GH192

The GoYoJo GH192 costs $118 and claims 240x240 super IR resolution paired with a 2-megapixel visual camera, a 25 Hz refresh rate, a 2.8-inch display, the same -4 to 1,022 degree range, and a drop rating of 6.6 feet. It weighs 268 grams and boots in 12.1 seconds. It consistently outperformed the Beside: 67 degrees on the concrete test, within 4.5 degrees on the hot plate, within 2.4 degrees on the frozen steel, and within 1.1 degrees on the aluminum wheel. Its image is much crisper than the Beside’s, with easy-to-read temperature lines and a large temperature font.

Flag Front Thermal Camera

At $130, the Flag Front claims 240x240 super resolution, accuracy within 2 percent, a 6.6-foot drop rating, adjustable distance and emissivity, a built-in temperature alarm, video recording, and an SD card slot. It weighs 308 grams. It was the star of the room-temperature test at 64.8 degrees, missing the target by just 0.1 degrees, and it was equally close on the frozen steel at 14.2 degrees. High-temperature accuracy was its weak point, missing the 440-degree target by over 15 degrees, and its display never looked quite as crisp as the GH192’s.

Millsoe Thermal Camera

The Millsoe, also $130, claims super-resolution 192x192 imaging, accuracy within plus or minus 2 degrees C, high and low temperature alarms, and built-in 8 GB storage for more than 30,000 pictures. At 350 grams it is a bit heavier, and its 16-second boot time was the slowest of the budget group. But it nailed the hot-plate target at exactly 440.2 degrees, came within a fraction of a degree on the concrete at 64.1, and delivered the best image quality of the sub-$140 group on the space heater test, with strong color contrast and clear temperature variation. Its weak spot was the reflective aluminum wheel, off by 11.8 degrees.

AmpBank H128

At $133, the AmpBank H128 claims 24-hour battery life, 0.1-degree C temperature resolution, accuracy within plus or minus 3 percent, a 6.56-foot drop rating, and thermal clarity from 128x128 up to 240x240. It weighs 350 grams with a smaller 1.4 x 1.9-inch display. Boot-up was quick at 8.2 seconds, second fastest overall. Accuracy was excellent: 66 degrees on concrete, 440.1 degrees on the hot plate, and a near-perfect 14.1 degrees on the frozen steel. Its display simply does not offer as much resolution and detail as some rivals, which keeps it out of the image-quality conversation.

Mid-Range Options From $160 to $176

Foxwell Thermal Camera

The Foxwell costs $160 and claims a 320x240 display on a 2.8-inch screen, photo and video recording, 8 GB of storage, plus or minus 2 percent accuracy, and the familiar -4 to 1,022 degree range. It weighs 350 grams and boots in about 12.9 seconds. It came within a fraction of a degree on the concrete at 64.2, within 1.6 degrees on the hot plate, and within 3.5 degrees on the aluminum wheel. Its display is crisp, though it showed only two colors on the wall test where several rivals showed three to five.

HF96 Thermal Camera

At $166, the HF96 claims a 25 Hz infrared sensor, 11 hours of run time, an integrated laser pointer, thermal sensitivity below 50 MK, a 50-degree field of view, and accuracy within plus or minus 3.6 degrees F. It weighs 296 grams and posted the fastest boot time of the entire test at 7.7 seconds. Accuracy was superb: second place on the concrete at 65.5 degrees, right on the 14-degree frozen target, and within 2.2 degrees on the hot plate. Its image offered more detail than most rivals, clearly showing stud lines and even the dark spots of nails fastening the wall. Across all graded categories it earned the best average finish of the group.

Teslong Thermal Camera

The Teslong at $176 claims super resolution at 240x180 with a 3.2-inch LCD and 120x90 IR resolution, a temperature range of -4 to 752 degrees F, accuracy within plus or minus 2 degrees C, a 2,600 mAh battery, and 8 GB of built-in memory. At 312 grams it has the largest display in the mid-range group at 1.9 x 2.51 inches, and it boots quickly at 8.77 seconds. Accuracy was its problem: it missed the concrete target at 62.3 degrees, was off by roughly 67 degrees on the hot plate, and trailed the HF96 on the frozen steel. It was, however, the first camera to hit the 23.1-degree aluminum target exactly, and its color detail and resolution lag rivals.

Premium Tier: $299 and Up

HSF Tools F2W

At $299, the HSF Tools F2W claims 640x480 super resolution, a -4 to 1,022 degree range, thermal sensitivity below 40 MK, accuracy within plus or minus 3.6 degrees F, app image transfer with PC analysis, 16 GB of built-in storage, and up to six hours of continuous operation. It weighs 376 grams with one of the largest displays at 1.85 x 2.54 inches, and boots in about 9 seconds. This was the favorite of the entire lineup. Its display delivered tremendous detail with rich red, yellow, green, blue, and orange color separation, it ranked best on the wall contrast test, and it was the only camera that made a space heater’s grill visible in complete darkness. Accuracy matched the image quality, within 0.5 degrees on the hot plate and 1.3 degrees on frozen steel.

Topdon Thermal Camera

The Topdon, also $299, claims 320x240 IR resolution, 12-hour battery life, an included 32 GB SD card, a best-in-test temperature resolution of plus or minus 1 degree F, and a built-in 5,000 mAh battery. It is the heaviest camera here at 502 grams. It came within 0.2 degrees of the hot-plate target, the closest of any camera on that test, and within 0.7 degrees on the aluminum wheel. On cold and room-temperature checks it performed near the top as well. Its image looks impressive and shows more color detail than most, though not quite as crisp as the F2W.

Thermal Master Thermal Camera

At $399, the Thermal Master claims 512x384 IR resolution, a 640x480 3.5-inch IPS screen, a 60 Hz refresh rate, accuracy within plus or minus 3.6 degrees F, 8 GB of RAM with 32 GB of storage, and a 5,000 mAh lithium battery. At 708 grams it is the heaviest camera tested, and its 26-second boot time was by far the slowest. Its display is genuinely impressive, with a handy zoom and image clarity that matched the F2W on the space heater test. But calibration was a real concern: it was off by 6.6 degrees on the concrete target, and its low-temperature readings were way off target on both the frozen steel and the aluminum wheel.

Fleer Thermal Imaging Camera

The Fleer is the most expensive at $438 and the only camera made in Taiwan rather than China. It is a thermal imaging camera with a bullseye laser, marketed as commercial grade, claiming a 19,200-pixel IR resolution, a temperature range of -3 to 716 degrees F, a tough drop-tested design, 2-year parts and labor coverage, and 10-year detector coverage. At 370 grams it boots in 15.3 seconds. It was precise on the frozen steel at 14.1 degrees and close on the hot plate at 439 degrees, but missed the room-temperature target at 62.1 degrees and was off by 8.6 degrees on the aluminum wheel. Considering the price, its resolution and contrast do not match the F2W, Topdon, or Thermal Master, though its combined thermal and visible-light sensor captures more detail than most.

Practical Uses Worth Knowing

All of these cameras earn their keep in everyday situations. A thermal camera can spot a hot circuit breaker in an electrical panel before it becomes a real problem, locate hot spots on an engine, and find roof leaks or wet drywall, where even the tiniest damp area shows up clearly against the surrounding surface. Night vision is arguably the most fun application: these cameras reveal things in total darkness that would otherwise only be visible in daylight, working far better than a flashlight. And for anyone worried about durability, every camera in this comparison survived a drop from about six and a half feet without damage.

The Overall Winner

Ranking every graded category produced a clear result. The HF96 took first place overall with the best average finish at 4.7, combining excellent accuracy with a good-quality display and the fastest boot time in the test. The HSF Tools F2W and the AmpBank H128 tied for second at 4.9. The F2W remains the editorial favorite purely on display quality, while the H128 is nearly unbeatable on a tight budget.

Conclusion

The right thermal camera depends entirely on your priorities. If you want the best all-around value, the HF96 at around $166 is the standout, pairing top accuracy with quick boot-up. If image quality is everything and the budget allows, the F2W at around $299 is the most impressive display in the group. And if it is purely about price, the AmpBank H128 at around $133 is very hard to beat. The one caution from this comparison: price does not guarantee accuracy, as the most expensive models were not the most precise.
