Best 1-Inch Pistol Impact Wrenches: Three Air Hogs and One Cordless Contender

Introduction

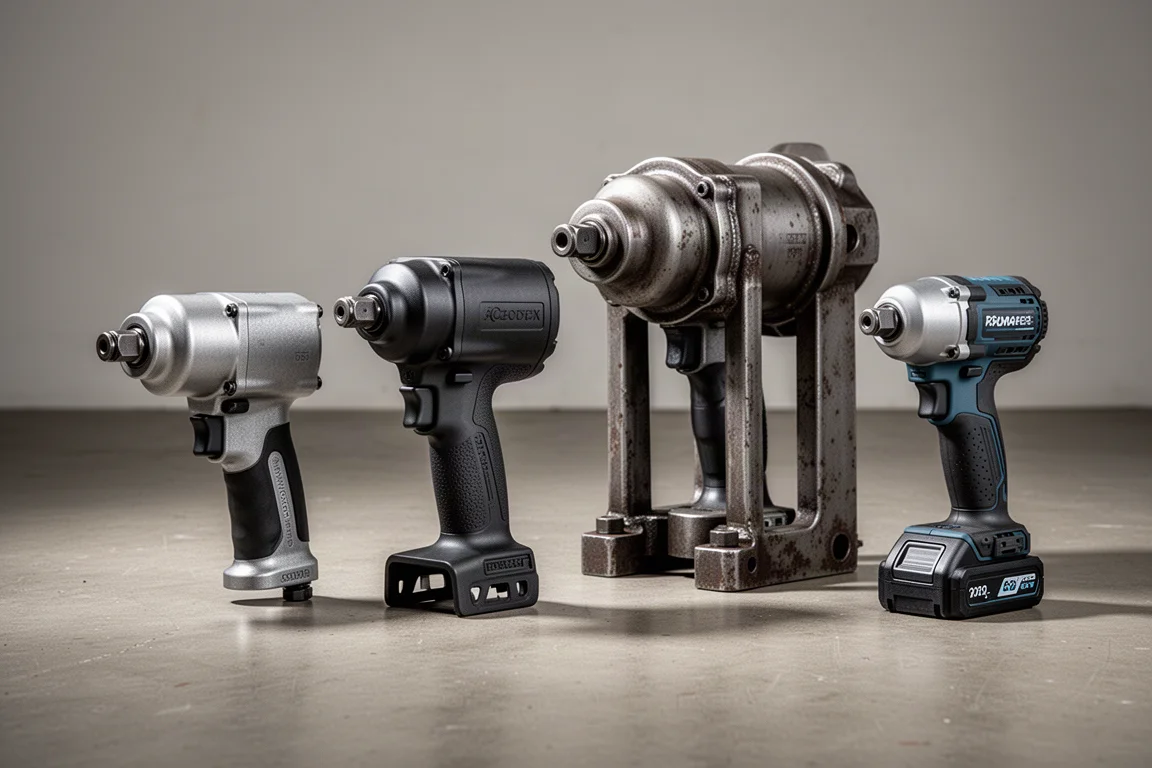

Full-size 1-inch drive impacts usually mean two-handed battering rams. Pistol-grip 1-inch guns trade some of that brute presence for a more manageable one-hand-friendly format, and the category has quietly gotten interesting. We lined up a long-owned budget Central Pneumatic, the new Harbor Freight Earthquake 1-inch pistol, a seriously oversized Caterpillar 222-3054, and DeWalt’s 3/4-inch DCF964 cordless for reference, then ran working torque, max dyno runs, and bolt breakaway tests to see where each one lands.

All of these pistol guns can run with a side handle, and the appeal over a big two-hander is size and theoretically weight. That theory gets bent a little in this crowd, but the format still earns its place for drain plugs, snug-up work, and general shop use.

Central Pneumatic 1-Inch Pistol Impact Wrench

The Central Pneumatic 1-inch pistol is the old faithful of the group: a useful snug-up gun to have around for drain plugs and similar tasks. It measures 9.2 inches long, which is not bad for 1-inch drive, and comes in at about 15 lbs. The all cast aluminum, no-composite construction does get heavy quickly, but the tool is easy to maintain and feed as long as your air system can keep up, because these are thirsty guns.

In the 5-second working torque test it posted 798 foot-lbs, only a small step up from the latest 3/4-inch Earthquake. With full shop pressure at 150 PSI in the 15-second best-case test, it climbed to 1,415 foot-lbs, a massive jump over the 1,161 it managed at lower pressure. This gun clearly loves all the air pressure it can get.

It was also noticeably better than the 3/4-inch DeWalt at removing a 1,450 foot-lb fastener, taking its time but getting there. For the money, it is not shabby at all.

Earthquake 1-Inch Pistol Impact Wrench

Harbor Freight’s new 1-inch Earthquake pistol is the highest torque pistol-shaped tool the store has ever sold, and it is girthy. It looks like a half-inch gun that got clicked and dragged larger: bigger direction switch, scaled-up wide handle, just about 10 inches long overall. It is composite-bodied and lighter than the Central Pneumatic at around 13.8 lbs, though nowhere near the advertised 25% lighter in this trim, and it still feels the part.

Specs claim 1,800 foot-lbs of tightening torque and 2,300 foot-lb bolt breakaway, with no published test length data behind those numbers. It also spins nearly 1,000 RPM higher, roughly 4,000 versus 3,000, which matters a lot in this class.

In testing it posted 801 foot-lbs in the working torque test, effectively trading blows with the Central Pneumatic early on, then 1,331 at lower pressure. It seems more efficient with air, running a compressor down more slowly and kicking it on less often under equal work. At the 90 PSI factory spec it also shows a noticeable advantage. There is one quirk: the three-speed dial does not divert enough air in lower power modes to cycle the large hammer, so it has to be used in high.

Caterpillar 222-3054 1-Inch Pistol Impact Wrench

The Caterpillar 222-3054 is the final boss of the bunch. At roughly $850 retail and about 23.8 lbs, it is nearly double the weight of the Earthquake, and parts of it just radiate heft. A useful buying tip from the 3/4-inch and 1-inch world: many of these guns are just smaller tools with a bigger anvil bolted on, and white-background product photos make it hard to judge size, so sorting by weight is often a smarter filter than trusting the spec sheet.

On the dyno it dominated. It recorded 940 foot-lbs in the working torque test, more than a full-size two-handed 1-inch cordless in the M18’s case with a 12 Ah Forge battery, then 1,677 on the big dyno, king of the heap in this crowd. It also out-hit a 1-inch Milwaukee D-handle with any battery, a 1-inch cordless Ingersoll Rand, a 1-inch Makita, and even a 1-inch air composite Ingersoll Rand. It hits like a Gatling gun but bounces off fasteners less, feeling unbothered by the work. Air consumption is in its own league, so bring a serious compressor.

Keep the gun aligned with the bolt head or nut to get the best out of it; off-kilter, the motor slows a bit. Its spec sheet lists 1,400 foot-lbs of tightening torque, the lowest on paper of the day, which tells you how much to trust specs in this category.

DeWalt DCF964 3/4-Inch Impact Wrench

The DeWalt DCF964 is not a 1-inch gun, but it earns its seat as the most powerful tested cordless pistol to date in its class and a useful benchmark. In the lower-pressure test it fully hit its stride, reaching 1,161 foot-lbs, closing in on the 1-inch air guns, while the air 3/4-inch Earthquake only caught up once pressure was turned up.

It weighs less than any of the 1-inch pistols, with a big battery attached, which keeps it comfortable for long sessions. Where it falls behind is sustained torque at the top end and on stuck fasteners, where the larger, slower-hitting air tools keep rotating what it cannot.

Bolt Breakaway and Reverse Performance

Forward dyno numbers only tell half the story. On removal of a 1,450 foot-lb fastener, the Central Pneumatic took its time but managed it, better than the powerful but slower DeWalt at around 9 seconds. The Earthquake, which is more reverse-favored by design, did the same task in only 5 to 6 seconds, which makes it a serious consideration for anyone who needs that bias.

The Caterpillar is simply laughably quick, finishing in about 3 seconds, faster than any cordless 1-inch tested to date. Starting from a full 1,750 foot-lbs, it removes just 1,450 in the same time the others need from 1,450. It is straight up a tank.

Overall Buying Advice

Scored as a function of performance and price, the Earthquake delivered strong marks at a $320 price tag, far below the typical $550-plus of this category, making it the value pick if you want modern efficiency, quieter running, and a reverse bias. The Central Pneumatic remains the budget workhorse if your compressor can feed it and you do not mind the weight. If pure cool factor and maximum breakaway power matter most, the Caterpillar takes the day; even its downsides feel badass. Cordless buyers should keep the DCF964 in mind only if they need portability over top-end torque.

Conclusion

For most shops, the new Earthquake 1-inch pistol is the smart buy: strong torque, better air efficiency, and a friendlier price than the category norm. The Central Pneumatic is the honest budget option, and the Caterpillar is the ultimate statement piece for those who want the biggest gun in the room.
