Aries Quarter-Inch Spring-Loaded Crow's Foot Wrench: A Small Tool That Reaches Where Nothing Else Can

Introduction

Some tools earn their place not through power or precision but by solving one specific problem nothing else can reach. The Aries quarter-inch spring-loaded crow’s foot wrench is exactly that kind of tool. It covers fasteners from 5 to 11 mm (3/16 to 7/16 inch), sits neatly at the small end of the sizing range, and has already proven itself on a plumbing job where every other wrench failed.

What the Aries Quarter-Inch Crow’s Foot Is

This is a quarter-inch version of a spring-loaded crow’s foot, sized for 5 to 11 mm or 3/16 to 7/16 inch fasteners. It fills the bottom end of a set that already includes two larger Matco-branded versions covering 8 to 17 and 14 to 32. The design is slightly different from the Matco pieces, but the same factory marks and indentations suggest they likely share an origin. The finish on the Aries is not quite as refined as the Matco, though that is a cosmetic note rather than a functional one.

What sets it apart from a standard crow’s foot is the built-in quarter-inch extension tang, which lets it plug directly into an extension bar. That small detail is what makes it usable in genuinely cramped spaces.

Why a Tool Like This Earns Its Spot

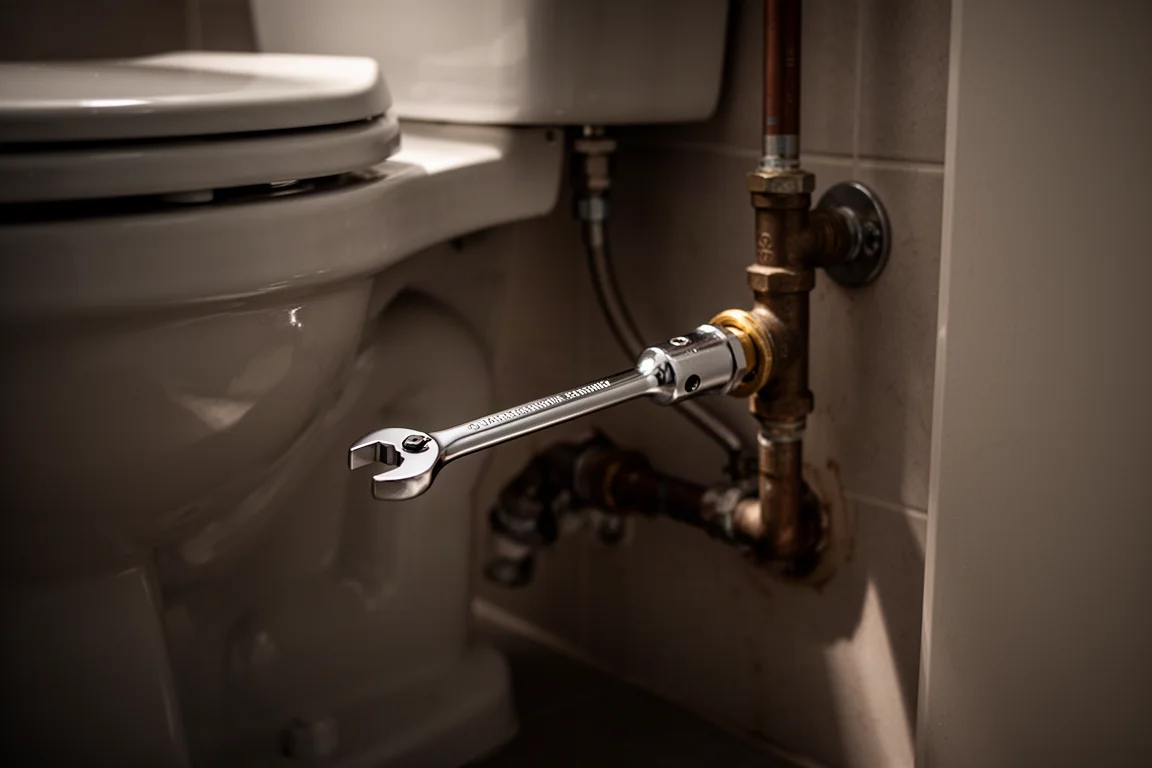

The purchase decision came from a real repair: replacing the flowmaster inside an old toilet. There was simply zero room to work. No ratchet, no pliers, no standard wrench could reach the ancient service line fitting. An adjustable crow’s foot was the only thing that could get in there, grab hold, break the fitting free, and then ratchet it out until it was loose enough to remove by hand.

That experience drove the point home. These small spring-loaded crow’s feet are absolutely essential in places where nothing else fits, letting you work a wrench into a spot you could not reach any other way. Once the missing size was identified, ordering the Aries to complete the range was the obvious move.

Fit and Retention: The Drive Ball Detail That Matters

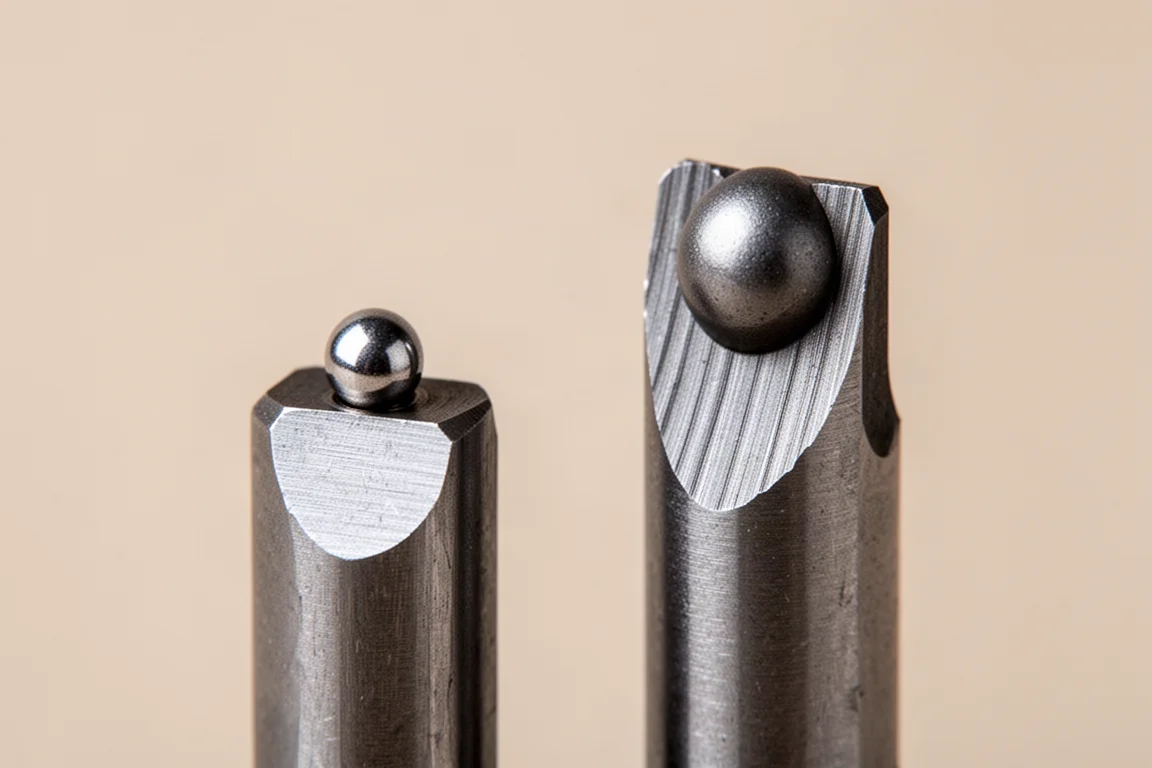

The quarter-inch tang slides into a standard quarter-inch drive, but retention depends on the ratchet’s ball detente. Testing against a Craftsman quarter-inch ratchet exposed a problem: that ratchet’s retaining ball barely protrudes, so the crow’s foot slides right off with a light tap. The chrome and broaching on that Craftsman are fine, but the weak ball detente is a functional failure.

On a Snap-on quarter-inch drive, the same crow’s foot seats nicely and stays solid. Even a wobble variant with a 3/8 ball holds it firmly. The takeaway: the tool itself is sound, but pairing it with a ratchet that has a properly protruding detente ball makes all the difference.

How It Compares to Spring-Loaded Wrench Designs

In use, the Aries feels very close to a Vira-style wrench, though the two approach the job differently. The Aries uses a single spring-loaded snap, while the Vira Joker relies on a camming mechanism with one more moving part, which is a touch more sophisticated. Both hang on well when seated properly and deliver plenty of torque.

There are also cheaper power-torque style versions sold at auto parts stores, and an upcoming comparison suggests their operation is noticeably less fluid and clean than the Aries, even though they cost less. For the price difference, the Aries appears to be the better-behaved tool.

Practical Use: Reach, Torque, and Everyday Verdict

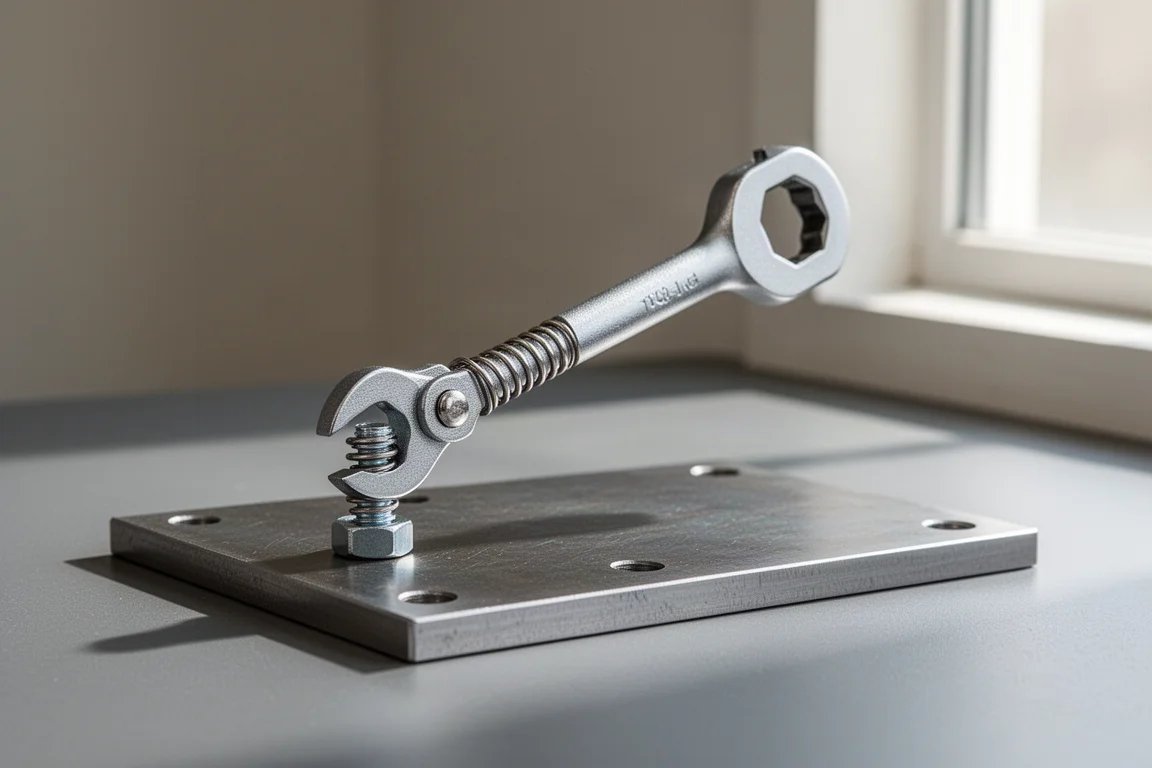

Hooked onto a small test fitting at the end of an extension, the wrench grips, holds, and lets you manipulate a fastener while working at a distance. That is the core value: reach plus controlled torque in spots that defeat conventional wrenches.

Anyone who works on old plumbing, automotive fittings, or any confined assembly will find moments where this is the only tool that works. It is not an everyday driver, but on the day you need it, nothing else substitutes.

Conclusion

The Aries quarter-inch spring-loaded crow’s foot is a niche tool that fully justifies its existence. It completes the small end of a sizing range, performs solidly when paired with a quality ratchet, and has already solved a real repair that no other wrench could handle. If you have ever been defeated by a fastener in an impossible spot, this is the kind of tool worth having on the shelf before that day arrives.
